Sylvie Willis

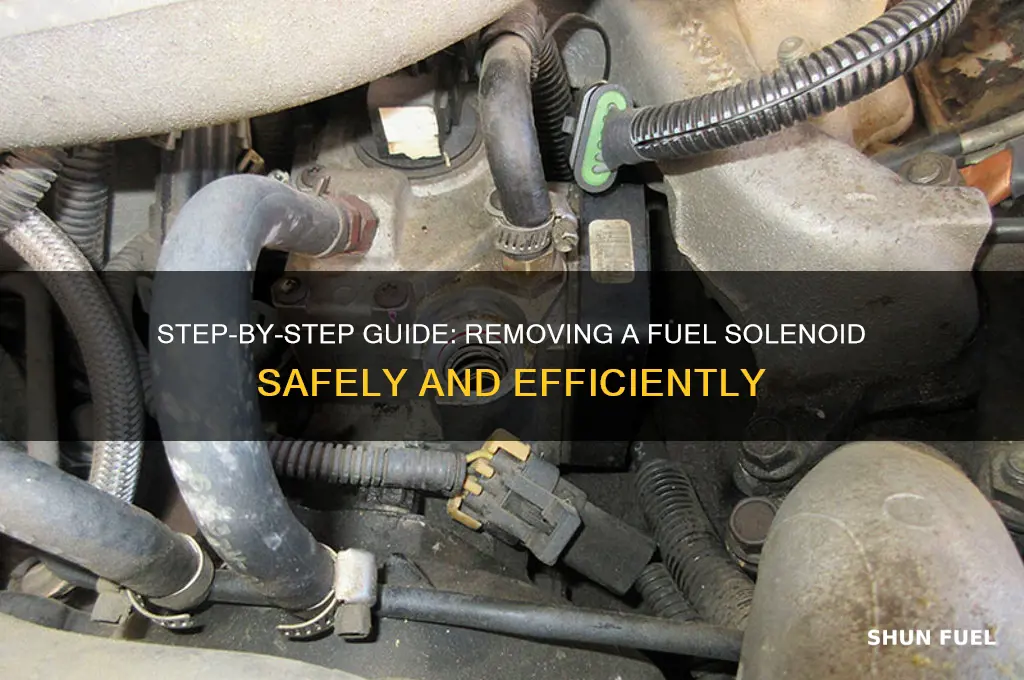

Removing a fuel solenoid can be a straightforward task if approached with the right tools and precautions. The fuel solenoid, a critical component in many fuel systems, controls the flow of fuel to the engine and is often located near the fuel rail or injector assembly. Before beginning, ensure the vehicle is turned off and the fuel system is depressurized to avoid any risk of injury or fuel spillage. Start by disconnecting the battery to prevent accidental ignition, then locate the solenoid and carefully detach the electrical connector and fuel lines. Depending on the vehicle model, you may need specific tools to remove retaining clips or bolts securing the solenoid in place. Once removed, inspect the solenoid for damage or wear and replace it if necessary, ensuring a proper seal to prevent leaks. Always refer to the vehicle’s service manual for model-specific instructions and safety guidelines.
| Characteristics | Values |
|---|---|
| Tools Required | Screwdriver, Pliers, Wrench, Safety Gloves, Safety Goggles, Fuel Line Disconnect Tool (if applicable) |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area, avoid open flames or sparks |
| Location of Fuel Solenoid | Typically near the fuel tank or fuel rail, consult vehicle manual for exact location |
| Steps to Remove | 1. Relieve fuel pressure 2. Disconnect battery 3. Locate fuel solenoid 4. Disconnect electrical connector 5. Remove mounting bolts/clips 6. Disconnect fuel lines (use tool if needed) 7. Remove solenoid |
| Common Issues | Stuck bolts, damaged fuel lines, electrical connector corrosion |
| Replacement Tips | Compare new solenoid with old one, ensure proper installation, reattach components in reverse order |
| Post-Removal Checks | Inspect fuel lines for leaks, test electrical connections, verify proper solenoid function |
| Vehicle Compatibility | Varies by make and model, consult vehicle manual or repair guide |
| Difficulty Level | Moderate (requires basic mechanical skills and tools) |
| Estimated Time | 30 minutes to 1 hour (depending on vehicle and experience) |
Explore related products
What You'll Learn
- Locate the Solenoid: Identify the fuel solenoid's position near the fuel injectors or rail
- Disconnect Battery: Ensure safety by disconnecting the vehicle's battery before starting
- Remove Electrical Connector: Gently detach the wiring harness from the solenoid
- Unbolt the Solenoid: Use appropriate tools to remove securing bolts holding the solenoid
- Clean and Replace: Clean the area and install the new solenoid, reconnecting all components
Locate the Solenoid: Identify the fuel solenoid's position near the fuel injectors or rail
The fuel solenoid is a critical component in modern fuel injection systems, responsible for regulating fuel flow to the engine. To remove it, you must first locate its position, which is typically near the fuel injectors or rail. This proximity is intentional, as it allows for efficient fuel delivery and precise control. In most vehicles, the solenoid is mounted directly on the fuel rail or adjacent to the injectors, connected by a short fuel line. Understanding this layout is essential, as it minimizes the risk of damaging nearby components during removal.
Locate the solenoid by first identifying the fuel rail, a tubular structure that distributes fuel to the injectors. The solenoid is often attached to this rail via a bracket or clamp, with electrical connectors and fuel lines leading to and from it. If your vehicle has a returnless fuel system, the solenoid may be integrated into the fuel pump module, requiring additional disassembly. For vehicles with a return-style system, the solenoid is usually a standalone unit near the injectors. Always consult your vehicle’s service manual for specific placement details, as designs vary across makes and models.
A comparative analysis reveals that locating the solenoid is simpler in older, carbureted engines, where fuel delivery systems are less complex. In contrast, modern fuel-injected engines require careful inspection due to the compact arrangement of components. For instance, in a V6 engine, the solenoid might be nestled between the cylinder banks, demanding extra caution to avoid contact with hot surfaces. Conversely, inline engines often position the solenoid on the side of the fuel rail, making it more accessible. Recognizing these differences streamlines the process and reduces the likelihood of errors.
To pinpoint the solenoid’s exact location, start by removing the engine cover and tracing the fuel lines from the tank to the rail. Look for a cylindrical or rectangular component with electrical wires attached, typically near the injectors. In some cases, the solenoid may be concealed beneath a protective cover or insulation, requiring you to remove these obstructions for access. Use a flashlight and a mirror if visibility is limited, especially in tight engine bays. Once identified, mark the solenoid’s position with a piece of tape or a mental note to ensure you return to it during removal.
Practical tips include disconnecting the battery before beginning to prevent accidental activation of the fuel pump. Additionally, relieve fuel system pressure by locating the Schrader valve on the rail and pressing it with a tool wrapped in a rag to capture any residual fuel. Always work in a well-ventilated area and avoid open flames or sparks, as fuel vapors are highly flammable. By systematically locating the solenoid and taking these precautions, you set the stage for a safe and efficient removal process.
Is JB Weld Fuel Resistant? A Comprehensive Guide to Its Durability
You may want to see also
Explore related products
Disconnect Battery: Ensure safety by disconnecting the vehicle's battery before starting
Before attempting to remove a fuel solenoid, a critical safety measure often overlooked is disconnecting the vehicle's battery. This step is not merely a precautionary tale but a fundamental practice rooted in electrical safety. The fuel system, being inherently volatile, demands that all power sources are neutralized to prevent accidental ignition. By disconnecting the battery, you eliminate the risk of electrical arcing, which could spark a fire or cause damage to sensitive components. This simple action can be the difference between a routine repair and a hazardous situation.
From a procedural standpoint, disconnecting the battery is straightforward yet requires attention to detail. Start by locating the battery, typically found in the engine bay or trunk, depending on the vehicle make and model. Use a wrench or socket to loosen the nut on the negative terminal (marked with a "-" symbol) and carefully remove the cable. Ensure the cable does not come into contact with any metal surfaces while you work. For added safety, some technicians wrap the disconnected cable in electrical tape or secure it away from the battery. This step should take no more than 5 minutes but provides invaluable peace of mind.
Comparatively, skipping this step can lead to complications that far outweigh the time saved. Modern vehicles are equipped with complex electronic systems, and even a minor electrical surge can trigger error codes or damage the ECU. In older vehicles, the risk of short circuits or unintended fuel pump activation is equally concerning. By disconnecting the battery, you not only protect yourself but also safeguard the vehicle’s integrity, ensuring that the repair process remains smooth and free from unnecessary setbacks.
A practical tip to enhance safety further is to wait at least 10 minutes after disconnecting the battery before proceeding with the fuel solenoid removal. This allows any residual charge in the system to dissipate fully, minimizing the risk of electrical discharge. Additionally, wearing insulated gloves and working in a well-ventilated area can provide an extra layer of protection. These small precautions, combined with the initial battery disconnection, create a robust safety framework for tackling fuel system repairs.
In conclusion, disconnecting the vehicle’s battery is a non-negotiable step in the process of removing a fuel solenoid. It exemplifies the principle that safety should always precede efficiency in automotive repairs. By understanding the rationale behind this practice and implementing it meticulously, even novice mechanics can approach this task with confidence, knowing they have mitigated the most significant risks involved.
Unveiling the Molecular Engines Driving Vesicle Transportation in Cells
You may want to see also
Explore related products
Remove Electrical Connector: Gently detach the wiring harness from the solenoid
Detaching the electrical connector from the fuel solenoid is a delicate step that requires precision to avoid damage. Begin by locating the wiring harness connected to the solenoid. This harness is typically secured with a clip or a locking mechanism designed to ensure a stable connection. Before proceeding, inspect the area for any signs of corrosion or wear, as these can complicate the removal process. If corrosion is present, consider using a mild electrical contact cleaner to gently clean the area, ensuring no debris remains that could interfere with the disconnection.
The next step involves gently disengaging the wiring harness from the solenoid. Most connectors are designed with a release tab or lever that, when pressed or lifted, allows the harness to be pulled away. Apply even pressure to the release mechanism, avoiding excessive force that could break the tab or damage the connector. If the release mechanism is not immediately visible, consult the vehicle’s service manual for specific instructions, as designs vary across makes and models. For example, some connectors may require a small screwdriver to depress a hidden latch.
Once the release mechanism is activated, carefully pull the wiring harness straight away from the solenoid. Avoid tugging at an angle, as this can strain the wires or damage the connector pins. If the harness feels stuck, double-check that the release mechanism is fully disengaged. In some cases, a slight wiggle may be necessary to free the connector, but always prioritize gentle movements to preserve the integrity of the components. After detachment, inspect the connector for bent pins or loose wires, addressing any issues before proceeding with the solenoid removal.
A practical tip for this step is to label the wiring harness or take a photo before detachment, especially if working on a complex system with multiple connectors. This ensures correct reinstallation later, preventing potential electrical issues. Additionally, if the connector is difficult to access, consider using a mirror or a flashlight to improve visibility. By approaching this step methodically and with care, you minimize the risk of damage and ensure a smooth continuation of the fuel solenoid removal process.
Best Fuel Options for Efficient Smeltery Operations: A Comprehensive Guide
You may want to see also
Explore related products
Unbolt the Solenoid: Use appropriate tools to remove securing bolts holding the solenoid
Removing the securing bolts that hold the fuel solenoid in place is a critical step in the disassembly process, and precision is key. Begin by identifying the type of bolts used—typically hex or Torx—and select the appropriate socket or wrench to match. Using the wrong tool can strip the bolt heads, complicating the task and potentially damaging the component. For stubborn bolts, apply a penetrating oil like WD-40 or PB Blaster 15–30 minutes beforehand to loosen rust or corrosion. Always ensure the ignition is off and the fuel system is depressurized to avoid accidents.
The technique for unbolting the solenoid varies depending on its location and accessibility. In some vehicles, the solenoid is mounted in a tight space, requiring a swivel-head ratchet or a long-handled wrench for leverage. Work methodically, loosening each bolt a quarter-turn at a time in a diagonal or crisscross pattern to prevent warping the mounting flange. Keep track of bolt positions, as some may be different lengths or thread sizes, ensuring proper reassembly. If a bolt breaks or rounds off, use an extractor tool like a spiral flute extractor to remove it without damaging the housing.
A comparative analysis of tools reveals that impact wrenches, while efficient, can overtighten or damage bolts during reassembly. Hand tools offer better control, especially for delicate components like fuel solenoids. For metric bolts, a 10mm or 12mm socket is commonly used, while SAE applications may require a 3/8-inch or 7/16-inch wrench. Always inspect the bolts for wear or damage before removal; replacing them during reassembly can prevent future issues. This step-by-step approach ensures the solenoid is unbolted safely and efficiently.
Persuasively, investing time in this step pays dividends in the long run. Rushing or using improper tools can lead to costly repairs or extended downtime. For instance, a stripped bolt in a hard-to-reach area may require professional intervention. By prioritizing accuracy and using the right tools, even novice mechanics can confidently tackle this task. Remember, the goal is not just to remove the solenoid but to do so in a way that preserves the integrity of the surrounding components for future functionality.
Descriptively, the process of unbolting the solenoid is a tactile and visual experience. The metallic click of the wrench engaging the bolt, the gradual resistance as it loosens, and the final release of the solenoid from its mount are all indicators of progress. Pay attention to the condition of the bolts and mounting surface—rust, oil residue, or cracks can signal underlying issues. Once the bolts are removed, gently lift the solenoid, taking care not to tug on any attached wiring harnesses. This careful approach transforms a potentially daunting task into a manageable, even satisfying, part of the repair process.
Does 2-Stroke Fuel Separate? Understanding Ethanol Issues in Gasoline
You may want to see also
Explore related products
Clean and Replace: Clean the area and install the new solenoid, reconnecting all components
After removing the old fuel solenoid, the area around the mounting point is likely to be contaminated with dirt, debris, and residual fuel. These contaminants can compromise the performance and longevity of the new solenoid if left unaddressed. Begin by using a clean, lint-free cloth to wipe away any visible dirt and grime. For stubborn residue, apply a small amount of carburetor cleaner or brake cleaner to the cloth, ensuring the area is thoroughly degreased. Avoid using solvents that leave oily residues, as these can interfere with the solenoid’s operation. Inspect the mounting surface for corrosion or damage; if present, use a fine-grit sandpaper to smooth the area, ensuring a secure fit for the new component.
Installing the new fuel solenoid requires precision and attention to detail. Align the solenoid with the mounting holes and secure it using the original bolts or new ones of the same specifications. Torque the bolts to the manufacturer’s recommended value, typically between 10 to 15 foot-pounds, to prevent over-tightening, which can damage the component or its housing. Ensure the solenoid’s electrical connector is properly seated and locked into place, as a loose connection can cause intermittent operation or failure. If the solenoid includes a fuel line or hose, verify that all connections are tight and sealed to prevent leaks, which pose a fire hazard.
Reconnecting all components involves more than just physical attachment; it requires a systematic approach to ensure functionality. Start by reattaching the fuel lines, ensuring clamps or quick-disconnect fittings are secure. Next, reconnect the electrical harness, double-checking that the wiring is routed away from hot surfaces to prevent melting or short circuits. If the vehicle has a fuel pressure regulator or related sensors, inspect their connections as well, as these components often work in tandem with the solenoid. Once everything is reconnected, perform a visual inspection to confirm no tools or debris have been left in the engine bay.
Before starting the vehicle, conduct a final safety check. With the ignition off, verify that all fuel lines are secure and there are no visible leaks. Turn the ignition to the "on" position (without starting the engine) and listen for the solenoid’s characteristic click, indicating it’s receiving power. If equipped, use a fuel pressure gauge to ensure the system is holding pressure correctly. After starting the engine, monitor for unusual noises, vibrations, or fuel odors, which could signal an installation issue. This meticulous approach ensures the new solenoid operates reliably, restoring the vehicle’s fuel system to optimal performance.
Does Safeway Stock Camping Fuel? A Shopper's Quick Guide
You may want to see also
Frequently asked questions
Typically, you will need a wrench or socket set, pliers, a screwdriver, and possibly a fuel line disconnect tool. Always refer to your vehicle’s manual for specific tools.
Relieve the fuel system pressure first by locating the fuel pressure relief valve or disconnecting the battery. Then, carefully disconnect the fuel lines using a fuel line disconnect tool or pliers, ensuring no fuel spills.
Yes, work in a well-ventilated area, avoid open flames or sparks, and wear safety goggles and gloves. Ensure the engine is cool and the ignition is off to prevent accidents.
