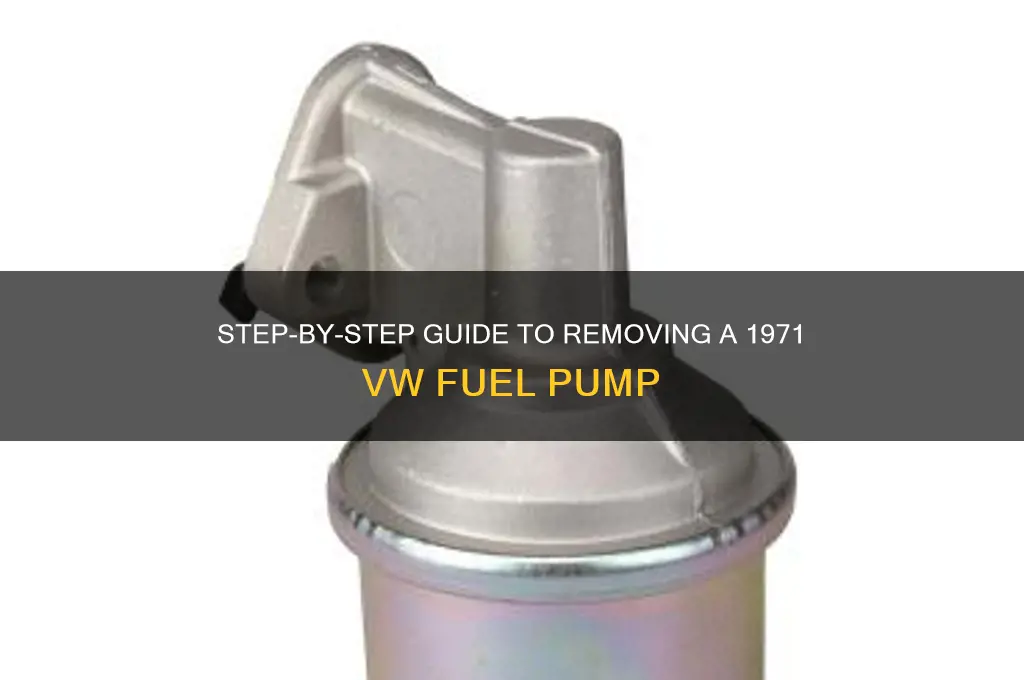

Removing the fuel pump on a 1971 Volkswagen requires careful attention to detail and the right tools. Start by ensuring the vehicle is on a level surface and the engine is cool. Disconnect the battery to prevent any accidental sparks. Locate the fuel pump, typically mounted on the engine block near the carburetor, and relieve the fuel system pressure by loosening the fuel line connection. Use a wrench to disconnect the fuel lines, taking care not to spill fuel. Next, remove the mounting bolts securing the pump to the engine, and gently lift the pump out. Be prepared to catch any residual fuel and clean the area before proceeding with replacement or inspection. Always refer to the vehicle’s manual for specific details and safety precautions.
| Characteristics | Values |
|---|---|
| Vehicle Model | 1971 Volkswagen Beetle or Type 1 |
| Fuel Pump Type | Mechanical fuel pump (typically Bosch or similar) |
| Tools Required | Wrenches (10mm, 13mm), Screwdriver, Pliers, Drain Pan, New Fuel Hose (if replacing) |
| Location of Fuel Pump | Mounted on the engine block, near the carburetor |
| Steps to Remove | 1. Disconnect battery. 2. Relieve fuel pressure. 3. Disconnect fuel lines. 4. Remove mounting bolts. 5. Lift out the pump. |
| Fuel Line Connections | Inlet and outlet lines connected via hose clamps or fittings |
| Mounting Bolts | Typically two bolts securing the pump to the engine block |
| Safety Precautions | Work in a well-ventilated area, avoid open flames, and wear safety goggles |
| Common Issues | Leaking fuel lines, corroded fittings, or a seized pump |
| Replacement Considerations | Ensure new pump is compatible with the 1971 VW's carbureted system |
| Post-Removal Steps | Clean mounting area, install new pump (if applicable), and reconnect lines |
| Difficulty Level | Moderate (requires basic mechanical skills) |
| Estimated Time | 30-60 minutes depending on experience and condition of parts |
Explore related products
What You'll Learn
Disconnect Battery and Fuel Lines
Safety is paramount when working on any vehicle, especially when dealing with fuel systems. Before diving into the fuel pump removal process on your 1971 VW, the first critical step is to disconnect the battery and fuel lines. This not only prevents accidental ignition but also minimizes the risk of fuel spills or leaks, which could lead to hazardous situations. Start by locating the battery, typically found in the engine compartment or trunk, depending on your VW model. Use a wrench to loosen the battery terminal nuts, beginning with the negative terminal to avoid electrical shorts. Once disconnected, secure the cable away from the battery to prevent accidental reconnection.
Next, focus on the fuel lines connected to the fuel pump. These lines are usually made of metal or rubber and are attached via clamps or fittings. Identify the fuel supply and return lines—the supply line delivers fuel to the pump, while the return line sends excess fuel back to the tank. Use a wrench or pliers to loosen the clamps securing the lines to the pump. If the lines are stubborn, apply penetrating oil to the fittings and allow it to sit for a few minutes before attempting to disconnect them again. Always work gently to avoid damaging the lines or fittings, as replacements can be costly and time-consuming.
A practical tip for this stage is to place a drain pan or rag beneath the fuel pump to catch any residual fuel that may spill when the lines are disconnected. Even with the engine off, fuel pressure can cause small amounts of fuel to escape. If you encounter resistance while removing the lines, double-check for additional clamps or brackets that may need to be loosened. Taking your time here can save you from potential messes or complications later in the process.
Once the fuel lines are disconnected, take a moment to inspect them for signs of wear, cracks, or leaks. Aging rubber lines, in particular, may need replacement if they show deterioration. This is an opportune time to address such issues, as you already have the system partially disassembled. After ensuring the lines are safely removed and set aside, verify that the battery remains disconnected to maintain a safe working environment. With these steps completed, you’ve successfully mitigated the major risks associated with fuel pump removal and can proceed with confidence to the next phase of the task.
