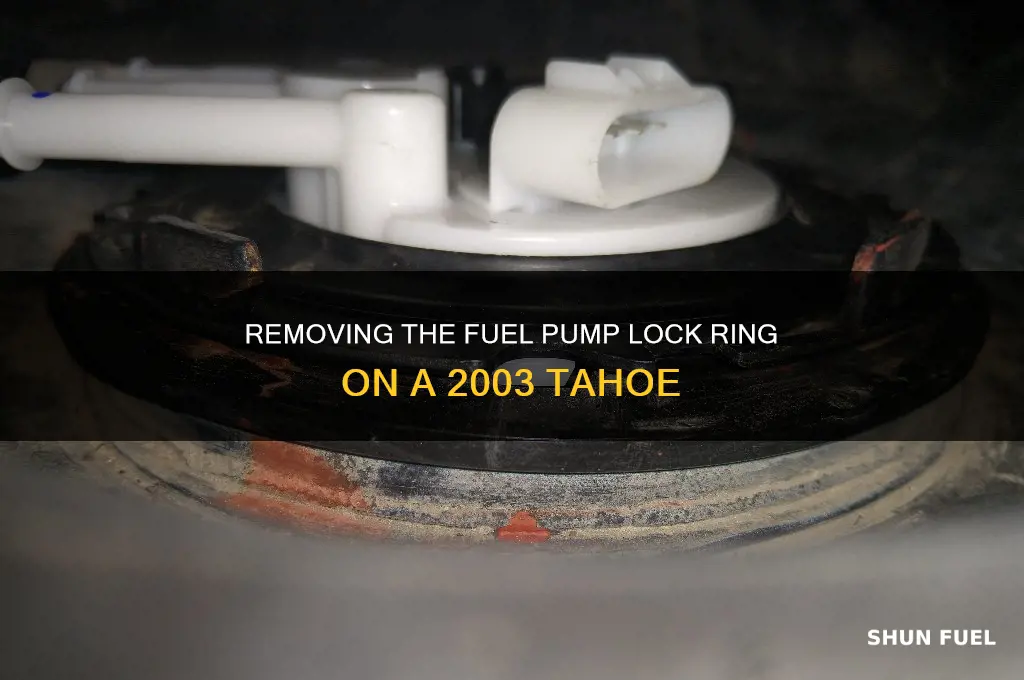

Removing the fuel pump lock ring from a 2003 Tahoe requires careful attention to safety and proper tools. Begin by relieving the fuel system pressure and disconnecting the battery to prevent accidents. Access the fuel tank by lowering it partially or removing the bed if necessary, depending on your comfort level. Locate the fuel pump module and identify the lock ring, which secures the pump assembly. Use a specialized fuel pump lock ring tool or a pair of sturdy strap wrenches to grip the ring firmly. Turn the tool counterclockwise to loosen the ring, applying steady pressure to avoid damaging the tank or seal. Once loosened, carefully lift the lock ring and fuel pump assembly out of the tank for further inspection or replacement. Always work in a well-ventilated area and follow safety guidelines to ensure a successful and safe removal process.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2003 Chevrolet Tahoe |
| Fuel Pump Lock Ring Location | Inside the fuel tank, securing the fuel pump module |
| Tools Required | Fuel pump module removal tool, flathead screwdriver, pliers, safety gear |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Removal Steps | 1. Relieve fuel pressure 2. Disconnect battery 3. Remove fuel tank 4. Use lock ring tool to turn counterclockwise 5. Remove lock ring and fuel pump module |
| Lock Ring Tool | Specialized tool (e.g., GM J-37080-A) for gripping and turning the ring |
| Common Issues | Lock ring corrosion, stubborn removal due to age |
| Replacement Parts | New fuel pump lock ring, fuel pump module (if necessary) |
| Difficulty Level | Moderate to difficult (requires mechanical skill and proper tools) |
| Estimated Time | 2-4 hours depending on experience and tools |
| Additional Tips | Use penetrating oil if the lock ring is stuck, avoid forcing the tool |
Explore related products
What You'll Learn
- Tools Needed: Socket set, extension, ratchet, and fuel pump module lock ring tool
- Safety Precautions: Relieve fuel pressure, disconnect battery, and work in well-ventilated area
- Accessing the Pump: Remove rear seat and fuel tank access cover
- Removing Lock Ring: Attach tool to ratchet and turn counterclockwise to release
- Reinstallation Tips: Align new lock ring, tighten securely, and test for leaks
Tools Needed: Socket set, extension, ratchet, and fuel pump module lock ring tool
Removing the fuel pump lock ring from a 2003 Tahoe requires precision and the right tools. Among the essentials are a socket set, extension, ratchet, and a fuel pump module lock ring tool. These tools are not interchangeable with generic alternatives; the lock ring tool, in particular, is designed to engage the tabs on the ring without slipping, preventing damage to the module. Without this specialized tool, you risk stripping the lock ring or worse, compromising the fuel pump assembly.
The socket set and extension work in tandem to reach the lock ring, which is recessed within the fuel tank. A 3/8-inch drive ratchet paired with a 6-inch extension provides the necessary leverage and clearance. The extension bridges the gap between the ratchet and the lock ring tool, ensuring you can apply force without straining your wrist. Opt for a shallow socket to avoid unnecessary bulk, as space around the fuel pump module is limited.
The ratchet serves as the backbone of this operation, translating your effort into rotational force. A fine-tooth ratchet with a quick-release mechanism is ideal, as it allows for precise control and easy tool changes. When selecting a ratchet, ensure its handle provides a comfortable grip, as you may need to apply significant torque to break the lock ring free. A slipping grip here could lead to injury or damage to the fuel tank.
Finally, the fuel pump module lock ring tool is the linchpin of this process. This tool features a series of pins or tabs that align with the notches on the lock ring, allowing you to turn it counterclockwise. Generic tools or improvised solutions often fail to grip securely, leading to frustration and potential harm to the module. Investing in the correct tool not only saves time but also protects your vehicle from costly repairs.
In summary, while the socket set, extension, and ratchet form the foundation of your toolkit, the fuel pump module lock ring tool is the game-changer. Together, these tools ensure a smooth, damage-free removal of the lock ring, setting the stage for a successful fuel pump replacement or maintenance task. Skimping on any of these components could turn a straightforward job into a costly headache.
Do Lawn Mowers Have Fuel Pumps? A Comprehensive Guide
You may want to see also
Explore related products
Safety Precautions: Relieve fuel pressure, disconnect battery, and work in well-ventilated area
Before attempting to remove the fuel pump lock ring from a 2003 Tahoe, it's crucial to prioritize safety by addressing the inherent risks associated with fuel systems. Fuel is highly flammable and under pressure, making it a potential hazard if not handled correctly. The first step in ensuring a safe working environment is to relieve the fuel pressure in the system. This process involves locating the fuel pressure relief valve or Schrader valve, typically found on the fuel rail or fuel injection system. By pressing the valve with a suitable tool, such as a small screwdriver or fuel pressure gauge, you release the pressure, minimizing the risk of fuel spraying or leaking during the repair.
In addition to relieving fuel pressure, disconnecting the battery is an essential safety measure. The 2003 Tahoe's electrical system powers the fuel pump, and disconnecting the battery eliminates the risk of accidental activation. To do this, locate the negative battery terminal, usually marked with a minus (-) sign, and use a wrench or socket to loosen the nut securing the cable. Once removed, tuck the cable aside, ensuring it does not come into contact with the battery terminal. This simple step prevents electrical arcing, which could ignite fuel vapors and cause a fire. It's a small action that significantly reduces the potential for catastrophic consequences.
Working in a well-ventilated area is another critical aspect of safety when dealing with fuel systems. Fuel vapors are heavier than air and can accumulate in low-lying areas, increasing the risk of explosion or asphyxiation. To mitigate this risk, choose a workspace with adequate airflow, preferably outdoors or in a garage with open doors and windows. If working indoors is unavoidable, use fans or other ventilation equipment to maintain a constant flow of fresh air. Be mindful of potential ignition sources, such as open flames, sparks, or hot surfaces, and keep them away from the work area. By taking these precautions, you create a safer environment for yourself and those around you.
Consider the following practical tips to further enhance safety: always wear protective gear, including gloves and safety goggles, to shield against fuel exposure and debris. Keep a fire extinguisher nearby, specifically rated for fuel fires (Class B), and ensure it's easily accessible. Work with a helper who can assist in case of emergencies and provide an extra set of eyes to monitor the surroundings. By combining these safety measures – relieving fuel pressure, disconnecting the battery, and working in a well-ventilated area – you establish a robust safety net that significantly reduces the risks associated with removing the fuel pump lock ring from a 2003 Tahoe. This comprehensive approach ensures that the task is completed safely and efficiently, prioritizing your well-being throughout the process.
How Fuel Pump Efficiency Impacts Engine Performance and Power Output
You may want to see also
Explore related products
Accessing the Pump: Remove rear seat and fuel tank access cover
Removing the rear seat and fuel tank access cover is the first critical step in accessing the fuel pump lock ring on a 2003 Tahoe. This process requires precision and care to avoid damaging components or compromising safety. Start by locating the rear seat release levers, typically found at the front base of the seat. Pull these levers upward while lifting the seat cushion to detach it from the vehicle. Set the cushion aside, ensuring it doesn’t obstruct your workspace. Next, fold the seatback forward by releasing the latches at the base of the seatback. Once folded, lift the seatback out of the vehicle by pulling it upward and toward you. With the seat removed, locate the fuel tank access cover, usually positioned beneath the rear cargo area. This cover is secured by a series of screws or clips, depending on the model. Use a screwdriver or appropriate tool to remove these fasteners, then lift the cover to expose the fuel pump module.
The design of the 2003 Tahoe prioritizes accessibility, but the fuel tank access cover can be cumbersome due to its size and weight. To avoid strain, enlist a helper to hold the cover while you remove the fasteners. Additionally, ensure the vehicle is on a level surface and the fuel tank is no more than half full to minimize weight and safety risks. If the cover is difficult to lift, inspect for hidden clips or hinges that may require additional tools. Once removed, place the cover on a clean surface to prevent debris from entering the fuel system. This step is not just about removal—it’s about creating a clear, safe path to the fuel pump module without introducing new complications.
Comparing this process to other vehicles, the 2003 Tahoe’s design is relatively straightforward, but it lacks the tool-free access found in newer models. For instance, some modern SUVs feature quick-release panels that eliminate the need for screw removal. However, the Tahoe’s system is durable and less prone to accidental dislodging. To streamline this step, consider using a magnetic parts tray to keep screws organized and prevent loss. If you encounter rust or corrosion on the fasteners, apply a penetrating oil and allow it to sit for 10–15 minutes before attempting removal. This proactive approach can save time and frustration, ensuring a smoother transition to the next phase of the repair.
A critical caution during this process is to avoid damaging the evaporative emissions (EVAP) lines or wiring harnesses that may be routed near the access cover. These components are essential for emissions control and vehicle performance. Before lifting the cover, inspect the area for any connections or hoses that could be strained or disconnected. If necessary, gently detach these components and secure them out of the way using zip ties or tape. Failure to do so could result in costly repairs or diagnostic issues later. By treating this step as a delicate operation rather than a brute-force task, you maintain the integrity of the vehicle’s systems while gaining access to the fuel pump lock ring.
In conclusion, removing the rear seat and fuel tank access cover on a 2003 Tahoe is a foundational step that sets the stage for fuel pump lock ring removal. By combining careful technique with practical tips, you can navigate this process efficiently while safeguarding the vehicle’s components. Whether you’re a seasoned mechanic or a DIY enthusiast, treating this step with the attention it deserves ensures a successful repair and minimizes the risk of complications. With the access cover removed, you’re now poised to tackle the fuel pump module with confidence and precision.
Cub Cadet 1046 Fuel Pump: Does It Have One?
You may want to see also
Explore related products
Removing Lock Ring: Attach tool to ratchet and turn counterclockwise to release
The fuel pump lock ring on a 2003 Tahoe is a critical component securing the fuel pump module within the tank. Removing it requires precision and the right tools to avoid damage. One effective method involves using a specialized tool attached to a ratchet, turned counterclockwise to release the lock ring. This approach leverages mechanical advantage to overcome the ring’s tight grip without resorting to brute force, which could harm the tank or module.
Attaching the tool to a ratchet transforms the removal process from a frustrating struggle into a controlled, methodical task. The ratchet’s design allows for incremental turns, ensuring steady pressure is applied to the lock ring. Counterclockwise rotation is essential because the ring is typically threaded in the opposite direction of standard fasteners, a detail often overlooked by novice mechanics. This technique minimizes the risk of stripping the ring or damaging the tank’s threads, preserving the integrity of the fuel system.
While the process seems straightforward, selecting the correct tool is paramount. A fuel pump lock ring tool, designed to fit the specific contours of the 2003 Tahoe’s ring, ensures a secure grip. Generic tools may slip or fail to engage properly, leading to frustration or potential harm to the component. Pairing this tool with a sturdy ratchet, preferably with a long handle for added torque, further enhances efficiency. Always verify the tool’s compatibility before beginning to avoid unnecessary complications.
Practical tips can streamline the removal process. First, ensure the vehicle is on a level surface and the fuel tank is as empty as possible to reduce weight and fire risk. Second, apply penetrating oil to the lock ring’s threads if it shows signs of corrosion or stubbornness. Finally, maintain steady, even pressure while turning the ratchet to prevent sudden releases that could cause injury or damage. Following these steps ensures a safe, successful removal of the fuel pump lock ring.
In conclusion, removing the fuel pump lock ring from a 2003 Tahoe using a ratchet-attached tool and counterclockwise rotation is a reliable method when executed with care. It combines the right tools, proper technique, and practical precautions to achieve the desired outcome without compromising safety or functionality. This approach not only simplifies the task but also underscores the importance of precision in automotive repairs.
Easy Steps to Safely Remove Hoses from Your Fuel Pump
You may want to see also
Explore related products
Reinstallation Tips: Align new lock ring, tighten securely, and test for leaks
After removing the old fuel pump lock ring from your 2003 Tahoe, reinstallation demands precision to ensure a secure, leak-free connection. Begin by aligning the new lock ring with the fuel pump module. The tabs on the ring must engage with the corresponding notches on the module. Misalignment can prevent proper seating, leading to fuel leaks or premature failure. Use a bright light and a mirror if necessary to verify correct positioning before proceeding.
Tightening the lock ring securely is the next critical step. Hand-tighten the ring initially to avoid cross-threading or damaging the plastic module. Once snug, use a fuel pump lock ring tool or a large flathead screwdriver to apply additional torque. Rotate the tool approximately 90 degrees past hand-tight to ensure the ring is fully seated. Over-tightening can crack the module, so rely on tactile feedback rather than brute force. If resistance increases significantly, stop and reassess alignment.
Testing for leaks is non-negotiable after reinstallation. Reconnect the battery and turn the ignition to the "on" position (without starting the engine) to pressurize the fuel system. Inspect the lock ring area for any signs of fuel seepage. If a leak is detected, relieve fuel pressure, disconnect the battery, and recheck the ring’s alignment and tightness. A dry cloth or paper towel can help identify even minor drips. Address any issues immediately to prevent safety hazards or further damage.
For added assurance, consider applying a thin layer of fuel-resistant thread sealant to the lock ring threads before installation, though this is optional. Always use a new lock ring, as reusing the old one can compromise the seal. After confirming no leaks, cycle the ignition off and on a few times to ensure consistent pressure and sealing. This step-by-step approach minimizes the risk of errors, ensuring your 2003 Tahoe’s fuel system operates reliably.
Replacing the Fuel Pump on a 1990 Corvette: Step-by-Step Guide
You may want to see also
Frequently asked questions
You will need a fuel pump lock ring tool (specific to GM vehicles), a flathead screwdriver, and possibly a hammer and punch for stubborn rings.
First, relieve the fuel system pressure, then remove the rear seat and the fuel pump access cover. The lock ring is located on top of the fuel pump module inside the fuel tank.
Use the fuel pump lock ring tool to grip the ring securely. Turn it counterclockwise while applying steady pressure. Avoid using excessive force to prevent damage to the ring or fuel pump module.
