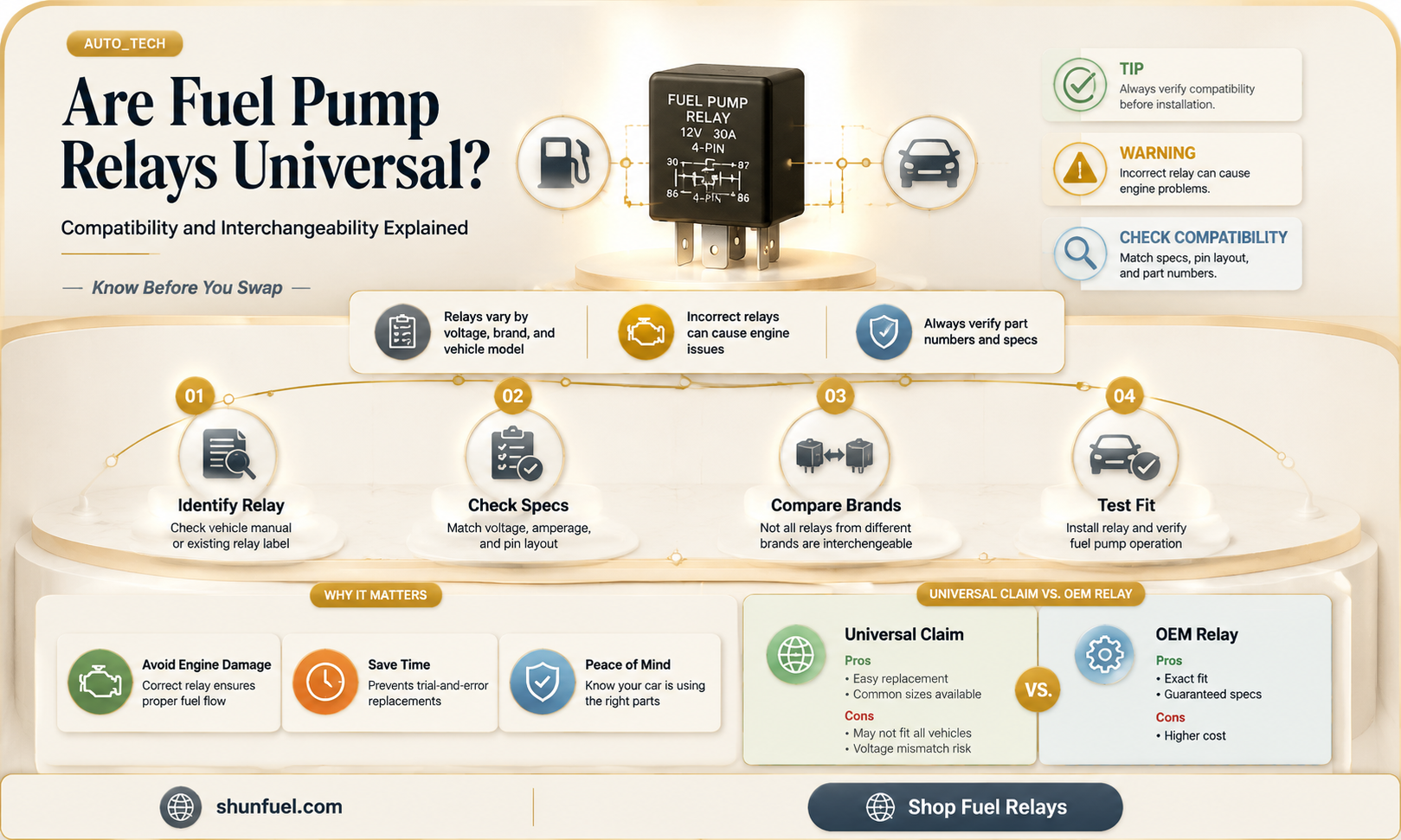

The question of whether fuel pump relays are universal is a common one among car enthusiasts and mechanics alike. Fuel pump relays play a crucial role in the proper functioning of a vehicle's fuel system, as they control the power supply to the fuel pump. While some fuel pump relays may appear to be interchangeable due to their similar designs and functions, the reality is that they are not always universal. Factors such as voltage requirements, current ratings, and connector configurations can vary between different vehicle makes and models, making it essential to ensure compatibility before attempting to replace a fuel pump relay. As a result, it is generally recommended to consult the vehicle's manual or a trusted mechanic to determine the correct fuel pump relay for a specific application, rather than assuming that any relay will suffice.
| Characteristics | Values |
|---|---|
| Universality | Fuel pump relays are not universally compatible with all vehicles. |
| Voltage Compatibility | Typically 12V, but some relays may support 24V for specific applications. |
| Current Rating | Varies (e.g., 30A, 40A) depending on the relay and vehicle requirements. |
| Terminal Configuration | Common configurations include 4 or 5 pins, but not standardized across all vehicles. |
| Mounting Style | Relays may have different mounting styles (e.g., blade, socket), affecting compatibility. |
| Resistance to Heat/Vibration | Varies by manufacturer; some relays are designed for harsher environments. |
| Compatibility with ECU | Must match the vehicle's ECU specifications for proper functionality. |
| Brand-Specific Designs | Many relays are designed for specific vehicle brands or models. |
| Aftermarket Availability | Aftermarket relays may claim universality but often require verification. |
| Wiring Harness Compatibility | Relays may require adapters or specific wiring harnesses for installation. |
| Price Range | Varies widely based on brand, quality, and compatibility claims. |
Explore related products
What You'll Learn
Compatibility with different vehicle makes and models
Fuel pump relays are not universally compatible across all vehicle makes and models, despite their seemingly straightforward function. Each vehicle’s electrical system operates within specific voltage, amperage, and resistance parameters, and relays must align precisely to avoid malfunctions or damage. For instance, a relay designed for a 12V system in a Toyota may not function optimally in a European vehicle with a 24V system, as the higher voltage can overload the relay’s coil or contacts. This incompatibility underscores the importance of matching the relay’s specifications to the vehicle’s electrical architecture.
To ensure compatibility, start by verifying the relay’s pin configuration, which varies widely among manufacturers. Common configurations include 4-pin and 5-pin designs, but the arrangement of terminals (e.g., NO, NC, and ground) differs. For example, a Bosch-style relay may not fit into a socket designed for a Ford-specific relay without an adapter. Cross-referencing the original relay’s part number or consulting a vehicle-specific repair manual can prevent mismatches. Additionally, check the relay’s current rating—typically 30A or 40A—to ensure it can handle the fuel pump’s load without overheating.
Another critical factor is the relay’s activation voltage. Some vehicles use a low-side switch (grounding the relay to activate it), while others use a high-side switch (applying power to the relay coil). Using a relay with the wrong switching mechanism can result in the fuel pump failing to engage or running continuously. For instance, installing a high-side relay in a low-side system may cause the pump to operate erratically or not at all. Always confirm the vehicle’s switching type before selecting a replacement relay.
Practical tips for ensuring compatibility include testing the relay’s resistance with a multimeter. A functioning relay typically shows 50–150 ohms across the coil terminals. If the reading is outside this range, the relay may not activate properly. Additionally, inspect the relay’s physical dimensions to ensure it fits the mounting bracket or socket. Aftermarket relays often mimic OEM designs but may lack the exact fitment, requiring minor adjustments or adapters.
In conclusion, while fuel pump relays share a common purpose, their compatibility is far from universal. By focusing on electrical specifications, pin configurations, switching mechanisms, and physical dimensions, you can select a relay that integrates seamlessly with your vehicle’s system. Always prioritize OEM recommendations or consult a trusted mechanic when in doubt, as a mismatched relay can lead to costly repairs or safety hazards.
Predator 670 Fuel Pump: Does It Come Equipped?
You may want to see also
Explore related products
Voltage and amperage requirements for universal relays
Fuel pump relays, often considered universal, must align with specific voltage and amperage requirements to function safely and efficiently. While the term "universal" suggests broad compatibility, it’s critical to verify these electrical parameters to avoid damage or failure. Most automotive systems operate on a 12-volt DC supply, but relays designed for higher voltages, such as 24-volt systems in trucks or heavy machinery, are not interchangeable with 12-volt systems. Always check the relay’s voltage rating, typically marked on its body or in its specifications, to ensure compatibility with your vehicle’s electrical system.
Amperage is equally crucial, as it determines the relay’s capacity to handle the electrical load of the fuel pump. Fuel pumps vary widely in power consumption, with typical draw ranging from 5 to 20 amps. A relay rated for 30 amps, for example, can safely manage a 15-amp fuel pump but would be overkill for a 5-amp pump. Conversely, using a 10-amp relay for a 15-amp pump risks overheating and failure. To determine the correct amperage, consult your vehicle’s manual or measure the pump’s current draw with a multimeter. Overestimating amperage is safer than underestimating, but avoid excessive overrating, as it may lead to unnecessary costs or bulkier components.
When selecting a universal relay, consider the environmental conditions it will face. High temperatures under the hood can reduce a relay’s current-carrying capacity, so choose one with a slightly higher amperage rating than required. For instance, if your fuel pump draws 12 amps, opt for a 20-amp relay to account for thermal derating. Additionally, ensure the relay’s contact material (e.g., silver or copper) is suitable for the amperage and switching frequency, as inferior materials can degrade under load.
Practical tips include testing the relay before installation. Use a multimeter to verify continuity across the contacts when the relay is activated. If the resistance exceeds the manufacturer’s specifications, the relay may not handle the required amperage. Also, inspect the wiring harness for compatibility. Universal relays often use standard pin configurations (e.g., 5-pin or 4-pin), but double-check the pinout to avoid miswiring. Finally, if you’re unsure, consult a professional or refer to online forums specific to your vehicle model for proven relay recommendations.
In summary, while universal fuel pump relays offer flexibility, voltage and amperage requirements are non-negotiable. Match the relay’s voltage rating to your vehicle’s system, select an amperage that exceeds the pump’s draw with thermal derating in mind, and verify compatibility through testing and research. Ignoring these details can lead to electrical failures or safety hazards, undermining the very universality the relay promises.
Accessing the Fuel Pump in Your 2003 Honda Civic: A Step-by-Step Guide
You may want to see also
Explore related products
Physical size and mounting considerations for installation
Fuel pump relays vary significantly in physical size, a critical factor that can make or break compatibility during installation. Standard relays often measure around 1 inch by 1.5 inches, but high-current models for performance vehicles may exceed 2 inches in length. Before purchasing, measure the available space in your engine bay or fuse box to ensure a proper fit. Overlooking this step can lead to clearance issues, especially in compact vehicles or custom setups where every millimeter counts.
Mounting considerations are equally vital, as relays must be securely fastened to withstand vibration and temperature fluctuations. Most relays come with standard mounting tabs or holes, but the spacing and orientation can differ. For example, some relays mount vertically, while others require horizontal placement. If the relay’s mounting points don’t align with your vehicle’s existing holes, you’ll need adapters or custom brackets. Using zip ties or double-sided tape as a makeshift solution is risky, as relays can overheat or detach under stress.
Material and environmental factors also play a role in mounting decisions. Relays made of plastic housings are lighter but less heat-resistant than metal ones. If your relay will be near the engine block or exhaust, opt for a metal-cased model and ensure it’s mounted with heat-resistant spacers. Conversely, in exposed areas prone to moisture, choose a relay with a sealed casing and mount it in a higher, drier location to prevent corrosion.
For DIY installers, flexibility is key. Universal relays often include adjustable mounting brackets or pre-drilled holes to accommodate various setups. However, these features add bulk, so verify the overall dimensions before assuming they’ll fit. If space is extremely limited, consider a relay with a low-profile design, even if it means sacrificing some mounting versatility. Always prioritize stability over convenience—a loose relay can cause intermittent fuel delivery issues, leading to poor performance or stalling.
Lastly, don’t underestimate the importance of accessibility. Mount the relay in a location that’s easy to reach for diagnostics or replacement. Buried relays can turn a simple swap into a hours-long disassembly project. If your vehicle lacks an ideal spot, invest in extension harnesses or relocate the relay to a more convenient area, ensuring the wiring remains within the maximum length specified by the manufacturer (typically 6–12 feet for fuel pump circuits). Proper planning here saves time and frustration down the road.
Understanding the Functionality of a Saturn's Fuel Pump System
You may want to see also
Explore related products
Differences between OEM and aftermarket fuel pump relays
Fuel pump relays are not universally interchangeable, despite some aftermarket options claiming broad compatibility. The core difference lies in design specificity: OEM (Original Equipment Manufacturer) relays are engineered to meet the exact electrical and mechanical requirements of a particular vehicle make and model. Aftermarket relays, while often designed to fit multiple vehicles, may lack the precision tuning required for optimal performance. For instance, an OEM relay for a Toyota Camry will have a specific amperage rating and resistance value tailored to its fuel pump’s demands, whereas an aftermarket relay might offer a generic range that could lead to inefficiencies or premature failure.
Consider the electrical specifications as a starting point for comparison. OEM relays typically adhere to strict voltage and current tolerances, ensuring seamless integration with the vehicle’s existing wiring harness. Aftermarket relays, while often cheaper, may deviate from these standards. For example, an OEM relay might operate at 12.5V with a 20A current capacity, while an aftermarket alternative could fluctuate between 12V and 14V with a 15A–25A range. Such discrepancies can cause inconsistent fuel delivery, especially under high-load conditions like towing or rapid acceleration. Always verify the relay’s electrical ratings against your vehicle’s requirements before installation.
Material quality and durability further distinguish OEM from aftermarket relays. OEM components are constructed with vehicle-specific materials, often featuring heat-resistant housings and corrosion-resistant contacts to withstand the engine bay’s harsh environment. Aftermarket relays, particularly budget options, may use inferior materials that degrade faster under prolonged exposure to heat, moisture, or vibration. For instance, an OEM relay might use gold-plated contacts for superior conductivity, while an aftermarket relay could employ cheaper copper alloys prone to oxidation. This difference can shorten the lifespan of the aftermarket part, necessitating more frequent replacements.
Installation and compatibility present another layer of variance. OEM relays are plug-and-play, designed to fit seamlessly into the vehicle’s existing relay socket without modifications. Aftermarket relays, however, may require adapters or rewiring, especially if the pin configuration or mounting style differs. For example, a Ford F-150’s OEM relay might have a 5-pin design, while an aftermarket option could use a 4-pin layout, forcing the installer to bypass or reconfigure the wiring. Always consult the vehicle’s manual or a professional mechanic if unsure about compatibility to avoid damaging the electrical system.
Finally, cost and warranty considerations play a significant role in the decision-making process. OEM relays are generally more expensive but come with manufacturer warranties, ensuring reliability and peace of mind. Aftermarket relays offer a budget-friendly alternative but often lack comprehensive warranties or guarantees. For instance, an OEM relay for a Honda Civic might cost $50–$70 with a 12-month warranty, while an aftermarket version could be priced at $15–$30 but with limited or no coverage. Weigh the long-term benefits of reliability against the upfront savings when choosing between the two.
Do Manual Cars Have Fuel Pumps? Exploring Automotive Mechanics
You may want to see also
Explore related products
Wiring diagrams and pin configurations for universal relays
Understanding wiring diagrams and pin configurations is crucial when working with universal fuel pump relays. These diagrams serve as the blueprint for connecting the relay to your vehicle’s electrical system, ensuring proper functionality. A typical universal relay has four or five pins, each serving a specific purpose: Pin 85 (ground), Pin 86 (trigger signal), Pin 87 (power output), and Pin 30 (battery power). Some relays include Pin 87a for additional switching capabilities. Always refer to the manufacturer’s diagram, as pin assignments can vary slightly between brands.
Analyzing a wiring diagram reveals the flow of current and the role of each pin. For instance, when the ignition is turned on, the ECU sends a signal to Pin 86, energizing the relay. This completes the circuit between Pin 30 (battery power) and Pin 87 (fuel pump), activating the pump. If your vehicle lacks a dedicated fuel pump fuse, install a 10–20 amp inline fuse between Pin 30 and the battery to prevent electrical fires. Miswiring can lead to pump failure or erratic operation, so double-check connections before testing.
When adapting a universal relay to a specific vehicle, compatibility with the existing wiring harness is key. Some vehicles use a normally open (NO) circuit, while others require a normally closed (NC) setup. Universal relays often support both configurations, but the pinout must match. For example, if your vehicle’s original relay uses Pin 87a for a secondary function, ensure the universal relay’s diagram aligns. Tools like a multimeter can verify continuity and proper pin function before installation.
Practical tips for installation include using heat-shrink tubing to insulate spliced wires and labeling connections for future reference. If the relay doesn’t activate, test Pin 86 for a trigger signal using a test light. No signal indicates a fault in the ECU or wiring harness. Conversely, if the relay clicks but the pump doesn’t run, check the connection between Pin 87 and the pump for breaks or corrosion. Always disconnect the battery before working on the electrical system to avoid short circuits.
In conclusion, mastering wiring diagrams and pin configurations transforms a universal fuel pump relay into a versatile solution for various vehicles. By understanding the role of each pin and following precise diagrams, you can ensure reliable performance and avoid common pitfalls. Whether upgrading an older vehicle or replacing a failed component, this knowledge empowers you to tackle the task with confidence.
Dodge Magnum 2005 Fuel Pump Count: What You Need to Know
You may want to see also
Frequently asked questions
No, fuel pump relays are not universal. They vary in size, pin configuration, voltage ratings, and current capacity depending on the vehicle make, model, and year. Always check compatibility before purchasing.
While some "universal" fuel pump relays claim to fit multiple vehicles, they may not meet the specific electrical requirements of your car. It’s best to use a relay designed for your vehicle to ensure proper functionality and safety.
Check the relay’s specifications (voltage, current, pin layout) against your vehicle’s requirements. Consult your car’s manual or a professional mechanic to confirm compatibility before installation.
