Removing fuel injectors from a fuel rail can be a challenging task, and it is important to proceed with caution to avoid causing any damage. Fuel injectors are fuel metering devices that spray atomized fuel droplets into the engine's intake manifold or combustion chamber, and they are typically connected to a fuel rail located on top of the engine. When removing fuel injectors from the fuel rail, it is essential to relieve the pressure within the rail by briefly running the engine with the fuel pump fuse removed. Various tools and techniques, such as pry bars, penetrating oil, and specific seal sizing tools, can aid in the removal process.

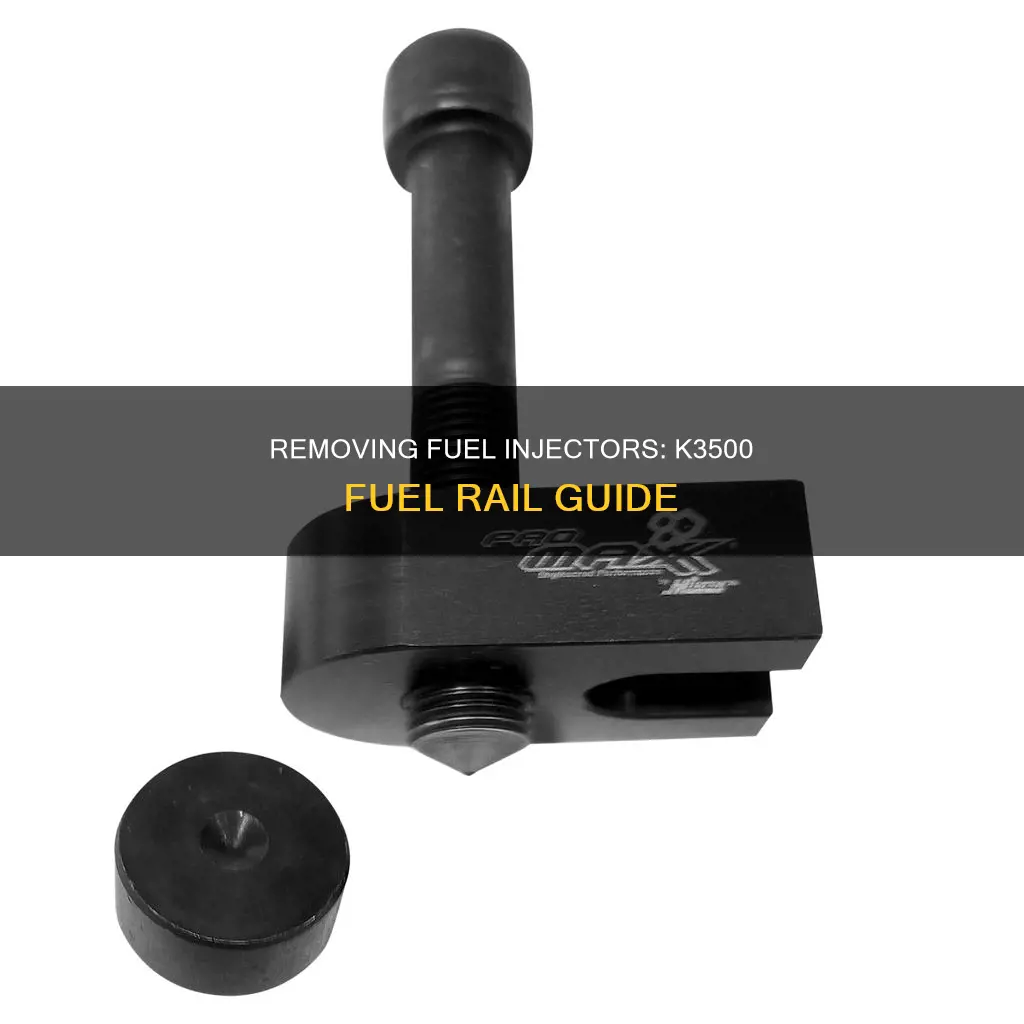

Removing fuel injectors from the fuel rail of a GMC K3500
| Characteristics | Values |
|---|---|
| Difficulty | Hard |
| Tools | Pry bar, soft jaw pliers, flat-head screwdriver, vice grips, hex head cap screws, penetrating oil, silicone spray, WD-40, slide hammer |
| Steps | 1. Remove the two fuel pipes that connect each rail to the feed line. 2. Remove the four bolts, the fuel lines, and the clips/connectors. 3. Pry the rail out using two small flat-end screwdrivers or two pry bars. 4. Remove the injector clips and lift the prongs to clear the machined part on the bottom of the fuel rail. 5. Remove the injector requiring replacement from the fuel rail, being careful not to let debris enter the exposed openings. |
Explore related products
What You'll Learn
Removing the fuel rail from the intake manifold
Step 1: Prepare the Engine
Start by ensuring the engine is cold. This is important for safety reasons and to avoid any potential hazards associated with a hot engine. Once the engine is cold, briefly run it with the fuel pump fuse removed to relieve the pressure within the fuel rail.
Step 2: Remove the Upper Plenum and Related Components
The next step is to remove the upper plenum on the intake manifold, along with any cables, hoses, or wiring that may restrict access to the fuel rail. This step may vary depending on the specific model of your K3500, but it typically involves carefully detaching and setting aside any components that could hinder the removal process.
Step 3: Disconnect the Supply and Return Lines
Locate the supply and return lines connected to the fuel rail and carefully disconnect them. These lines are responsible for delivering fuel to the rail and returning any unused fuel, so it is important to handle them with care to avoid spills or leaks.
Step 4: Unlock and Remove Electrical Connectors
Now, focus on the electrical connectors attached to each fuel injector. Unlock and carefully remove these connectors, ensuring that you don't damage any surrounding components or wiring. This step may require some careful maneuvering, depending on the specific layout of your engine.
Step 5: Unbolt the Fuel Rail
With the electrical connectors removed, it's time to unbolt the fuel rail from the intake manifold. Use the appropriate tools to carefully remove the bolts securing the fuel rail in place. It is important to keep track of the bolts and their respective locations for easier reassembly.
Step 6: Lift and Remove the Fuel Rail
At this stage, you should be able to carefully lift and remove the fuel rail from the intake manifold. This step may require some gentle prying action using appropriate tools, as mentioned in the previous section. Be cautious not to use excessive force, as you don't want to damage any surrounding components or the fuel rail itself.
It is important to note that removing the fuel rail from the intake manifold is just one part of the process of replacing or servicing fuel injectors. There are additional steps involved in the overall process, such as removing and replacing the injectors themselves, as well as reinstalling the fuel rail and associated components.
Additionally, it is always recommended to refer to a qualified mechanic or a service manual specific to your vehicle for detailed instructions and safety precautions before attempting any repairs or maintenance on your K3500's fuel system.
Fuel Injectors in 2000 Dodge Neon: Are They There?
You may want to see also
Explore related products
Using a pry bar to remove the injectors
Removing the fuel injectors from the fuel rail of a K3500 can be a challenging task, but it can be accomplished with the right tools and careful techniques. Here is a detailed guide on using a pry bar to remove the injectors:
Before beginning the process of removing the injectors, it is crucial to ensure that the engine has cooled down. This is an important safety precaution to prevent any potential hazards. Additionally, it is recommended to bleed off the fuel pressure at the Schrader valve located by the FPR to avoid any accidental bursts of fuel.
Now, let's get into the step-by-step process of using a pry bar:
- Positioning the Pry Bar: Place the pry bar underneath the base of the injector body. Be cautious and gentle during this step to avoid causing any damage.
- Applying Force: Gently apply upward pressure on the pry bar, working from side to side. This action will help release the injector from its housing. Be careful not to use excessive force, as it may lead to bending or breaking nearby components.
- Working in a Sequence: Start from the front and gradually work your way back. This systematic approach helps to evenly distribute the force and reduce the chances of damage.
- Avoiding Plastic Components: Refrain from prying on anything plastic, as it can easily break or deform. Focus your efforts on metal components to ensure a more controlled prying process.
- Using Multiple Pry Bars: If necessary, use one pry bar to hold the rail straight and another to pry up. This technique provides stability and allows for a more controlled removal process.
- Lubrication: Spray some lubricant under the connector and on the injectors themselves. This will help ease the removal process and reduce friction.
- Soft Jaw Pliers: As an alternative to the pry bar, you can use soft jaw pliers. These pliers are designed to provide a firm grip without causing damage. Use them to pull up while twisting, applying pressure between the injector's clip and the rail.
- Seals and O-Rings: Pay close attention to the seals and O-Rings during the removal process. If the part is used, you will need to replace the seals to prevent leaks. Additionally, be cautious not to break the top O-rings on the injectors.
- Clips and Connectors: Some fuel injectors may have clips or connectors holding them in place. Before prying, make sure to detach these components carefully to ensure a smooth removal process.
- Slow and Controlled Movements: Take your time and work slowly when prying. Fuel injectors can be stubborn, so a gradual and steady approach is often more effective and safer than using excessive force.
Remember to exercise caution throughout the process, as working with fuel systems can be hazardous if not handled properly. Always refer to manufacturer guidelines and seek professional advice if you are unsure about any steps.
Carbon's Impact: Clogged Fuel Injectors?
You may want to see also
Explore related products
Removing the electrical connectors
Firstly, ensure the engine is cold. This is important for safety reasons, as working on a hot engine can be dangerous due to the high temperatures involved. Once the engine has cooled down, relieve the pressure within the fuel rail. This can be done by briefly running the engine with the fuel pump fuse removed.
Now, you can start to access the fuel injectors and their electrical connectors. Remove the upper plenum on the intake manifold, along with any cables, hoses, or wiring that may be restricting access to the fuel injectors. It is important to carefully set aside these components to ensure they are not lost or damaged.
With improved access, the next step is to remove the supply and return lines from the fuel rail. This will involve carefully detaching the lines from the fuel rail and ensuring that they are safely set aside.
At this stage, you should be able to clearly see the electrical connectors for each fuel injector. They may be secured in place with clips or other fasteners. Using appropriate tools, carefully unlock and remove the electrical connectors from each fuel injector. It is important to do this gently and with precision to avoid damaging the connectors or any surrounding components.
Once all the electrical connectors have been successfully removed, you can proceed to the next step of removing the fuel injectors from the fuel rail. It is important to work carefully and methodically throughout this process to ensure the safety of yourself, the vehicle, and any surrounding components.
Fuel Injector Adaptation: TFSI Type Compatibility Explored
You may want to see also
Explore related products
Using a specialised tool to size the seals
Fuel injector seals are essential for the performance and efficiency of your car's engine system. They prevent fuel and air leakage, ensuring that fuel is delivered to the combustion chamber without loss or wastage. Over time, these seals can wear out, crack, or harden, leading to leaks that cause poor engine performance, increased emissions, and higher fuel consumption. Therefore, regular inspection and maintenance are crucial.
To determine the size of the seals, a specialised tool kit can be used. This tool kit is specifically designed for certain vehicle makes, such as VW and Audi, and can be rented for free from AutoZone (part number 57383). This kit may also work with other types of direct injectors.
An alternative method to resizing the seal is the overnight zip-tie technique. This method uses a Bic pen cap and a zip tie to expand and shrink the seal to the desired size. This approach can be useful if you don't have access to the specialised tool kit.
Once the seal has been resized, you can proceed with installing the injectors into the fuel rail on the intake manifold. This provides extra leverage to seat the fresh seals properly. After starting your car, if it runs smoothly and quietly, you have successfully replaced the direct injector seals.
Fuel Injectors: Gas Mileage Saver or Killer?
You may want to see also
Explore related products
Reinstalling the fuel rail and reconnecting the supply and return lines
Firstly, ensure that you have the necessary tools and materials ready. This includes rags, clean motor oil, new injectors, and a socket set. It is also important to work in a well-ventilated area and ensure that the engine is cool before starting.
Before beginning the reinstallation, it is crucial to depressurize the fuel system. Locate the fuel safety cutoff switch and disconnect it by pulling the electrical plug. If your vehicle is not equipped with a fuel safety cutoff switch, you can depressurize the line by finding the pressure check valve, usually located on top of the rail, and depressing it.
Now, you can start reassembling the components. Begin by installing a new insulator for each injector port in the manifold. Make sure to lightly lubricate the O-rings with clean oil, and ensure they can rotate freely. If you are reusing any fuel injectors, replace the Teflon seals on the injector tips.
Next, carefully insert the injectors into the fuel rail. Move the injectors left to right during the installation process to ensure they move freely. Once all the injectors are in place, connect the delivery pipe and injectors to the engine.
After that, reconnect the fuel rail retaining bolt or screw. Reattach any accessories, intake, and vacuum tubes that were previously removed. Ensure that all connections are secure and tight.
Finally, reconnect the supply and return lines to the fuel rail. Ensure that the lines are properly seated and secured to prevent any fuel leaks. Once everything is connected, you can start the engine and check for any leaks or issues.
Remember to take your time and carefully follow the instructions specific to your vehicle. If you have any concerns or uncertainties during the process, it is always best to consult a qualified mechanic to ensure a safe and proper installation.
Fuel Injector Cleaner: A Fix for Secondary Exhaust Port Issues?
You may want to see also
Frequently asked questions
Removing the fuel injectors from the fuel rail can be a difficult process. Here are the steps you can follow:
- Remove the fuel pump fuse and briefly run the engine to relieve pressure within the fuel rail.
- Remove the upper plenum on the intake manifold, along with any cables, hoses, or wiring that may restrict access.
- Remove the supply and return lines from the fuel rail.
- Unlock and remove the electrical connectors to each fuel injector.
- Unbolt and remove the fuel rail from the intake manifold.
- Remove the injector(s) requiring replacement from the fuel rail, being careful not to allow any debris to enter the exposed openings.
- Note: It is recommended to service or replace all injectors at the same time to avoid future issues.
You will need a variety of tools to remove the fuel injectors from the fuel rail of your K3500, including:
- Pry bars of different sizes to gently pry and lift the injectors from the fuel rail.
- Soft-jaw pliers to pull and twist the injectors.
- A specialized slide hammer to help remove stuck injectors.
- A seal sizing tool to reinstall the injectors.
- A pen or similar object to drive the seals on.
Here are some important precautions to take when removing the fuel injectors from the fuel rail of your K3500:
- Ensure the engine is cold before starting the removal process to avoid any safety hazards.
- Be careful not to bend or break any components, especially when using force or prying tools.
- Soak the anchor points the night before to help with removal.
- Use a penetrating oil or silicone spray on the injectors and let it sit before attempting removal.
- Be cautious when handling the plastic components to avoid damage.
