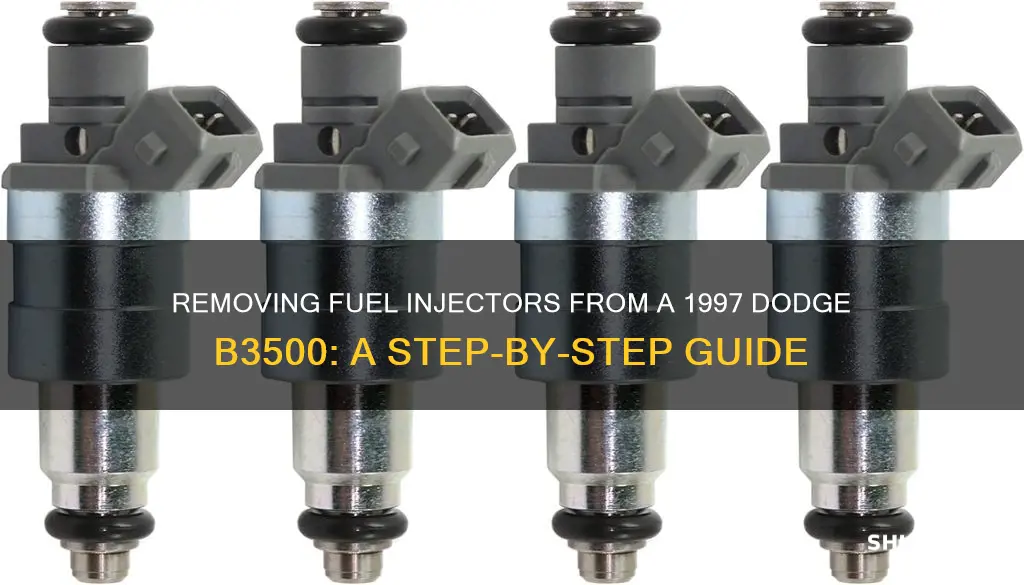

If you notice a fuel odour around your 1997 Dodge B3500, it could be a sign of a leaking fuel injector. A leaking fuel injector is dangerous and should be removed and replaced or serviced. The fuel injector is a fuel metering device that sprays atomized droplets of fuel into the engine's intake manifold or combustion chamber. The PCM controls the solenoid's 'on' time to maintain an optimal air-fuel ratio. When removing the fuel injector, the engine must be cold, and the pressure within the fuel rail must be relieved. The upper plenum on the intake manifold is then removed, along with any cables, hoses, or wiring that restricts access. The electrical connectors to each fuel injector are unlocked and removed, and the injector is then removed from the fuel rail.
Explore related products
What You'll Learn
- The PCM controls the solenoid's on time to maintain the air-fuel ratio
- Fuel injectors should not leak fuel when the car is off
- The engine must be cold before relieving pressure in the fuel rail
- The fuel rail is supplied with fuel under pressure from the fuel pump
- Always replace the fuel filter when the injector is replaced
The PCM controls the solenoid's on time to maintain the air-fuel ratio
The Powertrain Control Module (PCM) is a vital component of your vehicle's engine management system, performing a range of functions to ensure efficient and optimal performance. One of its critical roles is maintaining the correct air-fuel ratio, which is achieved through precise control of the solenoids in the fuel injectors.
The PCM is the brain of the operation, receiving data from various engine sensors and computing the required fuel flow rate. It takes into account the constantly changing engine load and operating conditions, such as engine speed, throttle position, and even altitude, to calculate the ideal air-fuel mixture.
In a 1997 Dodge B3500, the PCM plays a pivotal role in optimising the engine's performance. The fuel injectors in this vehicle are metering devices that spray atomised droplets of fuel into the engine's intake manifold or directly into the combustion chamber. Each injector contains a solenoid and a valve, and the PCM controls the pulsing or activation of these solenoids.
By regulating the "on" time of the solenoids, the PCM ensures that the correct amount of fuel is injected into the engine. This precise control maintains the optimal air-fuel ratio, which is critical for efficient combustion and engine performance. The PCM's ability to adapt to changing conditions ensures that the engine consistently receives the right mixture, resulting in smooth operation and optimal power output.
When issues arise with the fuel injectors, such as leaks or blockages, the PCM's diagnostic capabilities come into play. Faults in the fuel injection system can trigger trouble codes, causing the check engine light to illuminate. These codes can be read and analysed to identify the specific problem, allowing for targeted repairs or replacements.
To summarise, the PCM in your 1997 Dodge B3500 is responsible for controlling the solenoids' timing to maintain the ideal air-fuel ratio. Its ability to process sensor data and adjust the fuel injection accordingly ensures efficient engine performance and helps diagnose issues when they occur. Regular servicing and maintenance of the fuel injectors, including off-the-car cleaning and replacement of internal filter baskets, are crucial to maintaining the PCM's precise control and the overall health of the engine.
Cleaning 22RE Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel injectors should not leak fuel when the car is off
Fuel injectors play a crucial role in your car's engine by spraying atomized droplets of fuel into the engine's intake manifold or directly into the combustion chamber. However, it is important to remember that fuel injectors should not leak fuel when the car is turned off.
Identifying a Leaking Fuel Injector
When the car is off, the fuel injector should not leak fuel into the intake manifold. If you notice any fuel odour around your car, a leaking fuel injector may be the culprit. Visible leaks or a strong fuel odour are signs that you should not ignore. It is important to address the issue promptly as leaking fuel injectors pose a fire hazard and can cause severe engine damage.
Causes of Leaking Fuel Injectors
Leaking fuel injectors can be attributed to various factors. Over time, fuel injector O-rings can harden and become brittle, leading to both external and internal fuel leaks. Clogged fuel injectors can also occur, even in high-pressure direct fuel injection systems. Additionally, cracked fuel injector bodies or faulty O-rings can result in external leaks, creating a potential fire risk.
Precautions and Maintenance
If you suspect an externally leaking injector, refrain from starting your car due to the fire hazard. Instead, seek professional assistance immediately. Regular servicing of fuel injectors is essential, and it's recommended to replace the internal filter baskets during off-the-car cleaning for optimal performance. When replacing the fuel injector, always replace the fuel filter and the fuel inlet tube with an integrated filter, using the appropriate part number. Additionally, carefully check for any additional O-rings to prevent leaks.
Fuel Injectors: Are Standard Options Worth It?
You may want to see also
Explore related products
The engine must be cold before relieving pressure in the fuel rail
It is important to let the engine cool down before relieving the pressure in the fuel rail of your 1997 Dodge B3500. This is because the pressure in the fuel rail is directly related to the temperature of the engine. When the engine is hot, the pressure in the fuel rail increases, and when the engine is cold, the pressure in the fuel rail decreases.
The fuel injectors in your Dodge B3500 are connected to a fuel rail located on top of the engine. This fuel rail is supplied with fuel under pressure from the fuel pump, which is located in the fuel tank. The fuel pump creates pressure in the fuel lines, which allows the fuel to be delivered to the engine at the correct pressure and flow rate. When the engine is running, the fuel pump is also running, and the pressure in the fuel rail is higher than when the engine is off. Therefore, it is important to relieve the pressure in the fuel rail before removing the fuel injectors to avoid any leaks or spills.
If the engine is hot and the pressure in the fuel rail is high, it can be dangerous to work on the fuel system. The high pressure can cause fuel to spray out of the lines or components, which can be a fire hazard. Additionally, the hot engine components can pose a burn risk. By allowing the engine to cool down, you can ensure that the pressure in the fuel rail is lower, making it safer to work on.
Furthermore, relieving the pressure in the fuel rail when the engine is cold helps to ensure that the fuel system is depressurized properly. If there is still pressure in the fuel lines, it can be difficult to remove the fuel injectors and other components safely. By running the engine briefly with the fuel pump fuse removed, you can ensure that the fuel system is depressurized and safe to work on. This step is crucial to preventing injuries and accidents during the fuel injector removal process.
In summary, it is important to let the engine cool down before relieving the pressure in the fuel rail of your 1997 Dodge B3500. This helps to ensure a safe and proper depressurization of the fuel system, making it easier and safer to remove the fuel injectors for cleaning or replacement. Always exercise caution when working on fuel system components and refer to a professional mechanic if you have any doubts or concerns.
Fuel Injector Cleaner: Hybrid Cars Need It?
You may want to see also
Explore related products
The fuel rail is supplied with fuel under pressure from the fuel pump
To remove the fuel injectors from a 1997 Dodge B3500, the fuel rail must first be accessed. This is done by relieving the pressure in the fuel rail by briefly running the engine with the fuel pump fuse removed. Once the pressure is relieved, the upper plenum on the intake manifold can be removed, along with any cables, hoses, or wiring that may obstruct access to the fuel rail. The supply and return lines are then disconnected from the fuel rail, and the electrical connectors to each fuel injector are unlocked and removed.
With the fuel rail exposed, the injectors can be removed by first unbolting the fuel rail from the intake manifold. It is important to be careful and avoid letting any debris fall into the exposed openings of the fuel rail and injectors. Once the fuel rail is removed, the individual injectors can be taken out of the fuel rail for servicing or replacement.
It is recommended to replace the fuel filter when replacing the fuel injector. Additionally, the fuel inlet tube with an integrated filter may also need to be replaced when servicing the injectors.
Fuel Injector Failure: A Costly and Dangerous Problem
You may want to see also
Explore related products
Always replace the fuel filter when the injector is replaced
The fuel filter plays a critical role in ensuring that clean fuel is delivered to the fuel injectors and preventing contaminants from entering the engine. Over time, the filter can become clogged with sediments and debris, reducing the fuel flow and leading to potential engine issues such as misfiring, stalling, and difficulty starting. Therefore, it is essential to replace the fuel filter when replacing the injector to maintain optimal fuel delivery and engine performance.
The fuel filter is responsible for ensuring that pure, clean fuel is supplied to the fuel injectors. It acts as a barrier, capturing contaminants and preventing them from entering the engine. However, the filter itself can become clogged over time due to sediments in the fuel or the use of low-quality fuel. This clogging reduces the amount of fuel that can flow through the filter, impacting the engine's performance and fuel injection system.
By regularly replacing the fuel filter, you can help maintain the overall health of your engine. A clean fuel filter ensures an uninterrupted fuel supply, allowing the injectors to spray atomized droplets of fuel into the engine's intake manifold or combustion chamber efficiently. This, in turn, helps maintain the optimal air-fuel ratio and engine performance while reducing the risk of fuel injection failures.
Additionally, replacing the fuel filter when servicing the fuel injector can help prevent future issues. A new fuel filter will effectively capture contaminants, reducing the likelihood of clogged fuel lines and injectors. This proactive approach can save you time and money by avoiding potential engine repairs or replacements down the line.
It is worth noting that some mechanics and car enthusiasts debate the timing of fuel filter replacement. Some argue for replacing it before servicing the injectors, while others suggest doing so afterward. However, the general consensus is that replacing both components together ensures a fresh start for the fuel system, reducing the risk of contaminants and maintaining the overall health of your vehicle.
Diagnosing Failing Fuel Injectors: What You Need to Know
You may want to see also
Frequently asked questions
If you notice a fuel odor around your car, this could be a sign of a leaking fuel injector. Visible leaks are another indicator. If you suspect a leak, do not start your car as it could be a fire hazard.
Before removing the fuel injector, make sure the engine is cold. Then, relieve the pressure within the fuel rail by briefly running the engine with the fuel pump fuse out.
First, remove the upper plenum on the intake manifold, along with any cables, hoses, or wiring that restricts access. Then, remove the supply and return lines from the fuel rail, followed by the electrical connectors to each fuel injector. Finally, unbolt the fuel rail from the intake manifold and remove the injector(s) requiring replacement.
