Regan Brown

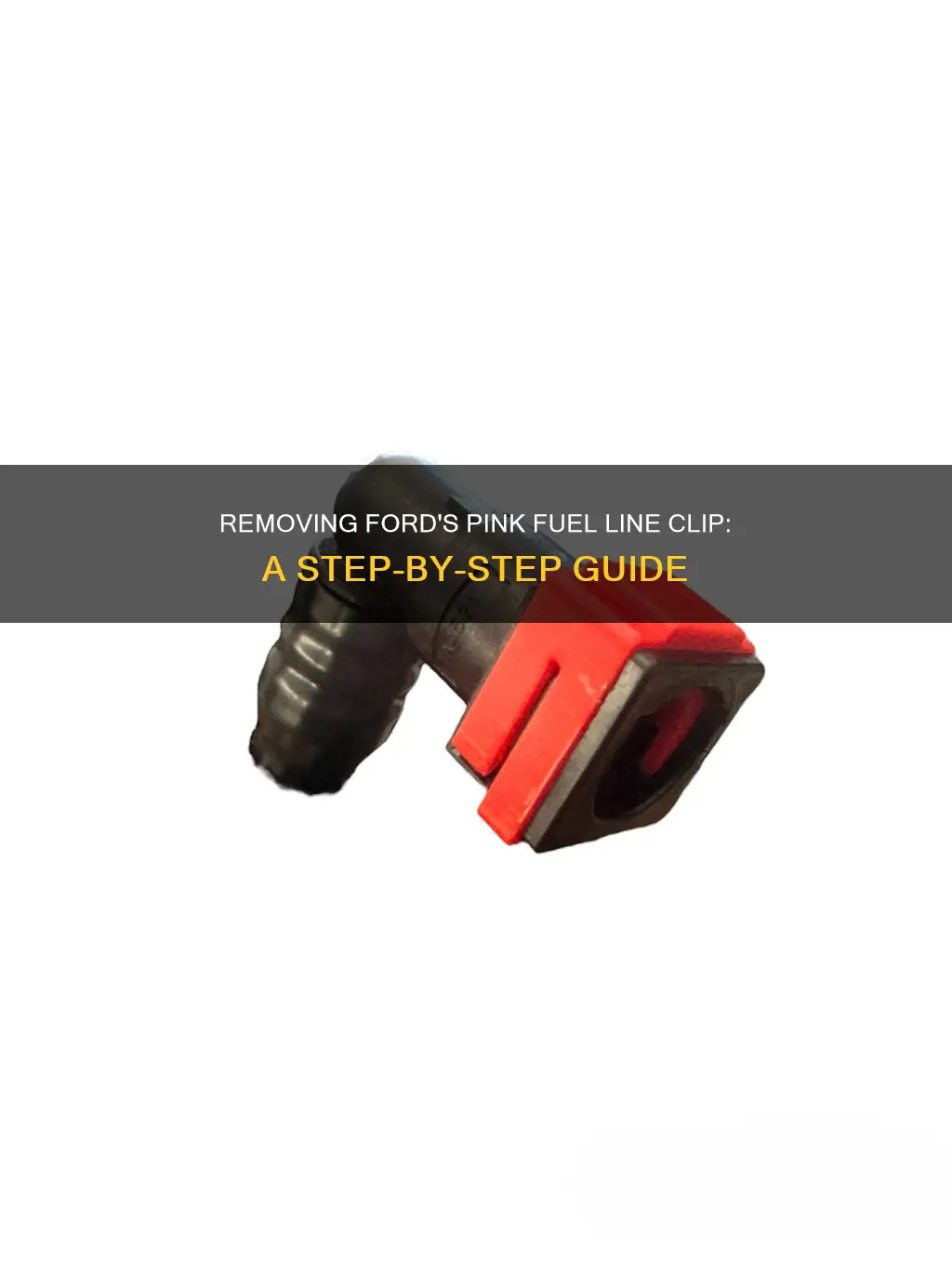

Ford fuel line clips are used to secure the fuel lines in Ford vehicles. These clips come in various colours, including pink, blue, and yellow, and are designed to fit specific models and years of Ford vehicles. Removing a Ford fuel line clip can be a challenging task due to limited visibility, access, and clearance. In some cases, special tools are required for removing the retaining clips, such as the Ford Tool T90T-9550-B or C, or equivalent. However, there are also techniques for removing the clips without the use of specialized tools, such as using narrow slip-jaw pliers or pushing on the back of the clip. It is important to exercise caution during the removal process to avoid breaking any components.
Characteristics and Values Table for Removing Ford Pink Fuel Line Clip
| Characteristics | Values |
|---|---|
| Type of Clips | Metal coupler with a circular spring, quick-release fuel/a/c connectors, plastic housing with an internal plastic retaining clip |
| Tools | Ford Tool T90T-9550-B or C or equivalent, 6-inch slip-jaw pliers with a jaw width of 0.2 in (5mm) or less, removal tool with a hinged center section, pliers |
| Process | Push on the back of the clip, don't pull it out, push down on the tab, lift up on the outer latch, pull the line from the connector, compress the retaining clip, slide the tool back to unseat the garter spring, pull back on the fuel line, clean all dirt and grease from the fitting, spread the two clip legs about 1/8 in (3mm) each to disengage from the fitting, pull the clip outward from the fitting, grasp the fitting and hose assembly and pull away from the steel line |
| Tips | Use all the force you need short of a hammer, don't pry too hard, push the line towards the pump/tank sending unit before pressing the tab to relieve tension, use a zip tie if the clip breaks |
Explore related products
What You'll Learn
Using a special tool to remove the retaining clip
Ford Motor Company engineers have developed a special retaining clip to hold the fuel lines in place. While it is best to use a specialty tool to remove it, you can also use a pocket screwdriver with caution. If you do not have a fuel line removal tool, you can use a pair of narrow 6-inch slip-jaw pliers with a jaw width of 0.2 inches (5mm) or less.
To use the special tool, place the tip of the fuel line removal tool around the head of the clip and release it, then carefully pull the fuel line away from the filter. The special tool is available from Ford and other manufacturers. You can use Ford Tool T90T-9550-B or C or an equivalent tool.
If you are using slip-jaw pliers, align the jaws of the pliers with the openings of the fitting case and compress the part of the retaining clip that engages the case. Compressing the retaining clip will release the fitting, which may be pulled from the connector. Both sides of the clip must be compressed simultaneously to disengage.
The retaining clips are made of plastic and break very easily. If your fuel line is more than five years old, or if the line has not been removed in that time, it is recommended to purchase a fuel line removal tool. If the clip breaks, you will need to buy a new fuel line, as the clips are unavailable separately.
To remove the safety clip from the fuel lines, push down on the safety clip first to clear the fangs, then pop off the clip. The safety clip is attached to a small wire that keeps it from getting lost. This type of removal tool has a hinged centre section that allows you to fit it around the fuel line.
Fuel Feed Line Adapters: What, Why, and How?
You may want to see also
Explore related products
$32.22
Removing the safety clip from the fuel lines
First, it is important to gather the necessary tools. A specialised removal tool, such as Ford Tool T90T-9550-B or C, is ideal for this job. This tool has a hinged centre section that allows it to fit around the fuel line. If you don't have access to this specialised tool, a pair of narrow 6-inch slip-jaw pliers with a jaw width of 0.2 inches (5mm) or less can be used as an alternative.
Before beginning the removal process, ensure that the area is clean and free of dirt and grease. This is crucial to ensure that no debris enters the fuel system.
Now, let's move on to the steps for removing the safety clip:
- Position the removal tool or pliers: Place the tool or pliers in the correct position by aligning the slot on the push connector disconnect tool with either tab on the retaining clip. If using pliers, align the jaws with the openings of the fitting case.
- Compress the retaining clip: Using the tool or pliers, compress the part of the retaining clip that engages the case. Both sides of the clip must be compressed simultaneously to disengage it successfully.
- Release the fitting: By compressing the retaining clip, you will release the fitting, which can now be pulled from the connector.
- Inspect the components: Once the fitting is released, take the time to inspect the retaining clip, fitting end, and connector for any signs of damage. Replace any parts that appear damaged or worn.
- Optional: Some Ford fuel lines may have a small wire attached to the safety clip to prevent loss. In such cases, you will need to slide the tool back to unseat the garter spring located inside the fitting. This action will allow you to pull back on the fuel line and separate it from the fitting.
- Reinstallation: If you plan to reinstall the fuel line, ensure that the O-rings are in good condition and have not sustained any damage. Replace the O-rings if necessary, using specific ones designed for the fuel system to prevent leaks.
It is important to note that you should not use excessive force or pry on the components, as this can lead to breakage. Additionally, be cautious when working with fuel lines to avoid any potential hazards. Always refer to the manufacturer's instructions or seek professional assistance if you are unsure about any steps.
The Essentials of Marine Fuel Lines Explained
You may want to see also
Explore related products
Pushing down on the safety clip to clear the fangs
The pink fuel line clip is a retaining clip that connects the fuel lines to the fuel tank's sending unit or fuel pump assembly. To initiate the removal process, one must first lift the outer latch of the semi-circular clip by placing their thumb and index finger on both sides and lifting the grooved part.
The next step is where the instruction to "push down on the safety clip to clear the fangs" comes into play. This step involves applying pressure to the safety clip, specifically pushing it down toward the end of the hard fuel line. This action helps to disengage the clip from the fuel line, allowing for its eventual removal.
It is important to note that this step requires careful execution to avoid breakage. The safety clip has fangs or teeth-like structures that grip onto the fuel line to ensure a secure connection. By pushing down on the safety clip, you create clearance between these fangs and the fuel line, enabling the subsequent release of the clip.
Practicing on a more accessible clip, such as the one under the hood, is recommended before attempting to remove the fuel tank sending unit's clips, which have limited visibility and clearance. Additionally, relieving any tension on the coupler by pushing the line toward the pump or tank sending unit beforehand can make this process smoother.
Fuel Line Diameter: The Power-Dependent Choice
You may want to see also
Explore related products
Disconnecting the fuel lines from the filter
Firstly, ensure that the area is clean and free of dirt and grease. This is important, as dirt can cause issues with disconnection. If there is dirt or grease, clean it with a suitable product, such as carb or brake cleaner.
Now, you need to remove the safety clip from the fuel line. This clip is attached to a small wire to prevent loss. A special tool is available for this purpose, such as the Ford Tool T90T-9550-B or C, or an equivalent. This tool has a hinged centre section that fits around the fuel line. Place the tool around the head of the clip and release it, then carefully pull the fuel line away from the filter. If you do not have access to this tool, you can use a pocket screwdriver, but this will require more patience and care.
If you are having trouble removing the clip with a screwdriver, you can try a different method. With extreme care, pry the clip outward and away from the fuel line with your fingers. Do not use any other tools for this step. Once the clip is removed, carefully pull the fuel line away from the filter.
If the clip breaks during this process, you will need to purchase a new fuel line, as the clips are not sold separately.
Fuel Line Bolt Sizing for Impala 3400 V6 Engines
You may want to see also
Explore related products
Cleaning dirt and grease from the fitting
To clean dirt and grease from the fitting of a Ford pink fuel line clip, you will need to first identify the type of grease fitting and consult your machine's user manual for specific instructions. Here are some general steps and tips to guide you through the process:
- Prepare the Area: Before you begin, make sure to have all the necessary tools and materials within reach. This includes items such as cleaning solutions, microfiber towels, safety gear, and any other specific tools mentioned in your user manual.
- Spray with Penetrating Oil: If the fitting is difficult to remove due to dirt and grease buildup, spray the area with a penetrating oil solution like WD-40. This will help to loosen the fitting and make it easier to work with.
- Remove the Fitting: If the fitting isn't severely damaged, try to remove it gently using the appropriate tool, such as a wrench or pliers. Apply gentle pressure and turn it counter-clockwise when viewed from the top. Be cautious not to apply too much force, especially if the fitting is made of plastic, to avoid breakage.
- Clean the Fitting: Once the fitting is removed, use a degreasing solution specifically designed for automotive use to clean it thoroughly. Soak a microfiber towel or rag with the solution and scrub the fitting to remove any remaining dirt, grease, or grime. Ensure that you clean all the crevices and threads of the fitting.
- Rinse and Dry: After cleaning, rinse the fitting with distilled water or tap water to remove any residual cleaning solution. Dry the fitting thoroughly before proceeding to the next step.
- Inspect and Prepare for Reinstallation: Take the time to inspect the fitting for any damage or excessive wear and tear. If the fitting is severely damaged or corroded, it may be advisable to replace it with a new one of the same type and size. Consult your user manual or a mechanic if you're unsure about the condition of the fitting.
- Lubrication: Before reinstalling the fitting, apply a suitable lubricant to prevent future buildup and ensure smooth operation. Consult your user manual or a mechanic for recommendations on the best type of lubricant for your specific application.
- Reinstall the Fitting: Finally, reinstall the fitting by following the instructions in your user manual. Ensure that it is securely in place and positioned correctly.
Remember to work in a well-ventilated area when using solvents and cleaners, and always wear appropriate safety gear, including gloves and eye protection, to safeguard against any chemical irritation.
Fuel Line Size Guide for 25 HP Mercury Outboard
You may want to see also
Frequently asked questions
There are a few ways to remove the Ford pink fuel line clip. One way is to use a special tool from Ford, such as Tool T90T-9550-B or C or an equivalent. If you don't have access to the special clip tool, you can use a pair of narrow 6-inch slip-jaw pliers with a jaw width of 0.2 inches (5mm) or less. Another method is to push down on the safety clip first to clear the "fangs", and then pop off the clip. It's important to note that you should push on the back of the clip, not pull it out, to avoid breaking it.
Before attempting removal, clean all dirt and grease from the fitting. It may be helpful to practice on the under-hood clip first, as the tank clips have limited visibility and access. Additionally, ensure that you do not pry too hard on the clip, as this can break the connection tubes on the tank sender/pick-up housing top.
If you break the clip, you can use a zip tie threaded through the fitting where the clip goes. Use the largest zip tie that fits in the holes, and it will function similarly to the clip by making the ID of the fitting too small to come over the flare in the fuel line.
