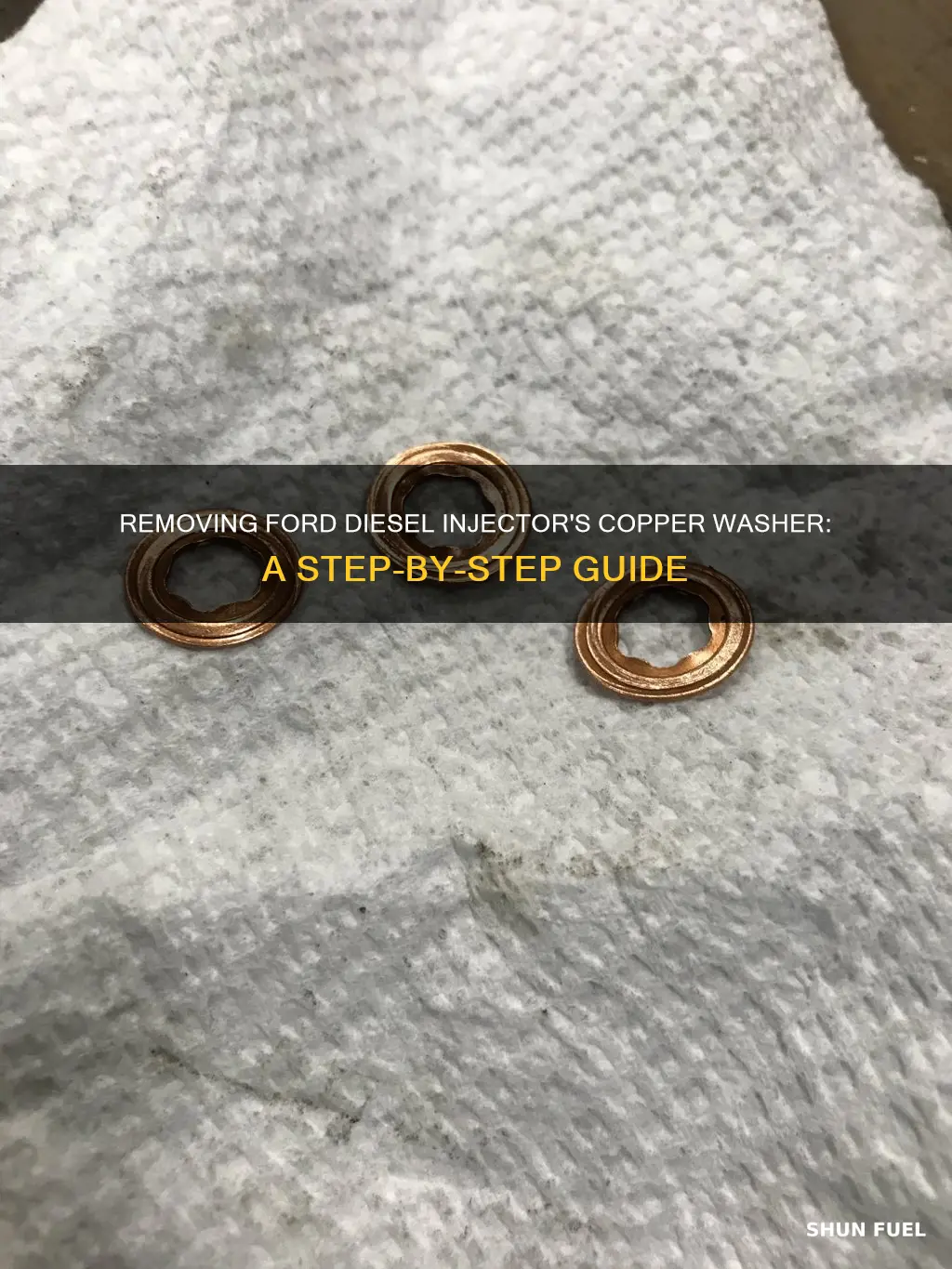

Removing and replacing copper washers on a Ford diesel fuel injector is a delicate process. Copper washers are soft and seal well in high-pressure systems, but they are not meant to be reused as they can warp and not seat properly. While it is possible to reuse washers, it is not recommended, as they will not seal as effectively when reused. When removing the washers, it is important to be careful and use the right tools to avoid damaging the injector. Various tools can be used to remove the washers, such as a single-edge razor, a rifle bore brush, or a flat-blade screwdriver.
Removing and Replacing Copper Washers on Ford Diesel Fuel Injectors
| Characteristics | Values |
|---|---|
| Frequency of replacement | Every time the injector is removed |
| Shape | Concave on one side, flat on the other |
| Installation | Flat side down, concave side up |
| Tools for removal | Rifle bore brush, flat blade screwdriver, stiff wire with a bent tip, Fuel Injector Puller |
| Seal | Washers compress to form a seal |
| Reuse | Not recommended, but possible with proper heating |
Explore related products
What You'll Learn
Copper washers should be replaced every time
When it comes to the fuel injectors in a Ford diesel engine, it is important to replace the copper washers each time. Copper washers are designed to be soft enough to create a tight seal, preventing leaks, but hard enough to withstand the torque applied during the tightening process. Over time, these washers can become warped, affecting their ability to seal properly.
While it is possible to reuse copper washers, it is not recommended. The edges of the washers can become swollen, causing them not to seat properly when reused, which can lead to leaks. Additionally, the washers can be damaged during removal, making it difficult to achieve a proper seal. Reusing washers can also result in the formation of leaks, as the washers may not be able to withstand the torque required for a secure connection.
Copper washers are relatively inexpensive and readily available, making it convenient to replace them with each injector change. This ensures a proper seal and helps to prevent leaks and other issues. Trying to save a small amount by reusing washers can potentially lead to much more costly repairs in the future. Therefore, it is always best to install new copper washers when servicing fuel injectors.
Furthermore, the process of removing and replacing fuel injectors presents an opportune time to change the washers. With the injectors already being worked on, it makes practical sense to replace the washers at the same time, rather than waiting for issues to arise. By proactively replacing the washers, you can help to ensure the longevity and optimal performance of your engine.
Cleaning Your C4 Corvette's Fuel Injector: A Step-by-Step Guide
You may want to see also
Explore related products
Washers seal the mounting seats of injectors
Washers are crucial components in high-pressure diesel systems, sealing the mounting seats of injectors to prevent fuel leaks and ensure optimal combustion. The soft copper washers are specifically designed to create a secure seal when the injector is fitted. This is achieved by the copper washer being annealed during the manufacturing process, making it malleable so it can conform to the shape of the injector and cylinder head, creating a tight seal.
The correct thickness of the seating washer is also vital. If the washer is too thick, it can lead to a lack of power and unburnt fuel. Conversely, if it is too thin, excessive smoke may be produced. Copper washers are commonly used for this purpose due to their softness and malleability, which allows them to create a strong seal.
When removing or replacing copper washers, it is important to exercise caution to avoid damaging the injector seating or the cylinder head. One method is to use a stiff wire with a bent tip to carefully pick out the washer from the injector. A single-edge razor can also be employed to gently pop the washer off. In some cases, a tap with grease on the threads may be used to hold the shavings, along with vice grip needle-nose pliers to pull out the washer. If the washer is particularly stubborn, a small amount of super glue can be applied to a wood dowel, which is then inserted into the seat and left for a few minutes before pulling out the washer.
It is worth noting that, while copper washers are designed to be reused, they can become warped or swollen during removal, affecting their ability to seal properly. Therefore, it is generally recommended to replace copper washers when replacing injectors to ensure a secure and effective seal.
Fuel Injector Maintenance for 2004 VW Beetles
You may want to see also
Explore related products
Washers compress and become hard, losing their seal
In the case of Ford diesel fuel injectors, the copper washers may become stuck to the injectors over time, making them difficult to remove. This is likely due to the high temperatures and pressures that the washers are exposed to during the engine's operation. Additionally, the fuel and oil residue can cause the washers to adhere to the injectors, further complicating their removal.
To remove compressed and hardened copper washers, several techniques can be employed. One method is to use a single-edge razor to carefully pop the washer off the injector. This requires a steady hand and a sharp razor to avoid damaging the injector or surrounding components. Another approach is to use a stiff wire with a bent tip to carefully pick out the washer from the head of the injector. This method can be effective, but it requires careful manipulation to avoid scratching or damaging the injector.
In some cases, copper washers may need to be replaced entirely. This is often necessary if the washers have become severely deformed or if they have been reused multiple times. Reusing copper washers can lead to leaks, as the ridge and groove pattern on the washer can act as channels for fluid to escape. Therefore, it is generally recommended to replace copper washers with new ones to ensure a tight seal and prevent leaks.
To prevent washers from becoming compressed and losing their seal, proper installation and maintenance are crucial. This includes ensuring that the washers are the correct size and thickness for the specific application and that they are installed with the proper torque and technique. Additionally, annealing can be used to soften copper washers and restore their sealing capabilities. This process involves heating the washer to a red-hot temperature and then quickly cooling it in water or air. By softening the copper, annealing can improve the washer's ability to conform to surfaces and create a tight seal.
Understanding Mechanical Fuel Injectors: Their Function and Mechanism
You may want to see also
Explore related products
Using a flat-head screwdriver to remove washers
Removing a copper washer from a diesel fuel injector can be a tricky task. It is important to exercise caution and use the right tools to avoid damaging the cast iron cylinder head. One effective method is to use a flat-head screwdriver. Here is a step-by-step guide on how to use a flat-head screwdriver to remove a copper washer from a Ford diesel fuel injector:
Firstly, select an appropriate flat-head screwdriver. Ensure that it is a large, fresh, slotted screwdriver with a flat blade. The screwdriver should have nice, fresh, ground edges and be able to fit into the opening of the injector. Test the screwdriver by trying to twist and remove a washer from one of the injectors you have already pulled out.
Before inserting the screwdriver, you may need to lightly tap it into the injector hole with a hammer. Gently tap the screwdriver into the hole of the copper washer. Be careful not to use excessive force, as you don't want to pound a cut or groove into the injector seat. It is crucial to feel for the right amount of force and adjust as needed.
Once the screwdriver is in place, it's time to twist and apply torque. Turn the screwdriver in the direction that will allow the washer to come out. Usually, this will require 35 lbs of torque. By twisting the screwdriver, you will be able to dislodge the washer, and it should come out stuck on the end of the screwdriver.
In some cases, the copper washer may be severely stuck or smashed down. If this is the case, you can try creating two creases in the copper washer with the screwdriver, 180 degrees apart. Carefully apply force to create a split in the washer, dividing it into two C-shaped pieces. This method requires skill and precision, as you don't want to damage the injector seat.
Remember, it is recommended to replace copper washers whenever you remove them. Reusing old washers can lead to leaks and other issues. Additionally, be cautious when handling the cast iron cylinder head, as it is delicate and can be easily damaged.
Clearing Fuel Injectors: DIY Maintenance for Optimum Performance
You may want to see also
Explore related products
Washers can be warped when removing them from the bore
One method to remove them is to use a single-edge razor to pop them off the bottom of the injector. A stiff wire with a bent tip can also be used to pick them out if they are stuck in the head. It is important to note that new injectors will come with new washers, so it may be easier to simply replace the injectors and washers together.
When removing washers, it is important to consider the direction in which the washer is facing. The concave side of the washer should face up towards the injector, while the flat side should be against the surface where the injector seats. This is important for ensuring a proper seal.
In some cases, it may be necessary to enlarge the hole in the washer. This can be done by grinding a small flat on the washer's OD and chucking it up in a vise, then using a drill to enlarge the hole. Another method is to use a pocket in soft jaws and bore away, or to use a magnet to stick the washer to the face of a 3-jaw chuck and tighten the jaws to align the washer.
Fuel Injector Issues: Can They Cause Starter Failure?
You may want to see also
Frequently asked questions
Your vehicle may be experiencing difficulty with starting, misfires, a loss in power, acceleration, and fuel efficiency. In more severe cases, the vehicle may also be stalling. Engine performance issues will likely be preceded by a fuel smell or leak.
Technically, you should replace the washers every time. The washers are annealed (soft) when new, but they harden upon compression, which makes them harder to seal the second time around.
Try using a flat-blade screwdriver. Lightly tap the screwdriver to drive it into the hole of the copper washer, then twist it and the washer should come out stuck on the end of the screwdriver. You can also try using channel locks and turning them to release the adhesion.
Try using a large flat-blade screwdriver. Shove it down, twist, and the washer should come right out. You can also try soaking the washer in a solution overnight to help loosen it.
The concave side should face up towards the injector, and the flat side should be against the surface where the injector seats.
