Removing the fuel pump from a Chevy Astro requires careful preparation and attention to detail to ensure safety and efficiency. Begin by disconnecting the vehicle’s battery to prevent accidental ignition or electrical hazards. Next, relieve the fuel system pressure using the Schrader valve located on the fuel rail. After depressurizing, locate the fuel tank access panel, typically found beneath the vehicle’s rear seat or cargo area. Remove the panel to access the fuel pump module, which is secured by a locking ring or retaining mechanism. Carefully disconnect the electrical connector and fuel lines, then use a specialized tool to release the locking ring and extract the pump assembly. Always work in a well-ventilated area and avoid open flames or sparks due to the flammable nature of gasoline. Following these steps will help safely and effectively remove the Chevy Astro’s fuel pump.
| Characteristics | Values |
|---|---|
| Vehicle Model | Chevrolet Astro |
| Fuel Pump Location | Inside the fuel tank |
| Tools Required | Socket set, wrench, screwdriver, fuel line disconnect tool, safety gloves |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Steps to Remove | 1. Relieve fuel pressure 2. Disconnect battery 3. Drain fuel tank (optional) 4. Remove rear seat or access panel 5. Disconnect electrical connectors 6. Disconnect fuel lines 7. Remove fuel pump locking ring 8. Extract fuel pump assembly |
| Special Notes | Use a fuel line disconnect tool to avoid damage; ensure proper sealing upon reinstallation |
| Difficulty Level | Moderate to Difficult (requires mechanical skill) |
| Estimated Time | 2-4 hours depending on experience |
| Replacement Parts | New fuel pump, fuel filter, locking ring, seals |
| Common Issues | Fuel leaks, electrical connector damage, difficulty accessing fuel tank |
| Recommended Resources | Repair manual, online tutorials, professional assistance if unsure |
Explore related products
What You'll Learn
Disconnect Battery and Relieve Fuel Pressure
Before diving into the fuel pump removal process on a Chevy Astro, prioritizing safety is paramount. Fuel systems operate under pressure, and ignoring this fact can lead to dangerous situations. Disregarding proper fuel pressure relief can result in fuel spraying, potential fires, or even explosions.
The first step in this critical safety measure is to disconnect the battery. This simple action cuts power to the fuel pump, preventing it from inadvertently engaging during the removal process. Locate the negative battery terminal, typically marked with a "-" symbol, and loosen the nut securing the cable. Carefully pull the cable away from the terminal, ensuring a complete disconnection.
Remember, even with the engine off, residual electrical charge can remain in the system, making this step essential.
With the battery disconnected, the focus shifts to relieving fuel pressure. This step is crucial as it prevents fuel from gushing out when the fuel lines are disconnected. Locate the Schrader valve on the fuel rail, often resembling a tire valve stem. Attach a fuel pressure gauge to the valve and depress the valve stem to release the pressure. Allow the pressure to fully dissipate, observing the gauge reading until it reaches zero. If a gauge is unavailable, simply depress the valve for several seconds, ensuring a thorough release.
Some Chevy Astro models may have a different fuel system configuration, so consulting the vehicle's manual for specific instructions is always recommended.
While these steps may seem straightforward, their importance cannot be overstated. Neglecting to disconnect the battery or properly relieve fuel pressure can lead to serious consequences. By following these safety precautions, you significantly reduce the risk of accidents and ensure a smoother, safer fuel pump removal process.
Step-by-Step Guide: Activating Your Fuel Pump Safely and Efficiently
You may want to see also
Explore related products

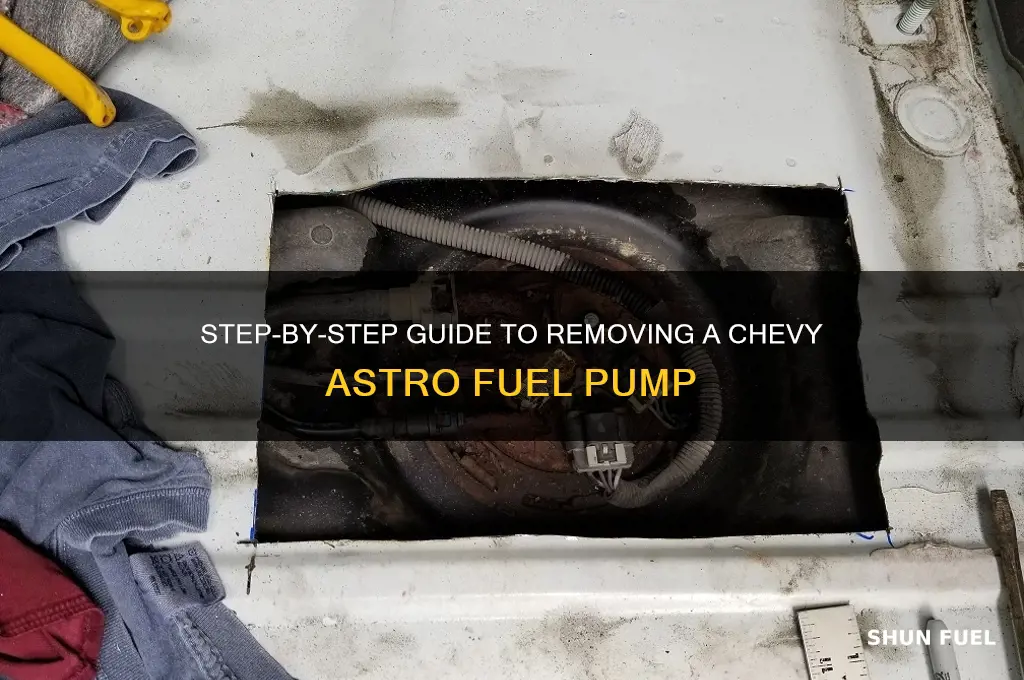

Access Fuel Tank and Pump Assembly
Accessing the fuel tank and pump assembly in a Chevy Astro requires precision and safety precautions. Begin by ensuring the vehicle is on a level surface, the engine is cool, and the fuel tank is as empty as possible to minimize spillage and fire hazards. Disconnect the negative battery terminal to prevent accidental ignition. These initial steps are critical, as they set the foundation for a safe and efficient removal process.
Next, locate the fuel tank access panel, typically found beneath the vehicle near the rear passenger side. Use a suitable jack to lift the vehicle and secure it on stands, providing ample clearance to work. Remove the access panel by unscrewing the retaining bolts, taking care not to strip them. Once exposed, identify the fuel pump assembly, which is usually connected to the tank via electrical and fuel lines. Label these connections if necessary to avoid confusion during reassembly.
To detach the pump assembly, relieve the fuel system pressure by locating the Schrader valve on the fuel rail and depressurizing it using a pressure gauge. Disconnect the electrical connector and fuel lines, using appropriate tools to avoid damaging the quick-connect fittings. A fuel line disconnect tool can be particularly useful here. Once disconnected, carefully lower the fuel pump assembly from the tank, being mindful of any residual fuel that may spill.
Inspect the fuel tank and pump assembly for signs of wear, corrosion, or damage. If replacing the pump, ensure the new unit is compatible with your Chevy Astro’s model year and engine type. Reinstallation follows the reverse order of removal, with special attention to securing all connections and testing for leaks. Always refer to the vehicle’s service manual for specific torque specifications and additional guidance.
In summary, accessing the fuel tank and pump assembly in a Chevy Astro demands careful preparation, methodical disassembly, and attention to detail. By following these steps and prioritizing safety, even a novice mechanic can successfully complete this task, ensuring the vehicle’s fuel system operates reliably.
Accessing the Fuel Pump on a 2005 Dodge Grand Caravan
You may want to see also
Explore related products
Remove Fuel Lines and Wiring
Before disconnecting any fuel lines on your Chevy Astro, relieve the fuel system pressure to avoid accidental spraying or leaks. Locate the Schrader valve on the fuel rail, typically near the engine, and attach a pressure gauge. Depress the valve to release pressure until the gauge reads zero. This critical step ensures safety and prevents fuel from gushing out during disconnection. Always work in a well-ventilated area and keep a fire extinguisher nearby as a precaution.
Next, identify the fuel lines connected to the pump. Most Chevy Astros have two lines: one for supply and one for return. Use a fuel line disconnect tool to separate the quick-connect fittings. Insert the tool into the fitting, push it in firmly, and pull the line away from the pump. Be gentle to avoid damaging the plastic fittings. If the lines are stubborn, apply a small amount of silicone spray to loosen them. Remember, fuel lines can be under tension, so work methodically to prevent spills or breakage.
While removing the wiring, inspect the connector for corrosion or damage. Gently disconnect the electrical harness by pressing the release tab and pulling it away from the pump. Avoid tugging on the wires themselves, as this can cause internal damage. If the connector is difficult to remove, use a flathead screwdriver to carefully pry it loose. Label the wiring harness with tape or take a photo to ensure correct reinstallation later. This attention to detail saves time and prevents errors during reassembly.
After disconnecting the lines and wiring, clean the area around the fuel pump to remove debris or residue. Use a clean rag or compressed air to ensure a clear workspace. This step not only improves visibility but also reduces the risk of contamination when installing the new pump. By systematically addressing each component, you’ll streamline the removal process and set the stage for a smooth replacement. Always double-check your work before proceeding to the next step.
Why Fuel Pumps Fail: Common Causes and Warning Signs
You may want to see also
Explore related products
Detach Pump from Tank and Replace
The fuel pump module in a Chevy Astro is a critical component, but over time, it may fail, necessitating removal and replacement. Detaching the pump from the tank requires precision and care to avoid damage to the tank or surrounding components. Begin by relieving the fuel system pressure to prevent accidental fuel spray, which can be done by locating the Schrader valve on the fuel rail and pressing it with the ignition off. This step is crucial for safety and should never be skipped.
Once the pressure is relieved, disconnect the negative battery terminal to eliminate any risk of electrical shock or accidental ignition. Next, locate the fuel tank access panel, typically found beneath the vehicle. Remove the panel to expose the fuel pump module. Carefully disconnect the electrical connectors and fuel lines, ensuring not to damage the quick-connect fittings. A fuel line disconnect tool can be particularly useful here, as it minimizes the risk of breaking the plastic components. Labeling the connections before removal can streamline the reassembly process.
With the connections detached, focus on removing the pump module itself. This involves unscrewing the retaining ring or lock ring that secures the module to the tank. Use a suitable tool, such as a strap wrench or lock ring tool, to avoid damaging the tank. Once the ring is removed, gently pull the module out of the tank, being mindful of any residual fuel that may spill. Have a drain pan ready to catch any fuel and minimize environmental contamination. Inspect the tank opening for debris or damage before proceeding.
Replacing the fuel pump module requires a methodical approach. Install the new module by aligning it with the tank opening and securing it with the lock ring. Tighten the ring evenly to ensure a proper seal. Reattach the fuel lines and electrical connectors, double-checking their orientation and tightness. After reassembly, reconnect the battery and turn the ignition to the "on" position (without starting the engine) to pressurize the system. Check for leaks around the module and connections. If no leaks are detected, proceed with a test drive to confirm the new pump operates correctly. This process, while detailed, ensures a safe and effective replacement of the Chevy Astro’s fuel pump.
Marvel Mystery Oil: Can It Boost Fuel Pump Performance and Efficiency?
You may want to see also
Explore related products
![A-Premium Enginie Water Pump [8Cyl 4.8 5.3 6.0L DOHC] w/Thermostat Compatible with GM Cars Chevy, GMC, Cadillac, Hummer, H2, Workhorse - Silverado, Express, Escalade, Tahoe, Sierra, Yukon, 9-7x More](https://m.media-amazon.com/images/I/71noUfOFmtL._AC_UY218_.jpg)
Reinstall New Pump and Test System
With the old fuel pump removed, it's time to reinstall the new one and ensure your Chevy Astro's fuel system is functioning optimally. This process requires precision and attention to detail to avoid leaks and ensure proper operation. Begin by carefully positioning the new fuel pump assembly into the tank, ensuring the electrical connector and fuel lines align perfectly with their respective ports. Secure the pump using the manufacturer-recommended torque specifications for the retaining bolts, typically ranging from 10 to 15 foot-pounds, to prevent over-tightening and potential damage.
A critical aspect of reinstallation is the proper sealing of the pump assembly. Apply a thin layer of fuel-resistant sealant, such as Loctite 518, to the gasket or O-ring before installation. This sealant acts as an additional barrier against fuel leaks, which can be hazardous and detrimental to the vehicle's performance. Allow the sealant to set for approximately 10 minutes before proceeding, ensuring a secure bond.
Once the pump is securely installed, it's essential to test the system to verify its functionality. Start by reconnecting the battery and turning the ignition to the 'On' position without starting the engine. Listen for the fuel pump's priming cycle, a brief humming sound indicating the pump is pressurizing the fuel system. If the sound is absent, check the electrical connections and ensure the pump is receiving power.
The final test involves starting the engine and monitoring its performance. A properly installed fuel pump should result in a smooth idle and responsive acceleration. If the engine struggles to start or exhibits rough idling, recheck the pump's installation, including fuel lines and electrical connections. In some cases, a fuel pressure gauge can be used to diagnose issues, with the pressure reading typically ranging from 30 to 60 psi, depending on the engine's requirements.
Reinstalling a fuel pump is a task that demands precision and a systematic approach. By following these steps and paying attention to the details, you can ensure a successful installation, minimizing the risk of leaks and performance issues. This process not only restores your vehicle's functionality but also provides an opportunity to upgrade the fuel system's reliability, especially when using high-quality replacement parts and adhering to manufacturer guidelines.
Bypassing a Bad Fuel Pump: Quick Fixes and Safety Tips
You may want to see also
Frequently asked questions
You will need a fuel line disconnect tool, wrench or socket set, screwdriver, safety goggles, gloves, and a drain pan to catch any fuel.
Yes, it’s crucial to relieve the fuel pressure by locating the Schrader valve on the fuel rail and pressing it with the ignition off to prevent accidents.
The fuel pump is located inside the fuel tank, which requires removing the tank from the vehicle to access the pump.
No, the fuel pump is an in-tank unit, so the fuel tank must be removed to access and replace the pump.
Work in a well-ventilated area, avoid open flames or sparks, wear safety goggles and gloves, and ensure the vehicle is on a level surface with the ignition off.
