Sylvie Willis

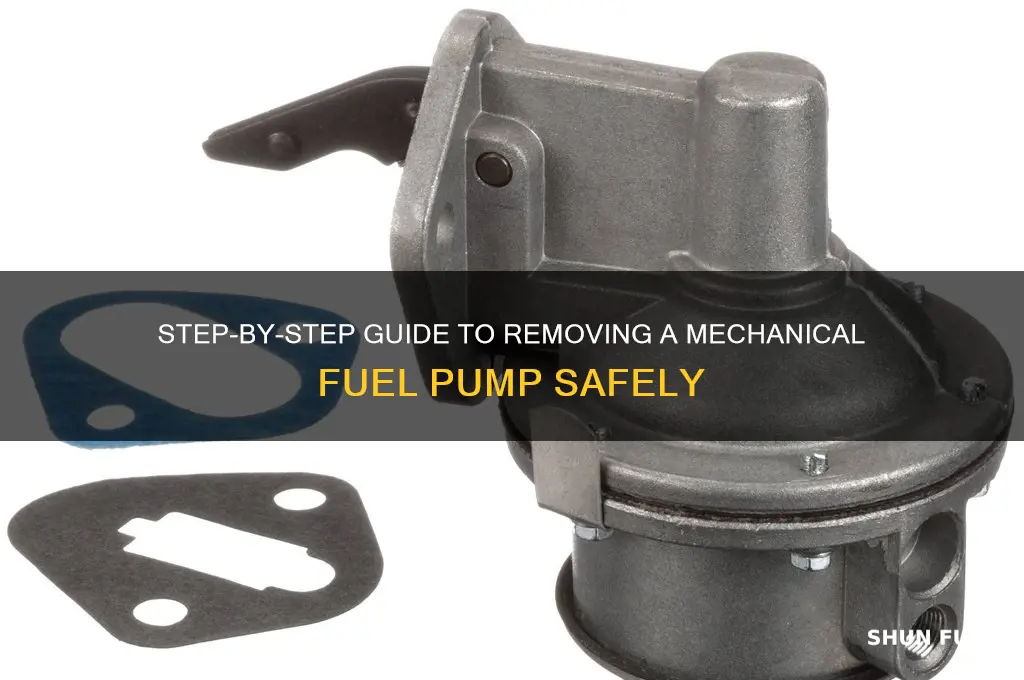

Removing a mechanical fuel pump is a task that requires careful preparation and attention to detail to ensure safety and efficiency. Before beginning, it's essential to disconnect the battery and relieve fuel system pressure to prevent accidents. Start by locating the fuel pump, typically found on the engine block or near the fuel tank, and identify the fuel lines and mounting bolts. Use appropriate tools to loosen and remove the bolts, taking care not to damage surrounding components. Once the pump is free, carefully disconnect the fuel lines, using a catch pan to collect any residual fuel. After removal, inspect the pump and gaskets for wear or damage, replacing them as necessary before installing a new or refurbished unit. Always follow the manufacturer’s guidelines and safety precautions throughout the process.
| Characteristics | Values |
|---|---|
| Tools Required | Wrenches, screwdrivers, socket set, drain pan, safety gloves, safety goggles |
| Safety Precautions | Work in a well-ventilated area, disconnect battery, relieve fuel pressure |
| Fuel System Preparation | Run the engine until it stops (to relieve pressure), or use a pressure relief tool |
| Pump Location | Typically mounted on the engine block or near the fuel tank |
| Disconnect Fuel Lines | Use wrenches or line disconnect tools to remove fuel lines from the pump |
| Remove Mounting Bolts | Loosen and remove bolts securing the pump to the engine block |
| Extract the Pump | Gently pull the pump out, ensuring no damage to gaskets or seals |
| Clean Mounting Surface | Wipe the mounting area clean before installing a new pump or reinstalling |
| Inspect Related Components | Check fuel lines, filters, and hoses for wear or damage |
| Reinstallation Tips | Use a new gasket, ensure proper alignment, and tighten bolts evenly |
| Post-Removal Steps | Reconnect fuel lines, bleed the fuel system, and test for leaks |
| Vehicle Compatibility | Procedure varies by make/model; consult vehicle-specific manual |
| Difficulty Level | Moderate (requires basic mechanical skills) |
| Time Estimate | 30 minutes to 2 hours, depending on vehicle and experience |
Explore related products
What You'll Learn
- Safety Precautions: Wear gloves, goggles, ensure engine is off, and relieve fuel system pressure
- Disconnect Fuel Lines: Use wrenches to loosen fittings, catch fuel with a container
- Remove Mounting Bolts: Unbolt the pump from the engine block using appropriate-sized sockets
- Inspect Pump and Gaskets: Check for wear, replace gaskets if damaged or leaking
- Reinstall or Replace: Align new pump, tighten bolts, reconnect fuel lines securely
Safety Precautions: Wear gloves, goggles, ensure engine is off, and relieve fuel system pressure
Fuel systems operate under pressure, and gasoline is highly flammable—a dangerous combination when removing a mechanical fuel pump. Before you begin, relieve the fuel system pressure to prevent accidental sprays or leaks. Locate the Schrader valve on the fuel rail (often near the engine bay’s firewall) and depress it with a tool or probe until you hear a hissing sound, indicating pressure release. This step is non-negotiable, as residual pressure can turn a routine repair into a hazardous situation.
Protective gear isn’t optional—it’s your first line of defense. Wear nitrile gloves to shield your skin from gasoline, which can cause irritation or absorb harmful chemicals. Pair them with safety goggles to guard against fuel splashes, especially when working near the pump or fuel lines. Gasoline can seep into crevices, so gloves with textured grips improve dexterity while handling tools. Goggles should be anti-fog and fit snugly to ensure uninterrupted visibility during the task.
An idling engine introduces heat, sparks, and unpredictable fuel flow—all risks when removing a mechanical pump. Ensure the engine is off and cooled before starting. Wait at least 30 minutes after driving to allow components to cool, reducing the risk of burns or ignition. Verify the ignition is in the "off" position and remove the key to prevent accidental starts. If working on older vehicles, disconnect the battery to eliminate electrical hazards entirely.
Mechanical fuel pumps often require accessing tight, fuel-soaked spaces. Work in a well-ventilated area to avoid inhaling fumes, and keep a fire extinguisher nearby as a precaution. If fuel spills, use an absorbent material like kitty litter to contain it, and dispose of it according to local hazardous waste guidelines. Combining these precautions—pressure relief, protective gear, engine shutdown, and preparedness—transforms a risky task into a manageable one, ensuring both your safety and the success of the repair.
Understanding the Yamaha G1 Fuel Pump: Functionality and Operation Explained
You may want to see also
Explore related products
Disconnect Fuel Lines: Use wrenches to loosen fittings, catch fuel with a container
Fuel lines are the lifelines of your mechanical fuel pump, delivering the essential liquid that powers your engine. Disconnecting them is a critical step in removing the pump, but it’s not as simple as unscrewing a cap. Fuel lines are under pressure, often contain residual fuel, and are connected with fittings that require precision to avoid damage or spills. Before you begin, ensure your vehicle is on a level surface, the engine is cool, and you’ve relieved the fuel system pressure to minimize risks.
The process starts with identifying the correct wrench size for the fittings. Most fuel line fittings are either 3/8-inch or 5/16-inch, depending on your vehicle’s make and model. Use an open-end or flare nut wrench to loosen the fittings, turning them counterclockwise. Avoid over-tightening or forcing the wrench, as this can strip the threads or damage the lines. Work methodically, loosening one fitting at a time to control fuel flow. Always position a drain pan or container beneath the fittings to catch any fuel that escapes—even small spills can be hazardous and difficult to clean.
While disconnecting the lines, pay attention to the direction of fuel flow. On most systems, the inlet line delivers fuel to the pump, while the outlet line carries it to the carburetor or injectors. Labeling these lines with tape or markers can prevent confusion during reinstallation. If the fittings are stubborn or corroded, apply penetrating oil and allow it to sit for 10–15 minutes before attempting to loosen them again. Never use excessive force, as this can cause leaks or damage the pump’s mounting surface.
A common mistake is underestimating the amount of fuel that can remain in the lines. Even after relieving system pressure, residual fuel can drip or spray unexpectedly. Wear safety goggles and nitrile gloves to protect yourself from fuel exposure, which can irritate skin and eyes. If fuel spills onto painted surfaces, clean it immediately with a mild detergent to prevent damage. Proper disposal of spilled fuel is also crucial—absorb it with rags or kitty litter and dispose of it according to local regulations.
In summary, disconnecting fuel lines requires patience, precision, and preparedness. By using the right tools, catching fuel in a container, and taking safety precautions, you can avoid spills, damage, and hazards. This step, though seemingly straightforward, is a test of your attention to detail and respect for the mechanics of your vehicle. Master it, and you’ll be one step closer to successfully removing your mechanical fuel pump.
Step-by-Step Guide to Safely Removing a Fuel Pump Relay
You may want to see also
Explore related products
Remove Mounting Bolts: Unbolt the pump from the engine block using appropriate-sized sockets
The mounting bolts securing a mechanical fuel pump to the engine block are often the most straightforward yet critical step in the removal process. These bolts, typically ranging from 10mm to 14mm in size, are designed to withstand the pump’s vibrations and operational stresses. Before engaging with them, ensure the engine is cool and the fuel system is depressurized to avoid accidents. Gather a socket set with extensions and a ratchet, as access to these bolts can be tight, especially in older vehicles with cramped engine bays.
Analyzing the bolt removal process reveals a common oversight: applying excessive force. Over-tightening during installation or corrosion can make these bolts stubborn. If resistance is met, avoid brute force, which risks stripping the bolt heads or damaging the engine block threads. Instead, apply a penetrating oil like WD-40 or PB Blaster, allowing it to sit for 10–15 minutes to loosen rust or debris. For particularly stubborn bolts, a breaker bar can provide additional leverage without compromising precision.
A persuasive argument for methodical bolt removal lies in its impact on future repairs. Properly unbolting the pump ensures the engine block’s threads remain intact, simplifying reinstallation or replacement. Compare this to rushed removal, which often leads to cross-threading or broken bolts, turning a routine task into a costly repair. Patience and the right tools not only preserve the engine’s integrity but also save time and frustration in the long run.
Descriptively, the act of unbolting the fuel pump is a tactile process. The socket clicks into place, the ratchet turns with a satisfying resistance, and the bolt gradually loosens, releasing the pump from its mount. Pay attention to the order of bolt removal; some pumps have multiple bolts of varying lengths, and removing them in sequence can prevent misalignment during reinstallation. Keep the bolts organized, as reusing them is often feasible if they’re in good condition.
Instructively, here’s a step-by-step approach: Position the socket over the bolt, ensuring it’s securely engaged to prevent slipping. Apply steady pressure with the ratchet, turning counterclockwise. If resistance is encountered, pause and reassess—force is rarely the solution. Once all bolts are removed, gently rock the pump back and forth to break the seal with the engine block. Lift the pump straight upward, being mindful of any attached fuel lines or linkages. This methodical approach ensures a clean removal, setting the stage for the next steps in the fuel pump replacement process.
Step-by-Step Guide to Assembling Your Topscope Fuel Pump Easily
You may want to see also
Explore related products
Inspect Pump and Gaskets: Check for wear, replace gaskets if damaged or leaking
Before removing a mechanical fuel pump, a thorough inspection is crucial to assess its condition and determine the extent of the repair or replacement needed. This step is often overlooked, but it can save time and prevent further damage. Start by examining the pump for any visible signs of wear, such as corrosion, cracks, or deformities in the housing. Pay close attention to the pump’s mounting surface, as warping or damage here can compromise its seal and function. Use a bright light and a magnifying glass if necessary to spot fine cracks or pitting that might otherwise go unnoticed.
Next, focus on the gaskets, which are critical for maintaining a proper seal between the pump and the engine block. Gasket material can degrade over time due to heat, fuel exposure, and pressure fluctuations. Inspect the gaskets for brittleness, cracking, or signs of fuel seepage. Even a small leak can lead to fuel loss, reduced pump efficiency, or safety hazards. If the gaskets appear damaged or compromised, replacement is non-negotiable. Always use high-quality, fuel-resistant gaskets designed for your specific pump model to ensure compatibility and longevity.
A comparative analysis of the pump’s condition can help you decide whether to repair or replace it. For instance, minor wear on the pump’s internal components, such as the diaphragm or valves, might be serviceable, but extensive damage often warrants a full replacement. Compare the cost and effort of repairing versus replacing the pump, considering factors like parts availability and labor time. In many cases, replacing the entire assembly is more cost-effective and reliable than attempting partial repairs, especially on older vehicles.
When inspecting the pump, take the opportunity to clean the surrounding area to avoid debris contamination during reinstallation. Use a lint-free cloth and a mild solvent to remove dirt, grease, and old gasket residue from the mounting surface. Ensure the area is completely dry before proceeding. This step, though simple, is essential for achieving a secure and leak-free seal. Additionally, inspect the fuel lines and connections for wear or leaks, as these components often degrade alongside the pump and gaskets.
Finally, document your findings with notes or photographs to reference during reassembly or future inspections. This practice not only aids in diagnosing recurring issues but also serves as a baseline for tracking the pump’s condition over time. By meticulously inspecting the pump and gaskets, you ensure that any removal or replacement is performed with full knowledge of the system’s health, minimizing the risk of unexpected complications and maximizing the efficiency of your repair.
Are Sparta Fuel Pumps Reliable? A Comprehensive Review and Analysis
You may want to see also
Explore related products
Reinstall or Replace: Align new pump, tighten bolts, reconnect fuel lines securely
After removing the old mechanical fuel pump, the next critical step is ensuring the new one is installed correctly. Proper alignment is paramount; even a slight misalignment can lead to inefficient fuel delivery or premature wear. Position the new pump so its mounting holes align perfectly with those on the engine block. Use a torque wrench to tighten the bolts to the manufacturer’s specifications—typically between 15 and 25 foot-pounds, depending on the vehicle model. Over-tightening can strip threads or damage the pump housing, while under-tightening risks leaks or loosening over time.
Reconnecting the fuel lines requires precision and care. Ensure the lines are free of debris or damage before reattaching them. Use new gaskets or seals if recommended by the manufacturer, as reused components can compromise the connection. Tighten the fuel line fittings hand-tight, then use a wrench to give them an additional quarter-turn to ensure a secure seal. Avoid over-tightening, as this can crack the fittings or damage the pump’s ports. If working with a high-pressure fuel system, double-check all connections for leaks by spraying soapy water around the joints and looking for bubbles when the engine is running.
A comparative analysis of reinstallation versus replacement reveals that while reinstalling the original pump might save costs, it’s often more practical to replace it with a new or remanufactured unit. New pumps come with updated components and warranties, reducing the risk of future failures. If opting for reinstallation, thoroughly inspect the old pump for wear, corrosion, or damage. Even minor defects can lead to performance issues, making replacement the safer choice in most cases.
Finally, test the system before closing up the engine bay. Turn the ignition to the "on" position (without starting the engine) to pressurize the fuel lines and check for leaks. If no leaks are detected, start the engine and monitor the pump’s operation for unusual noises or vibrations. A properly installed mechanical fuel pump should operate quietly and deliver fuel consistently. This final step ensures your vehicle’s fuel system is reliable and safe for the road.
Testing a Diaphragm Fuel Pump: A Step-by-Step Guide for Mechanics
You may want to see also
Frequently asked questions
Typically, you’ll need a wrench or socket set, screwdriver, gasket scraper, and possibly a fuel line disconnect tool. Always refer to your vehicle’s manual for specific tools.
Yes, it’s crucial to relieve fuel pressure by running the engine until it stalls or using a pressure relief tool to avoid fuel spills and potential hazards.
Clean the mounting surface thoroughly, apply a thin layer of gasket sealant if required, and ensure the new gasket is properly aligned before tightening the bolts evenly.
