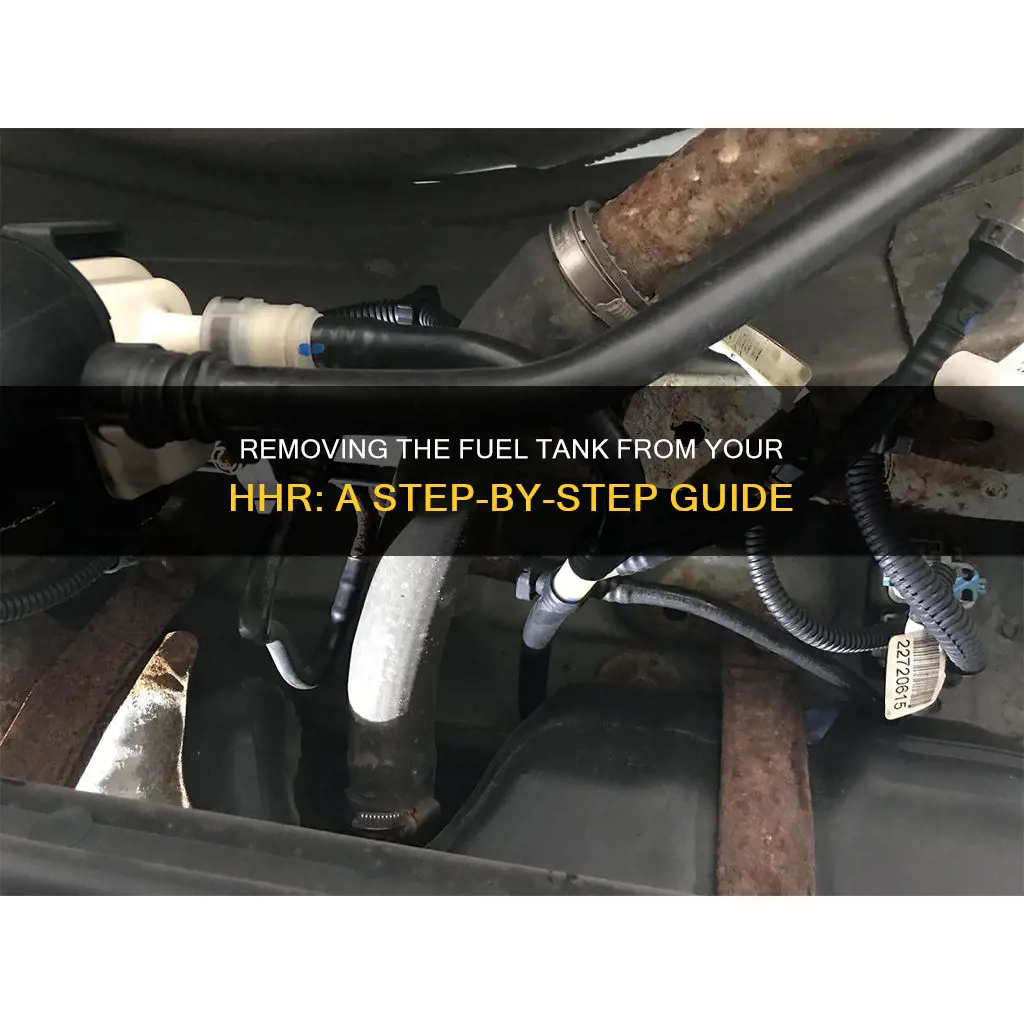

Removing a fuel tank from a Chevrolet HHR vehicle involves several steps and should be done with caution. The fuel tank in the Chevrolet HHR is a fuel storage compartment that houses the electric fuel pump and fuel gauge sender. It is recommended to remove the fuel tank when it is nearly empty, and if not possible, siphoning out the fuel before removal is advised. The process involves relieving fuel system pressure, disconnecting cables, raising the vehicle, and siphoning remaining fuel. Additionally, various components, such as the exhaust pipe, electrical connectors, and EVAP system hoses, need to be disconnected. It is crucial to follow proper safety guidelines and refer to manufacturer instructions or seek professional guidance when undertaking fuel tank removal.
Explore related products
![A-Premium Engine Coolant Overflow Recovery Reservoir Tank [with Cap] Compatible with Chevrolet HHR 2006 2007 2008 2009 2010 2011](https://m.media-amazon.com/images/I/61oRTfoLLrL._AC_UY218_.jpg)
What You'll Learn
Disconnect the negative battery terminal cable
Disconnecting the negative battery terminal cable is the first step in removing the fuel tank from a Chevrolet HHR. This is a crucial step as it ensures that the fuel system pressure is relieved before any further work is done.
To begin, locate the negative battery terminal cable. It is usually a thick, black cable connected to the negative terminal of the battery, which is often marked with a "-" symbol. Once located, you will need to disconnect it.
Here's a step-by-step guide on how to do this safely:
- Put on safety gear: Before starting, it is important to prioritize safety. Wear protective gloves and goggles to shield your hands and eyes from any potential hazards, such as battery acid or sparks.
- Secure the vehicle: Ensure that the vehicle is parked on a level surface and engage the parking brake to prevent any accidental movement.
- Locate the battery: The battery is typically located in the engine compartment or, in some cases, in the trunk or under a rear seat. Refer to your vehicle's owner's manual if you're unsure of its exact location.
- Identify the negative terminal: Identify the negative battery terminal, which is typically marked with a "-" symbol or a black cover. It is usually connected to a thick, black cable, which is the negative battery cable.
- Loosen the terminal nut: Using an appropriate-sized wrench or socket, loosen the negative terminal nut that secures the cable to the battery terminal. Do not remove it completely yet.
- Disconnect the cable: Once the nut is loosened, carefully disconnect the cable from the battery terminal. You may need to wiggle the cable gently to detach it completely. Be cautious not to touch the positive terminal or any other metal parts with the wrench or the cable.
- Insulate the terminal: After disconnecting the cable, it is good practice to insulate the exposed negative terminal to prevent any accidental short circuits. You can use a piece of electrical tape or a terminal cover for this purpose.
At this point, the negative battery terminal cable should be successfully disconnected, and you can proceed with the next steps of removing the fuel tank, as outlined in other sources. Remember to exercise caution and refer to a qualified mechanic if you encounter any unfamiliar procedures or complex tasks.
Fuel Tank Costs: 100-Gallon Tank Pricing
You may want to see also
Explore related products
Siphon out fuel
It is recommended to siphon out the fuel from your Chevrolet HHR when the tank is nearly empty. If that is not possible, you can try the following steps to siphon the fuel before removing the tank.
Firstly, relieve the fuel system pressure and disconnect the cable from the negative battery terminal. Then, raise the vehicle and secure it on jack stands. If there is still fuel in the tank, disconnect the quick-connect fitting for the fuel inlet line.
To siphon the fuel, you will need a length of tubing that is long enough to reach from the gas tank to a container on the ground, as well as a container to hold the gas. You can insert the tubing into the gas tank through the fuel filler neck, ensuring that it is securely in place and reaches the bottom of the tank. You may also need a pair of pliers for this process.
It is important to note that siphoning fuel can be dangerous and is illegal in some areas. Always use caution and follow proper safety procedures. Additionally, respect other people's property and never attempt to siphon fuel without their permission.
DPF Fluid: Fuel Tank Addition?
You may want to see also
Explore related products
Disconnect the fuel inlet line
Disconnecting the fuel inlet line is a crucial step in removing the fuel tank from an HHR vehicle. Here is a detailed, step-by-step guide on how to safely and effectively complete this task:
Firstly, it is important to relieve the fuel system pressure. This can be done by disconnecting the cable from the negative battery terminal. Once this is done, the vehicle can be raised and securely placed on jack stands.
If there is still fuel remaining in the tank, it is necessary to siphon or hand-pump it out. To do this, disconnect the quick-connect fitting for the fuel inlet line. This will allow you to safely remove the remaining fuel. It is always recommended to remove the fuel tank when it is nearly empty to avoid this step.
Now, you can focus on the fuel inlet line itself. There is one main fuel line that can be easily removed by pinching the tabs and pulling it off. However, there are also two smaller lines with a different type of connector. These smaller lines require a different approach. One of them connects to a smaller tube on the filler neck and has a yellow-like tab on one side.
Attempting to disconnect these smaller lines can be tricky. You may need to employ a variety of techniques, such as pinching, pulling, poking, or even using a fuel line removal tool. It may take some trial and error to find the best method to detach these lines, so patience and caution are advised.
Overall, disconnecting the fuel inlet line involves a combination of relieving fuel pressure, siphoning fuel, and carefully detaching both the main and smaller lines that comprise the fuel inlet system. By following these steps, you can safely and effectively disconnect the fuel inlet line when removing the fuel tank from an HHR vehicle.
The True Cost of Draining a Fuel Tank
You may want to see also
Explore related products
Remove exhaust pipe and muffler insulators
To remove the exhaust pipe and muffler insulators, you will need to first relieve the fuel system pressure. This is done by disconnecting the cable from the negative battery terminal. Once this is done, you can then raise the vehicle and secure it on jack stands.
If there is still fuel left in the tank, you will need to siphon it out or hand-pump it out. To do this, disconnect the quick-connect fitting for the fuel inlet line and then remove the fuel. With the vehicle raised and the fuel removed, you can now access the exhaust system.
The next step is to locate the exhaust pipe and muffler insulators. These are usually found near the rear of the vehicle, connected to the muffler. They may be secured with clamps, bolts, or other types of fasteners. Using the appropriate tools, carefully loosen and remove any fasteners or connectors that are holding the exhaust pipe and muffler insulators in place. Be sure to support the weight of the components as you detach them to avoid any damage or strain.
Once all the fasteners have been removed, carefully lower and detach the exhaust pipe and muffler insulators from the vehicle. Set them aside in a safe place, being mindful of any residual heat or sharp edges. It is recommended to mark or label the removed components and their original positions to aid in the reassembly process.
By following these steps, you will have successfully removed the exhaust pipe and muffler insulators, allowing you to access and work on other components of the vehicle, such as the fuel tank, heat shield, or other nearby parts.
Finding Fuel Tanks on Your Property in New York
You may want to see also
Explore related products
Disconnect electrical connectors
Disconnecting the electrical connectors is a crucial step in removing the fuel tank from an HHR vehicle. This process requires careful attention to ensure a safe and successful outcome. Here is a detailed guide on how to disconnect the electrical connectors:
Firstly, secure the vehicle on jack stands by raising it and ensuring it is adequately supported. This step provides access to the undercarriage, where the fuel tank is located. It is recommended to work on a level surface and use jack stands that can bear the weight of the vehicle for safety.
Once the vehicle is securely raised, locate the electrical connectors attached to the fuel pump and fuel level sensor module. These connectors are responsible for powering and monitoring the fuel system. They are often colour-coded or labelled for easy identification.
Using the appropriate tools, carefully disconnect the electrical connector for the fuel pump. This connector typically has a locking mechanism or a clip that needs to be released before gently pulling the connector apart. Ensure that you are wearing protective gloves to avoid any potential electrical hazards.
After disconnecting the fuel pump connector, locate and disconnect the electrical connector for the EVAP canister vent solenoid hose. This connector is typically located near the fuel tank and plays a role in the vehicle's evaporative emission control system. Again, pay attention to any locking mechanisms or clips that need to be released before separation.
In some HHR models, there may be additional electrical connectors associated with the fuel system. These could include connectors for components such as the fuel gauge sender or fuel injectors. Ensure that all electrical connections related to the fuel system are identified and safely disconnected.
Lastly, once all the electrical connectors have been disconnected, it is good practice to label or mark the connectors and their respective cables. This will aid in the reassembly process and ensure that everything is correctly reconnected when installing a new or repaired fuel tank.
Painting Your Motorcycle Fuel Tank: A Step-by-Step Guide
You may want to see also
Frequently asked questions
It is recommended that you remove the fuel tank when it is nearly empty. If this is not possible, siphon out the fuel before removing the tank. Start by relieving the fuel system pressure and disconnecting the cable from the negative battery terminal.
After relieving the fuel system pressure, raise the vehicle and secure it on jack stands. If there is still fuel in the tank, disconnect the quick-connect fitting for the fuel inlet line and siphon or hand-pump the remaining fuel.
After removing the fuel, remove the exhaust pipe and muffler insulators, as well as the heat shield if applicable. Then, disconnect the electrical connector for the fuel pump/Fuel Level Sensor module and the connector for the EVAP canister vent solenoid hose.
Mark and disconnect the EVAP system hoses, as well as the fuel filler neck hose and fuel tank ground strap. Disconnect the fuel filter connectors and separate the lines leading to the tank. Finally, remove the main fuel line by pinching the tabs and pulling it off.
