Regan Brown

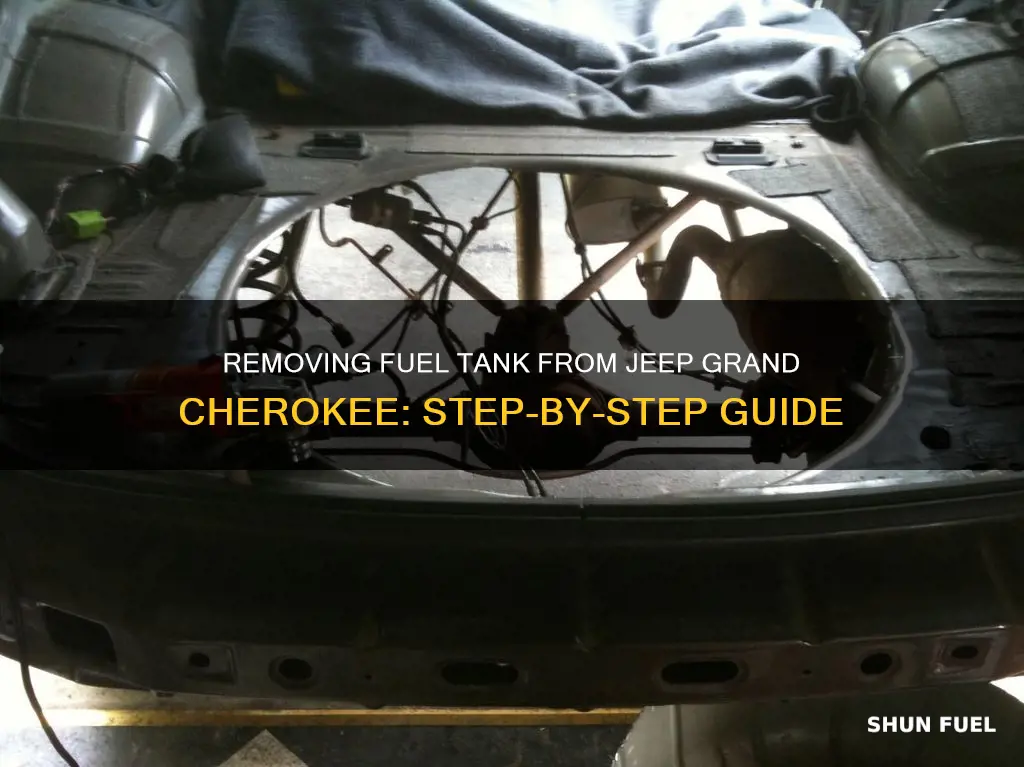

Removing a fuel tank from a 1994 Jeep Grand Cherokee is a complex process. Before beginning, ensure that you relieve the gas pressure from the line in the engine bay. You can do this by locating the Schrader valve on the fuel rail, removing the plastic cap, and poking it with a screwdriver. Next, siphon the fuel into a gas container using a siphon kit. Now, you can begin to remove the fuel tank by first disconnecting the fuel pump electrical connector and then removing the fuel tank retaining strap nuts. Finally, slowly lower the fuel tank from the vehicle. It is important to note that some sources suggest that it is illegal to discuss gas tank removal on certain forums, so proceed with caution and consult a certified mechanic if you are unsure about any steps.
Explore related products
What You'll Learn
Drain the gas tank
Draining the gas tank of a 94 Jeep Grand Cherokee is a straightforward process but must be done with caution. Before beginning, apply the parking brake and remove the gas cap.
Firstly, you need to relieve the gas from the line in the engine bay. Locate the Schrader valve on the fuel rail, which may be covered by a plastic cap. Remove the cap and poke the valve with a screwdriver, allowing the gas to soak into a rag. This step is important for safety, preventing gas from squirting out while you work.
Next, you will need to remove the straps holding the gas tank in place. Use a ratcheting wrench to loosen the tank straps, or if you don't need to reuse them, simply cut them off with a saw. Now, open up the flap of metal protecting the fill/return fuel lines. Remove the clamps and any tubes connected to the gas tank, allowing the tank to drop down.
With the gas tank now accessible, you can begin the process of draining the gas. One method is to use a siphon kit to transfer the fuel to a separate gas container. Alternatively, you can drill a hole in the bottom of the tank to drain the gas, but this will render the tank non-reusable.
Remember to work with caution and always be mindful of safety when working with flammable liquids.
Motorcycle Fuel Tank Rust Removal: DIY Guide
You may want to see also
Explore related products
Remove the fuel pump relay
To remove the fuel pump relay on a 1994 Jeep Grand Cherokee, you will need to locate the relay in the power distribution center box, which is usually found in the glove box or back engine bay.
First, open the glove box or go to the back of the engine bay to access the power distribution center box. This box contains various relays and fuses, including the fuel pump relay. The fuel pump relay is part of the PCB board and should be clearly labelled.
Once you have located the fuel pump relay, you will need to remove it carefully. It is important to note that the relay may be held in place with clips or other fasteners, so you should examine the setup before proceeding. If there are any clips or fasteners, carefully release them without forcing them, as this may cause damage.
After releasing any fasteners, gently pull the relay straight out of its socket. You may need to wiggle it slightly to loosen it, but be careful not to bend or damage any surrounding components.
Now that you have removed the fuel pump relay, you can proceed with your repairs or replacements. Remember to handle the relay with care, as it is an essential component of your Jeep's fuel system.
If you are experiencing issues with your fuel pump, it is recommended to consult a professional mechanic or a Jeep specialist to ensure the problem is accurately diagnosed and addressed. Various issues related to the fuel pump and relay have been discussed by Jeep Grand Cherokee owners online.
Fuel Tank Capacity of Chevy Cruze: All You Need to Know
You may want to see also
Explore related products
$221.76 $249.99
$97.58 $112.81
Disconnect the negative battery cable
Disconnecting the negative battery cable is a crucial step when removing the fuel tank from your 1994 Jeep Grand Cherokee. It is one of the first steps you should take to ensure your safety and prevent any potential electrical issues during the process of fuel tank removal.
First, locate the negative battery terminal. It is typically marked with a "-" symbol or a black cover. The negative terminal will be connected to the negative battery cable, which runs from the battery to the vehicle's electrical system.
Once you have located the negative terminal, use a suitable size wrench or socket to loosen the nut or bolt that secures the cable to the terminal. You may need to use an open-end wrench or a ratchet with the appropriate size socket, depending on the configuration of your battery and cable.
After loosening the nut or bolt, carefully disconnect the cable from the terminal. You may need to wiggle the cable gently to detach it completely. Be cautious not to touch the positive terminal or any other electrical components during this process.
Once the cable is disconnected, ensure that it is secured safely away from the battery. You can use cable ties or tape to fasten it to a nearby secure location, ensuring that it does not accidentally come into contact with the battery terminal.
By following these steps, you will have successfully disconnected the negative battery cable, allowing you to proceed with the next steps of removing the fuel tank from your 1994 Jeep Grand Cherokee. Remember to exercise caution and refer to a qualified mechanic or a detailed repair manual if you have any concerns or questions during the process.
How to Open a Stuck Fuel Door on a Jaguar XF
You may want to see also
Explore related products
Remove the fuel tank retaining strap nuts
To remove the fuel tank retaining strap nuts, you will need a socket and ratchet. Before you begin, ensure that you have applied the parking brake and removed the gas cap.
First, you must disconnect the fuel pump electrical connector with a flat-head screwdriver. Next, you will need to remove the fuel tank retaining strap nuts. This will involve using a socket and ratchet to loosen and remove the nuts. Once the nuts are removed, move the straps out of the way.
If your Jeep Grand Cherokee's straps are rusted, you may need to cut the nuts off. In this case, ensure you have a new set of nuts before cutting. You can also use a 9/16 wrench to break the nuts loose, and double the wrenches for better leverage.
After removing the nuts and moving the straps, you can continue with the fuel tank removal process. This typically involves loosening clamps and slowly lowering the fuel tank from the vehicle.
Fuel Tanker Capacity: How Many Litres?
You may want to see also
Explore related products
![A-Premium Engine Coolant Overflow Recovery Reservoir Tank [with Cap & Tubing] Compatible with Jeep [WK2] Grand Cherokee & Dodge Durango, 2011-2021, Replace# 68080551AA, 68251851AA](https://m.media-amazon.com/images/I/611LS-w8LYL._AC_UL320_.jpg)
Pry the fuel line retainer off of the chassis
To pry the fuel line retainer off of the chassis of a 1994 Jeep Grand Cherokee, you will need a flat-head screwdriver.
First, locate the fuel line retainer on the chassis. It is usually found near the fuel return line and the fuel pump electrical connector. Once you have located the retainer, insert the flat-head screwdriver into the gap between the retainer and the chassis. Gently apply force to the screwdriver handle to create leverage and pop the retainer off of the chassis. Be careful not to damage any nearby components while prying.
It is important to wear protective gear, such as safety goggles and gloves, when performing this task to avoid any injuries. Additionally, ensure that you have relieved the fuel pressure and that the engine is turned off before beginning any work on the fuel system.
If the retainer is difficult to remove, you may need to apply more force with the screwdriver or try rocking the retainer back and forth gently while prying to loosen it. Once the retainer is pried off, set it aside in a safe place so that you can access the fuel return line and separate the lines, as outlined in the next steps of the fuel tank removal process.
Remember to consult a qualified mechanic or a professional Jeep service center if you are uncomfortable or unfamiliar with any of the procedures involved in removing the fuel tank or its components. Safety should always be the top priority when working on your vehicle.
How to Remove Your Underground Fuel Tank Safely
You may want to see also
Frequently asked questions
First, apply the parking brake and remove the gas cap. Remove the fuel pump relay and attempt to start the engine, cranking it for several seconds. Turn the ignition off and install the fuel pump relay. Disconnect the negative cable from the battery and siphon the fuel. Raise the vehicle with a jack and place jack stands underneath for support. Now, you can remove the tank.
You will need a flat-head screwdriver, a wrench, a jack, jack stands, and a siphon kit.
Apply the parking brake and remove the gas cap.
Place jack stands underneath the vehicle for support.
If the tank straps are rusted, cut them off.
