Mercedes Mullins
The fuel filter in a Chevrolet Silverado is recommended to be replaced every 30,000 miles or 30 months. However, 2005 and later models are equipped with a non-replaceable fuel filter built into the fuel sender assembly. To replace the fuel filter in a 2001 Silverado, the fuel pump relay must be removed from the relay box in the engine compartment, and the negative cable from the battery must be disconnected. The fuel filter mounting bracket nuts must then be detached, and the fuel filter removed. A new filter should be installed, pointed in the direction of the fuel flow, and the threaded fittings connected back to the filter.
| Characteristics | Values |
|---|---|
| Fuel filter replacement period | Every 30,000 miles or 30 months |
| Fuel filter location | Along the frame rail of the vehicle, sometimes in the engine compartment |
| Fuel filter removal | Detach the mounting bracket nuts, loosen the bracket, and remove the fuel filter |
| Fuel system depressurization | Remove the fuel pump relay, disconnect the negative battery cable, and crank the engine |
| New fuel filter installation | Slide into the bracket, ensure proper direction, connect threaded fittings, tighten, and replace fuel |
| Post-installation steps | Reconnect the negative battery cable, turn the ignition on and off, and check for leaks |
Explore related products
What You'll Learn
Ensure safety precautions are in place
To ensure safety precautions are in place when removing a fuel filter from a 01 Silverado, it is important to follow these steps:
Work in a Well-Ventilated Area
Ventilation is crucial when working with fuel to avoid inhaling harmful fumes. Work outdoors or in a well-ventilated space to minimize the risk of inhaling toxic vapors.
Wear Protective Gear
Don safety goggles and gloves to protect your eyes and skin from harmful chemicals, debris, and fuel spills.
Disconnect the Battery
Before beginning any work on the fuel system, disconnect the negative (black) cable from the battery to prevent accidental electrical shorts.
Relieve Fuel System Pressure
The fuel system operates under constant pressure. Relieve this pressure before disconnecting any fuel lines to avoid fuel spraying out. This can be done by removing the fuel pump fuse or relay and running the vehicle until it stalls. Alternatively, attach a fuel pressure gauge to vent fuel into a catch pan.
Have a Fire Extinguisher On Hand
Fuel is highly flammable, so it is crucial to have a fire extinguisher nearby when working on the fuel system. This will enable you to quickly address any fires that may occur.
Clean the Surrounding Area
Before disconnecting any fuel lines, clean the area around the fuel filter, inlet, and outlet line fittings. This will help prevent dirt or debris from entering the system when the lines are disconnected.
Consult Vehicle Manual
Always refer to your vehicle's manual for specific instructions and precautions related to fuel filter removal and installation. This will ensure that you are following the manufacturer's recommended procedures.
Locating the Fuel Filter in Your 2000 Subaru Forester
You may want to see also
Explore related products
Disconnect fuel lines and relieve pressure
It is important to relieve the pressure in the fuel system before disconnecting the fuel lines. The fuel system is under constant pressure, and fuel is extremely flammable, so caution must be taken when working with it.
To relieve the pressure, you can remove the fuel pump relay from the relay box in the engine compartment. Turn the ignition key to "START" and crank the engine, which should start for a moment and then stall. Another method is to remove the fuel pump fuse and let the engine run until it stalls, thus relieving the pressure.
Once the pressure is relieved, you can disconnect the fuel lines. Make sure the surrounding area of the fuel filter, inlet, and outlet line fittings are clean. Ensure no dirt or debris gets into the lines when disconnecting them.
After disconnecting the lines, you can proceed with replacing the fuel filter. It is recommended to replace the fuel filter every 30,000 miles or 30 months for Chevrolet Silverado and GMC Sierra pickup trucks.
Fuel Filter Installation Guide for Poulan Woodshark
You may want to see also
Explore related products
Remove the fuel filter cap and mounting bracket
Before removing the fuel filter cap and mounting bracket, it is important to note that fuel is highly flammable, so caution must be taken when working with the fuel system. It is recommended to have a fire extinguisher present during the process.

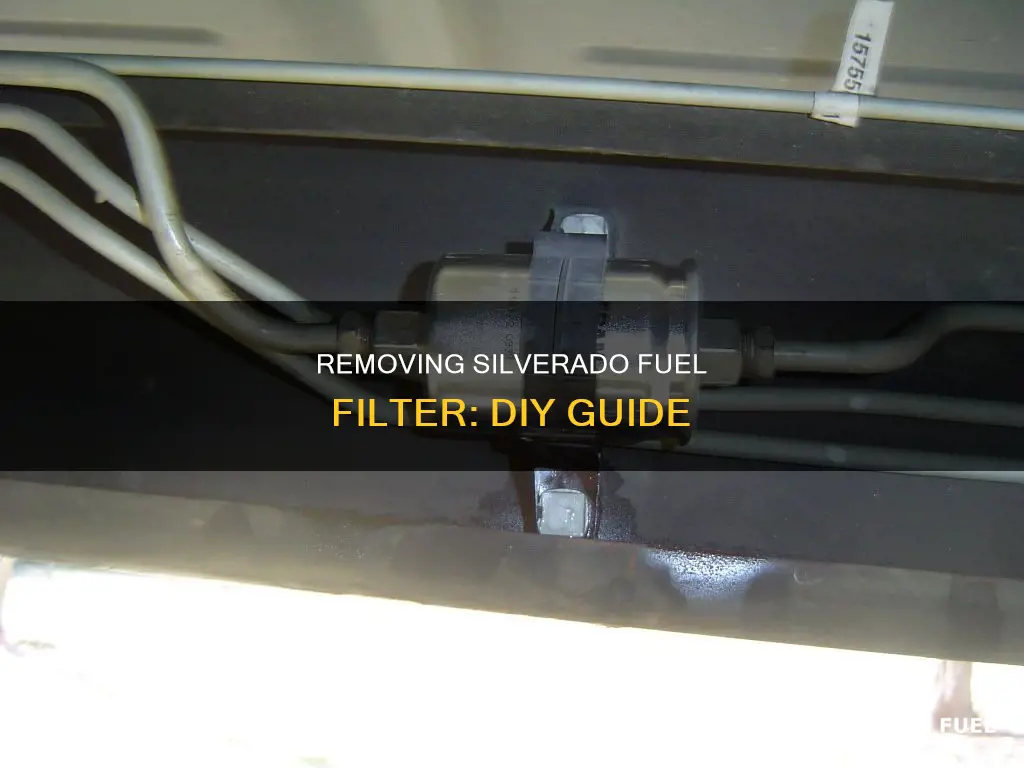

Now, to remove the fuel filter cap and mounting bracket, the first step is to locate the fuel filter. In most trucks, the fuel filter is located along the frame rail of the vehicle, specifically on the right frame rail near the fuel tank. On some GM trucks, the filter may be located inside the driver's side frame rail about halfway back. If you are unsure, you can trace a fuel line from the engine backward or from the tank forward to locate the filter.
Once you have located the fuel filter, the next step is to clean the surrounding area, including the inlet and outlet line fittings. This is important to ensure that no dirt or debris gets into the lines when they are disconnected.
After cleaning, you will need to relieve the pressure from the fuel system. This can be done by disconnecting the fuel lines or, as some sources suggest, by removing the fuel pump fuse and letting the engine run until it stalls.
Now, you can proceed to remove the fuel filter cap and mounting bracket. The fuel filter is attached to the vehicle by a mounting bracket, and to loosen it, you need to loosen the nuts that hold it in place. These nuts are located on the backside of the frame rail. Loosen these nuts to detach the mounting bracket, and then carefully remove the fuel filter cap.
Remember, when installing a new fuel filter, ensure that it is pointed in the direction of the fuel flow.
Filtering Used Oil: An Eco-Friendly Fuel Guide
You may want to see also
Explore related products
Clean the surrounding area of the fuel filter
To clean the surrounding area of the fuel filter, you will need shop towels or rags, and a pressure gauge. You can also use carburetor cleaner or compressed air.
First, disconnect the negative battery cable. Next, loosen the fuel tank cap to relieve the vapor pressure in the fuel tank. Place the bleed hose of the gauge into a container that will hold excess fuel. Open the gauge valve to bleed the system pressure.
Now, clean the fuel filter connections and the surrounding areas with a shop rag. Make sure to clean off any dirt or debris that has accumulated on the fittings and around the lines before disconnecting them. Use carburettor cleaner or compressed air to clean any dirt surrounding the fuel inlet and outlet line fittings.
It is important to note that fuel is extremely flammable, so take extreme caution when working with the fuel system. It is a good idea to have a fire extinguisher present.
Cleaning Your Briggs and Stratton Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Slide in a new filter, reconnect, and test for leaks
To install a new fuel filter in your 01 Silverado, first, check the fuel pipe O-rings and replace them if you find any cuts, nicks, or distortions. Slide the new filter into the bracket, ensuring that it is pointed in the direction of the fuel flow. Remove the caps from the fuel pipes and connect the threaded fittings back to the filter. Tighten the fittings to 18 foot-pounds.
Now, lower the vehicle and tighten the fuel filter cap. Refill the fuel tank with fresh fuel. Reconnect the negative battery cable. Turn the ignition on for 2 seconds, then turn it off for 10 seconds before turning it back on. This will restore pressure to the fuel system. Finally, start the engine and check for any leaks.
It is important to note that fuel is extremely flammable, so take extreme caution when working with the fuel system. It is recommended to have a fire extinguisher nearby when performing this task. Additionally, the fuel system is under constant pressure, so remember to relieve the pressure before disconnecting the fuel lines.
Draining Water from Your 1999 Powerstroke Fuel Filter
You may want to see also
Frequently asked questions
It is recommended that you replace the fuel filter on your 01 Silverado every 30,000 miles or 30 months, whichever comes first.
The fuel filter is normally located along the frame rail of the vehicle. On some trucks, it may be in the engine compartment. If you're unsure, trace a fuel line from the engine backward or from the tank forward to locate the filter.
Yes, disconnect the negative (black) cable from the battery.
Fuel is extremely flammable, so take extreme caution when working with the fuel system. It is recommended to have a fire extinguisher present. The fuel system is under constant pressure, so you must relieve the pressure before disconnecting the fuel lines.
