Disconnecting a Toyota fuel line can be a tricky task. There are two ridges that ring the line, with the second located inside the connector where the spring clips attach, and the first just outside the connector opening. While some people have managed to disconnect the line with a tool set that has a larger internal diameter for passing over the first ridge, others have spent hours trying to separate the lines with no success. To avoid any issues, it is recommended to use a Lisle 39210 tool to disconnect the line where it hooks to the fuel damper.
Characteristics and Values
| Characteristics | Values |
|---|---|
| Disconnecting the fuel line | Push the pins on the connector |
| Any special tool required? | No |
| Use of a tool | Lisle 39210 tool |
| Tool's use case | Disconnects the 5/16" Main Fuel Line from the Fuel Rail |
| Tool's compatibility | Toyota Echo, Scion xB, xA, TC, Solara, Corolla, Sequoia, Celica, RAV 4, Prius, Camry, MR2, Matrix, Tundra, Highlander, and Nissan |
| Tool's design | Hinged and fully tapered end |
| Tool's price | $30 |
| Tool's advantage | Can be quickly and easily inserted into the fuel line quick connector, even in hard-to-reach areas |
Explore related products
What You'll Learn
Using a tool to release the connector
To release Toyota fuel line connectors with a tool, you will need a fuel line disconnect tool. This is a necessary tool for any mechanic working on vehicles equipped with a fuel injection system. The tool is designed to safely disconnect the vehicle's fuel lines, without causing any damage to the joints or spilling fuel.
There are a variety of tools available on the market, such as the Kujunpao 39210 Main Fuel Line Disconnect Tool, which is compatible with most Toyota and Nissan 5/16 inch fuel rails. This tool is made of high-quality aluminum alloy material and features a hinged design and tapered ports, allowing for quick and easy disconnection of the fuel lines.
Another option is to use a disconnect tool set, which includes a tool with a larger internal diameter for going over the first ridge, and a thicker lip on the end for spreading the lock tangs. This type of tool set can be useful for fitting into different places and working with various connectors.
When using a fuel line disconnect tool, follow the specific instructions provided with the tool. However, the general process typically involves inserting the tool into the fuel line connector and activating the release mechanism, which will safely disconnect the fuel line.
It is important to note that some Toyota fuel lines may not require a special tool for disconnection. In some cases, you may be able to release the connector by simply pushing down on the dust cover or clip, and then pushing on the pins to disconnect the connector.
Fuel Line Size for 2007 E-TEC 200: What You Need to Know
You may want to see also
Explore related products
Disconnecting the port for the fuel regulator
First, it is important to understand the basic components of the fuel regulator system. The fuel regulator is part of the fuel pump or at least housed in the same compartment. The fuel pressure regulator vacuum line should be disconnected to check if the problem is with the regulator. The vacuum hose is connected to the fuel pressure regulator, and when disconnected, the fuel pressure should increase. If the pressure does not increase, it indicates that the regulator is stuck open.
Secondly, to disconnect the fuel line, you will need to use a specific tool. A common issue with Toyota fuel lines is the presence of two 'ridges' that ring around the line. These ridges can make it challenging to disconnect the line using a standard tool. A recommended tool for this purpose is the Lisle 39210, which can be purchased online. This tool has a larger internal diameter that allows it to fit over the first ridge, and a thicker lip on the end to spread the lock tangs, making it perfect for Toyota lines.
Once you have the correct tool, follow these steps:
- Locate the fuel line you need to disconnect. It is important to identify the correct line, as there may be multiple lines present.
- Using the Lisle 39210 tool, carefully fit it over the first ridge of the fuel line. Ensure that it is securely in place before proceeding.
- Gently apply force to spread the lock tangs and disengage the connector. This will require some careful maneuvering, but the tool is designed to facilitate this process.
- Once the connector is disengaged, you can proceed to lift the fuel line up and out of the square part.
It is important to note that you should only disconnect the fuel line if you are confident in your abilities and have the necessary tools. If you are unsure, it is always best to consult a professional mechanic to avoid any potential damage or safety hazards.
Fuel Line Repair: Installing Dorman Kit the Right Way
You may want to see also
Explore related products
Identifying the correct tool
The issue with standard tools is that they often spread and become too large to fit inside the connector after passing over the first ridge. Therefore, a tool with a larger internal diameter is necessary to accommodate this ridge and successfully reach the spring clips on the second ridge.
One recommended tool for this task is the Lisle 39210, which is specifically designed to release Toyota fuel line connectors. This tool has a larger opening to fit over the first ridge and a thicker lip on the end to engage with the lock tangs, allowing for a secure and efficient disconnection.
In addition to the specialised tool, some standard tools can be modified or adapted to work with Toyota fuel lines. However, this may require trial and error, and there is no guarantee of success without the correct tool.
It is always recommended to consult a professional or refer to manufacturer guidelines when attempting any vehicle repairs or modifications, especially when dealing with sensitive components such as fuel lines.
Building a Fuel Line: A Comprehensive Guide
You may want to see also
Explore related products
The process for replacing the fuel line
Firstly, it is important to understand the reason for replacement. Fuel lines can spring a leak due to corrosion, which often starts when abrasive materials remove the paint or coating on the line. This can occur at mounting brackets or from debris kicked up by the tires. In addition, a leaking fuel line may cause your car to smell like gasoline. Before beginning any work, it is recommended to consult your vehicle's service manual for specific instructions and precautions related to your particular Toyota model.
Once you have identified the need for replacement, gather the necessary tools and safety equipment. This includes a screwdriver, pliers, a knife, a floor jack, jack stands, vice grips, and the replacement parts. As you will be working with gasoline, ensure you work in a well-ventilated area, have a fire extinguisher nearby, and avoid using tools that may create sparks. Wear protective clothing, eye protection, and have rags and a plastic sheet to contain any spills.
Next, safely lift and secure your vehicle using the floor jack and jack stands. Locate the fuel line and, if necessary, disconnect it from the fuel damper using a tool such as the Lisle 39210. Some Toyota fuel lines may have ridges and spring clips that require a specific disconnect tool to release. There are various tools available, including sets with different sizes and types to fit different places. Take care not to damage the fuel pump or fuel filter during this process.
After successfully disconnecting the fuel line, it is time to install the new line. Place the new hose clamps over the new fuel line, ensuring they are loose. Position the hardware so that it faces you, allowing for easy tightening of the clamps once the line is in place. Finally, secure the new fuel line and tighten the clamps.
By following these steps, you can effectively replace the fuel line in your Toyota. Remember to exercise caution and refer to your vehicle's specific instructions for a safe and successful replacement.
Inspecting Fuel Lines and Hoses: A Comprehensive Guide
You may want to see also
Explore related products

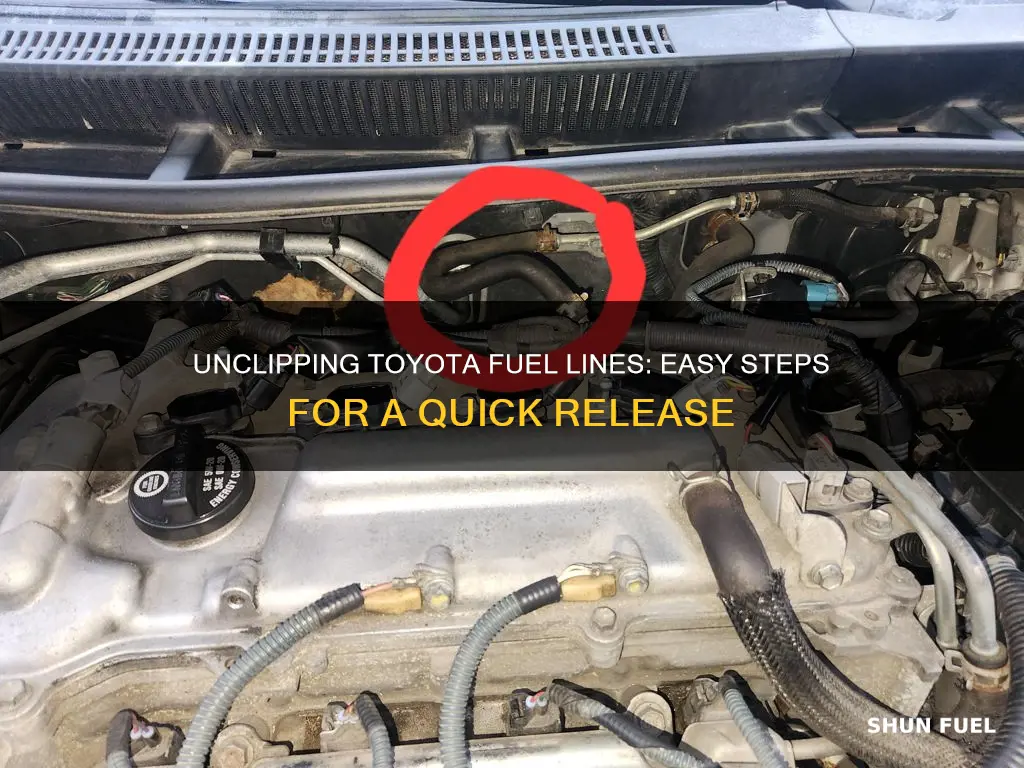

The location of the fuel line connector
The fuel line connector in a Toyota vehicle can be found in different locations depending on the model and year of the car. In some Toyota models, the fuel line connector is located near the fuel tank, while in others, it may be closer to the engine compartment.
For example, in a 2003 Toyota Camry, the fuel line connector is likely located near the fuel tank, as one user reported having to disconnect the fuel line to check the fuel pressure and address a hard start condition. Similarly, in a 1996 Toyota Corolla, the fuel line connector is situated near the fuel tank, as evidenced by a user's report of a fuel leak at the connection between the metal line and the rubber part that connects to the fuel tank.
In contrast, for a 2005 Toyota Rav4, the fuel line connector may be found in the engine compartment. The owner of this vehicle inquired about the size of the fuel line and the appropriate adapter to connect a fuel pressure test attachment between the hard line in the engine compartment and the Bundy-style quick connector. This suggests that the fuel line connector is accessible in the engine bay.
It's important to refer to the specific model and year of your Toyota vehicle, as well as repair manuals or online forums, to pinpoint the exact location of the fuel line connector. This information will guide you in safely accessing and working on the fuel system.
Clearing Fuel Lines and Filters with Iso-Heet
You may want to see also
Frequently asked questions
There are two 'ridges' that ring around the fuel line. The first is outside the opening of the connector, and the second is inside the connector where the spring clips attach. You can use a disconnect tool set with a larger internal diameter to pass over the first ridge, and a thicker lip to spread the lock tangs.
You can use a Lisle 39210 tool to disconnect the fuel line.
Yes, you will need a disconnect tool set with a tool that has a larger internal diameter to pass over the first ridge, and a thicker lip to spread the lock tangs.
First, remove the clip on one end of the fuel line. Then, lift the rest of the line up and out of the square part.
