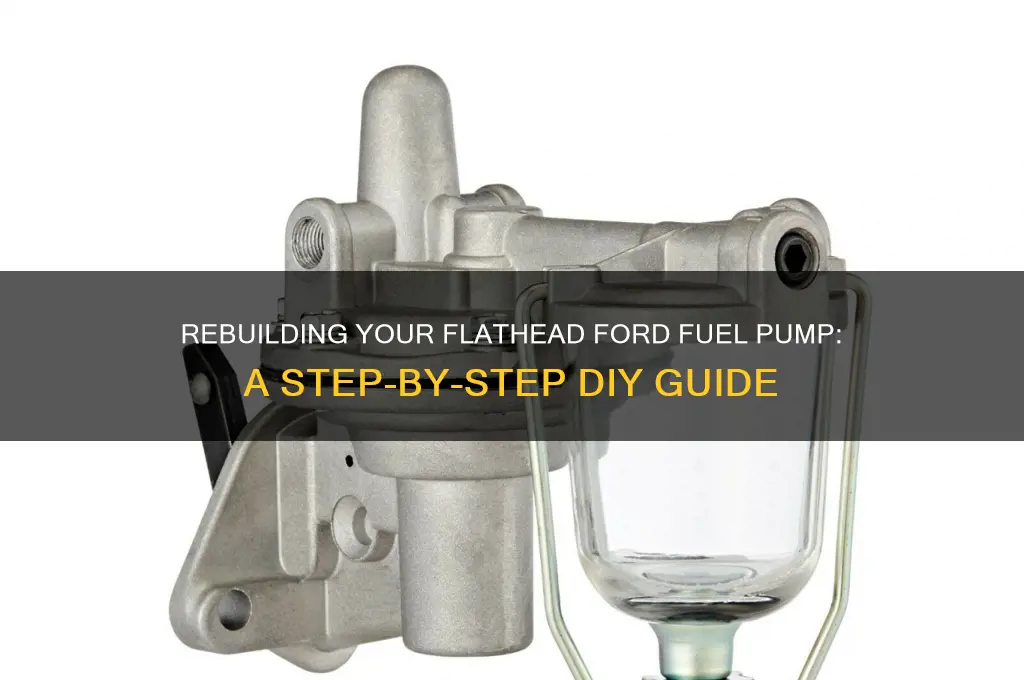

Rebuilding a flathead Ford fuel pump is a rewarding project for enthusiasts looking to restore their classic vehicle’s performance and reliability. The flathead Ford fuel pump, a mechanical component driven by the engine’s camshaft, plays a critical role in delivering fuel from the tank to the carburetor. Over time, wear and tear can lead to reduced efficiency or failure, making a rebuild necessary. The process involves disassembling the pump, inspecting and replacing worn parts such as the diaphragm, valves, and gaskets, and reassembling it with precision. Proper cleaning, lubrication, and testing are essential to ensure the pump operates smoothly and maintains the correct fuel pressure. With the right tools, a service manual, and attention to detail, rebuilding a flathead Ford fuel pump can extend its lifespan and keep your vintage engine running optimally.
| Characteristics | Values |
|---|---|
| Tools Required | Socket set, wrenches, screwdrivers, pliers, gasket scraper, new gaskets, diaphragm, inlet/outlet valves, fuel pump rebuild kit |
| Safety Precautions | Work in a well-ventilated area, wear safety goggles, relieve fuel system pressure before starting, disconnect battery |
| Disassembly Steps | 1. Remove fuel pump from vehicle. 2. Disconnect fuel lines. 3. Remove mounting bolts. 4. Separate pump housing. 5. Remove diaphragm, valves, and internal components. |
| Cleaning Process | Clean all parts with carburetor cleaner or solvent. Inspect for wear, damage, or debris. |
| Replacement Parts | Diaphragm, inlet/outlet valves, gaskets, O-rings (from rebuild kit) |
| Reassembly Steps | 1. Install new diaphragm and valves. 2. Replace gaskets and O-rings. 3. Reassemble pump housing. 4. Reattach fuel lines and mounting bolts. |
| Testing Procedure | 1. Reconnect fuel lines and battery. 2. Start engine and check for leaks. 3. Verify proper fuel delivery and pressure. |
| Common Issues | Worn diaphragm, clogged valves, damaged gaskets, weak fuel flow |
| Maintenance Tips | Regularly inspect fuel lines and pump for leaks. Replace fuel filter as needed. Keep fuel system clean. |
| Compatibility | Flathead Ford V8 engines (1932-1953), specific to mechanical fuel pumps |
| Difficulty Level | Moderate (requires mechanical skills and attention to detail) |
| Estimated Time | 2-4 hours (depending on experience and condition of pump) |
| Cost of Rebuild Kit | $20-$50 (varies by brand and components included) |
| Alternative Solution | Replace with an electric fuel pump (requires additional modifications) |
Explore related products
What You'll Learn
- Gather Tools and Parts: Assemble wrenches, gasket, diaphragm, and replacement fuel pump components before starting
- Remove Old Pump: Disconnect fuel lines, unbolt, and carefully remove the damaged fuel pump
- Disassemble Pump: Clean parts, inspect diaphragm, and check for wear or damage
- Replace Components: Install new diaphragm, gasket, and reassemble the pump securely
- Reinstall and Test: Bolt pump back, reconnect fuel lines, and test for leaks and operation
Gather Tools and Parts: Assemble wrenches, gasket, diaphragm, and replacement fuel pump components before starting
Before diving into the intricate process of rebuilding a flathead Ford fuel pump, it's crucial to recognize that preparation is half the battle. The fuel pump's internal components, such as the diaphragm and gasket, are prone to wear and tear, making a thorough rebuild essential for optimal engine performance. To avoid mid-project delays, gather all necessary tools and parts beforehand, including a variety of wrenches (typically 3/8-inch and 1/2-inch sizes), a new gasket, a replacement diaphragm, and any other fuel pump components specific to your flathead Ford model.
Instructive guidance dictates that you source high-quality replacement parts, as inferior components can compromise the pump's efficiency and longevity. Consult your vehicle's manual or a reputable parts supplier to ensure compatibility with your specific flathead Ford engine. For instance, a 1949 Ford V8 may require a different diaphragm material or thickness compared to a 1932 model. Additionally, consider investing in a fuel pump rebuild kit, which often includes all necessary components and detailed instructions tailored to your vehicle's make and model.
A comparative analysis of available wrenches reveals that adjustable wrenches, while versatile, may not provide the precision required for tight spaces within the fuel pump assembly. In contrast, a set of combination wrenches in various sizes offers a more secure grip and reduced risk of damaging surrounding components. Furthermore, a gasket scraper or small pick can aid in removing old, stubborn gaskets without marring the pump's mating surfaces. By anticipating these tool requirements, you'll minimize the risk of improvising with inadequate instruments, which can lead to costly mistakes.
Descriptive attention to detail is vital when inspecting the gathered parts. Examine the replacement diaphragm for any imperfections, such as cracks or uneven thickness, which can cause leaks or reduced fuel pressure. Similarly, verify that the new gasket matches the original's dimensions and material composition, typically a composite of cork, rubber, or modern synthetic materials. A meticulous approach to part selection and inspection will contribute to a successful rebuild, ensuring your flathead Ford's fuel pump operates at peak performance.
As a practical takeaway, create a checklist of required tools and parts to streamline the gathering process. Include items like safety gloves, safety goggles, and a clean work surface to maintain a safe and organized workspace. By treating this preparatory phase as a critical step in the rebuild process, you'll set the stage for a smooth, efficient, and ultimately rewarding project, breathing new life into your classic flathead Ford's fuel delivery system.
Step-by-Step Guide to Testing Your Mechanical Fuel Pump Effectively
You may want to see also
Explore related products
Remove Old Pump: Disconnect fuel lines, unbolt, and carefully remove the damaged fuel pump
The first step in rebuilding a flathead Ford fuel pump is removing the old, damaged unit, a process that demands precision and care to avoid complications. Begin by disconnecting the fuel lines, a task that requires a wrench or pliers to loosen the fittings without damaging the lines or spilling fuel. Work methodically, as rushing can lead to stripped threads or fuel leaks, which pose both safety and environmental risks. Once the lines are disconnected, place a drain pan beneath the pump to catch any residual fuel, ensuring a clean workspace and minimizing fire hazards.
Unbolting the fuel pump from the engine block is the next critical step. Typically, the pump is secured by two or three bolts, which may be rusted or stubborn due to age and exposure. Use a socket wrench with the appropriate-sized socket, applying steady pressure to break the bolts free. If they resist, penetrate oil can be applied to loosen corrosion, but avoid excessive force that could damage the pump housing or surrounding components. This stage requires patience, as stripped threads or broken bolts can turn a straightforward task into a complex repair.
With the bolts removed, carefully lift the fuel pump from its mounting position, taking note of its orientation and any gaskets or seals that may need replacement. Inspect the pump’s mounting surface on the engine block for debris or damage, as a clean and intact surface is essential for proper sealing of the new or rebuilt pump. If the old gasket material remains stuck to the block, gently scrape it away with a plastic scraper or gasket scraper tool to avoid scratching the mating surface.
Removing the old fuel pump is more than just a mechanical task; it’s an opportunity to assess the condition of related components. Inspect the fuel lines for cracks, corrosion, or deterioration, as these issues can compromise the performance of the rebuilt pump. Similarly, examine the pump’s inlet and outlet ports for obstructions or damage. This diagnostic step ensures that the root cause of the pump failure is addressed, preventing recurring issues after the rebuild.
In conclusion, removing the old fuel pump from a flathead Ford engine is a deliberate process that balances mechanical skill with diagnostic insight. By disconnecting fuel lines carefully, unbolting the pump methodically, and inspecting related components thoroughly, you set the stage for a successful rebuild. This step is not merely about removal but about understanding the pump’s failure and preparing the engine for a reliable repair. Approach it with patience and attention to detail, and the subsequent rebuilding process will be significantly smoother.
Does the GY6 Engine Require a Fuel Pump? Explained
You may want to see also
Explore related products
$105.99
Disassemble Pump: Clean parts, inspect diaphragm, and check for wear or damage
The disassembly of a flathead Ford fuel pump is a delicate process that requires precision and care. Begin by removing the pump from the vehicle, ensuring all fuel lines are disconnected and the system is depressurized. Place a drain pan beneath the pump to catch any residual fuel. Using a wrench, carefully loosen the pump’s mounting bolts and set them aside, keeping track of their positions for reassembly. With the pump removed, place it on a clean workbench, ready for the next steps.
Cleaning the pump’s internal components is crucial for restoring efficiency. Start by disassembling the pump, typically involving the removal of a cover plate or housing held by screws or clips. Once opened, extract the diaphragm, valves, and plunger assembly. Use a solvent specifically designed for automotive parts, such as carburetor cleaner, to dissolve grime and varnish buildup. For stubborn deposits, a soft-bristle brush can be employed, but avoid abrasive materials that could damage delicate surfaces. Rinse all parts thoroughly with clean solvent and allow them to air-dry completely before inspection.
Inspecting the diaphragm is a critical step, as it directly impacts the pump’s ability to maintain fuel pressure. Hold the diaphragm up to a light source to check for cracks, tears, or thinning areas. Even minor damage can lead to fuel leaks or inconsistent performance. Compare the diaphragm’s condition to a new one if available, noting any discrepancies in flexibility or texture. If the diaphragm shows signs of wear, replacement is recommended to ensure reliable operation. Genuine Ford parts or high-quality aftermarket equivalents are ideal for this purpose.
Wear and damage on other components, such as the plunger, valves, and springs, can compromise the pump’s functionality. Examine the plunger for scoring or pitting, which can disrupt the sealing action. Check the valves for warping or erosion, ensuring they seat properly. Springs should be inspected for fatigue or loss of tension; a simple compression test with calipers can verify their integrity. Any parts showing significant wear should be replaced to avoid future failures. Keep detailed notes on the condition of each component for reference during reassembly.
Reassembly requires meticulous attention to detail. Ensure all cleaned parts are free of solvent residue and properly aligned during installation. Lubricate the diaphragm and plunger lightly with a fuel-resistant grease to reduce friction. Follow the manufacturer’s torque specifications when securing the housing to prevent over-tightening, which can deform the pump body. Once reassembled, perform a bench test by manually operating the pump to verify smooth movement and proper sealing. This thorough disassembly, cleaning, and inspection process ensures the fuel pump operates optimally, extending its lifespan and maintaining the performance of your flathead Ford engine.
Chevy Malibu Fuel Pump Replacement Cost: What to Expect
You may want to see also
Explore related products
Replace Components: Install new diaphragm, gasket, and reassemble the pump securely
The diaphragm is the heart of your flathead Ford fuel pump, and a worn-out one spells trouble. Cracks, tears, or hardening lead to fuel leaks, reduced pressure, and engine performance issues. Replacing it, along with a fresh gasket, is a crucial step in your rebuild, ensuring reliable fuel delivery and preventing future headaches.
Opt for a diaphragm specifically designed for your flathead Ford model. Generic replacements might not fit perfectly, leading to leaks and compromised performance. Similarly, choose a gasket made from a material compatible with modern fuels, such as nitrile or Viton, to avoid deterioration over time.
Begin by carefully disassembling the pump, taking note of the orientation of each component for reassembly. Clean all parts thoroughly, removing any debris or old gasket material. Apply a thin layer of high-temperature grease to the diaphragm's contact points to reduce friction and ensure smooth operation. Position the new diaphragm, ensuring it seats correctly against the pump body. Carefully place the gasket, aligning it precisely with the mounting holes.
Reassemble the pump, tightening the screws evenly and progressively to avoid warping the housing. Over-tightening can damage the diaphragm and gasket, leading to leaks.
While the process seems straightforward, a few pitfalls await the unwary. Rushing the reassembly can lead to misaligned components and leaks. Using excessive force when tightening screws can damage the delicate diaphragm. Finally, neglecting to clean the pump thoroughly before reassembly can introduce contaminants, compromising the new parts' lifespan.
By meticulously replacing the diaphragm and gasket, and reassembling the pump with care, you'll restore your flathead Ford's fuel system to optimal performance, ensuring a reliable and enjoyable driving experience.
Can You Hear Your Fuel Pump? What's Normal and What's Not
You may want to see also
Explore related products
$78.62 $89.99
$130 $136.79
Reinstall and Test: Bolt pump back, reconnect fuel lines, and test for leaks and operation
With the internal components of your flathead Ford fuel pump meticulously rebuilt, the final act of this mechanical symphony awaits: reinstallation and testing. This phase demands precision and vigilance, as a single overlooked detail can transform a successful rebuild into a frustrating leak or malfunction. Begin by aligning the pump body with the mounting holes, ensuring the gasket seats evenly to prevent fuel seepage. Tighten the bolts in a diagonal pattern, applying firm but controlled pressure to avoid warping the pump housing. Over-tightening is a common pitfall; use a torque wrench set to 15-20 ft-lbs for optimal results.
Reconnecting the fuel lines requires equal attention to detail. Inspect the lines for cracks or brittleness, replacing them if necessary, as aged rubber can compromise performance. Secure the lines with new clamps, ensuring they are snug but not constrictive. A loose connection here can lead to air infiltration, starving the engine of fuel, while an overly tight clamp risks damaging the lines. Think of this step as threading a needle—delicate yet crucial for the system’s integrity.
Testing the pump is where theory meets practice. Start by priming the system: turn the ignition to the "on" position without starting the engine, allowing the pump to cycle and build pressure. Listen for the characteristic hum, which should be steady and uninterrupted. Next, inspect all connections for leaks using a spray bottle of soapy water. Even the smallest bubble indicates a problem that must be addressed immediately. Remember, fuel leaks are not only inefficient but also hazardous, posing a fire risk.
Finally, start the engine and observe its behavior. A properly rebuilt pump will deliver consistent fuel flow, resulting in smooth idling and responsive acceleration. If the engine sputters or stalls, recheck the pump’s diaphragm for proper seating and the fuel lines for obstructions. This final test is your assurance that the rebuild was successful, transforming hours of meticulous work into a reliable, functioning component. Master this phase, and your flathead Ford’s fuel system will be as dependable as the day it rolled off the assembly line.
Rebuilding a 62 IH Fuel Pump: Step-by-Step Guide and Tips
You may want to see also
Frequently asked questions
You will need a socket set, wrenches, screwdrivers, pliers, a gasket scraper, and a new fuel pump rebuild kit, which includes gaskets, diaphragms, and other necessary components.
Start by removing the fuel lines and mounting bolts. Then, take off the pump cover, carefully remove the diaphragm and valve assembly, and clean all internal parts thoroughly before inspecting for wear or damage.
Common signs include difficulty starting the engine, sputtering or stalling, reduced fuel pressure, or visible leaks around the pump. If the pump is noisy or fails to deliver fuel properly, rebuilding is likely necessary.
