Fuel injectors are essential for optimal engine performance. Detroit, a leading manufacturer, offers a set of six fuel injectors known as PowerPacks, which provide smooth idling, responsive acceleration, and improved fuel economy. However, over time, fuel injectors may require rebuilding or remanufacturing to maintain their functionality. This process can be undertaken through professional services or attempted as a DIY project with varying levels of complexity and cost. Rebuilding fuel injectors involves disassembling, cleaning, and replacing various components, such as seals, filters, and O-rings, to ensure efficient fuel injection and engine performance.

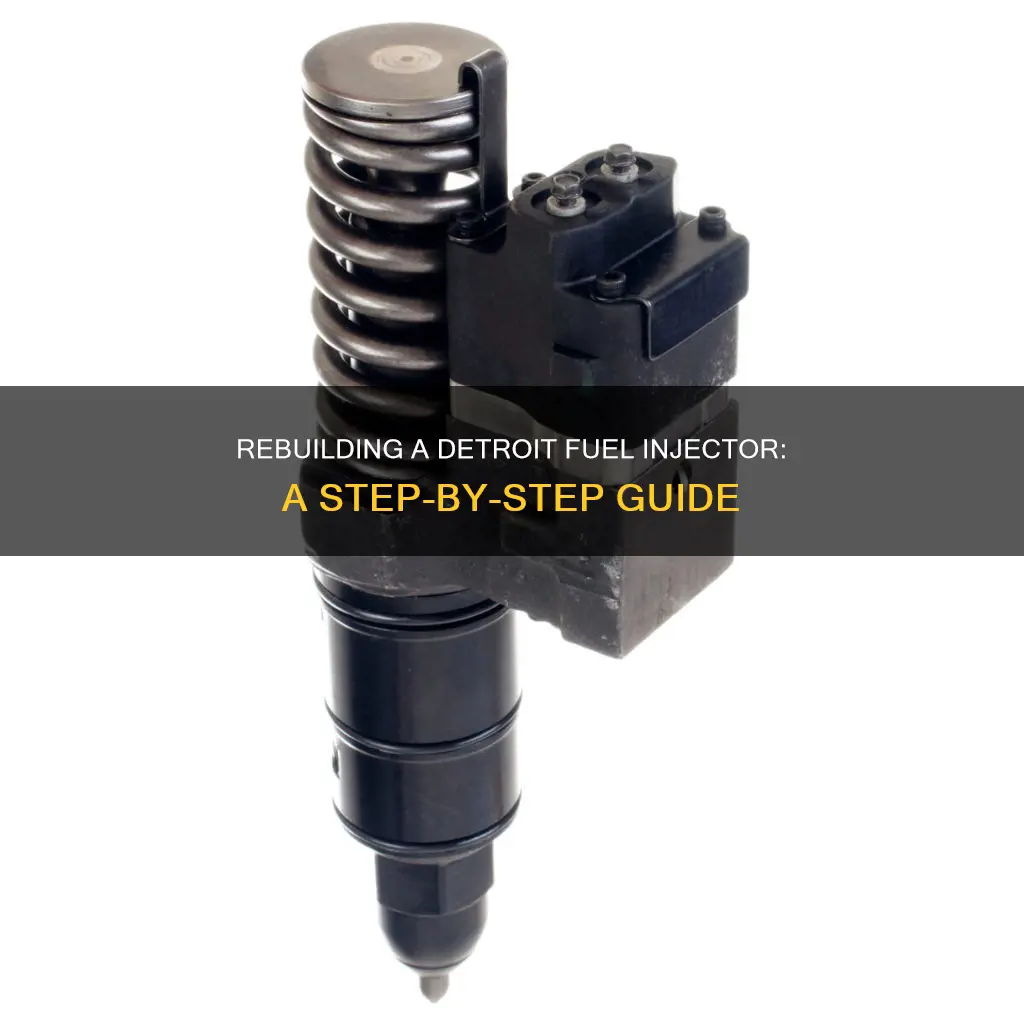

How to Rebuild a Detroit Fuel Injector
| Characteristics | Values |
|---|---|
| Tools | Mityvac hand pump, fuel line hose, removal tool, tack hammer |
| Supplies | Rebuild kit (new O-rings, filters, spacers, pintle caps), fuel injector cleaner |
| Steps | 1. Remove injector. 2. Clean injector. 3. Remove pintle caps and O-rings. 4. Install rebuild kit: new filters, top O-ring, spacer, bottom O-ring, pintle cap. 5. Reinsert injector, taking care not to pinch O-ring. |
Explore related products
What You'll Learn
Cleaning fuel injectors with fuel injector cleaner
Clogged fuel injectors can hinder your vehicle's performance, lowering its power and mileage. To keep your engine running smoothly, it is recommended to clean your fuel injectors about once a year. This can be done by purchasing a fuel injector cleaning kit, which typically costs under $100, or by using a commercial cleaning solution specifically designed for fuel injectors.
The first step is to locate the fuel injectors. Different types of engines have different layouts, so refer to your vehicle's manual or look up your vehicle online to determine their location. The fuel injectors will be located under the hood of the car. Once located, disconnect the fuel pump from the fuel injectors.
Next, attach the cleaning kit to the fuel port, which is attached to the fuel rail in your engine. Follow the instructions provided with your cleaning kit on how to attach the hose and fitting to the port, ensuring that the fitting is attached properly. Make sure the injectors are not exposed to fuel as the cleaner is flammable.
Then, remove the cap from the fuel tank to prevent pressure buildup. Turn on the cleaning kit's pump and allow the cleaning solution to run through the injectors for about 15 to 30 minutes, or as specified by your cleaning kit. This solution will break down and remove debris, grime, and carbon deposits from the injectors.
Finally, remove the cleaning kit and reattach your pump and injectors. Put the fuel cap back into place and turn the vehicle on again to test if the fuel injectors are working properly. Listen for any abnormal noises, which may indicate a problem.
Regular use of fuel additives or fuel injector cleaners can also help to keep your injectors clean. These additives break down deposits in your engine and prevent them from forming on the fuel injectors. Additionally, regular servicing and inspections can help detect any issues with the fuel injectors before they become major problems.
It is important to note that this guide provides general instructions on how to clean fuel injectors. For specific instructions on rebuilding a Detroit fuel injector, it is recommended to refer to a Detroit Diesel Series 71 rebuild kit or seek guidance from an authorized Detroit service location.
Cleaning Honda Metropolitan Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Removing pintle caps and o-rings
When removing the pintle caps and o-rings, it is important to be careful and avoid damaging the parts. Do not yank the pintle caps off with pliers. Instead, carefully twist and pull the pintle caps off by hand. Once the pintle caps are removed, you can proceed to remove the o-rings. Make sure to inspect the o-rings for any signs of damage or wear and replace them if necessary.
It is recommended to clean the fuel injectors before removing the pintle caps and o-rings. This can be done using a fuel injector cleaner or a DIY method such as pressurizing the injectors with a cleaner while pulsing them. By attaching a piece of fuel line hose that fits over the injector and adapting it to a hand pump, you can first suck the cleaner through the injector and then switch to pressure to run the cleaner through.
After cleaning, you can carefully remove the pintle caps and o-rings. It is important to note that the process of removing the pintle caps and o-rings may vary slightly depending on the specific fuel injector and engine type. Always refer to the manufacturer's instructions or seek the advice of a qualified mechanic if you are unsure.
Once the pintle caps and o-rings have been successfully removed, you can continue with the next steps of the fuel injector rebuilding process, such as installing new filters, o-rings, spacers, and pintle caps from a rebuild kit.
Fuel Injector Issues: Can They Cause Starter Failure?
You may want to see also
Explore related products
Using a rebuild kit
There are a variety of rebuild kits available online, and choosing the right one depends on the type of damage or problem you are having. Some kits will replace just the seals if you are experiencing leaks, while others will include most of the major components to address larger issues. Before purchasing, it is important to know which type of fuel injector you have, as there are different options available.
If you are on a budget, you could get by with only replacing the lower seals, as the injector end-caps are usually still good. It is also worth noting that keeping your fuel injector clean by adding a can of additive to the gas tank every now and then is a good practice. Running cleaners in the gas tank can also help to clean injectors, and it is recommended to do this before and after replacing seals and screens.
When rebuilding your fuel injector, it is important to work in a clean environment as the injector's orifices are very small, and dust or debris can cause blockages.
Cleaning Fuel Injectors: Throttle Body Cleaner Method
You may want to see also
Explore related products
Installing new filters
When installing new filters, it is recommended to use a rebuild kit, which will come with new O-rings, filters, spacers, and pintle caps. The new filters simply need to be pressed into place. Using a tack hammer, gently tap the filters until they are flush.
It is important to be careful when handling the filters, as too much force can damage the delicate components. The filters should be securely fitted, but not overly tightened. The rebuild kit will also come with a spacer, which may or may not be needed depending on the specific injector.
After installing the new filters, the next step is to install the top O-ring. This is done by rolling it onto the injector. It is important to ensure that the O-ring is properly aligned and seated before moving on to the next step.
Finally, the bottom of the injector should be finished with the installation of the spacer (if needed), followed by the O-ring, and then the pintle cap. The pintle cap should be handled with care, as it can be easily damaged if removed or installed incorrectly. It is recommended to refer to the specific instructions provided with the rebuild kit to ensure that all components are installed correctly and securely.
Fuel Injector Maintenance: Are They Plugged or Not?
You may want to see also
Explore related products
Testing spray pattern
Testing the spray pattern of a rebuilt Detroit fuel injector is a crucial step to ensure its proper functioning. Here is a detailed guide on how to perform this test:
Firstly, it is important to understand the normal spray pattern of a fuel injector. The spray pattern refers to the direction and atomisation shape of the fuel spray as it exits the injector. A normal spray pattern is crucial for the engine to run smoothly and efficiently, as it ensures the correct amount of fuel is delivered to the combustion chamber. The spray pattern can be influenced by the angle and placement of the injector, so it may vary between different engines.
To begin the test, you will need to prepare the necessary tools and materials. This includes a flat-head screwdriver, a 10mm socket wrench, six glass mason jars, and a jumper (a 12-14 gauge wire with two prongs). These tools will help you access the fuel injectors and collect the fuel spray for observation.
Once you have the required tools, follow these steps:
- Remove the air filter box from the intake to gain better access to the fuel injectors.
- Detach the retaining clips from all six fuel injectors.
- Carefully remove the injectors and place each one into a mason jar. Ensure that the jars are secure and properly positioned to collect the fuel spray.
- Access your electrical compartment and locate the RPM relay. Jump pins 30 and 87 to activate the fuel pump.
- Turn the key to the 'acc' position. This powers up the necessary components without cranking the engine.
- Observe the spray patterns in each jar. A properly functioning injector should produce a clear, fine spray or a light mist. Pay attention to the evenness of the spray across all injectors.
- Compare the observed spray patterns with reference images or videos to identify any irregularities. A V-shaped spray pattern is generally considered acceptable, while distortions or a complete lack of fuel spray indicate a malfunction.
- If you have a dead injector, you can further test it by checking the injector's coil. Use a multimeter to measure the resistance and compare it to the specified value. If the readings differ, it's a sign that the injector needs to be replaced.
By following these steps, you can effectively test the spray pattern of your rebuilt Detroit fuel injector and identify any potential issues. It is important to perform this test with caution and seek professional guidance if you are unsure about any aspects of the process.
Understanding Fuel Injectors: A Guide to Their Functioning
You may want to see also
Frequently asked questions
The best way to rebuild a Detroit fuel injector is to use a professional service, however, this can be expensive. There are DIY methods available online, but these are not recommended unless you are confident in your ability.
Yes, there are DIY methods available online, including YouTube videos. However, these methods may not be as effective as professional services and require some skill and equipment.
You will need a rebuild kit, which includes new O-rings, filters, spacers, and pintle caps. You may also need a removal tool, a tack hammer, a mityvac hand pump, and a piece of fuel line hose.
You can clean a fuel injector by using a fuel injector cleaner and pressurizing the injectors while pulsing them. You can also use additives in your fuel tank to keep injectors clean.
