Fuel injectors are an essential component of any diesel engine, and keeping them in good condition is vital for optimal engine performance. While injector cleaning or replacement can be costly, there are ways to save money by rebuilding your own fuel injectors. This process can be challenging, requiring a high level of cleanliness and precision due to the small size of the injector components. Rebuild kits are available online, and some people have shared their experiences and recommendations for this complex but rewarding task.

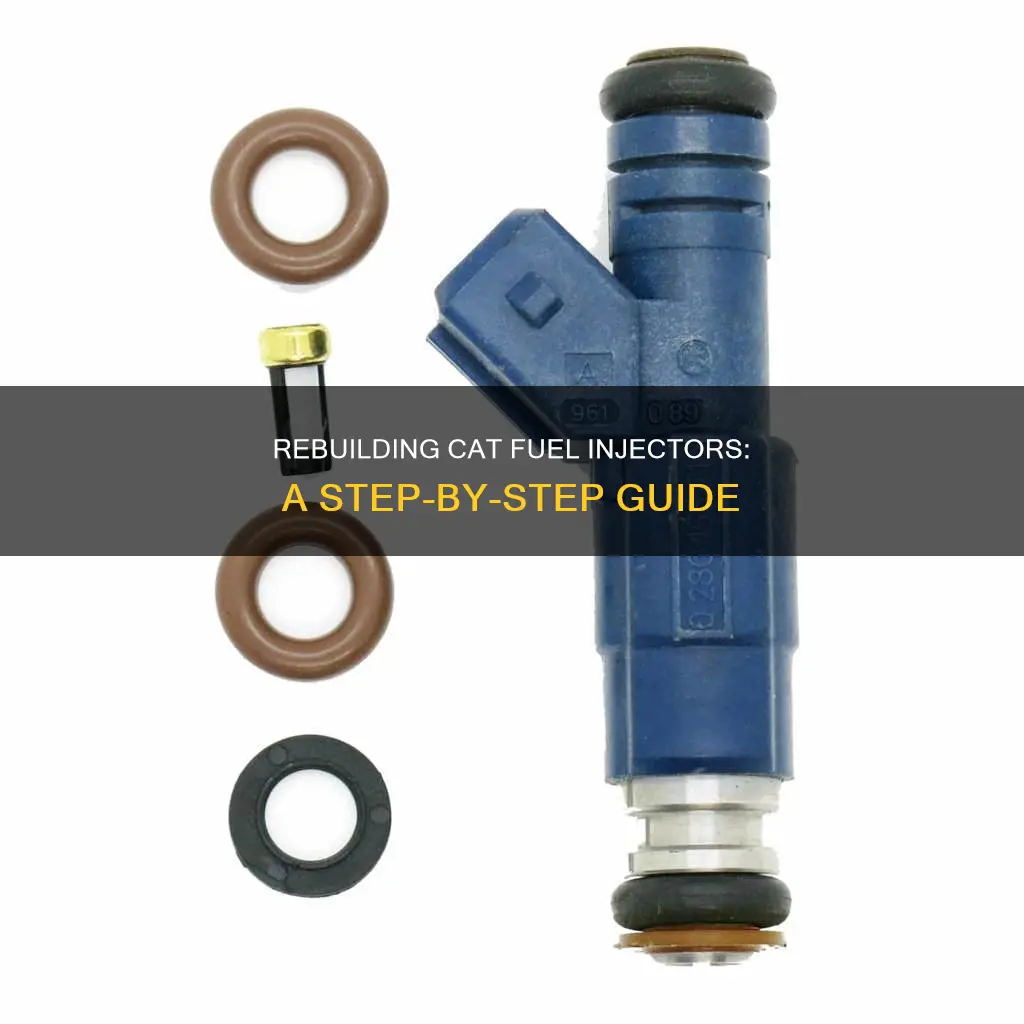

How to rebuild a CAT fuel injector
| Characteristics | Values |
|---|---|
| Cleaning methods | Ultrasonic bath, injector cleaning kit, fuel additives, running a tank of e85 |
| Parts | O-rings, injector end-caps, lower seals |
| Tools | Basket removal tool |
| Cost | $37 for half the caps and rings |
| Difficulty | Requires a very clean work area due to small orifices |
| Notes | Injectors may leak due to a pinched O-ring |
Explore related products
Cleaning fuel injectors
Before beginning the cleaning process, it is important to locate and address any underlying issues that may be causing problems with your fuel injectors. Some common signs of clogged injectors include rough idling, poorer acceleration, and engine misfires. Engine startup issues and worse-than-expected fuel economy could also be indicative of clogged fuel injectors, but these issues often have other underlying causes.
To clean your fuel injectors, you will need to first disconnect the fuel pump to prevent fuel from entering the injectors during cleaning. This can usually be done by removing a fuse or relay. Once the pump is disconnected, start the engine and let it run until it uses up the fuel in the lines and dies, depressurizing the fuel system. Carefully disconnect the electrical connectors from each injector, and use a wrench to remove any bolts or fasteners holding the fuel rail in place. Gently lift the fuel rail and pull out the injectors, being careful not to damage them.
At this point, you can follow the instructions provided with your fuel injector cleaning kit. Typically, this involves attaching a hose from the kit to the fuel port on the fuel rail. Ensure that you have the proper adapters to fit everything correctly around your system and injectors. The kit should bypass the vehicle's fuel system and provide a direct stream of cleaning solution to the injectors. If your injectors are heavily clogged, you may need to remove them for manual cleaning. Soak the injectors in a dedicated injector cleaner fluid, and then use compressed air to blow through the injectors to remove any remaining debris, making sure to cover all openings and seals properly.
Turn on the cleaning kit's pump and allow the cleaning solution to run through the injectors for 15 to 30 minutes, depending on the level of clogging and the specifications of your cleaning kit. This solution will break down the deposits inside the injectors. Once the cleaning process is complete, reattach the fuel rail with the injectors to the engine, ensuring that all injectors are properly seated and the fuel rail is securely fastened. Reconnect the fuel pump by replacing the previously removed fuse or relay, and turn the ignition to the "on" position for a few seconds to re-pressurize the fuel system. Check for any leaks around the injectors and fuel rail, and then start the engine and let it idle to ensure everything is working correctly. Listen for any unusual noises and observe if the engine's performance has improved. Finally, take the vehicle for a test drive to ensure that the injectors are functioning properly.
If cleaning your fuel injectors does not solve any of the problems you were experiencing, you may need to replace them. Over time, deposits can become too thick to remove with fuel additives or cleaner kits, and installing new injectors will ensure your engine receives the proper fuel mixture for optimal performance.
Performance Fuel Injectors: Worth the Upgrade?
You may want to see also
Explore related products
Rebuild kits
When purchasing a rebuild kit, it is important to ensure that the kit is compatible with your specific fuel injector. For example, the basket in the kit needs to fit your injector. It is also important to consider the cleanliness of your work area, as fuel injectors have very small orifices that can be easily blocked by dust or other debris.
In addition to the rebuild kit, you may also need to purchase some additional parts, such as caps and O-rings. These can be purchased separately or as part of a set. The prices of these individual parts can vary, but they are generally affordable and easily accessible.
When rebuilding a fuel injector, it is important to follow the correct procedure to ensure that the injector is properly cleaned and reassembled. This may involve using an ultrasonic bath to clean the injector and taking precautions to avoid contamination from dust or other debris.
Fuel Injectors: Power Boost or Myth?
You may want to see also
Explore related products
Injector flow rate
When rebuilding a Cat fuel injector, ensuring the correct flow rate is essential for optimal engine performance and fuel efficiency. Cat injectors are designed to meet specific engine specifications, and any deviations in the flow rate can lead to issues. For example, a lower flow rate may result in insufficient fuel supply to the engine, causing power loss and poor performance. On the other hand, a higher flow rate may lead to excessive fuel consumption and increased emissions.
To calculate the ideal injector flow rate for a Cat engine, you can use a fuel injector calculator. This calculator takes into account factors such as the desired engine power and the number of cylinders. By inputting these values, you can determine the required flow rate to achieve the desired performance. Additionally, the calculator can help you select the appropriate fuel injectors for your specific engine configuration.
It is important to note that the flow rate is influenced by the duty cycle, which is the percentage of time the injector is open. A higher duty cycle may increase the flow rate but can also put stress on the injector due to friction. Therefore, it is crucial to find a balance between the duty cycle and the desired flow rate to ensure the longevity of the injector and the engine. Regular cleaning of the injectors is also essential to prevent blockages and maintain the correct flow rate.
Fixing Dirty Fuel Injectors: DIY or Professional Help?
You may want to see also
Explore related products
O-rings
Firstly, when disassembling the injector, carefully inspect each O-ring for any signs of damage or degradation. O-rings can become brittle, cracked, or distorted over time due to exposure to heat, chemicals, or debris. Replace any O-rings that show signs of wear and tear to ensure a proper seal.
When purchasing replacement O-rings, it is crucial to select the correct size and material. O-rings come in various sizes, and the correct fit is essential for an effective seal. Common materials for O-rings include rubber, silicone, or fluorocarbon, each with its own advantages and resistance properties. Consult the manufacturer's specifications or a mechanic to identify the appropriate O-ring for your CAT fuel injector.
During the reassembly process, handle the O-rings with care. Ensure your hands are clean and free from oil or dirt, as contaminants can compromise the integrity of the seal. Gently stretch the O-ring and place it into its corresponding groove, ensuring it sits flat and is not twisted or misaligned.
Finally, once the injector is reassembled, test for leaks by performing a pressure test or a visual inspection. A leaking injector may be due to a pinched or damaged O-ring, so it is crucial to verify the integrity of the seals before installing the injector back into the engine.
Fuel Injector Cost for a 2001 Forester: How Much?
You may want to see also
Explore related products
Upper and lower seals
When rebuilding a CAT fuel injector, the upper and lower seals are crucial components that ensure the injector's proper functioning and prevent leaks. Here is some detailed information about these seals:
The upper seals are located at the top of the injector, close to the end caps. While the end caps themselves are often durable and long-lasting, with many reporting that the original end caps were still in good condition after 260,000 kilometres, the upper seals may need replacement over time. It is recommended to buy rebuild kits that are available online specifically for the upper seals, and try to use Toyota parts if possible.
The lower seals, on the other hand, are located at the bottom of the injector. These seals tend to be more susceptible to wear and tear and may need replacement more frequently. Again, rebuild kits are available online, and you can opt to replace only the lower seals if you are on a budget.
When replacing the upper and lower seals, it is important to be cautious to avoid any damage to the O-rings, as pinching them can lead to injector leaks, as reported by some users. Taking extra care when inserting the injector back into the fuel rail is crucial to prevent this issue.
Additionally, it is worth noting that while some people choose to clean their injectors before rebuilding, several users have reported that their injectors were completely clean even after extended use. Therefore, cleaning may not always be necessary, but it can offer peace of mind.
Fuel Injector Issues: Rough Idle Post-Warm Up?
You may want to see also
Frequently asked questions
Improper fuel injection can cause engine sputtering, stalling, and backfiring, so keeping your injectors in good order is in your best interest.
The most common cause is built-up residue and other tiny fragments of materials within your fuel as it passes through the injectors. These bits of debris eventually pack together and can clog the injector, leading to blocked or uneven fuel distribution.
You can buy an injector cleaning kit. Most commonly, you'll have a can of cleaning fluid with a pressure gauge to ensure you don't overload your injection system. You should also have a removable hose and some adapters to fit everything properly.
Ensure your work area is clean as fuel injectors have tiny orifices and dust or dirt can block them. You can also find a long uphill freeway to accelerate using a significant throttle pedal to get the injectors cleaned out.
