Katerina Swanson

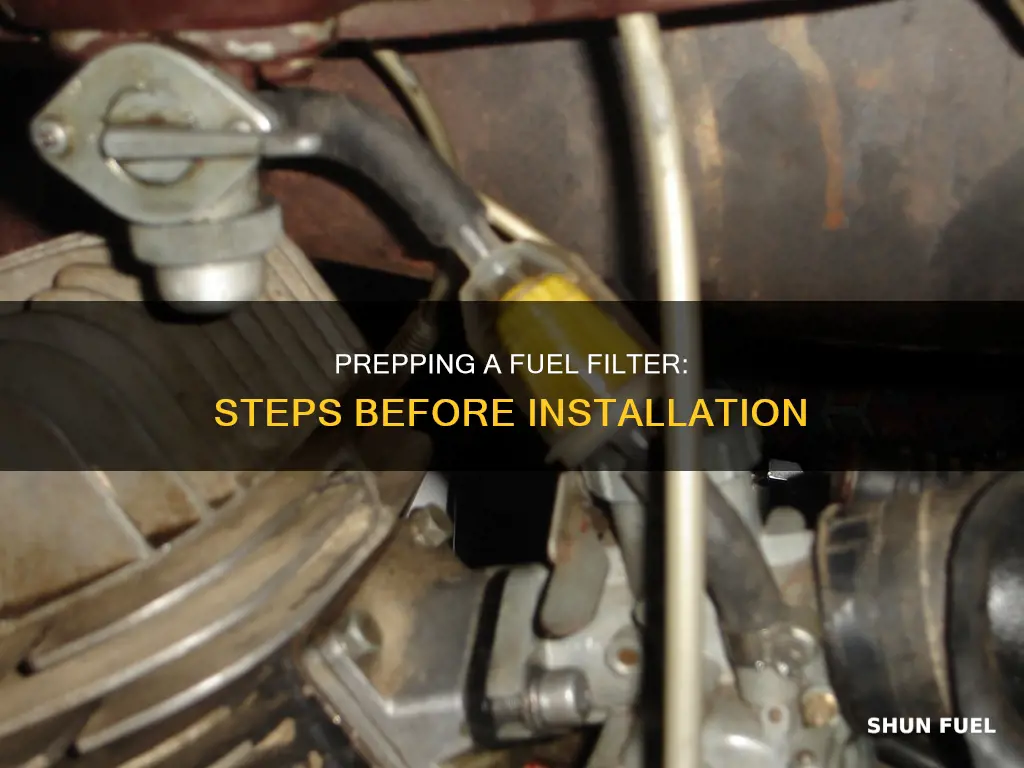

Before installing a new fuel filter, there are several steps you should take to ensure the process is safe and efficient. It is important to note that fuel is flammable, so ensure you take the necessary precautions and have a fire extinguisher on hand. First, relieve the fuel system pressure, then disconnect the battery and locate the fuel filter. Place a bowl or bucket underneath the fuel filter to catch any fuel that may leak out. Next, disconnect the fuel tube fittings from the filter and loosen the clamp to remove the old filter. Compare the old and new filters to ensure they are the same size, and check the direction of the arrow on the new filter, which indicates the direction of fuel flow.
Explore related products
What You'll Learn
Ensure you have the right tools and safety gear
Before you begin the installation process, it is important to ensure that you have the right tools and safety gear. Safety should always be the top priority when performing any maintenance or installation work.
For fuel filter installation, you will need safety gear such as gloves and safety glasses. These items will protect your eyes and hands from any potential injuries. It is also recommended to have a fire extinguisher nearby as fuel is flammable, and there is a risk of fire during the installation process.
In terms of tools, you will need a new fuel filter, hose clamps, pliers, and a screwdriver. Additionally, you may require a wrench to remove the old fuel filter's clamp or bracket. If your vehicle is a dirt bike, ensure you have the specific type of pliers and screwdriver needed. It is also important to consult your vehicle's owner's manual or a repair manual for specific tool requirements.
Before starting, make sure you have relieved the fuel system pressure. This can be done by removing the fuel pump fuse or relay and running the vehicle until it stops due to a lack of fuel. Place a bowl, bucket, or drain pan under the fuel filter to catch any fuel that may leak when you detach the filter.
Having all the necessary tools and safety gear will ensure that you are fully prepared for the installation process and can work efficiently and safely.
Cleaning the Fuel Filter on Your Classic 1969 Ford Bronco
You may want to see also
Explore related products
Disconnect the battery and relieve fuel pressure
Disconnecting the battery and relieving fuel pressure are important steps to take when prepping a fuel filter for installation. Here are some detailed instructions to guide you through the process:
Disconnecting the Battery
Before beginning any work on your vehicle's fuel system, it is crucial to disconnect the battery. This is a safety measure to prevent the engine from accidentally turning on while you work. Locate the negative terminal on the battery and use a hand or socket wrench to loosen the nut holding the cable in place. You don't need to remove the nut completely, just loosen it enough to detach the cable. Tuck the negative cable safely to the side, ensuring it doesn't touch the terminal. This simple step ensures that the engine cannot be started during the fuel filter installation process.
Relieving Fuel Pressure
Relieving the fuel pressure is essential to avoid spills and accidents during fuel filter replacement. There are a few methods to achieve this, and the specific steps may vary depending on your vehicle's make and model. Here are some common approaches:
- Pull the Fuel Pump Relay: This method involves pulling the relay for the fuel pump to relieve pressure. You can then wait for the engine to die due to a lack of fuel before proceeding with the fuel filter replacement. Once the new filter is installed, reconnect the relay and turn the key in the ignition a few times to normalize the system.
- Drain the Fuel Lines: Another approach is to drain as much fuel as possible from the system. Place a bowl or bucket under the fuel filter to catch any drips or spills. You can relieve the pressure in the lines by opening the connector or pushing a button, typically located behind the passenger kick panel. Be cautious, as there may still be built-up pressure in the lines, resulting in fuel spray when disconnected.
- Remove the Gas Cap: According to a mechanic, simply removing the gas cap can relieve pressure from the lines. This method may not be suitable for all vehicles, and it is generally recommended to combine it with other pressure relief techniques.
- Use a Fuel Pressure Tester: If your vehicle is equipped with a fuel pressure tester, you can connect it to the fuel rail and press the relief button. This will release the fuel pressure, making it safer to work on the fuel filter.
Remember to refer to your vehicle's service manual for specific instructions related to your make and model. Always exercise extreme caution when handling gasoline and working on the fuel system.
Cleaning Gelled Fuel Filters: DIY Guide
You may want to see also
Explore related products
Remove the old fuel filter
To remove the old fuel filter, you must first relieve the pressure in your vehicle's fuel system to prevent fuel from spraying out when you remove the old filter. This can be done by locating the fuel pump fuse or relay in the fuse box and removing it. Then, start the engine and let it run until it stalls. This will depressurize the fuel system.
Next, locate the fuel filter. There are two common locations for fuel filters in vehicles: along the fuel line on the bottom of the car, just past the fuel pump, or in the engine bay. Refer to your vehicle's service manual to determine the exact location.
Once you have located the fuel filter, use a flathead screwdriver to pop out the plastic clips holding it in place. If you are having trouble removing the fuel lines, a fuel line removal tool can make the job easier. Be prepared for some gasoline to spill out of the old filter when you remove it, so handle it carefully. As you remove the fuel lines from the filter's nipples, twist and pull carefully to break the lines off the filter.
Finally, slide the fuel filter out of its bracket. The fuel filter is likely held in place by a metal bracket that wraps around its outer housing. With the fuel lines disconnected, you can slide the fuel filter out of the bracket by pushing it toward the front or back of the car, depending on its orientation.
Remember to dispose of the old fuel filter properly and clean up any spilled fuel with a rag. Make sure to properly dispose of any used rags and other materials to avoid a fire hazard.
Filtering Water from Diesel: A Step-by-Step Guide
You may want to see also
Explore related products
Compare the old and new filters
When comparing old and new fuel filters, it is important to note that fuel filters are designed to trap dirt, rust, scale, and other impurities from entering the fuel pump, fuel injectors, and engine without affecting fuel pressure. A fuel filter acts as a permeable barrier that cleans the fuel of impurities. Over time, the old filter will trap these impurities, and its ability to allow fuel to pass through will be impacted.
The old filter should be removed carefully, and the new filter should be compared to the old one. The new filter should be of the same diameter as the old one, and it should easily slide into the bracket. If the new filter needs to be forced into the bracket, it is likely the wrong size. The new filter should also have the same type of fittings as the old one, such as tapered pipe thread or ORB fittings.
The quality of the filter is also important. A high-quality filter will have high filter efficiency, stability, and a long service life. A low-quality filter may fail prematurely, leading to heavy contamination and potential engine damage. The filter medium may collapse, and the O-ring may harden, resulting in a loss of sealing function.
It is recommended to replace fuel filters at regular intervals, with older vehicles requiring more frequent replacements than newer vehicles. The manufacturer's maintenance schedule should always be consulted, as some vehicles have advanced fuel systems with integrated fuel filters designed to last longer.
Installing a Chainsaw Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
Reattach the new filter and check for leaks
Reattaching a new fuel filter and checking for leaks is a straightforward process, but it requires careful attention to detail. Here's a step-by-step guide:
Reattaching the New Fuel Filter:
Before reattaching the new fuel filter, it is essential to compare it with the old one. Ensure that the new filter has the same outside diameter, nozzle size, and compatibility with the bracket as the old one. If the fuel filters do not match, do not force the new one into place, as it may not be the correct replacement. Slide the new fuel filter into the bracket or housing, ensuring it stops securely when seated properly.
Checking for Leaks:
After reinstalling the new fuel filter, it is crucial to check for leaks. Reconnect the fuel lines securely, following the direction of flow indicated by an arrow on the filter, which should align from the fuel tank to the engine. Double-check that all connections are tight and secure, including hose clamps, to prevent leaks and ensure the fuel system is sealed properly.
Testing for Leaks:
Once the new fuel filter is in place and all connections are secure, start the vehicle and let it run for a few minutes. Carefully inspect the area around the fuel filter and fuel lines for any signs of leaks. If you notice any leaks, immediately turn off the vehicle and re-tighten the connections. If leaks persist, consult a mechanic or seek advice from the vehicle's owner's manual.
Safety Precautions:
It is important to emphasise safety throughout the process. Before starting, ensure the vehicle is turned off, and disconnect the battery to prevent accidental engine startup. When handling gasoline and working on the fuel system, exercise caution and refer to the manufacturer's instructions. Wear appropriate protective gear, such as gloves and safety glasses, to prevent injuries and ensure a safe working environment.
By following these steps and staying vigilant about safety, you can effectively reattach the new fuel filter and check for leaks, helping to maintain optimal vehicle performance and protect the engine.
Expedition Fuel Filter Change: DIY Guide for '99 Models
You may want to see also
Frequently asked questions
Always wear appropriate protective gear such as gloves and safety glasses. Disconnect the battery and ensure the vehicle is off before replacing the fuse. Relieve the fuel system pressure and place a bowl or bucket beneath the fuel filter to catch any fuel that drips or pours out. It's also a good idea to have a fire extinguisher on hand as fuel is flammable.
Before installing a new fuel filter, compare it to the old one to ensure they are the same. Check the owner's manual for the correct type of filter to use.
Disconnect the fuel tube fittings from the old filter, then loosen the clamp and remove it. Install the new filter by attaching it to the fuel line with the fittings that came with it, and secure the clamp to hold it in place. Reconnect the fuel line, ensuring there are no leaks.
