Fuel filters are designed to keep the engine performing optimally by catching stray particulate matter in the fuel before it reaches the engine. They are usually located somewhere between the engine and the fuel tank, either inside the fuel tank or along the fuel line running underneath the vehicle. The exact location of the fuel filter depends on the vehicle's make and model. Before accessing the fuel filter, it is important to relieve the pressure in the fuel system by allowing the engine to run for a minute or so without the fuel pump functioning. When installing a new fuel filter, it is important to ensure that it is installed in the correct direction, as installing it backwards can shut down fuel flow. The direction of flow is indicated by an arrow on the filter, and the filter should be installed with the arrow pointing towards the fuel pump.
Explore related products
What You'll Learn
- Fuel filter directionality: arrows indicate flow direction
- Fuel filter placement: typically between the engine and fuel tank
- Fuel filter installation: ensure correct diameter and secure with clips
- Fuel filter access: relieve fuel system pressure and remove relay
- Fuel filter replacement: flush and replace fuel lines
Fuel filter directionality: arrows indicate flow direction
Fuel filters are designed to catch stray particulate matter in the fuel before it reaches the engine. This helps keep the engine performing optimally. The fuel filter is typically found somewhere between a vehicle’s engine and fuel tank. It’s usually inside the fuel tank itself in the opening of the fuel line or along the fuel line running underneath your vehicle.
Before accessing your fuel filter, it’s important to first relieve the pressure in the fuel system. You can usually do this by allowing your engine to run for a minute or so without the fuel pump functioning. The exact location of the fuel filter depends on the vehicle’s make and model. For example, 1995-2002 Honda Accord models have the fuel filter near the brake master cylinder on the back of the engine.

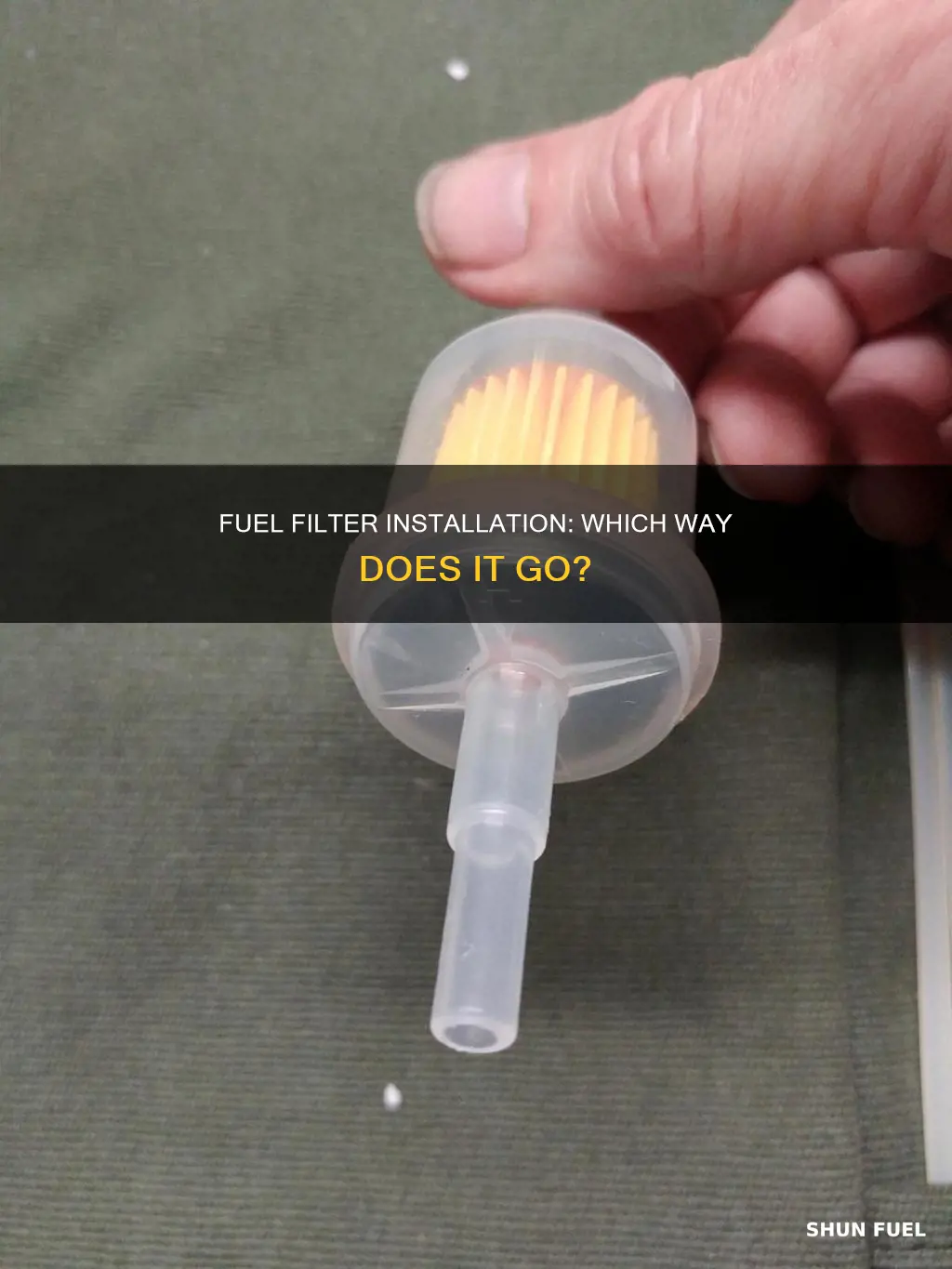

When installing a new fuel filter, it is important to ensure that the direction of the fuel flow is correct. One way to determine the correct direction is by following the arrows on the fuel filter. The arrow points in the direction of the fuel flow. In most cases, the arrow should point towards the fuel pump. However, there may be variations depending on the vehicle and the specific fuel filter design.
Another way to determine the correct direction of the fuel filter is by identifying the closed and open ends of the filter. The closed end of the filter should be facing towards the fuel tank, while the open end should be facing towards the fuel pump. This ensures that the fuel flows from the tank through the filter to the pump. Installing the fuel filter in the wrong direction can restrict fuel flow and affect the performance of the engine.
Cleaning Your Zuma Scooter's Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
$6.82
Fuel filter placement: typically between the engine and fuel tank
Fuel filters are designed to catch stray particulate matter in the fuel before it reaches the engine. This helps keep the engine performing optimally. Typically, the fuel filter is found somewhere between a vehicle's engine and fuel tank in the supply line.
In many vehicles, the fuel filter is located inside the fuel tank and is part of the fuel pump assembly. It may also be mounted right on top of the fuel pump assembly as an integral part. The exact location of the fuel filter depends on the vehicle's make and model. For example, if you own a 2002 Toyota Corolla, the fuel filter can be found underneath the rear seat cushions. It’s inside the fuel tank as part of the fuel pump assembly but can be replaced separately.
Most vehicles built within the last 10 to 20 years do not have a serviceable fuel filter. Instead, the filter is part of the fuel pump module located in the fuel tank. This type of fuel filter should, in theory, last the life of the vehicle, so you shouldn't have to replace it regularly. However, if you have an older car, it probably has an external fuel filter that requires routine service. You can determine when and if your car’s fuel filter requires replacement by consulting the manufacturer’s recommended maintenance schedule, which can be found in the back of your owner’s manual.
Filtering Waste Oil: A Guide to Homemade Fuel
You may want to see also
Explore related products
Fuel filter installation: ensure correct diameter and secure with clips
Fuel filters are essential for keeping your engine in optimal condition. They work by catching stray particulate matter in the fuel before it reaches the engine. When installing a new fuel filter, it is important to ensure that it is the correct diameter and securely fastened with clips.
First, locate the fuel filter bracket and ensure that the new fuel filter slides in easily. If you have to force it, the filter is likely not the correct diameter. The fuel filter should stop and be seated properly, only able to slide out in one direction. Take care not to damage the housing, as this may cause a leak.
Once the new fuel filter is in place, fasten it securely to the fuel line. Slide the fuel lines onto the front and back of the filter, replicating the setup of the old filter. With the fuel line in place, use plastic clips to secure the line to the fuel filter. Slide these clips through the holes on the fuel line nozzle. Ensure that the fuel lines are snug on the nozzles before sliding the clips into place.
It is crucial to note that if a plastic clip breaks during installation, do not operate the vehicle until it is replaced. Additionally, some fuel filters have arrows indicating the direction of fuel flow. Ensure that these arrows are pointing in the correct direction, usually towards the fuel pump. For log-style filters, the closed end of the filter should point toward the fuel cell.
Lawn Mower Fuel Filter: A Step-by-Step Inspection Guide
You may want to see also
Explore related products
Fuel filter access: relieve fuel system pressure and remove relay
To access the fuel filter, it is important to relieve the fuel system pressure and remove the relay. Here is a step-by-step guide on how to do this:
Relieving Fuel System Pressure:
- Disconnect the negative battery cable using a wrench: This is an important safety precaution to prevent sparks, which could ignite fuel and fuel vapors.
- Locate the fuel pressure regulator: The fuel rail is mounted along the top area of the engine, and the regulator is usually vacuum-operated.
- Remove the vacuum hose: Use your hand to remove the vacuum hose from the top of the fuel pressure regulator.
- Apply vacuum to the regulator: Connect a hand-operated vacuum pump to the regulator and apply approximately 16 inches Hg of vacuum to push the fuel back into the fuel tank.
- Access the sending unit/fuel pump assembly: This is typically located on top of the fuel tank.
Removing the Fuel Relay:
- Locate the fuse box: The fuel pump relay is usually located in the fuse box under the dashboard or in the engine bay.
- Remove the fuel pump relay: You can usually do this by hand. Removing the relay will cut power to the fuel pump, preventing further pressure buildup.
- Start the engine and let it idle until it stalls: This will help relieve any remaining pressure in the system.
- Disconnect the negative battery cable again: Ensure that the battery is disconnected before proceeding with any repairs or maintenance.
By following these steps, you can safely relieve the fuel system pressure and remove the relay, allowing you to access the fuel filter for inspection, replacement, or other maintenance tasks. Remember to always refer to your vehicle's owner's manual or a vehicle service manual for specific instructions and safety precautions.
Connecting a Dual Outlet Fuel Filter: Easy Steps
You may want to see also
Explore related products
Fuel filter replacement: flush and replace fuel lines
It is important to know the correct orientation of your fuel filter. If installed backwards, water may enter the fuel pump, causing irreparable damage. To avoid this, look for an arrow on the fuel line, or take a picture of the setup before removing the filter.
Now, to replace your fuel filter and flush your fuel lines, follow these steps:
First, locate your car's fuel filter. It will be somewhere along the fuel line between the engine and the gas tank. Jack up your car if necessary.
Next, drain the fuel filter of any excess liquid. If you have an old glass fuel filter, you can unscrew both ends and clean the individual parts with a rag. For most fuel filters, you will need to use a carburetor cleaner, such as B-12 Chemtool. Hold the fuel filter over a jar or basin and spray the cleaner into the fuel-in side, while the fuel-out side is over the basin. Knock the side of the filter to loosen debris, then repeat the spraying. Turn the filter around and repeat the process on the other side.
Once you have cleaned the filter, set it aside to dry for about an hour. If you don't dry it properly, it may further contaminate the fuel line.
Now, replace the fuel filter into its bracket or cradle, ensuring it is the correct way around. Slide the fuel lines back into each nozzle, making sure they are reconnected tightly to prevent leaks. Then, fasten the lines with the plastic clips.
Finally, lower your car if necessary, then reconnect the battery and fuse. Start your engine and check for fuel leaks. If you spot any leaks, disconnect the battery, jack up the car, and tighten the fuel lines.
If your engine won't start, check your fuses. If the fuses and battery are fine, make sure the filter and lines are installed correctly. If problems persist, contact a mechanic.
Freeing a Stuck Fuel Filter: Quick and Easy Solutions
You may want to see also
Frequently asked questions
The fuel filter is typically found somewhere between a vehicle’s engine and fuel tank in the supply line. The exact location of the fuel filter depends on the vehicle’s make and model. Before installing a new fuel filter, make sure it slides easily into its bracket. If you have to force it, it is likely not the correct diameter.
The fuel flow direction is indicated by an arrow on the filter. The arrow points in the direction of the flow.
Installing the fuel filter backwards will shut down fuel flow as RPM increases.
If there is no arrow on the filter, it should be installed with the closed end of the filter toward the fuel cell, and the open end towards the fuel pump.
The fuel line coming from the side and below goes to the tank, and the other one is headed to the engine.
