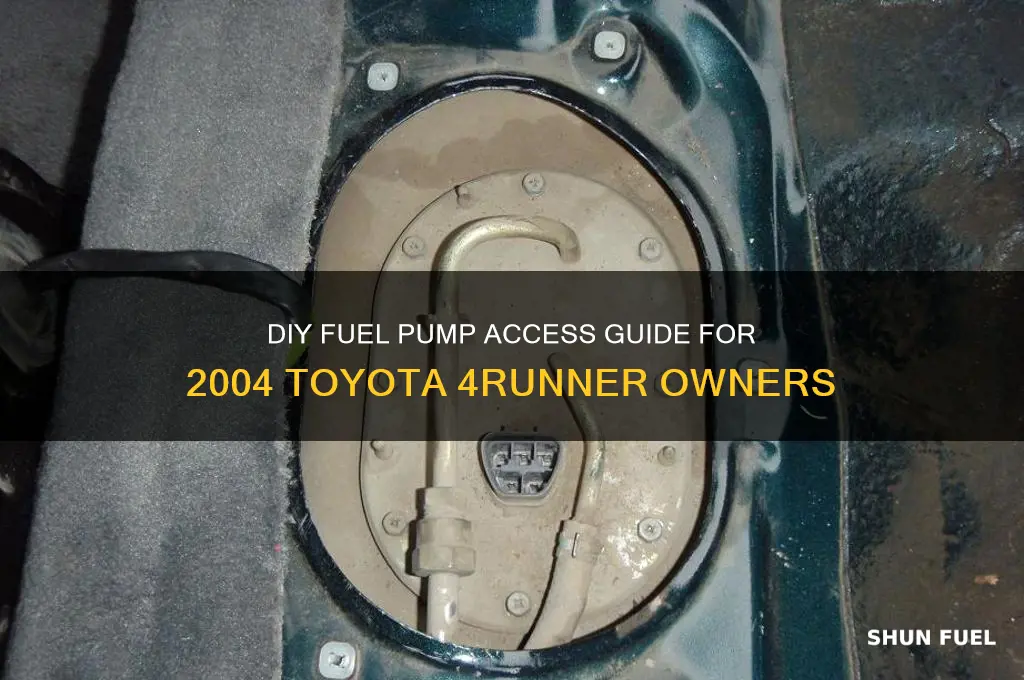

Accessing the fuel pump on a 2004 Toyota 4Runner is a critical task for maintenance or repairs, but it requires careful steps due to its location within the fuel tank. To begin, ensure the vehicle is on a flat surface, the ignition is off, and the fuel system pressure is relieved. Start by removing the rear seats and the cargo floor cover to expose the fuel pump access panel. Use appropriate tools to disconnect the negative battery terminal to prevent electrical hazards. Next, carefully remove the access panel screws and set them aside. Once the panel is removed, you’ll see the fuel pump assembly, which may require further disconnection of electrical connectors and fuel lines. Always work in a well-ventilated area and avoid open flames or sparks. Following these steps will help you safely access the fuel pump for inspection, replacement, or repair.
| Characteristics | Values |
|---|---|
| Vehicle Model | Toyota 4Runner 2004 |
| Fuel Pump Location | Beneath the rear seat, under the carpet and a metal access panel |
| Tools Required | Socket wrench, screwdrivers, trim removal tools, jack, jack stands |
| Safety Precautions | Relieve fuel pressure, disconnect battery, work in a well-ventilated area |
| Steps to Access Fuel Pump | 1. Remove rear seat by lifting and unhooking retaining clips |
| 2. Peel back carpet to expose metal access panel | |
| 3. Remove screws or bolts securing the metal panel | |
| 4. Lift the panel to access the fuel pump assembly | |
| Fuel Pump Replacement | Disconnect electrical connectors and fuel lines before removing pump |
| Reinstallation | Reinstall in reverse order, ensuring all connections are secure |
| Common Issues | Rusty or stripped screws, damaged carpet, fuel leaks |
| Estimated Time | 1-2 hours depending on experience and tools |
| Difficulty Level | Moderate (requires basic mechanical skills) |
| Recommended Maintenance | Inspect fuel pump and lines during access for wear or damage |
| Additional Tips | Use a trim removal tool to avoid damaging interior components |
Explore related products
What You'll Learn
- Removing Rear Seat: Lift seat, unbolt brackets, detach cables, and set aside for clear pump access
- Fuel Pump Location: Locate tank under vehicle, identify pump assembly near center for precise access
- Safety Precautions: Disconnect battery, relieve fuel pressure, work in well-ventilated area to avoid hazards
- Tank Removal Steps: Jack up vehicle, lower tank carefully, detach lines and straps for pump access
- Reinstallation Tips: Reattach lines, secure tank, reconnect battery, and test pump for proper function
Removing Rear Seat: Lift seat, unbolt brackets, detach cables, and set aside for clear pump access
Accessing the fuel pump in a 2004 Toyota 4Runner often requires removing the rear seat, a task that, while straightforward, demands precision to avoid damage. Begin by locating the rear seat release levers, typically found at the front edge of the seat cushion. Pull these levers upward to disengage the seat from its mounting points. With the levers released, lift the rear seat cushion firmly but gently, ensuring you don’t strain the hinges or cables. Set the cushion aside in a safe area, taking care not to scratch the interior or damage the seat’s underside components.
Next, focus on the seatback. Most 4Runner models secure the seatback with two brackets, one on each side, often hidden behind plastic covers. Pry these covers off carefully using a flathead screwdriver or trim removal tool to expose the mounting bolts. Use a socket wrench with the appropriate-sized socket (typically 10mm or 12mm) to unbolt the brackets. Once the bolts are removed, tilt the seatback forward and detach any cables or connectors, such as those for the seatbelt or power adjustments, if applicable. Lay the seatback flat or remove it entirely, depending on your workspace needs.
Detaching cables requires attention to detail. For manual seats, you may encounter a seatbelt tension sensor cable or a ground wire. Gently unclip these cables from their mounts, taking note of their routing for reassembly. If your 4Runner has power seats, disconnect the electrical harness by pressing the release tab and pulling the connector apart. Avoid tugging on the wires directly to prevent damage. Labeling cables or taking a quick photo before detachment can simplify the reinstallation process.
With the seat cushion and seatback removed, inspect the area for any debris or obstructions that could hinder pump access. Use a shop vacuum or compressed air to clean the space thoroughly. Ensure all components are set aside in an organized manner to prevent misplacement. This step not only provides clear access to the fuel pump but also creates a safer working environment by eliminating tripping hazards or potential damage to interior parts.
Finally, consider the reassembly process before proceeding with fuel pump work. Reinstalling the rear seat involves reversing the removal steps, but take care to align the seatback brackets properly and secure all bolts to factory torque specifications (typically 20-25 ft-lbs for seat mounting hardware). Test the seat’s stability and ensure all cables are reconnected before lowering the seat cushion into place. This proactive approach minimizes the risk of errors and ensures the interior remains functional and secure after the repair.
Step-by-Step Guide: Installing a Mechanical Fuel Pump on Chevy SB
You may want to see also
Explore related products
Fuel Pump Location: Locate tank under vehicle, identify pump assembly near center for precise access
The fuel pump in a 2004 Toyota 4Runner is nestled within the fuel tank, a design choice that offers protection but complicates access. To begin the replacement process, you must first locate the tank itself, which sits beneath the vehicle, typically along the centerline. This positioning is strategic, balancing weight distribution and minimizing exposure to potential damage from road debris. Understanding this layout is crucial, as it dictates the approach you’ll take to access the pump assembly efficiently.
Once the fuel tank is identified, the next step is pinpointing the fuel pump assembly, which is situated near the center of the tank. This central location is intentional, optimizing fuel delivery and ensuring consistent operation. To access the assembly, you’ll need to remove the tank’s protective shield, a task requiring basic hand tools and a methodical approach. Be cautious not to damage surrounding components, as the undercarriage is a tight space with limited clearance. Precision here prevents unnecessary complications later in the process.
Removing the fuel tank is a critical step that demands attention to safety. Start by relieving the fuel system pressure, a procedure outlined in the vehicle’s manual, to avoid hazards associated with pressurized fuel. Disconnect the negative battery terminal to eliminate the risk of electrical sparks. Once these precautions are in place, carefully lower the tank using a jack or support stand, ensuring it remains stable throughout the process. This step is labor-intensive but essential for gaining direct access to the pump assembly.
With the tank removed, the fuel pump assembly becomes accessible. It’s typically secured by a locking ring or retaining mechanism, which can be released with the appropriate tool. Before disassembling, note the orientation of the pump and any attached components, as this ensures proper reassembly. Replacing the pump requires transferring electrical connectors and fuel lines to the new unit, a task that benefits from patience and organization. Once installed, reattach the tank, ensuring all connections are secure and leak-free.
In summary, accessing the fuel pump in a 2004 4Runner involves a systematic approach: locate the centrally positioned fuel tank, remove it safely, and identify the pump assembly near the tank’s center. Each step requires careful execution, from relieving fuel pressure to reassembling components. While the process is detailed, it’s manageable with the right tools and a clear understanding of the vehicle’s design. This method ensures a precise and safe replacement, restoring your 4Runner’s fuel system to optimal performance.
Does a 2003 Ford Taurus Have a Fuel Pump Relay?
You may want to see also
Explore related products
Safety Precautions: Disconnect battery, relieve fuel pressure, work in well-ventilated area to avoid hazards
Before diving into the process of accessing the fuel pump on a 2004 Toyota 4Runner, it's critical to prioritize safety. Fuel systems operate under pressure and contain flammable materials, making them inherently dangerous if mishandled. Ignoring safety precautions can lead to fires, explosions, or personal injury. Let’s break down the essential steps to mitigate these risks: disconnecting the battery, relieving fuel pressure, and working in a well-ventilated area.
Disconnecting the battery is the first and most crucial step. The 2004 4Runner’s fuel pump is electrically powered, and cutting off the power source prevents accidental activation during work. Locate the battery in the engine bay, typically on the driver’s side. Use a 10mm wrench to loosen the nut on the negative terminal (black cable) and remove the cable. Ensure the cable does not touch any metal surfaces while you work. This simple action eliminates the risk of electrical sparks that could ignite fuel vapors.
Next, relieving fuel pressure is essential to avoid fuel spraying or leaking during pump access. Start by locating the fuel pump access panel in the rear of the vehicle, beneath the cargo area. Remove the carpet and insulation to expose the panel. Then, locate the Schrader valve (similar to a tire valve stem) on the fuel rail or fuel pump assembly. Attach a fuel pressure gauge or use a small screwdriver to depress the valve, releasing residual pressure. If the engine has been running, allow it to cool for at least 30 minutes before attempting this step to reduce pressure buildup.
Working in a well-ventilated area is non-negotiable when dealing with fuel systems. Fuel vapors are heavier than air and can accumulate in enclosed spaces, creating a highly flammable environment. Perform this task outdoors or in a garage with the doors open. Avoid using any open flames, smoking, or operating power tools that could generate sparks nearby. If working indoors, use a fan to maintain airflow, but ensure it’s positioned to blow vapors away from the work area.
By following these safety precautions—disconnecting the battery, relieving fuel pressure, and ensuring proper ventilation—you significantly reduce the risks associated with accessing the fuel pump on a 2004 4Runner. These steps are not optional; they are fundamental to protecting yourself and your vehicle. Remember, fuel systems demand respect and caution, and taking the time to implement these measures ensures a safer and more successful repair process.
Step-by-Step Guide to Installing a Fuel Pump Regulator Easily
You may want to see also
Explore related products
Tank Removal Steps: Jack up vehicle, lower tank carefully, detach lines and straps for pump access
Accessing the fuel pump on a 2004 Toyota 4Runner requires removing the fuel tank, a task that demands precision and safety precautions. Begin by ensuring the vehicle is on a level surface and the fuel tank is as empty as possible to minimize weight and fire risk. Use a floor jack to lift the vehicle and secure it on jack stands, focusing on the rear to provide clear access to the tank. This initial step is critical for creating the necessary workspace and ensuring stability during the removal process.
Once the vehicle is securely elevated, carefully lower the fuel tank using a transmission jack or a sturdy, flat-surfaced jack. Position it directly under the tank to prevent tilting or damage. Slowly lower the tank, keeping it balanced to avoid stressing the fuel lines or straps. This step requires patience and attention to detail, as rushing can lead to costly mistakes or safety hazards. The goal is to create enough clearance to detach the lines and straps without forcing or bending any components.
With the tank lowered, detach the fuel lines and straps systematically. Start by relieving fuel system pressure to prevent spills or accidents—locate the Schrader valve on the fuel rail and depress it with the ignition off. Next, disconnect the fuel lines using appropriate tools, such as wrenches or quick-disconnect tools, ensuring no residual pressure remains. Follow by removing the retaining straps, typically secured with bolts or clips, which hold the tank in place. Work methodically to avoid damaging the lines or surrounding components, as these parts are critical for safe fuel system operation.
Throughout the process, prioritize safety and organization. Keep a fire extinguisher nearby and avoid open flames or sparks. Label or take photos of the fuel line connections to ensure correct reassembly. By following these steps—jacking up the vehicle, lowering the tank carefully, and detaching the lines and straps methodically—you’ll gain the necessary access to the fuel pump while minimizing risks and ensuring a successful repair.
Diagnosing Fuel Pump Issues in Your 1993 Bonneville: A Step-by-Step Guide
You may want to see also
Explore related products
Reinstallation Tips: Reattach lines, secure tank, reconnect battery, and test pump for proper function
After removing the fuel pump assembly from your 2004 4Runner, reinstallation demands precision to ensure safety and functionality. Begin by reattaching the fuel lines, ensuring each connection is secure and properly aligned. Use a torque wrench to tighten fittings to the manufacturer’s specifications—overtightening can damage seals, while undertightening risks leaks. Apply thread sealant or Teflon tape to threaded connections for added security, especially if the lines show signs of wear. Double-check that all lines are routed correctly to avoid kinks or interference with moving parts.
Securing the fuel tank is the next critical step. Reinstall the tank straps and bolts, tightening them evenly to distribute pressure and prevent shifting during driving. Inspect the tank for any signs of corrosion or damage before reattachment, addressing issues immediately to avoid future complications. Ensure the tank is seated properly on its mount to prevent vibration, which can lead to premature wear or failure of the pump assembly. A misaligned tank not only compromises safety but can also affect fuel gauge accuracy.
Reconnecting the battery is a straightforward but crucial step. Before doing so, verify that all electrical connections to the fuel pump are clean and secure. Corroded terminals can cause voltage drops, leading to erratic pump operation. Once the battery is reconnected, listen for the fuel pump priming cycle—a brief hum that confirms the pump is receiving power. If no sound is heard, check the fuse and relay associated with the pump, as these are common failure points.
Testing the pump for proper function is the final and most important step. Start the engine and monitor for unusual noises, such as whining or grinding, which indicate internal pump damage. Check for fuel leaks around the tank and lines, using a spray bottle of soapy water to detect even minor seepage. Drive the vehicle at varying speeds and observe the fuel gauge for erratic behavior, which could signal a faulty sending unit. If everything operates smoothly, you’ve successfully restored your 4Runner’s fuel system to optimal condition.
Why Fuel Pumps Suddenly Fail: Causes, Symptoms, and Prevention Tips
You may want to see also
Frequently asked questions
The fuel pump is located inside the fuel tank, which is situated under the rear passenger side of the vehicle. You’ll need to remove the rear seat and access panel to reach it.
You’ll need basic tools like a socket set, screwdriver, trim removal tool, and possibly a fuel line disconnect tool. A jack and jack stands may also be necessary to access the fuel tank.
Yes, it’s highly recommended to drain the fuel tank to avoid spills and make the process safer. Use a siphon pump or fuel transfer pump to remove the fuel.
Pull up on the rear seat cushion to release it, then unbolt the seat back from the floor using a socket wrench. Lift the seat back out to expose the access panel.
Yes, work in a well-ventilated area, avoid open flames or sparks, and disconnect the battery to prevent accidental ignition. Relieve fuel system pressure before starting the work.
