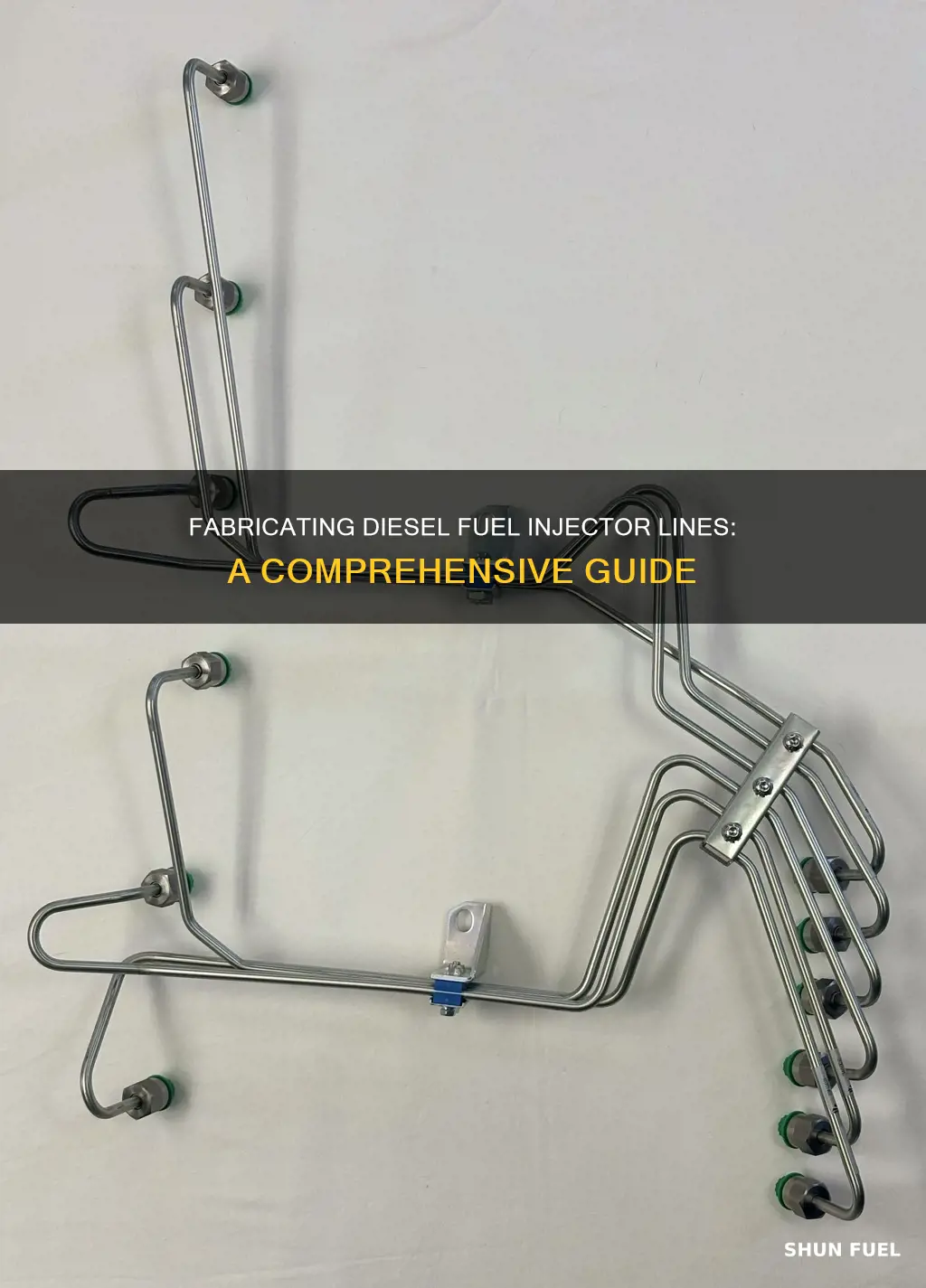

Making your own diesel fuel injector lines is a challenging task, requiring careful attention to length, size, and angle. The injector lines need to be the same length to ensure consistent fuel travel time and engine performance. Bending metal tubing to the right angle can be difficult, and special tools like tube benders and flaring kits may be needed. High-pressure injector lines require a special double flare and a rigid, steel line to withstand pressure and prevent expansion. Manufacturing diesel fuel injector lines also involves raw material procurement, special processing to prevent metal flaking, cleaning, inspection, testing, and shipping.
Characteristics and Values of Diesel Fuel Injector Lines
| Characteristics | Values |
|---|---|
| Length | All fuel lines must be the same length to avoid messing with timing and duration. A difference of a few millimeters can impact engine performance. |
| Material | The lines are made of steel tubing. Stainless steel is subject to micro-cracking when exposed to vibration. |
| Manufacturing Process | The process begins with raw tubing stock and material order management. The tubing undergoes special processing to ensure there is no metal flaking due to pressure pulses. |
| Pressure | The injector lines need to withstand high pressures, requiring a special double-flare as used on brake lines. The VP44 is capable of producing pressure up to 6000 psi. |
| Bending | Bending the lines is challenging due to their thickness. They must be bent at the right angles to fit correctly. |
| Connections | The connections must be tight to ensure proper functioning. |
| Rigidity | The lines must be clamped to provide rigidity and prevent fracturing. |
| Testing | The lines are cleaned, inspected, and patch-tested to meet clean specifications. |
| Quality Assurance | Dynamic Tube, Inc. (DTI) follows ISO9001:2015 standards for quality assurance. |
Explore related products
$25.64 $26.99
What You'll Learn
Injector lines must be the same length to avoid impacting engine performance
While it is possible to make your own injector lines, it is a challenging task and it is important to ensure that all the lines are the same length and size. The ends of the lines must also be made with the right angle to fit correctly. Bending metal tubing is not an easy task and it can be difficult to get the lines to bend correctly and look aesthetically pleasing.
The impact of unequal injector line lengths can be significant. Even a small difference of a couple of millimetres in length can dramatically affect engine performance. The engine will still run, but not as efficiently or as designed. This is due to the internal friction of the fuel inside the lines, which can be magnified by the severe vibrations that diesel engines experience at different RPMs.
To ensure optimal engine performance and efficiency, it is crucial that all injector lines are of the same length. While it may be tempting to try and fabricate your own injector lines to save money, it is a complex task that can impact the performance of your engine. It is recommended to seek professional assistance or purchase pre-made injector lines to ensure that they are all of the same length and size.
Cleaning Fuel Injectors: The Comprehensive Guide to Clean Fuel Injectors
You may want to see also
Explore related products
Use a tube bender to bend the lines
Using a tube bender is a great way to make your own diesel fuel injector lines. It's a cost-effective method, but it requires some skill and knowledge of the process. Here are some detailed steps and tips to help you use a tube bender to create precise and efficient fuel injector lines:
First, it's important to understand the basics of tube bending. The process boils down to four critical factors: the material of the tube, the bending machine, the tooling, and lubrication. Knowing the properties of the tube or pipe you're working with is essential. Variables such as the centreline radius, outside diameter, and wall thickness will impact your bending process.
There are several types of tube bending processes, but most tubes are bent using one of the following methods: ram-type bending, roll bending, compression bending, or rotary draw bending. Ram-type bending is one of the simplest and oldest methods, often seen in muffler shops. It uses a hydraulically driven ram to force the tube against rollers or pivot blocks, creating a bend. While this method is cost-effective, it may not be suitable if you require precise bends or care about the cosmetics of the workpiece.
Roll bending, on the other hand, is commonly used for large workpieces and involves three rolls positioned in a pyramid shape. The rolls move to produce the desired angle, and the arrangement of moving rolls depends on the machine. Another variation is the two-roll, pinch-style roll bender, where the tube feeds between an upper and lower roll while adjustable guides on the sides create the desired bend angle.
When using a tube bender, it's essential to have the right skills and equipment. You'll need to know how to use the bender accurately and efficiently to create the desired bends. There are hand tube benders and benchtop tube benders available, and you can find practical instructions and videos online to guide you through the process.
Before you start bending, make sure you have the right tube material and that it's the correct length. The length of the tube can impact engine performance, so precision is crucial. Additionally, consider the diameter of the tube, as larger diameters will require more pressure to bend and may need a longer length to provide sufficient leverage.
Finally, when performing directional changes, you'll need to decide between using bends or connecting separate tube lengths with fittings. Bends are often the best choice for simple 90-degree changes, and they can be very useful for confined areas. However, more complex bends, like rolling offsets or segmented bends, may require advanced skills and experience.
By following these steps and tips, you can successfully use a tube bender to create diesel fuel injector lines that are both functional and aesthetically pleasing.
Harley Fuel Injectors: Cleaning Frequency and Maintenance Guide
You may want to see also
Explore related products
The injector lines need a special double flare
It is important to note that the injector lines need to be all the same length and size. This is because a difference in length, even by a couple of millimetres, could impact engine performance. The lines need to be bent so that the fuel takes the same amount of time to travel through each line. The challenge of making your own injector lines lies in the fact that the lines need to be bent in the right places so that they work correctly and don't look out of place.
The injector lines are subjected to high temperatures since they connect to the combustors. The lines need to be rigid and made of steel to withstand the high pressure. Braided lines, for example, will not work for fuel injector lines because they expand a little bit, even though they can hold the required 3,000 psi. The injector lines need to be able to manage a high level of throughput, hence the requirement for rigid, steel lines.
While it is possible to make your own injector lines, it is a challenging task. It is important to ensure that the lines are the correct length and are bent correctly. The ends of the lines also need to be properly flared, which can be challenging to do without the proper tools. A hydraulic shop would typically have the right tools to flare the lines correctly.
Fuel Injector Issues: Can They Cause a P0420 Code?
You may want to see also
Explore related products
The injector lines must be clamped to prevent vibration-related failure
Hose clamps are typically used to secure fuel lines and prevent vibration-related issues. They work by applying consistent pressure around the circumference of the hose, compressing it against the fitting to form a secure and leak-proof seal. This is essential in high-pressure fuel systems, where a failure in the connection can lead to significant safety hazards or mechanical failures.
There are several types of hose clamps available, each with its own advantages and disadvantages. Worm-drive clamps are the most common type, made of stainless steel with a screw mechanism that tightens the band around the hose. Spring clamps, on the other hand, use spring steel that automatically adjusts its tension as the hose expands or contracts due to temperature changes. While spring clamps are simple to install and effective in maintaining a consistent seal, they may not provide the same level of strength as worm-drive clamps in high-vibration environments.
It is important to select the appropriate type of hose clamp for your specific application. Factors such as pressure, temperature fluctuations, and vibration intensity will influence the suitability of a particular clamp type. Improper use or selection of hose clamps can lead to severe consequences, so it is crucial to ensure that the chosen clamps are correctly installed and provide the necessary level of security for your injector lines.
Chevron Fuel Injector Cleaner: Does It Have Pea?
You may want to see also
Explore related products
The injector lines must be cleaned and patch-tested
To clean the injector lines, it is recommended to use a diesel fuel cleaner additive. This additive can be periodically added to the fuel tank and cycled through the engine to prevent the buildup of gunk and debris. Regular use of a fuel cleaner additive can help maintain the injector lines and reduce the need for more thorough cleaning.
For more heavily clogged injector lines, a diesel injector cleaning kit can be used. These kits are designed specifically for diesel injectors and can be hooked up to the engine's fuel rails or individual injectors. The kit forces a fuel injector cleaner through the injectors to remove blockages, and some kits use compressed air to assist in the process. It is important to consult a mechanic or expert for advice on the best products and methods for cleaning injector lines.
After cleaning, the injector lines should be patch-tested to ensure they meet the required specifications. This process may involve using dedicated testing equipment to check the spray pattern and ensure the fuel is emerging at the correct angle and pressure. The injector lines should also be inspected for any leaks or damage. By performing this patch testing, one can identify any remaining issues and ensure the injector lines are functioning correctly before installation or use.
Overall, cleaning and patch-testing injector lines are essential steps to maintain the performance and functionality of a diesel engine. By following the recommended cleaning methods and performing thorough patch tests, one can help ensure the injector lines are free of debris and operating effectively, contributing to the overall performance and reliability of the vehicle.
Fuel Injector Cleaner: Friend or Foe to Lawn Mowers?
You may want to see also
Frequently asked questions
Making diesel fuel injector lines is challenging due to the need for precise measurements and the difficulty of bending metal tubing to the correct angle. The injector lines must be the same length and size to maintain proper timing and engine performance.
A tube bender, flaring kit, and tubing material such as steel or stainless steel are required. The tubing must be thick-walled to withstand high pressures, and a special flaring tool may be needed to create the necessary double flares.
The process involves measuring and cutting the tubing to the correct length, bending it to the required angle, and flaring the ends to fit the injectors. Clamps or brackets may also be installed to create a complete fuel assembly and ensure rigidity.
Yes, it is important to be careful when bending the tubing to avoid kinks or cracks, as this can compromise the integrity of the lines. Over-tightening the nuts can also cause stress, and proper cleaning and testing are essential to meet safety standards.
