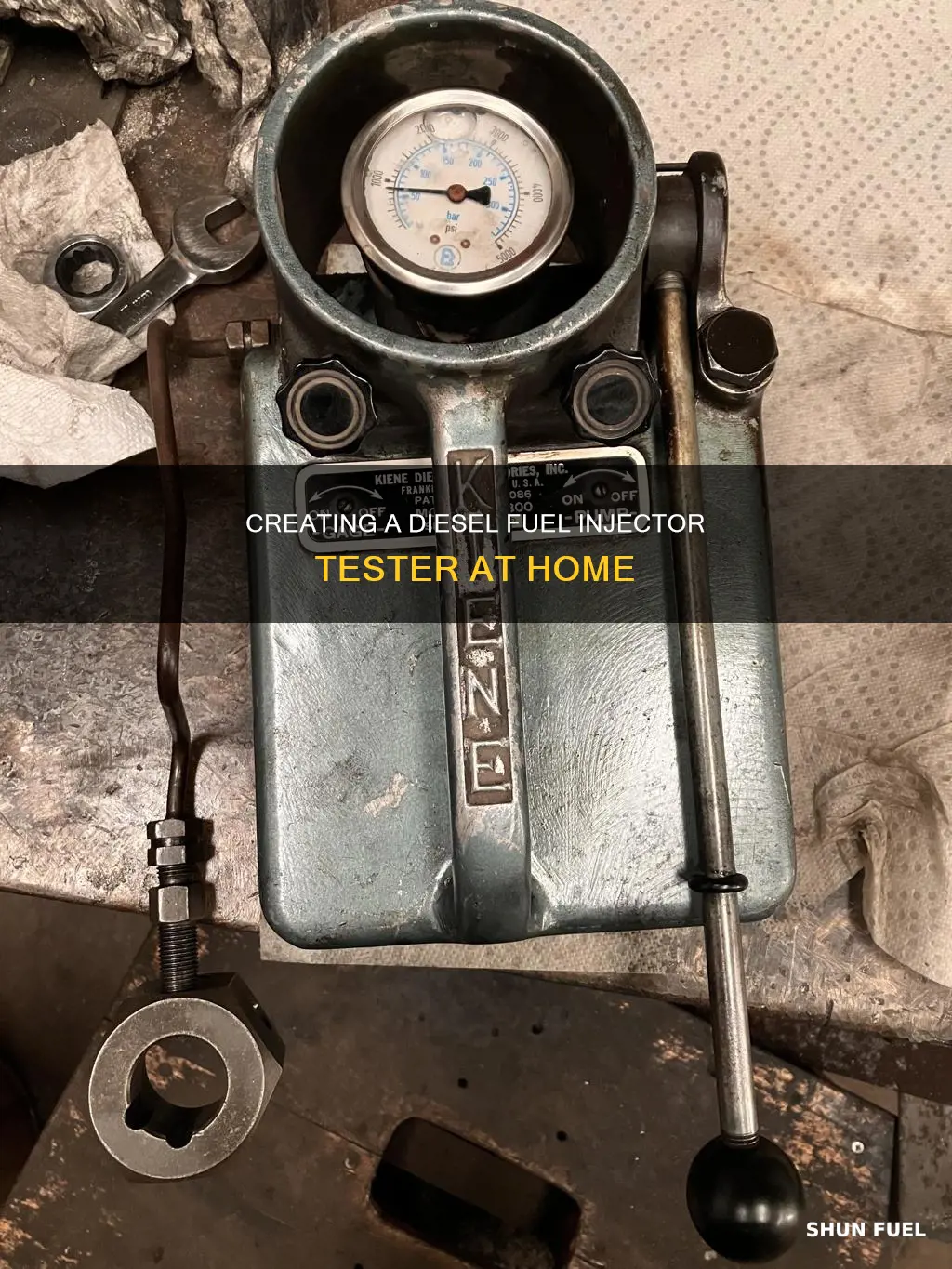

Diesel fuel injectors are crucial for an engine's performance, ensuring that the right amount of fuel is delivered to the engine's combustion chamber at the right time. Regular fuel injection testing helps maintain optimal engine performance and longevity. While there are several commercial diesel fuel injector testers available in the market, one can also be made at home with a few tools. This paragraph will discuss the process of making and using a diesel fuel injector tester.
Characteristics and Values of a Diesel Fuel Injector Tester
| Characteristics | Values |
|---|---|
| Purpose | Measure the injector's performance |
| Materials | Premium cast iron, stainless pressure gauge, plastic fuel cup |
| Measuring Range | 0-600 bar/ 0-8000 psi, Max test pressure up to 60MPa |
| Fuel Cup Capacity | 0.8L |
| Accessories | Handle, high-pressure pipes, nuts, delivery valve, oil pipes |
| Utility | Calibration of fuel injectors in diesel engines of automobiles and tractors |
| Function | Adjust injector nozzle pressure, perform leak tests, spray atomization repetition modelling tests, measure flow rate |
| Safety | Wear safety gear such as gloves and safety glasses during testing |
