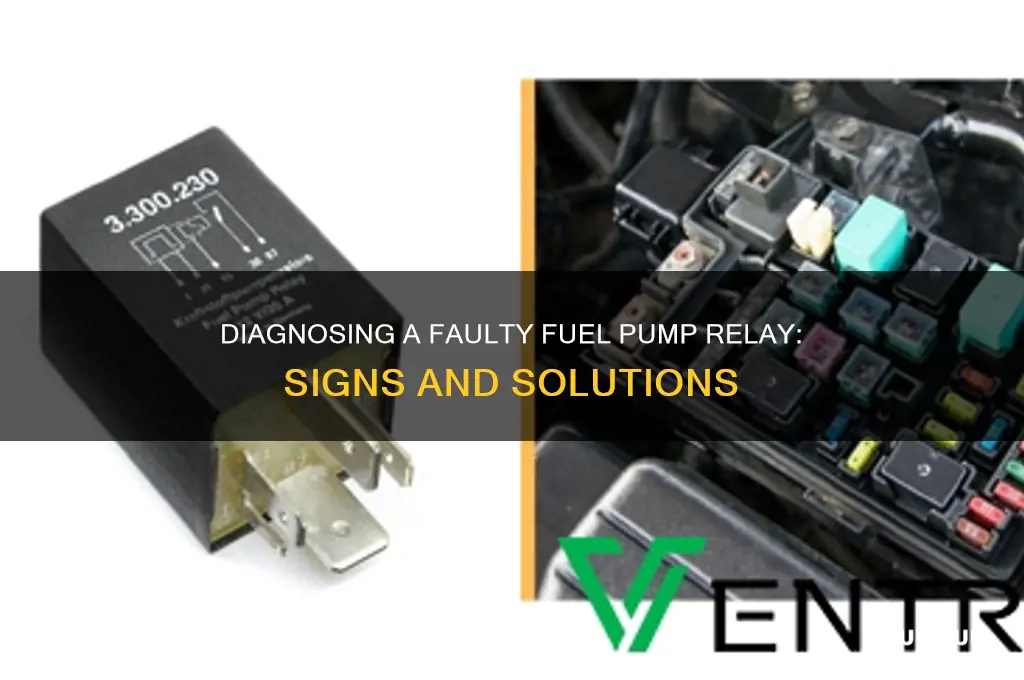

Identifying a faulty fuel pump relay is crucial for maintaining your vehicle’s performance, as it directly affects the fuel delivery system. A bad fuel pump relay can cause symptoms such as difficulty starting the engine, stalling, or a complete loss of power, often mimicking issues with the fuel pump itself. Common signs include a lack of fuel pressure, unusual noises from the fuel tank, or the engine cranking but not starting. To diagnose the problem, you can perform tests such as checking for power at the relay, swapping it with a similar relay in the fuse box, or using a multimeter to test for continuity. If the relay fails these tests, replacing it is typically a straightforward and cost-effective solution to restore proper fuel system operation.
| Characteristics | Values |
|---|---|
| Engine Doesn't Start | Vehicle cranks but fails to start due to lack of fuel delivery. |
| Stalling | Engine stalls intermittently, especially during acceleration or at high speeds. |
| Whining Noise | Unusual whining or buzzing sound from the fuel tank area when the ignition is turned on. |
| No Fuel Pump Noise | No humming sound from the fuel pump when the key is turned to the "On" position. |
| Fuel Pressure Issues | Low or inconsistent fuel pressure measured at the fuel rail. |
| Intermittent Power Loss | Engine hesitates or loses power during operation, particularly under load. |
| Check Engine Light | Illuminated check engine light with fuel pump or fuel system-related error codes (e.g., P0089). |
| Relay Clicking Sound | Audible clicking noise from the relay when attempting to start the engine. |
| Relay Not Engaging | Relay fails to engage or stays engaged continuously, causing electrical issues. |
| Burnt Relay Smell | Odor of burnt plastic or electrical components near the relay. |
| Voltage Drop Test | Significant voltage drop across the relay terminals when tested with a multimeter. |
| Continuity Test Failure | Open or short circuit detected during a continuity test of the relay contacts. |
| Physical Damage | Visible cracks, corrosion, or melting on the relay body or terminals. |
| Intermittent Operation | Relay works sporadically, causing unpredictable fuel pump operation. |
| Replacement Fixes Issue | Replacing the relay resolves the fuel delivery or starting problem. |
Explore related products
What You'll Learn
Symptoms of a Failing Relay
A failing fuel pump relay often manifests through subtle yet critical symptoms that can escalate into major vehicle issues if ignored. One of the earliest signs is intermittent starting problems. The engine may crank but fail to start, only to function normally after multiple attempts. This unpredictability occurs because the relay is sporadically failing to send power to the fuel pump, causing inconsistent fuel delivery to the engine. If you notice this pattern, it’s a strong indicator that the relay is on the brink of complete failure.
Another telltale symptom is stalling or misfiring during acceleration. A faulty relay may not supply a consistent electrical current to the fuel pump, leading to inadequate fuel pressure. As a result, the engine may sputter or stall when you press the accelerator, particularly under load or at high speeds. This not only compromises performance but also poses a safety risk, especially in traffic or on highways. Monitoring these instances can help pinpoint the relay as the culprit rather than other fuel system components.
Unusual noises from the fuel tank area can also signal a failing relay. If the relay is malfunctioning, the fuel pump may operate erratically, producing whining, humming, or buzzing sounds. These noises are often more pronounced during startup or when the fuel demand is high. While such sounds can stem from the pump itself, a failing relay is a common cause, as it disrupts the pump’s normal operation.
Lastly, a sudden drop in fuel efficiency may be linked to a failing relay. If the relay is not consistently powering the fuel pump, the engine may run lean, burning fuel inefficiently. This inefficiency can lead to higher fuel consumption without any apparent increase in performance. Tracking your vehicle’s mileage and noting sudden changes can provide valuable insight into the relay’s condition.
To diagnose a failing relay, start by checking the fuse box for any signs of corrosion or damage. Use a multimeter to test the relay’s continuity and ensure it’s functioning within specifications. If the relay fails the test, replace it promptly to prevent further damage to the fuel pump or other components. Regular maintenance and vigilance toward these symptoms can save you from costly repairs and keep your vehicle running smoothly.
Step-by-Step Guide to Installing a Mechanical Fuel Pump on a CJ2A
You may want to see also
Explore related products
$12.29 $12.99
Testing the Relay with Multimeter
A multimeter is an indispensable tool for diagnosing a faulty fuel pump relay, offering precision where guesswork fails. By measuring voltage, resistance, and continuity, it can pinpoint issues that visual inspection or auditory tests might miss. However, its effectiveness hinges on understanding the relay’s internal circuitry and the multimeter’s proper use. Misinterpretation of readings or incorrect settings can lead to false conclusions, so familiarity with both the tool and the component is crucial.
To begin testing, locate the fuel pump relay in the fuse box, typically under the hood or near the driver’s side dashboard. Consult the vehicle’s manual for its exact position, as misidentifying the relay can waste time and effort. Once located, remove the relay carefully, noting its orientation for reinstallation. A multimeter set to the resistance (ohms) setting will be your primary tool for this test, as it can verify the integrity of the relay’s internal contacts.
Start by testing the relay’s coil resistance, which typically ranges between 50 and 120 ohms, depending on the vehicle. Connect the multimeter’s probes to the relay’s coil terminals—usually pins 85 and 86. A reading within the expected range indicates a functional coil; no reading or a significantly higher value suggests a faulty coil. Next, test the contact points (pins 30 and 87) for continuity. With the relay energized, these pins should show near-zero resistance, confirming the circuit closes properly. If not, the relay fails to engage the fuel pump circuit.
Caution is essential when handling electrical components. Ensure the vehicle is off and the ignition is in the "off" position to avoid accidental activation of the fuel pump. Avoid touching the multimeter probes to adjacent pins or metal surfaces, as this can short-circuit the system or skew readings. Additionally, if the relay has multiple sets of contacts, test each pair individually to isolate the issue.
In conclusion, testing a fuel pump relay with a multimeter is a systematic process that demands attention to detail. By verifying coil resistance and contact continuity, you can accurately diagnose whether the relay is the source of fuel delivery issues. While the procedure is straightforward, precision in execution ensures reliable results, saving time and preventing unnecessary part replacements. This method not only identifies a bad relay but also builds diagnostic skills applicable to other electrical components.
Do Bad Fuel Pumps Tick? Identifying Symptoms and Solutions
You may want to see also
Explore related products
Common Causes of Relay Failure
Relay failure can often be traced back to a few common culprits, each with its own telltale signs and preventive measures. One primary cause is electrical overloading, where the relay is subjected to currents exceeding its rated capacity. This typically occurs in vehicles with aftermarket accessories or modifications that draw excessive power. For instance, installing high-wattage stereo systems without upgrading the electrical system can push the fuel pump relay beyond its limits, leading to overheating and eventual failure. To avoid this, always ensure that any added electrical components are compatible with your vehicle’s existing wiring and relay specifications.
Another frequent issue is corrosion and contamination, which can disrupt the relay’s internal contacts. Moisture, dirt, or chemical residues accumulating on the relay’s terminals hinder proper electrical flow, causing intermittent or complete loss of function. This is particularly common in older vehicles or those exposed to harsh environmental conditions, such as salty roads or humid climates. Regular inspection and cleaning of the relay and its housing can mitigate this risk. Using dielectric grease on the terminals during maintenance provides an additional protective barrier against moisture and corrosion.
Mechanical wear and tear also plays a significant role in relay failure, especially in high-mileage vehicles. The constant opening and closing of the relay’s contacts over time can lead to material degradation, reducing their ability to conduct electricity effectively. This wear is exacerbated by frequent short trips, which prevent the engine and its components from reaching optimal operating temperatures, causing condensation to build up inside the relay. Replacing the relay as part of routine maintenance, typically every 100,000 to 150,000 miles, can help prevent unexpected breakdowns.
Lastly, manufacturing defects or low-quality components can contribute to premature relay failure. Subpar materials or poor assembly processes may result in relays that fail long before their expected lifespan. While this is harder to predict, purchasing relays from reputable manufacturers and avoiding cheap aftermarket alternatives can reduce the likelihood of such issues. Always check for warranty coverage and compatibility with your vehicle’s make and model before installation.
Understanding these common causes empowers vehicle owners to take proactive steps in maintaining their fuel pump relay, ensuring reliable performance and avoiding costly repairs. Regular inspections, proper electrical management, and informed purchasing decisions are key to extending the relay’s lifespan and maintaining overall vehicle health.
Testing Your Ford Ranger Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Location of Fuel Pump Relay
Identifying the location of the fuel pump relay is the first step in diagnosing whether it’s malfunctioning. Most vehicles house this relay in the under-hood fuse box, often labeled as the "power distribution center" or "engine bay fuse box." However, some manufacturers place it inside the cabin, near the driver’s side kick panel or under the dashboard. Consult your vehicle’s manual or search online for your specific make and model to pinpoint its exact location. Knowing where it is saves time and frustration when troubleshooting.
Once you’ve located the fuel pump relay, understanding its role is crucial. This relay acts as a switch, controlling power to the fuel pump. If it fails, the pump may not receive power, leading to engine stalling or failure to start. To test it, swap the fuel pump relay with another relay of the same type in the fuse box (e.g., the horn relay). If the issue persists, the relay isn’t the culprit. If the problem resolves, the relay is likely bad and needs replacement.
A practical tip for locating the fuel pump relay is to listen for the fuel pump’s hum. When you turn the ignition to the "on" position (without starting the engine), the pump should activate briefly. If you hear the hum, the relay is functioning to some degree. If not, trace the power flow back to the relay. Use a multimeter to check for voltage at the relay’s terminals—if there’s power in but none out, the relay is faulty.
Comparing the fuel pump relay’s location across different vehicles reveals interesting trends. For instance, older models often place the relay in the engine bay for easier access, while newer vehicles may hide it indoors for protection from elements. European cars sometimes integrate the relay into the ECU, making it harder to replace independently. Understanding these variations ensures you’re prepared for any scenario, regardless of the vehicle’s origin or age.
Finally, a descriptive approach can help visualize the process. Picture the under-hood fuse box, typically a black rectangular unit with a removable lid. Inside, relays are often grouped together, distinguished by their larger size compared to fuses. The fuel pump relay might be labeled "FP" or "FUEL PUMP." If it’s indoors, you’ll likely find it behind a plastic panel, requiring a screwdriver to access. Familiarizing yourself with these details transforms a daunting task into a straightforward one.
Is Your Moped Fuel Pump Failing? Key Symptoms to Check
You may want to see also
Explore related products
Replacement and Cost Considerations
A bad fuel pump relay can leave you stranded, but replacing it doesn't have to break the bank. The cost of a new relay typically ranges from $20 to $100, depending on the make and model of your vehicle. However, labor costs can vary significantly if you’re not comfortable tackling the replacement yourself. Most auto parts stores offer relays for common vehicles, but specialty or high-performance models may require ordering from a dealership or online retailer. Before purchasing, verify the part number to ensure compatibility with your vehicle’s electrical system.
Replacing a fuel pump relay is often a straightforward DIY task, but it requires careful attention to safety. Start by locating the relay, which is usually found in the fuse box under the hood or near the driver’s side dashboard. Consult your vehicle’s manual for the exact location. Once identified, disconnect the battery to prevent electrical shocks, then remove the relay by pulling it straight out of its socket. Install the new relay, ensuring it clicks securely into place, and reconnect the battery. Test the vehicle to confirm the issue is resolved, but if symptoms persist, the problem may lie elsewhere in the fuel system.
When considering professional replacement, labor costs can add $50 to $200 to the total expense, depending on the mechanic’s hourly rate and the complexity of accessing the relay. Some vehicles require removing additional components to reach the fuse box, which increases labor time. If you’re unsure about the diagnosis, a mechanic can perform a multimeter test to confirm the relay’s failure before proceeding with the replacement. This step saves money by avoiding unnecessary part replacements and ensures the root cause is addressed.
For budget-conscious drivers, opting for aftermarket relays can reduce costs, but quality varies widely. Stick to reputable brands with positive reviews to avoid premature failure. Additionally, consider replacing the relay as part of routine maintenance if your vehicle is over 10 years old, as relays degrade over time due to heat and electrical stress. Pairing the replacement with a fuel filter change can improve overall fuel system efficiency and prolong the life of your fuel pump, offering long-term savings.
Finally, weigh the cost of replacement against the risk of ignoring the issue. A failing fuel pump relay can cause erratic engine performance, reduced fuel efficiency, or even a no-start condition. Prolonged operation with a bad relay may damage the fuel pump, a far more expensive repair. By addressing the problem promptly, you not only restore your vehicle’s reliability but also avoid potential safety hazards on the road. Whether DIY or professional, timely replacement is a cost-effective investment in your vehicle’s health.
Carter M3528 Fuel Pump Compatibility with 1964 F600 292 V8
You may want to see also
Frequently asked questions
Common signs of a bad fuel pump relay include the engine not starting, stalling, or struggling to maintain power, as well as a lack of fuel pump noise when the ignition is turned on.
Symptoms include intermittent starting issues, reduced engine performance, a dead engine while driving, or the fuel pump not priming when the key is turned to the "on" position.
Yes, a faulty fuel pump relay can prevent the fuel pump from activating, resulting in a no-start condition because the engine isn’t receiving fuel.
You can test the relay by swapping it with another relay of the same type in the fuse box, checking for power at the relay’s terminals, or using a multimeter to test for continuity and proper operation.
Ignoring a bad fuel pump relay can lead to inconsistent fuel delivery, engine stalling, and potential damage to the fuel pump or other engine components due to prolonged strain.
