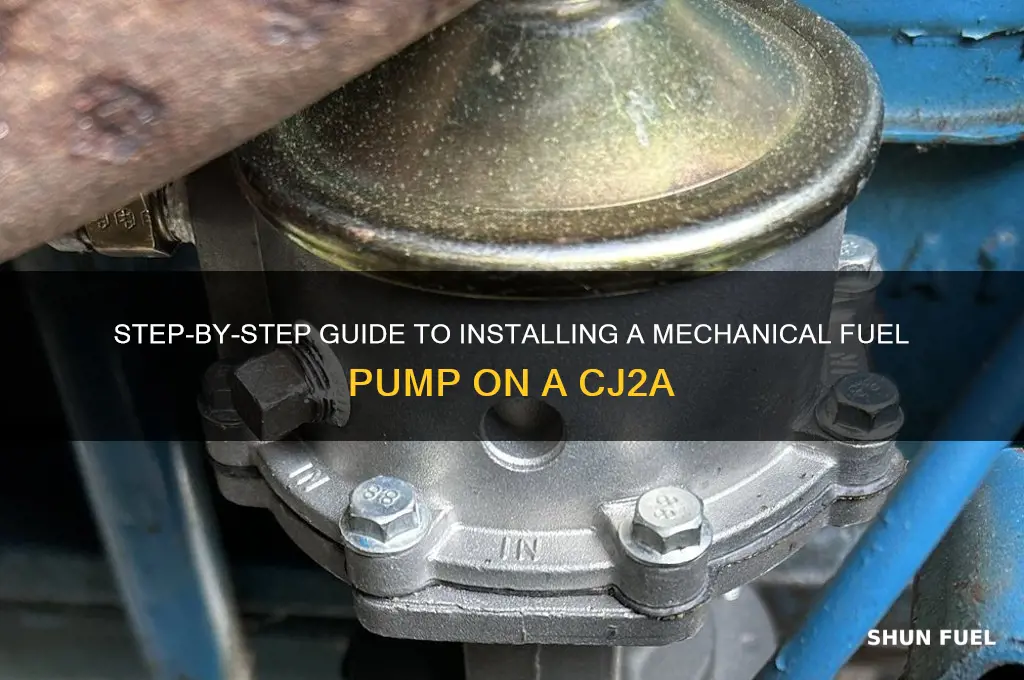

Installing a mechanical fuel pump on a CJ2A, a classic Willys Jeep model, requires careful attention to detail and the right tools. Begin by ensuring the engine is off and the fuel system is depressurized to avoid any hazards. Locate the existing fuel pump, typically mounted on the engine block, and disconnect the fuel lines and mounting bolts to remove it. Next, position the new mechanical fuel pump in place, aligning it with the mounting holes, and secure it using the provided bolts. Reconnect the fuel lines, ensuring they are tight and properly oriented to prevent leaks. Finally, prime the pump by manually pumping the lever or cranking the engine to establish fuel flow before starting the vehicle. Always refer to the specific pump’s instructions and the CJ2A’s manual for model-specific details to ensure a successful installation.
| Characteristics | Values |
|---|---|
| Vehicle Model | Willys CJ2A (1945-1949) |
| Fuel Pump Type | Mechanical Fuel Pump |
| Tools Required | Wrenches, Screwdrivers, Pliers, Gaskets, Fuel Line, Safety Gloves, Goggles |
| Location of Fuel Pump | Mounted on the engine block, typically near the carburetor |
| Fuel Pump Operation | Driven by the engine camshaft via an eccentric lobe |
| Fuel Line Connection | Inlet from fuel tank, outlet to carburetor |
| Gasket Replacement | Always replace old gaskets with new ones to ensure a proper seal |
| Fuel Line Routing | Ensure fuel lines are securely clamped and routed away from hot components |
| Priming the Pump | Manually pump the fuel pump lever to prime the system before starting |
| Safety Precautions | Work in a well-ventilated area, avoid open flames, and handle fuel carefully |
| Testing the Installation | Check for leaks, ensure proper fuel flow, and verify engine starts smoothly |
| Common Issues | Leaks at connections, improper gasket sealing, or faulty pump diaphragm |
| Maintenance Tips | Regularly inspect fuel lines and connections for wear or damage |
| Reference Manual | Willys CJ2A Service Manual for detailed diagrams and specifications |
Explore related products
What You'll Learn
- Gather Tools and Parts: Collect wrenches, gaskets, fuel pump, and safety gear before starting installation
- Remove Old Fuel Pump: Disconnect fuel lines, unbolt, and carefully remove the existing pump
- Prepare New Pump: Clean mounting surface, apply gasket sealant, and position the new pump
- Install and Secure: Bolt the pump in place, ensuring tight connections and proper alignment
- Reconnect Fuel Lines: Attach fuel lines, check for leaks, and test the pump’s operation
Gather Tools and Parts: Collect wrenches, gaskets, fuel pump, and safety gear before starting installation
Before diving into the installation of a mechanical fuel pump on your CJ2A, it’s crucial to assemble everything you’ll need. Think of this step as laying the foundation for a smooth and efficient process. Start by gathering your tools: a set of wrenches (typically 3/8-inch and 1/2-inch for common bolts), screwdrivers (flat and Phillips head), and a socket set if your pump requires it. These tools will be your workhorses, ensuring you can tighten, loosen, and adjust components with precision. Without them, you risk stripping bolts or damaging parts, turning a straightforward task into a frustrating ordeal.
Next, focus on the parts. The centerpiece is the mechanical fuel pump itself, compatible with your CJ2A’s engine. Verify the model number and specifications to avoid mismatches. Alongside the pump, collect new gaskets—specifically, the fuel pump gasket and any additional seals required for a leak-free installation. Old gaskets are prone to cracking, leading to fuel leaks that compromise performance and safety. Investing in high-quality replacements now saves time and money down the road.
Safety gear is often overlooked but equally vital. Fuel is flammable, and spills are common during installation. Equip yourself with nitrile gloves to protect your skin from gasoline and a pair of safety goggles to shield your eyes from accidental splashes. A fire extinguisher nearby is a prudent addition, though proper preparation minimizes the risk of needing it. These precautions transform a potentially hazardous task into a controlled, secure process.
Organize your workspace to streamline the installation. Lay out tools and parts in a logical order, grouping items by their role in the process. For instance, keep wrenches near bolts and gaskets close to the pump. This setup reduces the time spent searching for items and maintains your focus on the task at hand. A cluttered workspace not only slows you down but also increases the likelihood of errors or accidents.
Finally, take a moment to inspect each item for defects or wear. A cracked gasket or a worn wrench can derail your progress. If any tool or part appears compromised, replace it before proceeding. This proactive approach ensures you’re not halfway through the installation when you discover a critical issue. By meticulously gathering and preparing your tools, parts, and safety gear, you set the stage for a successful fuel pump installation on your CJ2A.
Understanding the 1999 Dodge Ram 1500 Fuel Pump Operation
You may want to see also
Explore related products
Remove Old Fuel Pump: Disconnect fuel lines, unbolt, and carefully remove the existing pump
The first step in replacing a mechanical fuel pump on a CJ2A is to remove the old one, a task that requires precision and care to avoid fuel spills or damage to surrounding components. Begin by disconnecting the fuel lines, typically secured with clamps or fittings. Use a wrench or pliers to loosen these connections, but be cautious not to overtighten or strip the fittings. Place a drain pan or rag beneath the lines to catch any residual fuel, as even small spills can pose a fire hazard. Once the lines are disconnected, inspect them for cracks or deterioration, as this is an opportune time to replace them if necessary.
Next, unbolt the fuel pump from the engine block. Most CJ2A pumps are mounted with two or three bolts, accessible from the underside of the vehicle. Use a socket wrench or box-end wrench to remove these bolts, keeping track of their positions for reassembly. Be mindful of rust or corrosion, which may require penetrating oil or gentle persuasion with a mallet to free the bolts. If the pump is stubborn, avoid forcing it, as this could damage the mounting surface or surrounding gaskets.
With the bolts removed, carefully lift the old fuel pump from its mounting position. Take note of its orientation and any gaskets or seals that may still be attached to the engine block. These remnants should be scraped clean using a plastic scraper or gasket scraper to ensure a proper seal for the new pump. Avoid using metal tools that could gouge the mating surface. If the gasket is reusable and in good condition, set it aside for reinstallation; otherwise, prepare a new one.
Before fully removing the pump, inspect the diaphragm and internal components for wear or damage, as this can provide insight into the cause of failure. Common issues include cracked diaphragms, worn pushrods, or clogged valves. Understanding the failure point can help prevent future issues and guide maintenance of the new pump. Once the old pump is free, set it aside for disposal or disassembly, ensuring all fuel residue is contained.
In summary, removing the old fuel pump on a CJ2A involves disconnecting fuel lines, unbolting the pump, and carefully extracting it while preserving the mounting surface. Attention to detail during this process not only ensures a smooth installation of the new pump but also provides an opportunity to address potential issues in the fuel system. By working methodically and safely, you can avoid complications and set the stage for a reliable repair.
Understanding the SBC 305 Mechanical Fuel Pump's Operation and Functionality
You may want to see also
Explore related products
Prepare New Pump: Clean mounting surface, apply gasket sealant, and position the new pump
Before installing your new mechanical fuel pump on a CJ2A, meticulous preparation of the mounting surface is critical. Start by removing any residual gasket material, rust, or debris using a wire brush or fine-grit sandpaper. A clean, smooth surface ensures optimal contact between the pump and the engine block, preventing leaks and ensuring proper sealing. For stubborn residue, a solvent like carburetor cleaner can be applied, followed by a thorough wipe-down with a clean rag. This step, though seemingly minor, is foundational to the pump’s longevity and performance.
Once the mounting surface is pristine, the application of gasket sealant becomes the next pivotal step. Use a high-temperature RTV silicone sealant, applying a thin, even bead around the perimeter of the mounting surface. Avoid over-applying, as excess sealant can squeeze into the fuel passages, causing blockages. A small amount goes a long way—typically, a 1/16-inch bead is sufficient. Allow the sealant to set for 5–10 minutes, depending on the manufacturer’s instructions, to ensure it adheres properly without remaining tacky.
Positioning the new pump requires precision and care. Align the pump’s mounting holes with those on the engine block, ensuring the fuel inlet and outlet ports match the existing fuel lines. Gently lower the pump into place, taking care not to smear or displace the gasket sealant. Secure the pump with the appropriate bolts, tightening them in a diagonal pattern to ensure even pressure. Over-tightening can warp the pump housing or crush the sealant, so use a torque wrench if available, following the manufacturer’s specifications.
A practical tip for this stage is to dry-fit the pump before applying sealant. This allows you to verify alignment and make any necessary adjustments without risking contamination of the mounting surface. Additionally, if your CJ2A has been sitting unused, inspect the fuel lines for cracks or deterioration. Replacing them concurrently with the pump installation can save time and prevent future issues.
In conclusion, preparing the new pump is a blend of meticulous cleaning, precise sealant application, and careful positioning. Each step, executed with attention to detail, ensures a reliable installation that will keep your CJ2A running smoothly. Skipping or rushing these preparations can lead to leaks, poor performance, or even damage to the new pump, underscoring the importance of patience and thoroughness in this phase of the installation process.
Bypassing the Fuel Pump Relay on a 2006 Hyundai Sonata: A Step-by-Step Guide
You may want to see also
Explore related products
Install and Secure: Bolt the pump in place, ensuring tight connections and proper alignment
Bolting the mechanical fuel pump in place on a CJ2A requires precision and care to ensure reliable operation. Begin by aligning the pump’s mounting flange with the engine block, using the original bolt holes as guides. Thread the bolts by hand to avoid cross-threading, then tighten them diagonally in a crisscross pattern to achieve even pressure. Torque the bolts to the manufacturer’s specifications—typically 12 to 15 foot-pounds for a CJ2A—using a torque wrench to prevent over-tightening, which can warp the flange or strip threads.
Proper alignment is critical to avoid leaks and ensure the pump operates efficiently. Double-check that the pump’s inlet and outlet ports align with the fuel lines and engine connections. If the pump sits at an awkward angle, loosen the bolts slightly and adjust the position before retightening. A misaligned pump can cause fuel flow restrictions or damage the internal diaphragm, leading to premature failure.
While securing the pump, inspect the gasket between the flange and engine block for cracks or debris. A damaged gasket is a common cause of fuel leaks, so replace it if necessary. Use a thin coat of high-temperature gasket sealant on both sides for added protection, but avoid over-applying, as excess sealant can interfere with the pump’s seating.
Finally, test the connections by gently tugging on the fuel lines and pump body to ensure everything is secure. Start the engine and inspect for leaks around the mounting flange and fuel lines. If leaks appear, shut off the engine immediately, allow it to cool, and recheck the bolts and gasket. A properly installed and secured pump will deliver consistent fuel pressure, ensuring your CJ2A runs smoothly and reliably.
Does a Toyota RAV4 Have a Fuel Pump? Explained
You may want to see also
Explore related products
Reconnect Fuel Lines: Attach fuel lines, check for leaks, and test the pump’s operation
With the mechanical fuel pump securely mounted on your CJ2A, the next critical step is reconnecting the fuel lines to ensure a seamless flow of fuel to the carburetor. This phase demands precision and attention to detail to prevent leaks and guarantee optimal pump operation. Begin by identifying the inlet and outlet ports on the fuel pump, typically marked for clarity. Attach the fuel line from the fuel tank to the inlet port, ensuring a snug fit with appropriate fittings. Use a wrench to tighten the connections, but avoid over-tightening to prevent damage to the threads or the pump itself. Next, connect the outlet port to the carburetor, double-checking that all hoses are correctly aligned and secured.
Once the fuel lines are attached, it’s imperative to check for leaks before starting the engine. Turn the ignition to the "on" position without starting the vehicle to pressurize the fuel system. Inspect all connections for signs of fuel seepage, paying close attention to the pump’s ports and hose junctions. Even a small leak can lead to fuel wastage, fire hazards, or poor engine performance. If a leak is detected, tighten the fittings or replace damaged hoses immediately. For added safety, use a rag or cloth to catch any drips and clean the area thoroughly before proceeding.
Testing the pump’s operation is the final step in this process and a crucial one at that. Start the engine and listen for the pump’s characteristic hum, which indicates it’s functioning correctly. Monitor the engine’s idle and response to throttle inputs to ensure fuel delivery is consistent. If the engine sputters or stalls, recheck the fuel lines for obstructions or leaks. Additionally, inspect the fuel filter for clogs, as debris can hinder pump performance. A well-installed and leak-free fuel system will result in smooth engine operation, confirming your mechanical fuel pump installation on the CJ2A is complete and ready for the road.
Practical tips include using a fuel-resistant hose rated for your vehicle’s fuel type, especially if you’re running ethanol blends. Keep a spray bottle of soapy water handy to check for leaks—bubbles will form at the leak point. Finally, always work in a well-ventilated area and avoid open flames or sparks when handling fuel. By meticulously reconnecting the fuel lines, checking for leaks, and testing the pump’s operation, you ensure a reliable and safe fuel delivery system for your classic CJ2A.
Easy Guide: Hooking Up a Pulse Fuel Pump for Optimal Performance
You may want to see also
Frequently asked questions
You will need basic hand tools such as wrenches, screwdrivers, a socket set, pliers, and a gasket scraper. Additionally, a new fuel pump gasket and fresh fuel line clamps are recommended.
Align the fuel pump by matching the mounting holes with the engine block. Use the original bolts and ensure the pump is seated firmly against the block. Double-check that the pump lever arm engages correctly with the engine's camshaft lobe.
Always replace the fuel pump gasket and inspect fuel lines for cracks or damage. Tighten all connections securely but avoid over-tightening to prevent damage. After installation, check for leaks by starting the engine and inspecting the pump and lines for any signs of fuel seepage.
