Jump-starting a fuel pump relay on a 2003 Chevy can be a useful troubleshooting technique if you suspect the relay is faulty or if your vehicle is experiencing fuel delivery issues. The fuel pump relay is a critical component that controls power to the fuel pump, ensuring it operates only when the engine is running. To jumper the relay, locate the fuel pump relay in the under-hood fuse box, typically labeled in the owner’s manual. Using a jumper wire or a small screwdriver, connect the two terminals marked 87 and 30 on the relay socket, bypassing the relay itself. This will directly power the fuel pump, allowing you to test if the pump is functioning properly. However, exercise caution, as running the pump continuously without the relay’s control can drain the battery or damage the pump. Always consult a repair manual or seek professional assistance if you’re unsure about the process.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2003 Chevrolet (specific model not specified, e.g., Silverado, Impala) |
| Relay Location | Under the hood, in the underhood fuse/relay box (specific location varies by model) |
| Relay Identification | Fuel pump relay (typically labeled "FUEL PUMP" or similar) |
| Jumper Wire Needed | 12-gauge or thicker wire with connectors |
| Terminals to Jumper | Connect the "Battery" (constant power) and "Load" (fuel pump) terminals |
| Power Source | Battery positive terminal or a fused power source |
| Safety Precautions | Disconnect battery before starting, ensure no fuel leaks, work in a well-ventilated area |
| Purpose of Jumper | Bypasses the relay to test if the fuel pump is functional |
| Diagnostic Use | Helps determine if the relay or fuel pump is faulty |
| Temporary Fix | Not a permanent solution; replace the relay or fuel pump if necessary |
| Tools Required | Pliers, wire strippers, jumper wire, multimeter (optional for testing) |
| Time Estimate | 15-30 minutes depending on familiarity and vehicle accessibility |
| Common Symptoms | No start condition, engine cranks but doesn’t start, fuel pump not priming |
| Alternative Method | Use a fused jumper wire directly from the battery to the fuel pump connector (if accessible) |
| Warning | Risk of fire or damage if not done correctly; consult a professional if unsure |
Explore related products
What You'll Learn
- Locate the Fuel Pump Relay: Identify relay panel under hood, consult manual for exact position
- Prepare Jumper Wire: Use a fused wire or paperclip to safely bridge relay terminals
- Connect Jumper Wire: Attach wire to relay’s power and ground terminals to activate fuel pump
- Test Fuel Pump: Listen for pump activation in fuel tank after connecting jumper wire
- Safety Precautions: Ensure ignition is off, avoid sparks, and use proper tools to prevent damage

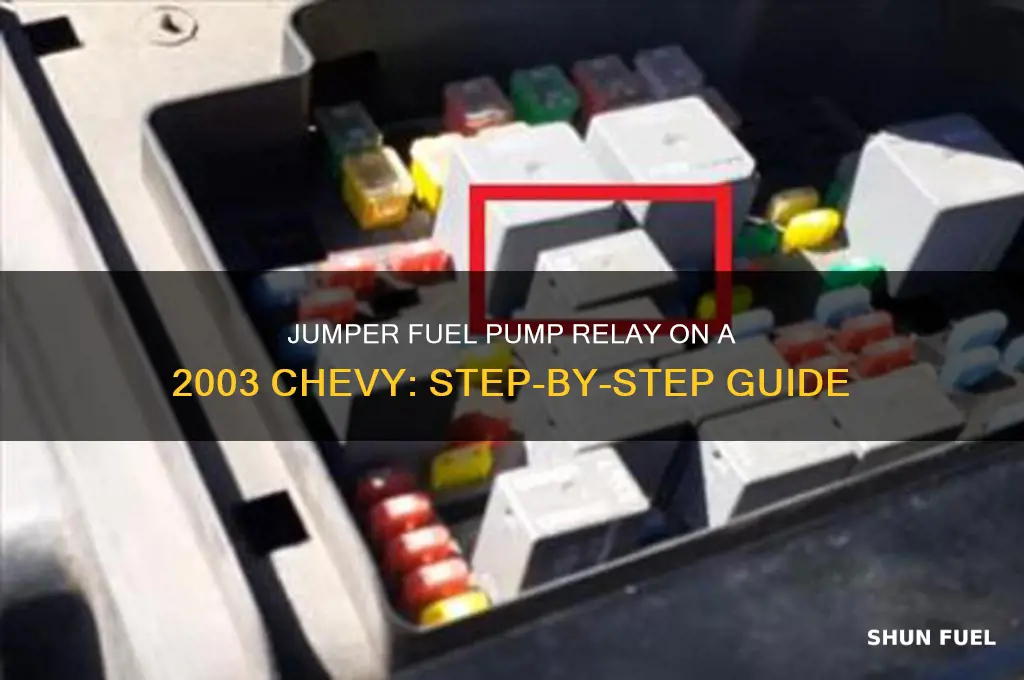

Locate the Fuel Pump Relay: Identify relay panel under hood, consult manual for exact position
The fuel pump relay in a 2003 Chevy is a critical component for ensuring your vehicle’s engine receives the necessary fuel. Locating it begins with identifying the relay panel under the hood, which houses multiple relays and fuses. This panel is typically situated near the firewall or battery, but its exact position can vary depending on the model. Consulting your vehicle’s manual is essential, as it provides a detailed diagram pinpointing the fuel pump relay’s location, saving you time and frustration.
Once you’ve identified the relay panel, the next step is to isolate the fuel pump relay. Relays are often labeled, but if yours isn’t, the manual will specify its position based on a grid system (e.g., row and column). The fuel pump relay is usually a rectangular or square component with four or five pins. It’s important to verify its identity before proceeding, as misidentifying a relay can lead to incorrect troubleshooting or damage. A quick visual inspection or cross-referencing with the manual ensures accuracy.
While the manual is your primary resource, practical tips can streamline the process. For instance, some 2003 Chevy models have a secondary fuse box under the hood, which may house the fuel pump relay. If the primary relay panel doesn’t yield results, check this alternate location. Additionally, using a flashlight and wearing gloves can make navigating the under-hood area safer and more efficient, especially in low-light conditions or when dealing with tight spaces.
Understanding the relay panel’s layout is crucial for future maintenance. Relays are often grouped by function, with fuel system components clustered together. Familiarizing yourself with this organization not only aids in locating the fuel pump relay but also prepares you for troubleshooting other electrical issues. For example, nearby relays might control the cooling fan or ignition system, knowledge that can prove invaluable in diagnosing related problems.
In conclusion, locating the fuel pump relay in a 2003 Chevy requires a systematic approach: identify the relay panel under the hood, consult the manual for precise positioning, and verify the relay’s identity. Combining these steps with practical tips ensures efficiency and accuracy. This process not only addresses immediate needs but also equips you with foundational knowledge for future under-hood maintenance.
Step-by-Step Guide: Safely Removing a Fuel Pump from Your Vehicle
You may want to see also
Explore related products
Prepare Jumper Wire: Use a fused wire or paperclip to safely bridge relay terminals
A paperclip or fused wire can be a handy tool for temporarily bridging the relay terminals of a 2003 Chevy's fuel pump, but this method requires precision and caution. The goal is to create a temporary connection that mimics the relay's function without causing damage or creating a safety hazard. When preparing your jumper wire, consider the gauge and length of the wire. A 14- to 16-gauge wire is ideal, as it provides sufficient conductivity without being too bulky. If using a paperclip, ensure it’s straightened and free of sharp edges to avoid short circuits or damage to the relay terminals.
The process begins with identifying the correct terminals to bridge. On a typical fuel pump relay, you’ll need to connect the power input terminal (usually pin 87) to the output terminal (usually pin 30). Before inserting the jumper wire, disconnect the battery to prevent accidental activation of the fuel pump or electrical shorts. Once the battery is disconnected, carefully insert one end of the wire into pin 87 and the other into pin 30, ensuring a secure connection. If using a fused wire, the inline fuse should be rated for the fuel pump’s current draw, typically 15–20 amps, to protect against overloads.
While this method is effective for diagnostic purposes, it’s not a long-term solution. Bridging the relay bypasses its safety and control functions, which can lead to fuel pump overheating or continuous operation. For example, if the fuel pump runs without the engine’s ignition signal, it may not shut off properly, wasting fuel and increasing wear. Additionally, a paperclip lacks the durability and safety features of a proper relay, making it unsuitable for extended use. Always treat this as a temporary fix while you source a replacement relay.
Practical tips include testing the connection before reconnecting the battery. Use a multimeter to verify continuity between the bridged terminals and ensure no accidental shorts. If the fuel pump activates as expected, you’ve successfully bridged the relay. However, monitor the system closely during operation, as prolonged use of this method can lead to system damage. Keep in mind that this technique is best suited for troubleshooting, such as confirming whether the relay is the source of a no-start condition, rather than as a permanent repair.
In conclusion, preparing a jumper wire to bridge the fuel pump relay terminals on a 2003 Chevy is a straightforward but delicate task. Whether using a fused wire or a paperclip, prioritize safety by disconnecting the battery and selecting the correct terminals. While this method can help diagnose relay issues, it’s not a substitute for a functioning relay. Always follow up with a proper repair to ensure the vehicle operates safely and efficiently.
Does the Honda Aero Use a Fuel Pump? Explained
You may want to see also
Explore related products
Connect Jumper Wire: Attach wire to relay’s power and ground terminals to activate fuel pump
Jumping a fuel pump relay on a 2003 Chevy is a straightforward process that can help diagnose fuel pump issues or temporarily activate the pump for testing. The key step involves connecting a jumper wire between the relay’s power and ground terminals to bypass the normal control circuit. This method directly applies voltage to the fuel pump, allowing it to run independently of the vehicle’s computer system. Before proceeding, ensure the ignition is off and the battery is disconnected to prevent electrical hazards.
To begin, locate the fuel pump relay in the under-hood fuse/relay box. On a 2003 Chevy, this is typically labeled and can be identified using the owner’s manual or a diagram. Once located, remove the relay and inspect its terminals. The power terminal is usually marked as “87” and the ground terminal as “85” or “86,” depending on the relay’s design. Use a jumper wire with insulated alligator clips to connect these two terminals securely. The wire should be 14-16 gauge to handle the current without overheating.
After attaching the jumper wire, reconnect the battery and turn the ignition to the “on” position. The fuel pump should activate, producing a humming sound for 2-3 seconds as it primes the system. If the pump fails to run, check the connections and ensure the terminals are clean and free of corrosion. This step is critical for verifying whether the fuel pump itself is functional or if the issue lies elsewhere in the system.
While jumping the relay is a useful diagnostic tool, it’s not a long-term solution. Prolonged use can damage the pump or wiring due to continuous operation without proper control. Always use this method sparingly and only for testing purposes. If the pump operates correctly when jumped, the issue may be with the relay, wiring, or the vehicle’s computer. Consult a professional mechanic for further diagnosis and repair to ensure safe and reliable operation of your 2003 Chevy.
How Fuel Pumps Automatically Stop: The Science Behind the Mechanism
You may want to see also
Explore related products
Test Fuel Pump: Listen for pump activation in fuel tank after connecting jumper wire
One of the most straightforward ways to diagnose a fuel pump issue on a 2003 Chevy is to jumper the fuel pump relay and listen for activation. This method bypasses the relay’s normal operation, directly powering the fuel pump to determine if it’s functional. Start by locating the fuel pump relay in the under-hood fuse box—it’s typically labeled and can be identified using the owner’s manual. Once found, remove the relay and inspect its pins. You’ll need to connect a jumper wire between the power supply pin (usually pin 87) and the fuel pump control pin (often pin 85 or 86, depending on the model). Use a fused jumper wire or a dedicated relay test tool to avoid overloading the circuit.
After connecting the jumper wire, turn the ignition to the "On" position but do not start the engine. Listen carefully near the fuel tank for a faint humming or whirring sound, which indicates the fuel pump is running. This sound should last for about 2–3 seconds as the pump primes the system. If you hear it, the fuel pump is likely operational, and the issue may lie elsewhere, such as the relay or wiring. If there’s no sound, the pump could be faulty, or there may be a break in the power supply to the pump.
A critical caution: always exercise safety when working with electrical systems. Ensure the vehicle is off and the ignition is in the "Off" position before connecting or disconnecting the jumper wire. Avoid touching the jumper wire ends while the ignition is on to prevent short circuits. Additionally, if you’re unsure about pin identification, consult a wiring diagram specific to your Chevy model to avoid damaging the system.
This test is particularly useful because it isolates the fuel pump from other components, providing a clear indication of its functionality. If the pump activates, focus your diagnosis on the relay, wiring, or fuel pump control module. If it doesn’t, inspect the pump itself, the fuel pump fuse, and the ground connection at the tank. Pairing this test with a fuel pressure gauge reading can further confirm whether the pump is delivering adequate pressure, but listening for activation is often the first and most accessible step in troubleshooting.
In summary, jumper-testing the fuel pump relay is a quick, effective way to determine if the pump is operational. It requires minimal tools—a jumper wire and basic knowledge of relay pinouts—and provides immediate feedback. While it’s not a definitive test for all fuel system issues, it’s a critical starting point that can save time and narrow down potential causes. Always follow safety precautions and verify pin assignments before proceeding to ensure accuracy and prevent damage.
Step-by-Step Guide to Estimating Fuel Pump Arm Replacement Costs
You may want to see also
Explore related products
Safety Precautions: Ensure ignition is off, avoid sparks, and use proper tools to prevent damage
Before attempting to jumper the fuel pump relay on a 2003 Chevy, it's crucial to prioritize safety to prevent accidents, injuries, or damage to the vehicle. The fuel system operates under high pressure and is inherently dangerous due to its flammable nature. Ensuring the ignition is off is the first and most critical step. This disconnects power to the fuel pump, reducing the risk of accidental activation during the procedure. Even a small spark can ignite fuel vapors, leading to a fire or explosion. Always remove the key from the ignition and wait at least 10 minutes to allow any residual pressure in the fuel lines to dissipate.
Avoiding sparks is equally vital when working with the fuel system. Fuel vapors are highly volatile and can ignite from static electricity, open flames, or even a hot surface. To minimize this risk, use only non-sparking tools, such as those made from brass or plastic. Ground yourself by touching a metal part of the vehicle before handling any fuel system components to discharge static electricity. Additionally, ensure the work area is free of flammable materials, and never smoke or use open flames nearby. These precautions are not optional—they are essential to prevent catastrophic outcomes.
Using proper tools is another critical safety measure. Attempting to jumper the fuel pump relay with makeshift tools or incorrect equipment can lead to short circuits, damaged wiring, or personal injury. Always use a multimeter to verify the correct terminals before applying power. A fused jumper wire with a 10-amp inline fuse is recommended to protect the circuit from overcurrent. Avoid using bare wires or alligator clips directly on the relay terminals, as this can cause arcing or damage the delicate components. Investing in the right tools not only ensures a successful procedure but also safeguards your vehicle and well-being.
Finally, approach this task with a methodical mindset. Rushing or skipping safety steps can have severe consequences. Double-check that the ignition is off, confirm the absence of sparks, and verify the tools are appropriate before proceeding. If you’re unsure about any step, consult a professional or refer to a reliable repair manual. Safety precautions are not just guidelines—they are the foundation of responsible vehicle maintenance. By adhering to these measures, you can confidently jumper the fuel pump relay on your 2003 Chevy while minimizing risks to yourself and your vehicle.
Fuel Pump Count: 2004 F250's Pump Configuration Explained
You may want to see also
Frequently asked questions
The fuel pump relay is typically located in the underhood fuse/relay box. Refer to your vehicle's manual for the exact location, as it may vary depending on the model.
The fuel pump relay is usually labeled as "FUEL PUMP" or "FP" on the underhood fuse/relay box cover. It is often a black or gray rectangular-shaped relay with four or five pins.
Yes, you can jumper the fuel pump relay to test the fuel pump. Connect a fused jumper wire from the battery positive terminal to the fuel pump relay's power input pin (usually pin 87), and then ground the relay's ground pin (usually pin 85) to the battery negative terminal.
You will need a few basic tools, including a jumper wire with fused connections, a multimeter (optional, for testing voltage), and possibly a socket or pliers to remove the relay.
Yes, always disconnect the battery negative terminal before working on the fuel pump relay or any electrical components. Additionally, be cautious when working around fuel system components, as fuel is flammable and can be hazardous. Only perform this procedure in a well-ventilated area, and avoid any potential sources of ignition.
