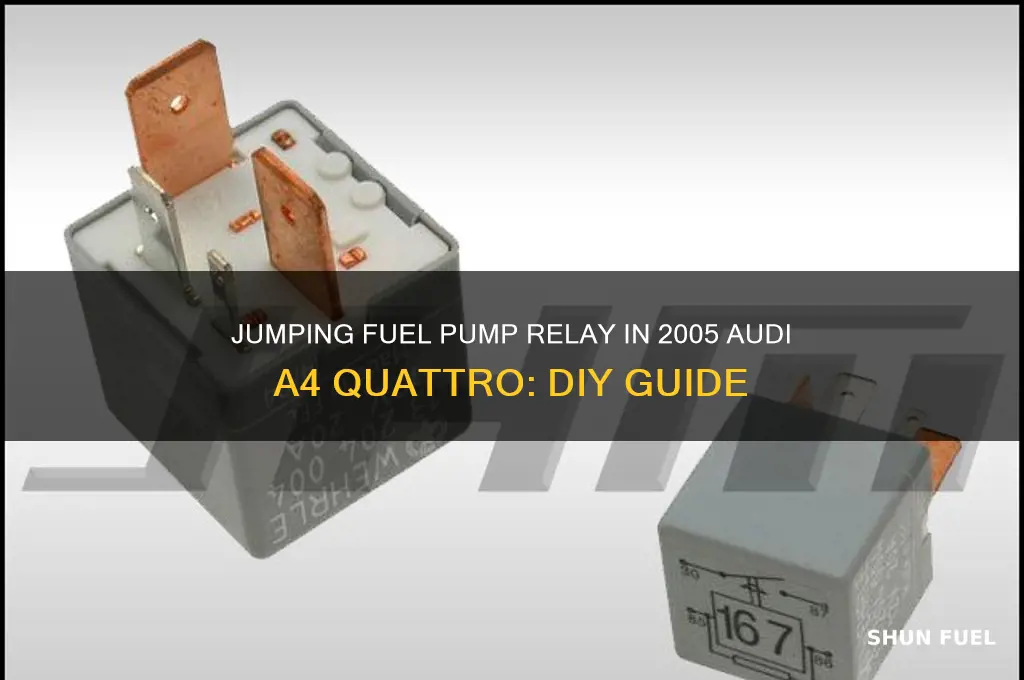

Jumping the fuel pump relay on a 2005 Audi A4 Quattro can be a useful troubleshooting step if you suspect the relay is faulty or if the vehicle is not receiving fuel. The fuel pump relay is typically located in the relay panel under the hood or near the fuse box inside the cabin. To jump the relay, you’ll need to identify the correct relay and use a jumper wire or a small screwdriver to connect the power and ground terminals. This bypasses the relay, allowing the fuel pump to activate directly from the battery. Ensure the ignition is off before attempting this, and exercise caution to avoid electrical shorts. If the engine starts after jumping the relay, it confirms the relay is likely the issue and needs replacement. Always consult the vehicle’s manual or a professional mechanic for precise instructions tailored to your Audi A4 Quattro.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2005 Audi A4 Quattro |
| Component to Jump | Fuel Pump Relay |
| Relay Location | Under the hood, in the relay panel near the battery or fuse box |
| Relay Identification | Typically labeled as "Fuel Pump" or has a corresponding number in the manual |
| Tools Required | Screwdriver, jumper wires, or a paperclip |
| Steps to Jump Relay 1. Locate the fuel pump relay in the relay panel. 2. Remove the relay by pulling it straight out. 3. Identify the relay terminals (usually 5 pins: 30, 87, 85, 86, and 87a). 4. Connect a jumper wire between pins 30 (power) and 87 (output) to bypass the relay. 5. Alternatively, use a paperclip to bridge the pins. 6. Reinstall the relay or keep the jumper in place temporarily. |
|
| Purpose of Jumping | To test if the fuel pump is operational or diagnose relay failure |
| Safety Precautions | Disconnect the battery before working on the relay panel |
| Common Symptoms of Relay Failure | Engine cranks but doesn’t start, no fuel pressure, or intermittent starting issues |
| Permanent Fix | Replace the faulty fuel pump relay with a new one |
| Additional Notes | Consult the vehicle’s service manual for specific relay pinout diagrams |
Explore related products
What You'll Learn
Locate the Fuel Pump Relay
The fuel pump relay in a 2005 Audi A4 Quattro is a critical component for ensuring your vehicle’s engine receives the necessary fuel. Locating it is the first step in troubleshooting or jumping the relay, a task often required when diagnosing fuel delivery issues. The relay is housed within the fuse box, which, in this model, is typically found in the engine bay on the driver’s side. Look for a black plastic box with a removable lid, usually labeled with a diagram indicating the positions of relays and fuses. This diagram is your roadmap, so take a moment to familiarize yourself with it before proceeding.
Once you’ve identified the fuse box, open the lid to reveal the array of relays and fuses. The fuel pump relay is often labeled as “Fuel Pump” or “FP” on the diagram, but if it’s not, consult your Audi A4’s manual for precise identification. Relays are generally larger than fuses and rectangular in shape, with five pins instead of the two found on fuses. In the 2005 A4 Quattro, the fuel pump relay is commonly located in the upper left corner of the fuse box, though this can vary slightly depending on the specific trim or market version of the vehicle. If you’re unsure, cross-reference the diagram or use a multimeter to test for continuity.
To physically locate the relay, press the release tabs on the fuse box lid and lift it off. The relays are often color-coded or numbered, so compare the physical relay with the diagram to confirm you’ve found the correct one. If the relay is difficult to remove, use a flathead screwdriver or a relay puller tool to extract it carefully, ensuring you don’t damage the surrounding components. Remember, the fuel pump relay is a safety-critical part, so handle it with care to avoid electrical shorts or misplacement.
For those new to automotive repairs, locating the fuel pump relay can feel daunting, but it’s a straightforward process with a systematic approach. Start by ensuring the vehicle is turned off and the ignition is in the “Off” position to prevent accidental activation of electrical systems. Wear gloves to protect your hands from sharp edges or hot components in the engine bay. Once you’ve successfully identified and removed the relay, you’re one step closer to diagnosing or jumping the fuel pump circuit, a skill that can save time and money in troubleshooting fuel system issues.
In summary, locating the fuel pump relay in a 2005 Audi A4 Quattro involves identifying the fuse box, consulting the diagram, and carefully extracting the correct relay. This process requires attention to detail and a methodical approach, but with the right tools and precautions, it’s an accessible task for DIY enthusiasts. Mastering this step empowers you to address fuel pump-related problems confidently, ensuring your vehicle remains reliable and road-ready.
