Jump-starting a fuel pump on a 2004 Dodge Ram 1500 can be a useful troubleshooting step if you suspect the pump has failed or is not receiving power. This process involves bypassing the fuel pump relay or directly applying power to the pump to determine if it’s operational. Before attempting this, ensure the vehicle is in a safe location, the ignition is off, and you have the necessary tools, such as a multimeter and jumper wires. Start by locating the fuel pump relay in the fuse box, typically under the hood, and identify the power and ground terminals. Use a jumper wire to connect the battery’s positive terminal to the fuel pump’s power wire and the negative terminal to a good ground. If the pump runs, the issue may lie with the relay or wiring; if not, the pump itself may be faulty. Always exercise caution when working with electrical systems to avoid damage or injury.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2004 Dodge Ram 1500 |
| Fuel Pump Location | Inside the fuel tank (requires tank removal for direct access) |
| Jumping Method | Not recommended; fuel pump is not designed to be "jumped" like a starter |
| Alternative Solution | Check fuel pump relay, fuse, or wiring for faults |
| Relay Location | Under the hood, in the power distribution center (PDC) |
| Relay Test | Swap with another relay of the same type to test functionality |
| Fuse Location | In the PDC, labeled as "Fuel Pump" or similar |
| Voltage Check | Use a multimeter to check for power at the fuel pump connector |
| Professional Assistance | Recommended for fuel pump replacement or complex electrical issues |
| Safety Precaution | Ensure vehicle is off and on a flat surface before working on it |
| Common Symptoms of Failure | No start, engine sputtering, loss of power |
| Diagnostic Tool | OBD-II scanner to check for error codes related to the fuel pump |
| Estimated Repair Cost | $200-$800 (parts and labor, depending on location and mechanic) |
| DIY Difficulty Level | Moderate to High (due to fuel tank removal and electrical diagnostics) |
Explore related products
What You'll Learn
Locate the Fuel Pump Relay

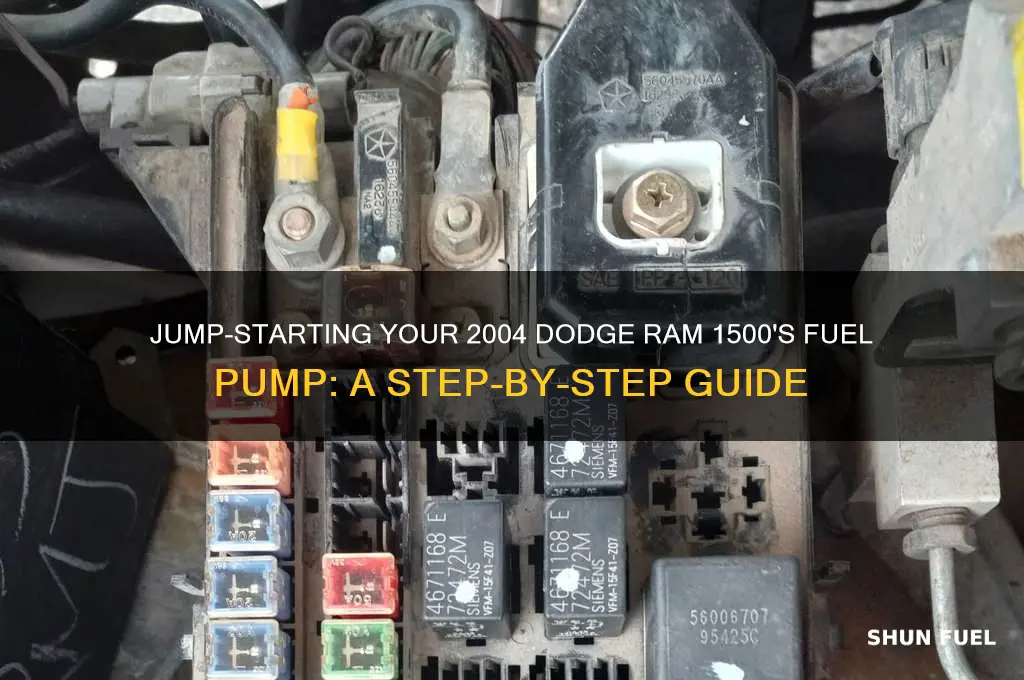

The fuel pump relay in a 2004 Dodge Ram 1500 is a critical component for jump-starting the fuel pump, but its location isn’t immediately obvious. Situated in the Power Distribution Center (PDC) under the hood, this relay acts as a switch, controlling power to the fuel pump. Identifying it correctly is the first step in bypassing a faulty relay to test or temporarily operate the fuel pump.
