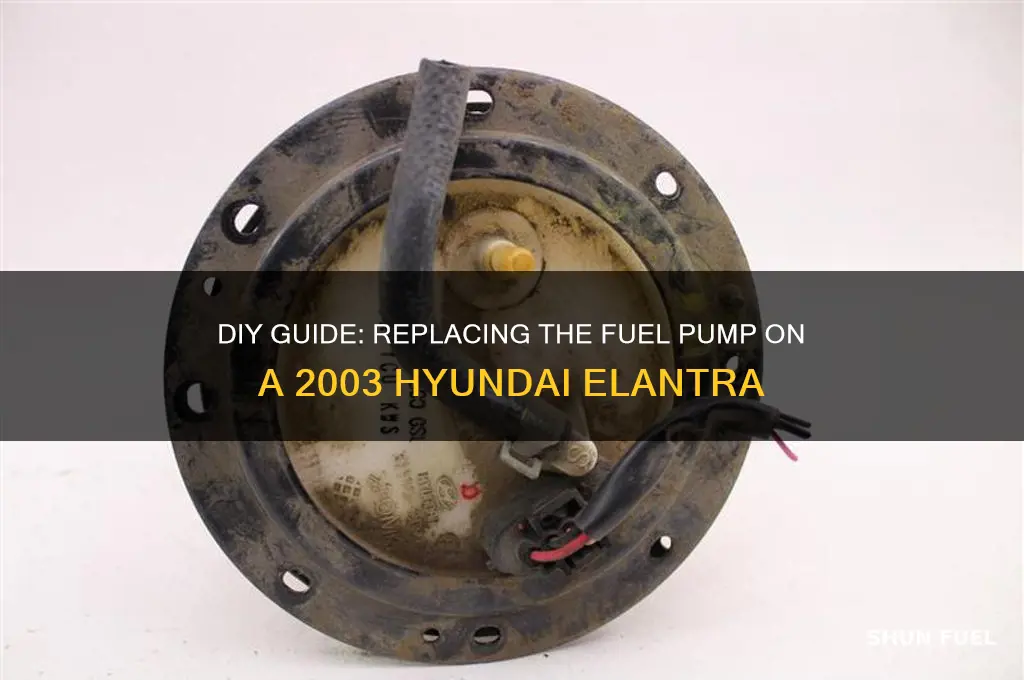

Replacing the fuel pump on a 2003 Hyundai Elantra is a task that requires careful preparation and attention to detail. The fuel pump is a critical component of the vehicle's fuel system, responsible for delivering fuel from the tank to the engine. Over time, wear and tear can cause the fuel pump to fail, leading to symptoms such as difficulty starting the engine, stalling, or poor performance. To replace the fuel pump, you’ll need to safely disconnect the fuel lines, remove the fuel tank, and access the pump assembly. This process involves working with fuel, so it’s essential to take safety precautions, such as relieving fuel system pressure and working in a well-ventilated area. With the right tools and a step-by-step approach, you can successfully replace the fuel pump and restore your Hyundai Elantra’s performance.
| Characteristics | Values |
|---|---|
| Vehicle Model | 2003 Hyundai Elantra |
| Tools Required | Socket set, wrenches, screwdriver, pry tools, safety goggles, jack, jack stands, fuel line disconnect tool |
| Parts Needed | New fuel pump assembly, fuel filter (if replacing), new fuel lines (if damaged) |
| Location of Fuel Pump | Inside the fuel tank, accessed from the top of the tank |
| Precautions | Relieve fuel system pressure, disconnect battery, work in a well-ventilated area |
| Steps to Replace | 1. Relieve fuel pressure 2. Disconnect battery 3. Raise vehicle and secure on jack stands 4. Drain fuel tank (if necessary) 5. Remove fuel tank 6. Disconnect fuel pump electrical connector and fuel lines 7. Remove fuel pump assembly 8. Install new fuel pump 9. Reinstall fuel tank and reconnect components 10. Lower vehicle and test system |
| Difficulty Level | Intermediate to Advanced (requires mechanical skills and safety precautions) |
| Estimated Time | 2-4 hours (depending on experience and tools) |
| Safety Notes | Avoid sparks or open flames, wear protective gear, ensure proper ventilation |
| Additional Tips | Inspect fuel tank and lines for damage, replace fuel filter if recommended |
| Reference Sources | Repair manuals, online tutorials (e.g., YouTube, Hyundai forums, automotive repair websites) |
Explore related products
What You'll Learn
Gather Tools and Materials
Before diving into the fuel pump replacement on your 2003 Hyundai Elantra, it's crucial to assemble the right tools and materials to ensure a smooth and safe process. This step is often overlooked, but it can save you time, frustration, and potential damage to your vehicle. Here’s a detailed breakdown of what you’ll need and why each item is essential.
Essential Tools: Start with a basic toolkit that includes a socket set (metric), wrenches, and screwdrivers (both flathead and Phillips). For this specific job, a torque wrench is highly recommended to tighten bolts to the manufacturer’s specifications, preventing over-tightening that could damage the fuel tank. A fuel line disconnect tool is also necessary to safely detach the fuel lines without causing leaks or spills. Additionally, a flat pry bar or trim removal tool will help you remove the rear seat and access the fuel pump assembly without scratching or damaging the interior.
Safety Equipment: Working with fuel systems requires prioritizing safety. Safety goggles and nitrile gloves are non-negotiable to protect your eyes and skin from fuel exposure. A fire extinguisher should be nearby as a precautionary measure, though working in a well-ventilated area and avoiding open flames or sparks significantly reduces fire risk. A drain pan is essential to catch any residual fuel when disconnecting the lines, minimizing environmental hazards and cleanup.
Replacement Parts and Materials: The core of this job is the fuel pump assembly itself. Ensure you purchase a high-quality replacement compatible with your 2003 Hyundai Elantra. OEM (Original Equipment Manufacturer) parts are ideal for reliability, but aftermarket options can be cost-effective if they meet quality standards. You’ll also need a new fuel filter, as replacing it during this process is a best practice. Fuel-resistant sealant or gasket maker may be required to ensure a leak-free seal on the fuel tank.
Optional but Helpful Items: A battery-operated work light or headlamp can illuminate the work area, especially when accessing the fuel tank from beneath the vehicle. A jack and jack stands are necessary to safely lift the car and provide clearance for working underneath. If you’re not experienced with automotive repairs, a repair manual or online guide specific to your vehicle can provide step-by-step instructions and visual aids.
By meticulously gathering these tools and materials, you’ll set yourself up for a successful fuel pump replacement. Skipping this step or improvising with inadequate tools can lead to complications, extending the repair time and potentially causing harm to your vehicle or yourself. Preparation is key—invest time in assembling everything you need before you begin.
John Deere 115 Fuel Pump: Does It Have One?
You may want to see also
Explore related products
Locate and Access Fuel Pump
The fuel pump in a 2003 Hyundai Elantra is located inside the fuel tank, a design choice that helps maintain fuel pressure and reduces the risk of vapor lock. This placement, while advantageous for performance, complicates access and requires a systematic approach to locate and retrieve the component. Understanding this layout is crucial before attempting any replacement, as it dictates the tools, safety measures, and steps needed for the task.
To locate the fuel pump, start by identifying the fuel tank, typically situated beneath the rear seat in the 2003 Elantra. Accessing this area involves removing the rear seat bottom cushion, a process that requires unsnapping or unbolting the retaining clips. Once the seat is removed, you’ll find the fuel pump access panel, often marked by a circular or rectangular cover. This panel serves as the entry point to the fuel pump assembly, but reaching it demands careful navigation through the vehicle’s underbody components.
Accessing the fuel pump requires draining the fuel tank to minimize spillage and fire hazards. Use a siphon pump or a battery-operated transfer pump to remove as much fuel as possible, ensuring the tank is no more than ¼ full. After draining, disconnect the negative battery terminal to prevent accidental ignition. Next, relieve the fuel system pressure by locating the Schrader valve on the fuel rail and pressing it with a tool designed for this purpose. This step is critical to avoid fuel spraying during disassembly.
With safety precautions in place, remove the fuel pump access panel by unscrewing the retaining bolts. This exposes the fuel pump module, which includes the pump, sender unit, and float. Carefully lower the module out of the tank, taking note of its orientation for reassembly. Be prepared for residual fuel to spill, so have absorbent materials ready. This stage demands precision and patience, as mishandling can damage the tank or surrounding components.
In summary, locating and accessing the fuel pump in a 2003 Hyundai Elantra involves identifying the fuel tank’s position, draining the fuel, and carefully removing the access panel. Each step requires attention to safety and detail, ensuring a smooth transition to the replacement phase. By following this structured approach, you minimize risks and set the stage for a successful fuel pump replacement.
Step-by-Step Guide to Replacing Fuel Pump on 2001 Yukon
You may want to see also
Explore related products
Disconnect Electrical and Fuel Lines
Before tackling the fuel pump itself, you'll need to sever its lifelines: the electrical connections and fuel lines. This step demands precision and caution, as mishandling fuel lines can lead to spills and potential hazards, while electrical mishaps can result in short circuits or damage to sensitive components.
Think of it as a delicate surgery – one wrong move, and you could be facing a messy and potentially dangerous situation.
Locating the Connections: The fuel pump module, typically located within the fuel tank, houses both the electrical connector and fuel lines. Accessing this module often requires removing the rear seat or a dedicated access panel, depending on your Elantra's configuration. Consult your vehicle's manual for specific instructions on accessing the fuel pump module.
Once exposed, you'll find the electrical connector, usually a multi-pin plug, and the fuel lines, often secured with clamps or quick-disconnect fittings.
Disconnecting Electrical Power: Safety first! Before touching anything, disconnect the negative battery terminal to prevent accidental electrical discharge. Then, carefully detach the electrical connector from the fuel pump module. This may require gently prying the connector apart using a flathead screwdriver, taking care not to damage the pins or housing.
Fuel Line Disconnection: Fuel lines are typically secured with clamps or quick-disconnect fittings. For clamps, use a flathead screwdriver to loosen the clamp and slide it away from the fuel line. For quick-disconnect fittings, locate the release tab or collar and depress it while pulling the line away from the fitting. Have a rag handy to catch any residual fuel that may spill during this process.
Remember, gasoline is highly flammable, so work in a well-ventilated area and avoid any potential ignition sources.
A Word of Caution: Fuel system components are under pressure, even when the engine is off. Always relieve fuel pressure before disconnecting fuel lines. Consult your vehicle's manual for the specific procedure, which typically involves locating the fuel pressure relief valve and depressing it while the engine is running. This crucial step prevents fuel from spraying out when you disconnect the lines.
Ford Fuel Pump Voltage: Understanding the Optimal Power Requirements
You may want to see also
Explore related products
Remove and Install New Pump
The fuel pump in a 2003 Hyundai Elantra is located inside the fuel tank, which means replacing it requires careful preparation and execution. Before starting, ensure the vehicle is on a level surface, the ignition is off, and the fuel system pressure is relieved. Begin by disconnecting the negative battery terminal to prevent accidental electrical shorts. Next, locate the fuel pump access panel, typically found beneath the rear seat. Remove the seat by pulling the release levers and set it aside. This exposes the fuel pump module, which is secured by a locking ring or bolts.
Removing the old fuel pump involves more than just unbolting it. First, relieve the fuel pressure by locating the Schrader valve on the fuel rail and pressing the valve stem with a tool. Once pressure is released, disconnect the electrical connector and fuel lines from the pump module. Use a fuel line disconnect tool to avoid damaging the lines. With these connections removed, carefully lift the locking ring or unbolt the module to extract the pump assembly. Be prepared for residual fuel to spill, so have a drain pan or absorbent material ready. Inspect the fuel tank for debris or contamination before proceeding.
Installing the new fuel pump requires precision and attention to detail. Start by placing the new pump assembly into the fuel tank, ensuring the float and arm are properly aligned. Secure the module with the locking ring or bolts, tightening them evenly to avoid warping. Reattach the electrical connector and fuel lines, ensuring all connections are snug but not overtightened. Double-check that the fuel lines are correctly seated to prevent leaks. Once the module is installed, reassemble the access panel and rear seat, then reconnect the battery terminal.
After installation, it’s crucial to test the new fuel pump for proper operation. Turn the ignition to the "on" position (without starting the engine) and listen for the pump’s priming cycle, which should last 2-3 seconds. If the pump doesn’t activate, check the fuses and relays related to the fuel system. Once confirmed, start the engine and inspect for leaks around the fuel tank and lines. A properly installed fuel pump should restore fuel delivery, ensuring the vehicle runs smoothly. This process, while detailed, is manageable with patience and the right tools.
Direct Fuel Pump Wiring: Step-by-Step Guide to Battery Connection
You may want to see also
Explore related products
Reassemble and Test System
With the fuel pump replaced, the focus shifts to reassembling the system and ensuring it functions flawlessly. This phase demands precision and attention to detail, as even minor oversights can lead to leaks, performance issues, or safety hazards. Begin by carefully reinstalling the fuel tank, ensuring all mounting bolts are tightened to the manufacturer’s torque specifications—typically 15 to 20 foot-pounds for a 2003 Hyundai Elantra. Overtightening can damage the tank or mounting points, while undertightening risks loosening during operation.
Next, reconnect the fuel lines, ensuring the quick-connect fittings are securely seated. Apply a small amount of clean engine oil to the O-rings to ease installation and create a reliable seal. Double-check that all electrical connectors are properly attached, as a loose connection can trigger error codes or prevent the pump from operating. Once reassembled, inspect the entire system for any signs of fuel leakage before proceeding to the testing phase.
Testing the system is critical to verify the repair’s success. Start by turning the ignition to the "on" position without starting the engine. Listen for the fuel pump’s priming cycle, a brief humming sound that confirms the pump is operational. If no sound is heard, recheck electrical connections and fuses. After priming, check the fuel pressure using a gauge connected to the fuel rail. For a 2003 Hyundai Elantra, the pressure should read between 40 and 60 psi. Deviations indicate a potential issue with the pump, regulator, or lines.
Finally, start the engine and monitor its performance. A smooth idle and responsive acceleration confirm the system is functioning correctly. If the engine stalls, sputters, or runs rough, inspect for vacuum leaks, clogged fuel filters, or incorrect fuel pressure. Addressing these issues immediately prevents further damage and ensures the vehicle operates safely and efficiently.
In summary, reassembling and testing the fuel system after pump replacement requires methodical steps and thorough verification. By following these guidelines, you can restore your 2003 Hyundai Elantra’s fuel delivery system to optimal performance, ensuring reliability and peace of mind on the road.
Fuel Pump Heat Interference: Fact or Fiction? Exploring the Connection
You may want to see also
Frequently asked questions
The fuel pump on a 2003 Hyundai Elantra is located inside the fuel tank, which is situated beneath the rear seat area of the vehicle.
You will need a jack and jack stands, wrenches or sockets, a screwdriver, a fuel line disconnect tool, a new fuel pump module, and a drain pan to catch any fuel.
Yes, it is crucial to relieve the fuel system pressure before starting the replacement. This can be done by locating the fuel pressure relief valve (often near the fuel rail) and using a tool to depress it, releasing the pressure safely.
