Sylvie Willis

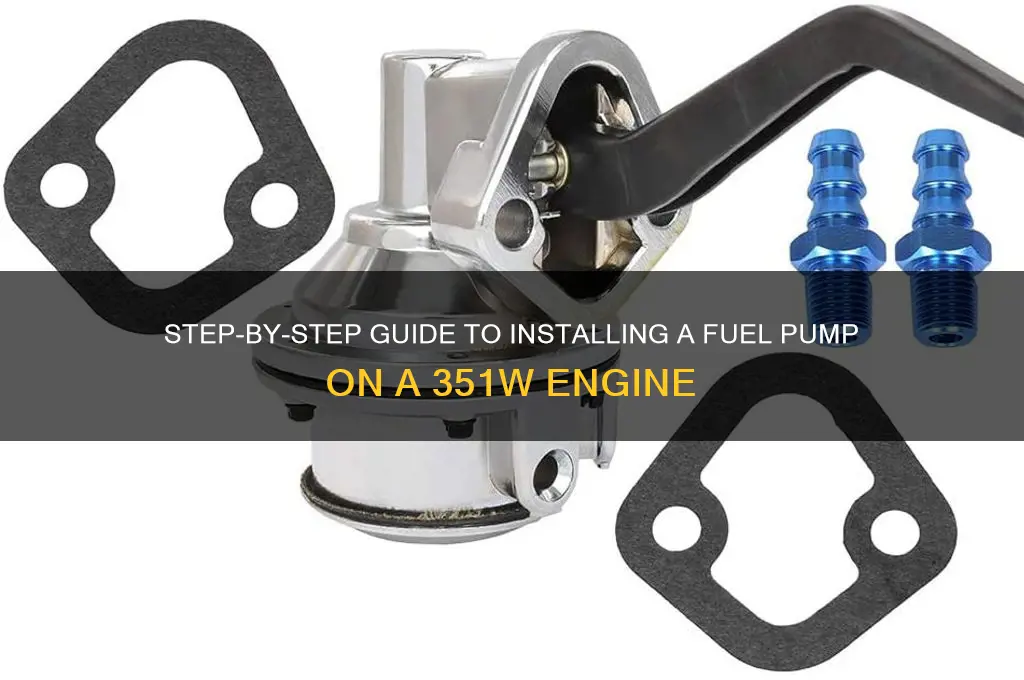

Installing a fuel pump on a 351W engine requires careful preparation and attention to detail to ensure proper functionality and safety. Begin by gathering the necessary tools and materials, including the new fuel pump, fuel line, clamps, and any specific gaskets or seals recommended for your vehicle. Start by disconnecting the battery to prevent electrical hazards, then relieve the fuel system pressure by locating and depressurizing the Schrader valve. Next, remove the old fuel pump by disconnecting the fuel lines and electrical connector, taking care to avoid spills or leaks. Clean the mounting area thoroughly before installing the new pump, ensuring a secure fit with the provided hardware. Reattach the fuel lines and electrical connector, double-checking for tightness and proper alignment. Finally, reconnect the battery, start the engine, and inspect for any leaks to confirm a successful installation. Always refer to your vehicle’s manual or a trusted guide for model-specific instructions.
| Characteristics | Values |
|---|---|
| Engine Type | Ford 351W (Windsor) |
| Fuel Pump Type | Mechanical or Electric (depending on setup) |
| Tools Required | Wrenches, Screwdrivers, Pliers, Fuel Line Disconnect Tool, Safety Goggles, Gloves |
| Location of Fuel Pump | Typically mounted on the driver's side of the engine block near the front |
| Fuel Line Connections | Inlet (from tank) and Outlet (to carburetor/fuel rail) |
| Mounting Bolts | Usually 2-4 bolts securing the pump to the engine block |
| Gasket Replacement | Always replace the gasket to ensure a proper seal |
| Fuel Line Compatibility | Ensure fuel lines are compatible with the pump (rubber or high-pressure lines) |
| Pressure Specifications | Mechanical: 5-7 PSI; Electric: Check manufacturer specs (typically 35-60 PSI) |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Testing After Installation | Check for leaks, ensure proper fuel flow, and verify engine starts and runs smoothly |
| Common Issues | Leaks, improper fuel pressure, incorrect fuel line routing |
| Compatibility Notes | Ensure the fuel pump is compatible with carbureted or EFI systems |
| Estimated Installation Time | 1-2 hours (depending on experience and tools) |
| Additional Parts | New fuel filter, hose clamps, and fuel pump block-off plate (if upgrading to electric) |
| Reference Sources | Ford service manuals, online forums (e.g., Ford Truck Enthusiasts, Mustang Forums) |
Explore related products
What You'll Learn
- Gather Tools and Materials: Socket set, wrenches, screwdriver, gasket, fuel pump, safety gear
- Locate Fuel Pump: Identify pump position on engine block near carburetor
- Remove Old Pump: Disconnect fuel lines, unscrew mounting bolts, remove pump carefully
- Install New Pump: Attach new pump, secure with bolts, reconnect fuel lines
- Test and Verify: Check for leaks, ensure proper fuel flow, start engine
Gather Tools and Materials: Socket set, wrenches, screwdriver, gasket, fuel pump, safety gear
Before diving into the installation of a fuel pump on a 351W engine, it's essential to recognize that proper preparation can make or break the project. Gathering the right tools and materials is not just a preliminary step—it’s the foundation of a successful and safe repair. A socket set, wrenches, screwdriver, gasket, fuel pump, and safety gear are non-negotiable items for this task. Skipping or substituting any of these could lead to inefficiency, damage, or even injury. For instance, using the wrong size socket can strip bolts, while neglecting safety gear like gloves or goggles exposes you to fuel spills or debris.
Consider the socket set and wrenches as your primary workhorses in this process. The 351W engine often requires metric and SAE tools, so ensure your set covers both standards. A common mistake is underestimating the torque needed for bolts, which can lead to leaks or damage. A torque wrench, though not explicitly listed, is a valuable addition to your toolkit for precision. Similarly, a flathead and Phillips screwdriver are indispensable for removing panels or adjusting components. Always inspect these tools for wear; a slipping screwdriver can damage sensitive parts or cause frustration.
The gasket and fuel pump themselves demand careful selection. Gasket compatibility is critical—using the wrong type can result in fuel leaks, which pose fire hazards. Verify the gasket’s material and dimensions match the 351W’s specifications. When choosing a fuel pump, consider the engine’s performance needs. Stock pumps are adequate for daily drivers, but high-performance pumps may be necessary for modified engines. Always opt for OEM or reputable aftermarket brands to ensure reliability.
Safety gear is often overlooked but is arguably the most important aspect of this job. Fuel is highly flammable, and its fumes can be toxic. Nitrile gloves protect your skin from prolonged exposure, while safety goggles shield your eyes from splashes. A respirator mask is advisable when working in enclosed spaces to avoid inhaling fumes. Additionally, keep a fire extinguisher nearby as a precautionary measure. These items aren’t just for show—they’re your first line of defense against accidents.
In summary, gathering the right tools and materials is a strategic step that sets the tone for the entire fuel pump installation. Each item serves a specific purpose, from ensuring mechanical precision to safeguarding your well-being. By investing time in preparation, you not only streamline the process but also mitigate risks. Remember, a well-equipped workspace is a productive and secure one. Treat this step with the same diligence you’d apply to the installation itself, and you’ll find the task far more manageable and rewarding.
Avoid These Mistakes: How to Accidentally Destroy Your Fuel Pump
You may want to see also
Explore related products
Locate Fuel Pump: Identify pump position on engine block near carburetor
The fuel pump on a 351W engine is typically mounted directly on the engine block, positioned near the carburetor to ensure efficient fuel delivery. This proximity minimizes the distance fuel must travel, reducing the risk of vapor lock and ensuring consistent performance. Before proceeding with installation, verify the pump’s location by consulting your vehicle’s manual or inspecting the engine bay. The pump is usually secured with a mounting bracket and bolts, often found on the front or side of the block, depending on the specific model and year of your vehicle.
Identifying the fuel pump’s position requires a methodical approach. Start by locating the carburetor, as the pump is generally situated within a 6- to 12-inch radius of it. Trace the fuel lines from the carburetor to their origin; these lines will lead directly to the pump. If the pump is obscured by other components, remove any obstructing parts temporarily for a clear view. Use a flashlight to inspect hard-to-see areas, and consider taking reference photos to aid in reassembly.
A critical aspect of locating the fuel pump is understanding its orientation relative to the engine block. The pump’s inlet and outlet ports must align correctly with the fuel lines to ensure proper flow. The inlet typically faces the fuel tank, while the outlet directs fuel toward the carburetor. Misalignment can lead to restricted fuel delivery or leaks, so double-check the orientation before proceeding. If the pump’s position seems unusual or unclear, cross-reference with diagrams or seek guidance from a repair manual specific to your 351W engine.
Practical tips can streamline the process of identifying the fuel pump’s position. For instance, if your 351W is equipped with an electric fuel pump, it may be mounted slightly farther from the carburetor than a mechanical pump. In such cases, follow the wiring harness to locate the pump. Additionally, older models may have a mechanical pump driven by the camshaft, which is often mounted lower on the engine block. Always disconnect the battery and relieve fuel system pressure before handling the pump to avoid accidents.
In conclusion, accurately locating the fuel pump on a 351W engine hinges on understanding its relationship to the carburetor and engine block. By tracing fuel lines, verifying orientation, and applying practical tips, you can confidently identify the pump’s position. This foundational step ensures a smooth installation process and sets the stage for reliable fuel system performance.
Diagnosing Fuel Pump Problems in Your 2005 Mercedes E320
You may want to see also
Explore related products
Remove Old Pump: Disconnect fuel lines, unscrew mounting bolts, remove pump carefully
The first step in replacing a fuel pump on a 351w engine is to remove the old one, a process that requires precision and care to avoid damage or fuel spills. Begin by disconnecting the fuel lines, a task that demands attention to detail. Use a wrench or pliers to loosen the fittings, but be cautious not to overtighten or damage the threads. It’s advisable to place a drain pan or rag beneath the lines to catch any residual fuel, minimizing mess and safety risks. Always work in a well-ventilated area and avoid open flames or sparks, as fuel vapors are highly flammable.
Once the fuel lines are disconnected, focus on the mounting bolts securing the pump to the engine. These bolts are typically tightened to a specific torque, so use the appropriate socket or wrench to unscrew them methodically. Keep track of the bolts and their positions, as reusing them or replacing them with the correct size is crucial for a secure installation. If the bolts are rusted or difficult to remove, apply penetrating oil and allow it to sit for a few minutes before attempting again. Patience here prevents stripping threads or damaging the mounting surface.
With the fuel lines disconnected and bolts removed, carefully lift the old pump from its housing. Inspect the mounting area for debris, corrosion, or damage, as these issues can affect the new pump’s performance. If the pump is stuck due to old gaskets or residue, gently pry it loose with a flathead screwdriver, taking care not to scratch the surface. Cleaning the area with a solvent or brake cleaner ensures a smooth installation for the new pump. This step is often overlooked but is critical for long-term reliability.
Removing the old fuel pump is a straightforward yet delicate process that sets the stage for a successful installation. By systematically disconnecting fuel lines, unscrewing mounting bolts, and carefully extracting the pump, you minimize the risk of complications. Each step requires attention to detail and adherence to safety precautions, ensuring both your well-being and the engine’s integrity. Done correctly, this phase not only removes the old component but also prepares the engine for its new fuel pump, paving the way for improved performance and efficiency.
DIY Guide: Replacing the Fuel Pump in a 2010 Lincoln MKX
You may want to see also
Explore related products
Install New Pump: Attach new pump, secure with bolts, reconnect fuel lines
Attaching a new fuel pump to a 351W engine is a straightforward process, but precision is key. Begin by aligning the pump’s mounting holes with those on the engine block or mounting bracket. Ensure the pump is positioned correctly to avoid misalignment, which can lead to leaks or improper function. Most fuel pumps for this engine use a standard bolt pattern, typically requiring 3/8-inch bolts tightened to 15-20 ft-lbs of torque. Over-tightening can strip threads, while under-tightening risks vibration and loosening over time.
Securing the pump with bolts is the next critical step. Use a torque wrench to achieve the manufacturer’s specified torque values, as mentioned earlier. If the pump includes a gasket, verify it’s seated properly to prevent fuel leaks. Double-check that all bolts are tightened in a crisscross pattern to ensure even pressure distribution. This step is often overlooked but is essential for long-term reliability. If the pump has an electrical connection, ensure the wiring harness is securely attached and routed away from hot surfaces.
Reconnecting the fuel lines is where many DIYers encounter challenges. Start by identifying the inlet and outlet ports on the new pump—typically marked with arrows or labels. Use new fuel line hoses or inspect existing ones for cracks or wear. Secure the lines with clamps, ensuring they’re tight enough to prevent leaks but not so tight that they damage the hoses. Apply a small amount of silicone grease to the fittings for a better seal and easier future removal. Always check for leaks by pressurizing the system before starting the engine.
A practical tip: Before finalizing the installation, dry-fit the pump and lines to ensure everything aligns correctly. This saves time and frustration later. Additionally, if working on an older 351W, consider upgrading to a high-flow fuel pump if performance modifications have been made. Finally, always work in a well-ventilated area and avoid open flames or sparks when handling fuel lines. This step-by-step approach ensures a secure, leak-free installation that keeps your 351W running smoothly.
Step-by-Step Guide: Removing Your Fuel Pump Cover Safely and Easily
You may want to see also
Explore related products
$20.99 $29.99
Test and Verify: Check for leaks, ensure proper fuel flow, start engine
Once the fuel pump is installed on your 351W, the real test begins. Before firing up the engine, a meticulous inspection is crucial to prevent potential disasters. Start by checking for leaks. Even a small fuel leak can lead to catastrophic consequences, so use a flashlight to scrutinize all connections, hoses, and the pump itself. Look for wet spots or the unmistakable smell of gasoline. If you spot any leaks, tighten the fittings or replace faulty components immediately. Remember, fuel is highly flammable, so ensure your workspace is well-ventilated and free from open flames or sparks.
Ensuring proper fuel flow is the next critical step. With the ignition switched on, listen for the fuel pump's priming cycle, a brief whirring sound indicating fuel is being pushed through the system. If you don’t hear this, check the pump's electrical connections and fuses. Next, disconnect the fuel line at the engine and crank the engine for a few seconds to verify fuel is being delivered. The flow should be steady and free of air bubbles, which could indicate a poorly sealed connection or a failing pump. If the flow is weak or intermittent, inspect the fuel filter and lines for clogs or restrictions.
Starting the engine is the ultimate test of your installation. Before turning the key, double-check that all tools and debris are cleared from the engine bay. With the engine running, monitor the fuel pressure gauge (if equipped) to ensure it matches the manufacturer’s specifications, typically around 30–60 PSI for a 351W. Listen for unusual noises, such as a whining pump, which could signal improper installation or a defective unit. Let the engine idle for a few minutes to stabilize, then rev it gently to observe how the fuel system responds under load.
A comparative analysis reveals that post-installation testing is often overlooked by DIY enthusiasts, leading to recurring issues. Unlike professional installations, home mechanics may lack specialized tools like pressure gauges or leak detectors. However, improvising with soapy water to check for bubbles at connections or using a handheld tachometer to monitor fuel delivery can bridge this gap. The key takeaway is that thorough testing not only ensures functionality but also safeguards against hazards, making it an indispensable part of the fuel pump installation process.
Flooding and Fuel Pumps: Unraveling the Connection to Vehicle Damage
You may want to see also
Frequently asked questions
You will need basic hand tools such as wrenches, screwdrivers, a socket set, and possibly a fuel line disconnect tool. Additionally, a new fuel pump, fuel pump gasket, and fresh fuel filter are recommended.
The fuel pump on a 351W is typically mounted on the driver's side of the engine block, near the front. It is usually driven by the camshaft via an eccentric lobe.
First, relieve fuel system pressure and disconnect the battery. Then, remove the fuel lines, unbolt the pump from the engine block, and replace the gasket before installing the new pump.
Yes, it’s a good practice to prime the fuel pump after installation to ensure proper operation. Turn the ignition to the "on" position for a few seconds before starting the engine.
Symptoms include difficulty starting, sputtering, loss of power, and engine stalling. If you notice these issues, inspect the fuel pump for leaks, low pressure, or failure to operate.
