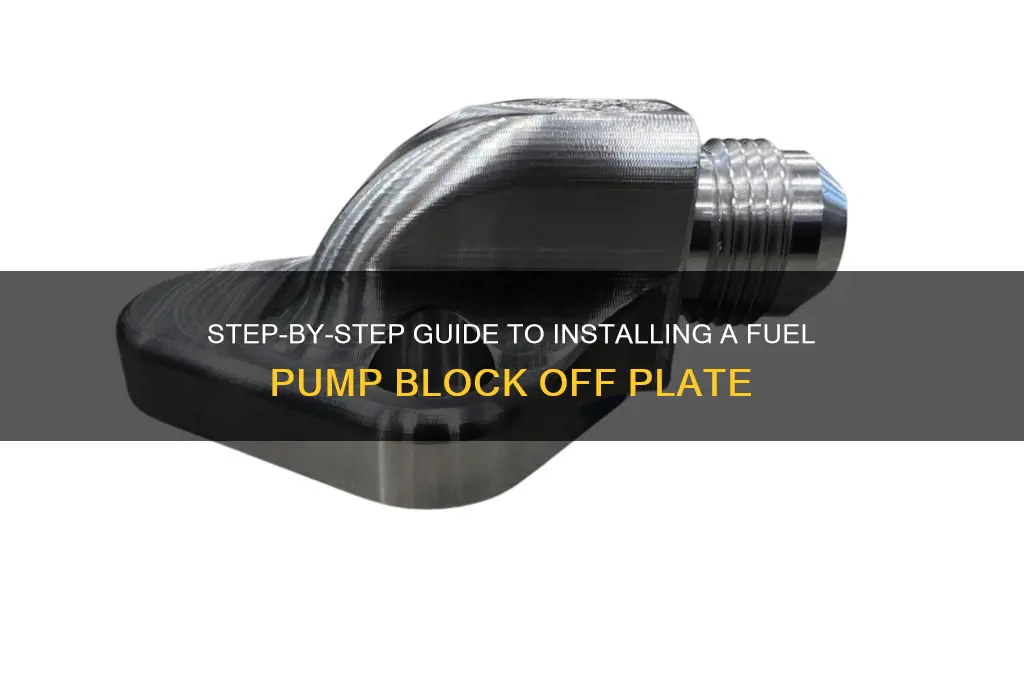

Installing a fuel pump block off plate is a crucial step when converting a return-style fuel system to a returnless setup or when removing an in-tank fuel pump. This process involves sealing the fuel pump opening in the gas tank to prevent leaks and ensure the tank remains airtight. To begin, ensure the vehicle is safely lifted and the fuel tank is completely drained to avoid spills or hazards. Next, remove the fuel pump assembly and clean the tank opening thoroughly to ensure a proper seal. Position the block off plate over the opening, applying a suitable gasket or sealant if required, and secure it with the appropriate bolts or fasteners. Double-check the tightness of the installation and reattach the fuel tank to the vehicle. Finally, conduct a thorough inspection for leaks and test the system to ensure everything functions correctly. This procedure requires attention to detail and adherence to safety protocols to maintain the integrity of the fuel system.
| Characteristics | Values |
|---|---|
| Purpose | To seal the fuel pump opening in the fuel tank when converting to an external fuel pump setup or during tank cleaning/maintenance. |
| Tools Required | Socket set, wrenches, gasket scraper, torque wrench, safety gloves, safety goggles, and a new gasket (if applicable). |
| Parts Needed | Fuel pump block off plate, gasket (if not included with the plate), bolts/nuts, and thread locker (optional). |
| Preparation | Ensure the vehicle is on a level surface, fuel tank is empty or near empty, and battery is disconnected for safety. |
| Steps | 1. Relieve fuel system pressure. 2. Remove the fuel tank or access the fuel pump assembly. 3. Disconnect and remove the fuel pump. 4. Clean the fuel pump opening and surrounding area. 5. Place the gasket (if used) on the block off plate. 6. Align and install the block off plate over the fuel pump opening. 7. Secure the plate with bolts/nuts, tightening to manufacturer's torque specifications. 8. Apply thread locker to bolts if recommended. 9. Reinstall the fuel tank or assembly. 10. Reconnect the battery and test for leaks. |
| Safety Precautions | Work in a well-ventilated area, avoid open flames or sparks, and handle fuel with care to prevent spills or fires. |
| Common Issues | Leaks due to improper sealing, overtightening causing damage, or using incorrect gasket/plate size. |
| Compatibility | Ensure the block off plate is compatible with your vehicle's make, model, and year. |
| Professional Help | Recommended if unsure about the process or if specialized tools are required. |
Explore related products
What You'll Learn
- Gather Tools and Materials: Collect socket set, torque wrench, gasket, block off plate, and safety gear
- Disconnect Fuel Lines: Safely detach fuel lines from the pump using appropriate tools
- Remove Fuel Pump: Unbolt and extract the fuel pump from the tank carefully
- Install Block Off Plate: Position the plate, apply gasket, and secure with bolts to tank
- Verify Sealing and Reassembly: Check for leaks, torque bolts to spec, and reassemble components
Gather Tools and Materials: Collect socket set, torque wrench, gasket, block off plate, and safety gear
Before diving into the installation of a fuel pump block off plate, it’s crucial to assemble the right tools and materials. This step is often overlooked, but it’s the foundation of a successful and safe project. A socket set, torque wrench, gasket, block off plate, and safety gear are non-negotiable essentials. Each item serves a specific purpose, ensuring precision, compatibility, and protection throughout the process. Skipping or substituting any of these could lead to inefficiency, damage, or even injury.
Consider the socket set: it’s not just about having one, but ensuring it includes the correct sizes for your vehicle’s fasteners. Most fuel pump assemblies use standard metric sizes, typically ranging from 8mm to 14mm. A torque wrench is equally critical, as over-tightening can warp the block off plate or damage the fuel tank, while under-tightening risks leaks. Refer to your vehicle’s manual for the recommended torque specifications, usually between 15-25 ft-lbs for fuel system components. Precision here prevents future headaches.
The gasket and block off plate are the stars of this operation, but their compatibility is paramount. Gaskets should match the exact dimensions of your fuel pump opening to ensure a leak-free seal. Silicone or rubber gaskets are common, but verify the material is fuel-resistant. The block off plate itself must be made of durable materials like aluminum or steel to withstand fuel tank conditions. Always double-check part numbers or consult a mechanic if unsure, as mismatches can render the installation ineffective.
Safety gear is often the most overlooked yet vital component. Fuel systems are inherently dangerous due to flammability and fumes. Nitrile gloves protect your skin from fuel exposure, while safety goggles shield your eyes from accidental splashes. A respirator mask is essential in poorly ventilated areas to avoid inhaling vapors. Additionally, keep a fire extinguisher nearby as a precautionary measure. These precautions may seem excessive, but they’re small investments compared to the risks of neglecting them.
Finally, organization is key. Lay out all tools and materials in a clean, well-lit workspace before starting. This not only saves time but also minimizes the risk of losing small parts like bolts or gaskets. A magnetic parts tray can be a lifesaver for keeping fasteners in place. By treating this preparatory step with the same care as the installation itself, you’ll streamline the process and set the stage for a professional-grade result.
Testing Your 1999 Honda CR-V Fuel Pump: A Step-by-Step Guide
You may want to see also
Explore related products
Disconnect Fuel Lines: Safely detach fuel lines from the pump using appropriate tools
Before disconnecting fuel lines, it's crucial to relieve fuel system pressure to prevent accidental spraying or leakage. Locate the fuel pressure relief valve, typically found on the fuel rail or near the engine bay, and depress it using a suitable tool, such as a screwdriver with a cloth wrapped around the tip to avoid damage. This step is essential for safety, as pressurized fuel can cause injuries or ignite if exposed to sparks. Once pressure is relieved, proceed with caution, ensuring the area is well-ventilated and free of open flames or potential ignition sources.
Disconnecting fuel lines requires precision and the right tools to avoid damage or spills. Use a fuel line disconnect tool, which is specifically designed to release the spring clips or retaining mechanisms holding the lines in place. For most vehicles, this involves sliding the tool over the fuel line connector and gently prying the clip away from the fitting. Be mindful of the line’s orientation and any O-rings or seals, as these components are critical for maintaining a leak-free connection. If the lines are stubborn, apply gentle, steady pressure rather than forcing them, as excessive force can cause cracks or breaks.
After detaching the fuel lines, inspect them for wear, cracks, or deterioration, especially if the vehicle is older or has been exposed to harsh conditions. Replace any compromised lines to ensure the integrity of the fuel system. Additionally, plug or cap the open ends of the disconnected lines to prevent fuel from leaking out and to keep debris from entering the system. Silicone caps or specialized fuel line plugs are ideal for this purpose. This precautionary step not only maintains safety but also simplifies the installation of the block-off plate later in the process.
While disconnecting fuel lines, consider the environmental impact of spilled fuel. Keep an absorbent cloth or rag nearby to catch any drips, and dispose of contaminated materials properly. If a significant spill occurs, use a fuel-safe absorbent material, such as kitty litter or a commercial spill kit, to neutralize the hazard. Working on a clean, flat surface with a drip pan underneath the fuel pump area can further minimize mess and make cleanup easier. By prioritizing both safety and environmental responsibility, you ensure a smooth and conscientious repair process.
Does PCM Control Fuel Pump in Ford F150? Explained
You may want to see also
Explore related products
Remove Fuel Pump: Unbolt and extract the fuel pump from the tank carefully
The fuel pump is a critical component in your vehicle's fuel system, and its removal requires precision and care to avoid damage to the tank or surrounding components. Before attempting to unbolt and extract the fuel pump, ensure you have the necessary tools, including a wrench or socket set, a flathead screwdriver, and a drain pan to catch any residual fuel. Begin by relieving the fuel system pressure to prevent accidental fuel spray, which can be a fire hazard. This step is crucial for your safety and the integrity of the fuel tank.
Once the fuel system pressure is relieved, locate the fuel pump assembly within the tank. In most vehicles, the fuel pump is accessed through the fuel tank's access panel or by removing the tank itself. If your vehicle has an access panel, remove the panel's screws or bolts to expose the fuel pump module. For tanks without an access panel, carefully lower the tank after disconnecting the fuel lines and electrical connectors. This process may require additional tools and a helper to ensure the tank is handled safely and without spilling any fuel.
With the fuel pump assembly exposed, identify the bolts securing the pump to the tank. Typically, these bolts are located around the perimeter of the pump module. Use the appropriate size wrench or socket to loosen and remove these bolts, keeping track of their positions for reassembly. Be cautious not to overtighten or cross-thread the bolts during removal, as this can damage the tank's threads. Once the bolts are removed, gently pry the fuel pump module from the tank using a flathead screwdriver, taking care not to bend or damage the module's sealing ring.
Extracting the fuel pump from the tank requires patience and a gentle touch. After the module is free from the tank, carefully lift it out, ensuring no fuel lines or electrical connectors are caught or damaged. Inspect the sealing ring and the tank's opening for any signs of wear or damage, as these components are vital for maintaining a proper seal and preventing fuel leaks. If the sealing ring is cracked or deformed, replace it with a new one to ensure a secure fit.
In summary, removing the fuel pump involves relieving fuel system pressure, accessing the pump assembly, unbolting the module, and carefully extracting it from the tank. Each step demands attention to detail and safety precautions to avoid hazards and ensure a successful removal. By following these guidelines, you can confidently proceed with installing a fuel pump block off plate, knowing the fuel pump has been removed correctly and without causing damage to your vehicle's fuel system.
1989 Mercedes 300 Fuel Pump Count: A Comprehensive Guide
You may want to see also
Explore related products
Install Block Off Plate: Position the plate, apply gasket, and secure with bolts to tank
Installing a fuel pump block off plate is a critical step when converting a fuel tank from an in-tank pump system to an external setup. The process begins with precise positioning of the plate over the fuel pump opening. Ensure the plate aligns perfectly with the tank’s mounting holes to avoid leaks or structural stress. Misalignment can lead to fuel seepage or compromised tank integrity, so double-check the orientation before proceeding.
Once the plate is positioned, apply a high-quality gasket to create a secure seal. The gasket acts as a barrier, preventing fuel from escaping and protecting the tank from contaminants. Use a gasket specifically designed for fuel systems, as generic materials may degrade over time. Apply a thin layer of gasket sealant if recommended by the manufacturer, but avoid over-application, as excess can interfere with the plate’s fit.
Securing the block off plate with bolts is the final step, but it requires attention to detail. Tighten the bolts in a diagonal pattern to ensure even pressure distribution. Over-tightening can warp the plate or damage the tank, while under-tightening risks leaks. Torque specifications vary by vehicle and plate design, so consult the manufacturer’s guidelines or use a torque wrench to achieve the correct tension.
Practical tips include cleaning the tank opening thoroughly before installation to remove debris or residue. If the tank is plastic, inspect it for cracks or weaknesses that could worsen under bolt pressure. For metal tanks, consider using threadlocker on the bolts to prevent loosening over time. Always test the installation by pressurizing the tank (if possible) or conducting a thorough visual inspection before reassembling the vehicle.
In summary, installing a fuel pump block off plate demands precision and care. Proper positioning, gasket application, and bolt tightening are non-negotiable steps to ensure safety and functionality. By following these guidelines and incorporating practical precautions, you can achieve a leak-free, durable installation that supports your fuel system conversion effectively.
Understanding Solenoid Fuel Pump Operation: A Comprehensive Guide
You may want to see also
Explore related products
Verify Sealing and Reassembly: Check for leaks, torque bolts to spec, and reassemble components
Once the fuel pump block off plate is installed, the integrity of the seal and the security of the assembly are paramount. Even a minor leak can lead to fuel odors, reduced efficiency, or safety hazards. Begin by inspecting the gasket or sealing surface for any signs of damage or misalignment. A single crack or gap can compromise the entire installation, so replace the gasket if necessary. Apply a thin, even layer of high-temperature RTV sealant around the plate’s perimeter if recommended by the manufacturer, ensuring it doesn’t obstruct bolt holes. This step is particularly critical in older vehicles where surfaces may be uneven or corroded.
Next, torque the bolts to the manufacturer’s specifications, typically ranging from 15 to 25 foot-pounds depending on the vehicle and plate design. Over-tightening can warp the plate or damage the tank, while under-tightening risks leaks. Use a torque wrench to ensure precision, and tighten the bolts in a diagonal pattern to distribute pressure evenly. If the plate includes additional components like fuel lines or sensors, verify their connections are secure and aligned correctly. Misaligned components can cause leaks or interfere with reassembly.
With the plate secured, reassemble surrounding components methodically. Reattach fuel lines, ensuring clamps are tight and oriented correctly to prevent kinks or dislodgement. If the tank was removed, reinstall it carefully, aligning mounting points and securing bolts to factory torque specs. Reconnect electrical connectors, double-checking polarity and tightness to avoid shorts or disconnections. This step-by-step approach minimizes the risk of overlooking critical details during reassembly.
Finally, conduct a leak test before starting the vehicle. Pour a small amount of water or soapy water around the plate’s edges and inspect for bubbles, which indicate leaks. Alternatively, pressurize the fuel system using a hand pump and monitor the gauge for pressure drops. If leaks are detected, disassemble the plate, reinspect the seal, and reapply sealant or replace the gasket as needed. Once confirmed leak-free, reassemble any remaining components, such as the fuel door or access panel, and test the vehicle’s operation. This meticulous verification ensures the block off plate functions safely and reliably, preserving the vehicle’s performance and your peace of mind.
Do Bad Fuel Pumps Tick? Identifying Symptoms and Solutions
You may want to see also
Frequently asked questions
A fuel pump block off plate is a metal plate used to seal the fuel pump opening in a fuel tank when removing the in-tank fuel pump. It is typically installed during engine swaps or when converting to an external fuel pump setup to prevent fuel leaks and ensure tank integrity.
Common tools needed include a wrench or socket set, gasket sealant or RTV silicone, a torque wrench, and possibly a drill or tap set if threading is required. Always refer to the specific instructions for your vehicle and block off plate.
Yes, in most cases, the fuel tank must be removed to access the fuel pump opening properly. This ensures a clean and accurate installation of the block off plate.
Clean the fuel pump opening thoroughly, apply a suitable gasket sealant or RTV silicone to the block off plate, and tighten the bolts to the manufacturer’s recommended torque specifications. Double-check for leaks after reinstalling the fuel tank.
