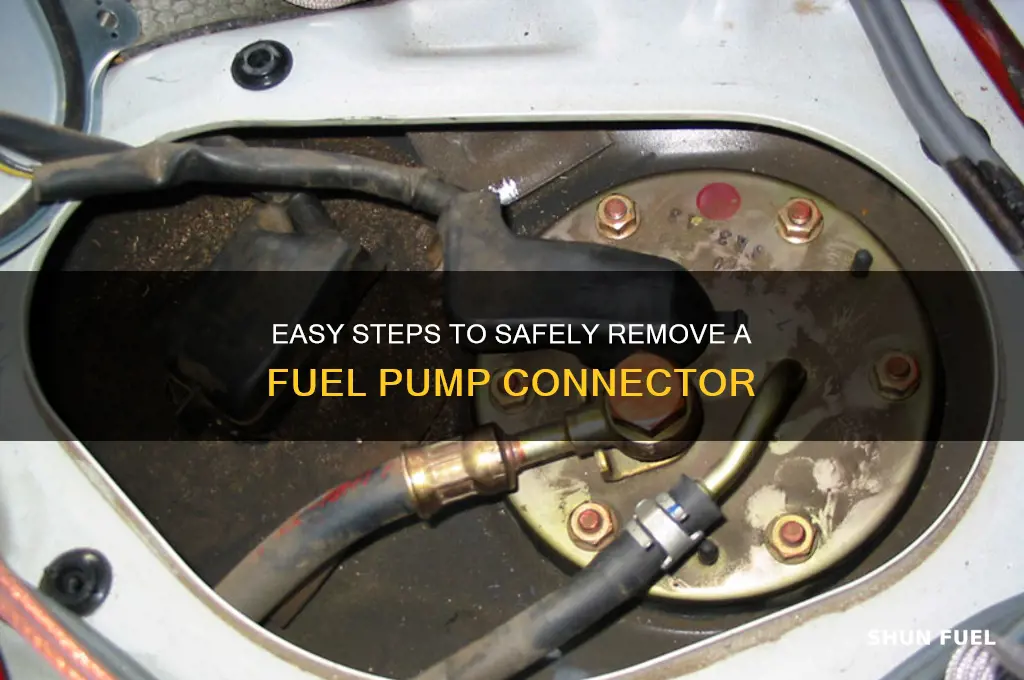

Removing a fuel pump connector requires careful attention to safety and precision due to the volatile nature of fuel systems. Before starting, ensure the vehicle is turned off, the battery is disconnected, and the fuel pressure is relieved to minimize risks. Locate the fuel pump connector, typically found near the fuel tank or within the fuel pump module. Use a suitable tool, such as a fuel line disconnect tool or a small flathead screwdriver, to gently release the locking mechanism on the connector. Avoid forcing it to prevent damage. Once unlocked, carefully pull the connector apart, ensuring no fuel spills. Always work in a well-ventilated area and have a fire extinguisher nearby as a precaution.
| Characteristics | Values |
|---|---|
| Tools Required | Flathead screwdriver, pliers, fuel line disconnect tool, safety gloves |
| Safety Precautions | Relieve fuel system pressure, disconnect battery, work in well-ventilated area |
| Location of Connector | Near fuel pump, often inside fuel tank or along fuel lines |
| Connector Type | Quick-disconnect or snap-lock type |
| Removal Method | Press release tabs, twist, or use a tool to disengage the connector |
| Common Issues | Stuck connectors, brittle plastic, fuel spills |
| Reinstallation Tips | Ensure proper alignment, avoid over-tightening, check for leaks |
| Vehicle Compatibility | Varies by make and model; consult vehicle manual |
| Difficulty Level | Moderate to difficult, depending on accessibility |
| Estimated Time | 15–60 minutes |
Explore related products
What You'll Learn
- Locate the Connector: Identify the fuel pump connector near the fuel tank
- Release the Lock: Press or slide the connector’s locking tab
- Disconnect Safely: Pull the connector straight out gently to avoid damage
- Use Tools if Needed: Apply a release tool for stubborn or clipped connectors
- Inspect for Damage: Check the connector and terminals for wear or corrosion
Locate the Connector: Identify the fuel pump connector near the fuel tank
The fuel pump connector is typically located near the fuel tank, but its exact position can vary depending on the vehicle’s make and model. Start by consulting your vehicle’s service manual or an online resource specific to your car. This step is crucial because misidentifying the connector can lead to damage or inefficiency. For instance, in many rear-wheel-drive vehicles, the connector is found atop the fuel tank, often accessible through a service panel in the trunk. In contrast, front-wheel-drive models may require you to access the connector from underneath the vehicle. Understanding this variability ensures you approach the task with precision.
Once you’ve determined the general location, visually inspect the area around the fuel tank. The fuel pump connector is usually a multi-pin electrical plug attached to a wiring harness. It’s often secured with a locking mechanism, such as a clip or tab, to prevent accidental disconnection. In some vehicles, the connector may be shielded by a protective cover or insulation, which you’ll need to remove carefully. For example, in a Toyota Camry, the connector is typically found on the top of the fuel tank, covered by a plastic shield that requires a screwdriver to detach. Always exercise caution to avoid damaging nearby components.
If you’re having trouble locating the connector, consider using a flashlight or inspection mirror to enhance visibility, especially in tight spaces. In vehicles with complex fuel system layouts, the connector might be tucked behind other components, such as the exhaust system or suspension parts. In such cases, it may be necessary to jack up the vehicle and use jack stands for safety. For instance, in a Ford F-150, the connector is often located beneath the driver’s side of the truck, requiring you to crawl underneath and follow the fuel lines to the pump assembly. Patience and methodical inspection are key to success.
A practical tip is to trace the fuel lines from the engine bay to the tank, as the connector is always positioned along this path. This approach can be particularly useful in older vehicles where documentation may be scarce. Additionally, if you’re working on a vehicle with a flex-fuel system, be aware that the connector might have additional pins or a different configuration. Always double-check your findings against a reliable diagram or video tutorial to ensure accuracy. By combining visual inspection with systematic tracing, you’ll confidently identify the fuel pump connector and proceed to the next steps of removal.
