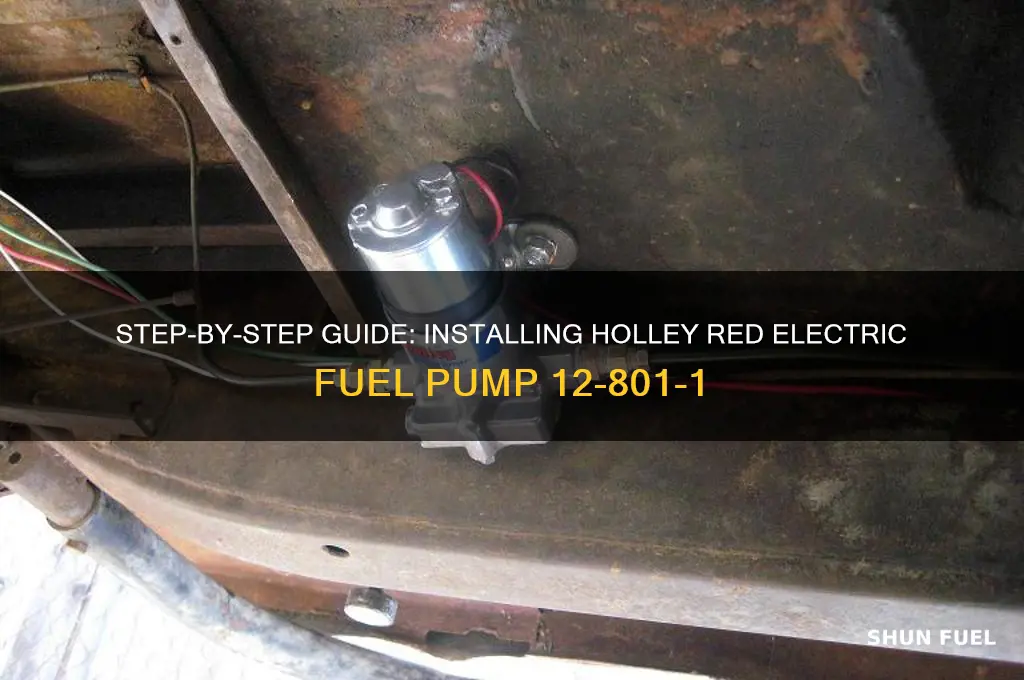

Installing a Holley Red Electric Fuel Pump (12-801-1) is a straightforward process that can significantly enhance your vehicle’s fuel delivery system. This high-performance fuel pump is designed to provide reliable and consistent fuel flow, making it ideal for carbureted engines and mild fuel injection setups. To begin the installation, ensure your vehicle is safely parked and the ignition is turned off. Start by locating a suitable mounting location for the pump, typically near the fuel tank or along the frame, ensuring it is secure and away from excessive heat. Next, connect the fuel lines, using appropriate fittings and clamps to prevent leaks. The pump’s inlet and outlet ports are clearly marked, so connect the fuel line from the tank to the inlet and the line to the carburetor or fuel rail to the outlet. Wire the pump to the vehicle’s electrical system, using a relay and fuse for safety, and connect the power and ground wires according to the instructions. Finally, prime the pump by cycling the ignition switch a few times before starting the engine to ensure proper fuel flow. Always double-check connections and test for leaks before driving. With careful installation, the Holley Red Electric Fuel Pump will deliver dependable performance for your vehicle.
Explore related products
What You'll Learn
Gather Tools and Materials
Before embarking on the installation of a Holley Red Electric Fuel Pump 12-801-1, it's crucial to assemble the necessary tools and materials to ensure a smooth and efficient process. This preparatory step not only saves time but also minimizes the risk of errors or damage during installation. Here’s a detailed breakdown of what you’ll need, organized for clarity and practicality.
Essential Tools: Begin with the basics—a set of wrenches and sockets compatible with your vehicle’s fittings, typically in metric or standard sizes depending on your car’s make and model. A torque wrench is indispensable for securing connections to the manufacturer’s specifications, ensuring neither overtightening nor looseness compromises the pump’s performance. For electrical work, wire strippers, crimping tools, and a multimeter are essential to handle the pump’s wiring safely and accurately. Additionally, a pair of safety gloves and safety goggles will protect you from sharp edges and debris during the installation.
Materials for Installation: The Holley Red Electric Fuel Pump 12-801-1 itself is the centerpiece, but supplementary materials are equally critical. High-quality fuel line and hose clamps are necessary to connect the pump to your vehicle’s fuel system securely. Ensure the fuel line is compatible with ethanol-blended fuels if applicable. Electrical connectors and heat shrink tubing will safeguard the pump’s wiring from moisture and corrosion. A fuel filter, if not already integrated into the pump, should be installed inline to protect the engine from contaminants. Lastly, a container of fresh fuel and a funnel will be useful for priming the pump post-installation.
Optional but Recommended: While not strictly necessary, a fuel pressure gauge can be invaluable for testing the pump’s performance after installation. This tool allows you to verify that the pump is delivering fuel at the correct pressure, ensuring optimal engine operation. Similarly, a fuel system cleaner can be used to flush out any debris or old fuel residue before installing the new pump, prolonging its lifespan and maintaining efficiency.
Practical Tips: Organize your workspace before beginning. Lay out all tools and materials within easy reach to avoid interruptions. If working on a vehicle with a full tank of fuel, consider siphoning some fuel to reduce weight and minimize spillage risks. Always refer to the Holley Red Electric Fuel Pump 12-801-1 manual for specific instructions and safety guidelines. Double-check compatibility with your vehicle’s fuel system to avoid mismatches that could lead to inefficiency or damage.
By meticulously gathering these tools and materials, you set the stage for a successful installation of the Holley Red Electric Fuel Pump 12-801-1. This preparation not only streamlines the process but also ensures the longevity and reliability of your fuel system upgrade.
Avoid These Mistakes: How to Accidentally Destroy Your Fuel Pump
You may want to see also
Explore related products
Locate Fuel Pump Installation Spot
Choosing the right location for your Holley Red Electric Fuel Pump (12-801-1) is critical for performance, safety, and longevity. The ideal spot balances accessibility for maintenance, protection from extreme temperatures and debris, and compliance with fuel system dynamics. Start by identifying a flat, stable surface near the fuel tank, ensuring the pump is mounted below the tank level to prevent airlocks and maintain consistent fuel flow. Avoid areas prone to excessive heat, such as near exhaust manifolds or turbochargers, as this can degrade the pump’s performance and lifespan.
Consider the fuel line routing when selecting the installation spot. The pump should be positioned to allow for a straight, unobstructed path to the engine, minimizing bends and kinks that could restrict fuel flow. Use a measuring tape to plan the distance between the pump, fuel tank, and engine, ensuring the fuel lines are neither too taut nor too loose. If your vehicle has a high-performance engine, place the pump closer to the tank to reduce the risk of cavitation, which occurs when the pump struggles to draw fuel from a distant source.
Safety is paramount when locating the fuel pump. Mount it in an area with minimal exposure to potential impact during collisions or off-road use. Secure the pump with a sturdy bracket and vibration-damping mounts to prevent loosening over time. For added protection, consider installing a fuel cell or shield around the pump, especially in racing or high-risk applications. Always follow local regulations regarding fuel system installations, particularly in vehicles used on public roads.
In some cases, the factory fuel pump location may not be optimal for an aftermarket upgrade like the Holley Red Electric Fuel Pump. If this is the case, assess alternative spots such as the chassis frame rails or custom-fabricated mounts. Ensure the new location allows for proper grounding of the pump’s electrical connections to avoid interference or voltage drops. Test the accessibility of the chosen spot by simulating maintenance tasks, such as filter changes or electrical inspections, to ensure it’s practical for long-term use.
Finally, environmental factors play a significant role in pump placement. In regions with extreme weather, avoid mounting the pump where it could be exposed to snow, ice, or water accumulation. For off-road vehicles, elevate the pump to protect it from mud and debris. If your vehicle operates in dusty conditions, consider adding a pre-filter to the fuel line near the pump to prevent contamination. By carefully evaluating these factors, you’ll ensure the Holley Red Electric Fuel Pump operates efficiently and reliably in its new location.
Step-by-Step Guide to Replacing the Fuel Pump on a 2008 BMW X3
You may want to see also
Explore related products
Connect Wiring and Grounding
Proper wiring and grounding are critical to ensuring your Holley Red Electric Fuel Pump (12-801-1) operates reliably and safely. Start by identifying the pump’s wiring harness, which typically includes a power wire (usually red), a ground wire (black), and a fuel pump control wire (often blue or green). The power wire must be connected directly to the vehicle’s battery or a switched power source, depending on whether you want the pump to run continuously or only when the ignition is on. Use a fuse holder and a 20-amp fuse inline with the power wire to protect the circuit from overcurrent.
Grounding is equally vital, as a poor ground can lead to erratic pump operation or failure. Connect the ground wire to a clean, bare metal surface on the vehicle’s chassis, ensuring the connection is free of paint, rust, or dirt. Use a star washer or sandpaper to clean the grounding point thoroughly before securing the wire with a ring terminal and bolt. A secure ground minimizes voltage drop and ensures the pump receives consistent power.
When routing the wires, avoid areas prone to heat, moving parts, or sharp edges that could damage the insulation. Use zip ties or wire loom to keep the harness tidy and protected. If the pump includes a fuel pump control wire, connect it to the fuel pump relay or ECU output, depending on your vehicle’s setup. This wire allows the pump to activate only when needed, conserving energy and reducing wear.
A common mistake is neglecting to test the wiring before finalizing the installation. Use a multimeter to verify continuity between the power source and the pump, as well as between the ground wire and the chassis. Ensure the fuse is intact and that the pump operates when power is applied. If the pump fails to run, double-check all connections and grounding points for issues.
Finally, consider adding an inline filter or relay to further protect the pump and wiring. While not mandatory, these components can extend the pump’s lifespan and improve overall system reliability. By following these steps, you’ll ensure a safe, efficient, and trouble-free installation of your Holley Red Electric Fuel Pump.
Can an 80 Amp Fuse Link Safely Operate a Fuel Pump?
You may want to see also
Explore related products
Install Fuel Lines Securely
Securing fuel lines is a critical step in installing the Holley Red Electric Fuel Pump 12-801-1, as improperly connected lines can lead to leaks, reduced performance, or even safety hazards. Begin by selecting fuel lines compatible with your vehicle’s fuel type—ethanol-blended fuels require lines rated for such mixtures to prevent degradation. Use stainless steel or nylon-reinforced rubber hoses for durability and resistance to heat and pressure. Ensure all fittings are tightened to the manufacturer’s torque specifications, typically 15 to 20 ft-lbs for AN fittings, but always verify with your specific components.
The routing of fuel lines is equally important to prevent kinks, abrasions, or interference with moving parts. Plan a path that avoids sharp bends, as these restrict flow and increase the risk of cracking. Secure lines using clamps or zip ties every 12 to 18 inches, ensuring they are taut but not over-tightened, which can damage the hose. For added protection, wrap high-heat areas with thermal insulation sleeves, especially near exhaust components or the engine block.
When connecting the fuel pump to the lines, use a double-clamp system on each hose end to prevent disconnection under pressure. Apply a thin layer of thread sealant or Teflon tape to threaded fittings, but avoid over-application, which can lead to clogging. After installation, perform a pressure test by cranking the engine without starting it to check for leaks. Inspect all connections for wetness or fuel odor, and address any issues before operating the vehicle.
A common oversight is neglecting to install a fuel filter or using one with inadequate micron rating. The Holley 12-801-1 requires a pre-filter (10-micron or finer) to protect the pump from debris. Position the filter within 12 inches of the pump inlet to ensure optimal protection. Regularly inspect and replace filters every 10,000 miles or as recommended by your vehicle’s maintenance schedule.
Finally, consider the electrical connections to the fuel pump, as voltage drops can cause erratic operation. Use a relay to bypass the ECU and provide a direct 12V power source, ensuring consistent performance. Secure all wiring away from hot surfaces and moving parts, and use heat-shrink tubing to protect connections from moisture and corrosion. By meticulously securing fuel lines and addressing related components, you’ll ensure a reliable and safe installation of the Holley Red Electric Fuel Pump.
Testing Your Fuel Pump: Battery-Free Methods for Accurate Diagnosis
You may want to see also
Explore related products
Test Pump for Proper Operation
Before finalizing the installation of your Holley Red Electric Fuel Pump 12-801-1, testing its operation is crucial to ensure reliability and performance. Begin by verifying the pump’s electrical connections are secure and correctly polarized—red to positive, black to negative. Use a 12-volt power source, such as a battery or bench supply, to simulate in-vehicle conditions. Apply power for 3–5 seconds and listen for a smooth, consistent hum, which indicates the motor is functioning without obstruction. Avoid prolonged testing without fuel, as this can damage the pump’s internal components.
Next, conduct a flow test to confirm the pump delivers the specified 30–40 gallons per hour (GPH) at 40 psi, as required for most carbureted applications. Attach the pump to a fuel line connected to a graduated container and measure the output over one minute. Adjust for accuracy by ensuring the pump is primed with fuel and the system is free of air bubbles. If the flow rate falls short, inspect for clogged filters, kinked lines, or insufficient voltage, which can hinder performance.
Pressure testing is equally critical to validate the pump’s ability to maintain system demands. Use a fuel pressure gauge to monitor output while simulating engine load. For carbureted setups, target 4–6 psi, ensuring the pump doesn’t exceed 7 psi to prevent regulator or carburetor damage. If pressure fluctuates or drops, check for leaks, faulty check valves, or inadequate grounding, as these issues can compromise fuel delivery.
Finally, perform a leak test by pressurizing the system and inspecting all connections, fittings, and hoses for seepage. Use a soapy water solution to detect even minor leaks, which can lead to fuel starvation or safety hazards. Tighten fittings as needed, but avoid over-torquing to prevent damage. Once all tests pass, the pump is ready for integration into your vehicle, ensuring a safe and efficient fuel delivery system.
Step-by-Step Guide to Assembling a Delphi Fuel Pump Diagram
You may want to see also
Frequently asked questions
You will need basic hand tools such as wrenches, screwdrivers, hose clamps, a drill (if mounting the pump), and safety equipment like gloves and safety glasses.
The pump should be mounted as close to the fuel tank as possible, below the fuel level, to ensure consistent fuel supply and prevent cavitation. Avoid mounting it in areas exposed to extreme heat.
Use compatible fuel lines (preferably high-pressure rubber or nylon) and secure them with hose clamps. Ensure all connections are tight and leak-free. The pump’s inlet and outlet ports are clearly marked for proper installation.
