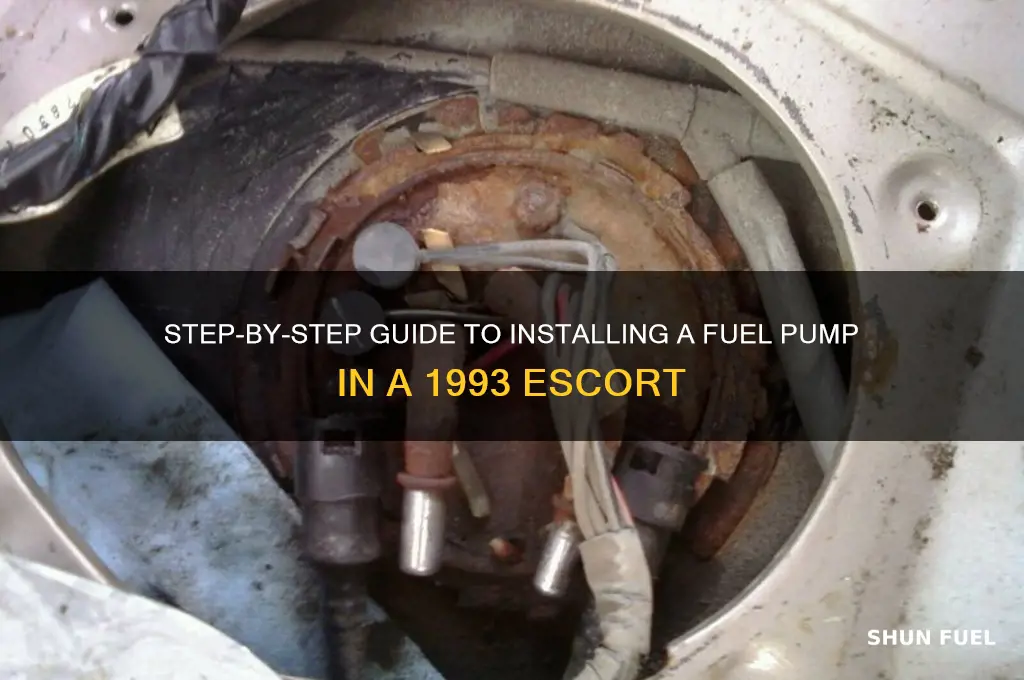

Ameer Randolph
Installing a fuel pump in a 1993 Ford Escort requires careful preparation and attention to detail. Begin by ensuring the vehicle is on a level surface, the ignition is off, and the fuel system is depressurized to prevent accidents. Disconnect the negative battery terminal to avoid electrical hazards. Locate the fuel tank, typically beneath the rear seat, and remove the access panel to expose the pump assembly. Disconnect the electrical connector and fuel lines, taking note of their positions for reassembly. Remove the retaining ring or bolts securing the pump module, then carefully lower it out of the tank. Install the new fuel pump, ensuring all components are properly aligned and secured, and reattach the fuel lines and electrical connector. Finally, reassemble the access panel, reconnect the battery, and test the system for leaks and proper operation. Always refer to the vehicle’s manual for model-specific instructions.
| Characteristics | Values |
|---|---|
| Vehicle Model | 1993 Ford Escort |
| Fuel Pump Type | In-tank electric fuel pump |
| Tools Required | Jack, Jack Stands, Wrench Set, Screwdrivers, Pliers, New Fuel Pump, Fuel Line Disconnect Tool, Safety Gloves, Safety Goggles |
| Preparation | Relieve fuel system pressure, disconnect battery, raise vehicle, support on jack stands |
| Fuel Tank Access | Remove rear seat or trunk lining to access fuel pump module |
| Fuel Pump Removal | Disconnect electrical connector, remove fuel lines using disconnect tool, unbolt and remove old fuel pump |
| Fuel Pump Installation | Install new fuel pump, reconnect fuel lines, reattach electrical connector, secure with bolts |
| Post-Installation | Lower vehicle, reconnect battery, check for leaks, test fuel pump operation |
| Safety Precautions | Work in well-ventilated area, avoid sparks or open flames, wear safety gear |
| Estimated Time | 2-4 hours depending on experience |
| Difficulty Level | Moderate |
| Additional Tips | Replace fuel filter if necessary, ensure proper sealing of fuel lines |
Explore related products
What You'll Learn
- Gather Tools and Materials: Socket set, wrenches, screwdriver, fuel pump, gloves, safety goggles, fuel line disconnect tool
- Relieve Fuel System Pressure: Locate Schrader valve, attach gauge, release pressure safely before proceeding with pump removal
- Access Fuel Pump Assembly: Remove rear seat, lift carpet, disconnect battery, unbolt fuel pump access plate
- Remove Old Fuel Pump: Disconnect electrical connectors, fuel lines, lower pump, clean tank opening thoroughly
- Install New Fuel Pump: Attach lines, secure electrical connections, lower pump into tank, reinstall access plate, test
Gather Tools and Materials: Socket set, wrenches, screwdriver, fuel pump, gloves, safety goggles, fuel line disconnect tool
Before diving into the intricate process of replacing a fuel pump in a 1993 Ford Escort, it’s critical to assemble the right tools and materials. A socket set, for instance, is indispensable for removing bolts and fasteners securely, ensuring you don’t strip threads or damage components. Pair this with a variety of wrenches to handle different sizes and types of nuts, particularly those securing the fuel tank or lines. A screwdriver, preferably a flathead and Phillips, will be essential for prying clips or removing panels that obstruct access to the fuel pump.
The fuel pump itself is the centerpiece of this operation, and selecting the correct replacement is paramount. Ensure compatibility with your 1993 Escort’s make and model, as aftermarket parts may vary in fit and performance. Gloves and safety goggles are non-negotiable, protecting your skin from fuel exposure and your eyes from debris or accidental splashes. Fuel is highly flammable and toxic, so these precautions are not just recommendations—they’re necessities.
One often overlooked tool is the fuel line disconnect tool, which simplifies the process of detaching the fuel lines without damaging them. This tool is specifically designed to release the spring-loaded clips that secure the lines to the pump, reducing the risk of leaks or spills. Without it, you may struggle to disconnect the lines cleanly, potentially leading to costly repairs or safety hazards.
Finally, consider the workspace itself. Lay out your tools and materials in an organized manner to streamline the process. Keep a clean rag or absorbent material nearby to wipe up any fuel spills immediately. By meticulously gathering and preparing these items, you’ll not only ensure a smoother installation but also minimize the risk of errors or accidents. This step, though seemingly mundane, is the foundation of a successful fuel pump replacement.
Accessing and Replacing the Fuel Pump in a 2007 BMW 328xi
You may want to see also
Explore related products
Relieve Fuel System Pressure: Locate Schrader valve, attach gauge, release pressure safely before proceeding with pump removal
Before attempting to replace the fuel pump in a 1993 Ford Escort, it's crucial to relieve the fuel system pressure to prevent accidents and ensure a safe working environment. This step is often overlooked but is essential for both your safety and the success of the repair. The fuel system in a vehicle operates under high pressure, and releasing this pressure is a critical safety measure.
Locating the Schrader Valve: A Hidden Gem
The Schrader valve, often resembling a tire valve stem, is your gateway to relieving fuel system pressure. In a 1993 Escort, this valve is typically located on the fuel rail, which is connected to the engine. To find it, follow the fuel lines from the fuel tank to the engine compartment. The valve is usually near the injectors, protected by a small cap. Remove the cap carefully to avoid losing it, as it helps keep debris out of the valve.
Attaching the Gauge: Precision Matters
Once the Schrader valve is exposed, attach a fuel pressure gauge to it. Ensure the gauge is compatible with your vehicle’s fuel system pressure range, typically between 30 and 60 PSI for most fuel-injected engines. Tighten the gauge securely to prevent leaks. If you don’t have a gauge, a fuel pressure tester kit can be rented or purchased from auto parts stores. This step is not just procedural—it allows you to verify that pressure is fully relieved before proceeding.
Releasing Pressure Safely: A Deliberate Process
With the gauge attached, locate the fuel pump relay in the fuse box and remove it. Start the engine and let it run until it stalls. This process depletes the residual pressure in the system. Monitor the gauge to confirm the pressure drops to zero. If the gauge isn’t available, wait at least 10 minutes after the engine stalls to ensure the pressure has dissipated. Always work in a well-ventilated area and avoid open flames or sparks, as fuel vapors are highly flammable.
Final Checks: Better Safe Than Sorry
Before removing the fuel pump, double-check that the pressure is fully relieved. Attempting to disconnect fuel lines or remove the pump under pressure can result in fuel spraying, which poses a fire hazard and can cause injury. If you’re unsure, repeat the process of running the engine until it stalls. Once confirmed, proceed with the pump removal, knowing you’ve taken the necessary precautions to protect yourself and your vehicle.
Step-by-Step Guide to Disconnecting GM Fuel Pump Wiring Harness Safely
You may want to see also
Explore related products
Access Fuel Pump Assembly: Remove rear seat, lift carpet, disconnect battery, unbolt fuel pump access plate
Accessing the fuel pump assembly in a 1993 Ford Escort requires precision and safety precautions. Begin by removing the rear seat, a straightforward process involving the release of retaining clips or bolts, depending on the model. This step exposes the carpeted area above the fuel tank, which must be lifted carefully to avoid damaging the underlayment. Beneath the carpet lies the fuel pump access plate, a critical gateway to the assembly. Before proceeding, disconnect the battery to eliminate any risk of electrical sparks, a crucial safety measure when working near fuel systems.
The fuel pump access plate is typically secured by a series of bolts or screws, which require a standard socket or screwdriver set for removal. Ensure you have the correct tools to avoid stripping fasteners, as this can complicate reassembly. Once the plate is unbolted, set it aside in a clean area to prevent debris from entering the fuel tank. This step reveals the fuel pump assembly, which may include the pump, sending unit, and associated wiring. Take note of the assembly’s orientation and connections for easier reinstallation.
Comparatively, accessing the fuel pump in older vehicles like the 1993 Escort is less complex than in modern cars, which often require tank removal. However, the process still demands attention to detail. For instance, when lifting the carpet, inspect it for wear or fuel stains, which could indicate a leak. Addressing such issues before proceeding ensures the repair is comprehensive. Additionally, while the battery is disconnected, use this opportunity to inspect its terminals for corrosion, a common issue in vehicles of this age.
A practical tip for this stage is to work with a helper, as maneuvering the rear seat and carpet can be awkward alone. Ensure the workspace is well-lit, as the fuel pump access area is often dim. Keep a fire extinguisher nearby as a precautionary measure, though the risk is minimal with the battery disconnected. By following these steps methodically, you’ll gain safe and efficient access to the fuel pump assembly, setting the stage for successful replacement or repair.
Troubleshooting Audi Fuel Pump: Steps to Get It Running Smoothly
You may want to see also
Explore related products
$145.31 $169.95
Remove Old Fuel Pump: Disconnect electrical connectors, fuel lines, lower pump, clean tank opening thoroughly
Before installing a new fuel pump in your 1993 Ford Escort, you must first remove the old one. This process involves several critical steps to ensure safety and efficiency. Begin by disconnecting the electrical connectors attached to the fuel pump. These connectors are typically secured with clips or screws, so use the appropriate tool to detach them carefully. Avoid pulling on the wires directly to prevent damage. Once disconnected, secure the wiring harness out of the way to keep it from interfering with the next steps.
Next, address the fuel lines connected to the pump. Depending on your Escort’s setup, you may have one or two lines: an inlet and an outlet. Use a fuel line disconnect tool to release the lines without causing leaks or damage. If the lines are stubborn, apply a small amount of penetrating oil and allow it to sit for 5–10 minutes before attempting again. After disconnection, plug or clamp the lines to prevent fuel spillage and minimize fumes. Always work in a well-ventilated area and avoid open flames or sparks.
With the electrical and fuel connections removed, lower the fuel pump assembly from the tank. This step often requires a specialized tool, such as a fuel pump module removal tool, to avoid damaging the tank or pump. Gently twist and pull the assembly downward, being mindful of any resistance. If the pump is stuck, inspect for debris or corrosion around the tank opening and address it before proceeding. Once removed, place the old pump aside for disposal or recycling, following local regulations.
Cleaning the tank opening is a crucial yet often overlooked step. Use a clean, lint-free cloth or a soft-bristle brush to remove dirt, rust, or debris from the opening. For stubborn residue, apply a small amount of carburetor cleaner or a non-corrosive solvent, ensuring it’s compatible with your tank material. Allow the area to dry completely before proceeding. A clean tank opening ensures a proper seal for the new pump, preventing leaks and potential fuel system issues down the line.
By systematically disconnecting the electrical connectors, fuel lines, lowering the pump, and cleaning the tank opening, you prepare the foundation for a successful fuel pump installation. Each step, though seemingly minor, plays a vital role in maintaining the integrity of your Escort’s fuel system. Taking the time to perform these tasks meticulously will save you from potential headaches and ensure your vehicle runs smoothly after the repair.
Dodge Ramcharger Fuel Pump Installation Guide: 1989 Model Hookup Tips
You may want to see also
Explore related products
Install New Fuel Pump: Attach lines, secure electrical connections, lower pump into tank, reinstall access plate, test
Installing a new fuel pump in a 1993 Ford Escort requires precision and attention to detail to ensure safety and functionality. Begin by attaching the fuel lines to the new pump, ensuring the connections are tight and aligned correctly. Use a wrench to secure the fittings, but avoid over-tightening to prevent damage. The fuel lines are typically color-coded or labeled, so match them to the corresponding ports on the pump to avoid cross-contamination or leaks. A small amount of thread sealant can be applied to the threads for added security, but use it sparingly to prevent clogging.
Next, secure the electrical connections to the fuel pump. The wiring harness should snap into place with a firm click, indicating a proper connection. Double-check that the ground wire is securely attached to the vehicle’s chassis to prevent electrical issues. If the harness feels loose or doesn’t click into place, inspect the connector for damage or debris. Faulty electrical connections can cause the pump to fail prematurely, so this step is critical. Once connected, wrap the wiring harness with electrical tape or a protective sleeve to shield it from fuel and debris inside the tank.
With the lines and electrical connections secured, carefully lower the fuel pump into the tank. Use a funnel or guide tool to prevent the pump from snagging on the tank’s opening. Ensure the pump is oriented correctly, as improper alignment can damage the internal components. Once the pump is in place, reattach the locking ring or mechanism that holds it in position. This step often requires a specialized tool, such as a fuel pump locking ring tool, to tighten the ring evenly and securely.
Reinstall the access plate that covers the fuel pump assembly, using the original screws or bolts. Tighten them in a crisscross pattern to ensure even pressure and prevent warping. If the access plate has a gasket, inspect it for damage and replace it if necessary to maintain a proper seal. A compromised gasket can allow fuel vapors to escape, posing a safety hazard and triggering check engine lights.
Finally, test the new fuel pump to ensure it operates correctly. Start the vehicle and listen for the pump’s priming cycle, which should last 2-3 seconds. Check for leaks around the fuel lines and access plate, both visually and by smelling for fuel odors. Take the vehicle for a short drive to verify that the fuel gauge reads accurately and the engine runs smoothly under load. If any issues arise, recheck the connections and ensure the pump is seated properly before further use.
Paying with Cash at Fuel Pumps: A Step-by-Step Guide to Filling Gas
You may want to see also
Frequently asked questions
You’ll need a fuel line disconnect tool, wrench or socket set, screwdriver, safety goggles, gloves, and a new fuel pump assembly.
Yes, relieve fuel pressure by removing the fuel pump fuse and running the engine until it stalls to avoid fuel spray during installation.
The fuel pump is located inside the fuel tank, which requires dropping the tank for access.
Use a fuel line disconnect tool to release the lines from the pump, being careful not to damage the lines or spill fuel.
Ensure the pump is securely mounted, all electrical connections are tight, and the fuel lines are correctly attached before reinstalling the fuel tank.
