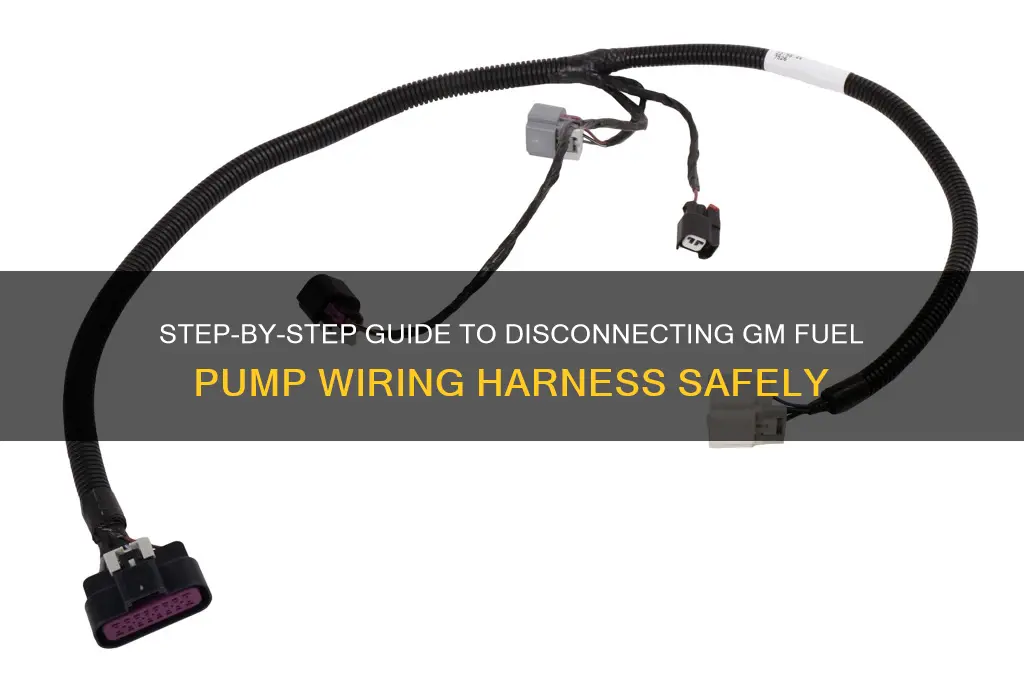

Disconnecting the GM fuel pump wiring harness requires careful attention to detail to avoid damage or safety hazards. Begin by locating the fuel pump module, typically situated on top of the fuel tank. Ensure the vehicle is turned off and the battery is disconnected to prevent electrical mishaps. Identify the wiring harness connector, which is usually a multi-pin plug secured with a locking tab or clip. Gently release the locking mechanism by pressing or sliding it, then pull the connector apart. Inspect the harness for any signs of wear or corrosion, and take note of the wiring configuration for reassembly. If the connector is difficult to separate, avoid forcing it; instead, verify that all retaining mechanisms are disengaged. Once disconnected, secure the harness to prevent accidental contact with other components. Always refer to the vehicle’s service manual for specific instructions related to your GM model.
| Characteristics | Values |
|---|---|
| Location of Wiring Harness | Typically located near the fuel tank, often accessible from underneath the vehicle. |
| Tools Required | Flathead screwdriver, pliers, or a specialized harness release tool. |
| Release Mechanism | Most GM fuel pump harnesses have a locking tab or clip that needs to be depressed or pried. |
| Steps to Disconnect | 1. Locate the harness connector near the fuel tank. 2. Identify the release tab/clip. 3. Press or pry the tab while pulling the harness apart. |
| Safety Precautions | Ensure the vehicle is turned off and the fuel system is depressurized to avoid accidents. |
| Common Models Affected | Chevrolet, GMC, Buick, Cadillac vehicles with GM fuel pump systems. |
| Difficulty Level | Moderate; requires some mechanical knowledge and careful handling. |
| Additional Tips | Use a flashlight for better visibility; avoid forcing the connector to prevent damage. |
| Reinstallation Notes | Ensure the harness clicks securely back into place to maintain proper connection. |
Explore related products
What You'll Learn
Locate the fuel pump wiring harness connector near the fuel tank
The fuel pump wiring harness connector is typically located near the fuel tank, a strategic placement designed to minimize voltage drop and ensure reliable power delivery. This proximity reduces the length of wiring needed, thereby decreasing resistance and potential points of failure. Understanding this design principle is crucial when attempting to disconnect the harness, as it informs both the location and the care required during the process.
To locate the connector, start by identifying the fuel tank’s position in your GM vehicle, usually beneath the rear seat or trunk area. The wiring harness connector is often found along the top or side of the tank, secured by a clip or bracket to prevent movement and damage. In some models, it may be encased in a protective sleeve or shroud, which must be carefully removed to access the connector. A flashlight and a basic understanding of your vehicle’s undercarriage layout will significantly aid this step.
Once the general area is identified, trace the wiring harness from the fuel pump to the connector. This visual inspection can reveal any signs of wear, corrosion, or damage that might complicate the disconnection process. If the connector is difficult to locate, consult your vehicle’s service manual for a diagram or specific instructions. GM vehicles often have consistent placement across models, but variations exist, particularly in older or specialty vehicles.
Disconnecting the harness requires a methodical approach. First, ensure the vehicle is turned off and the battery is disconnected to prevent electrical hazards. Gently release the retaining clip or tab securing the connector—this is typically done by pressing or lifting a small mechanism. Avoid pulling directly on the wires, as this can damage the harness. Once the connector is free, inspect both ends for debris or corrosion, and clean them if necessary to ensure a reliable reconnection later.
In summary, locating the fuel pump wiring harness connector near the fuel tank involves understanding its purpose, systematically tracing the harness, and employing careful techniques to avoid damage. This process, while straightforward, demands attention to detail and respect for the vehicle’s electrical system. By following these steps, you can safely disconnect the harness for maintenance or repair without compromising the integrity of the fuel delivery system.
