Regan Brown

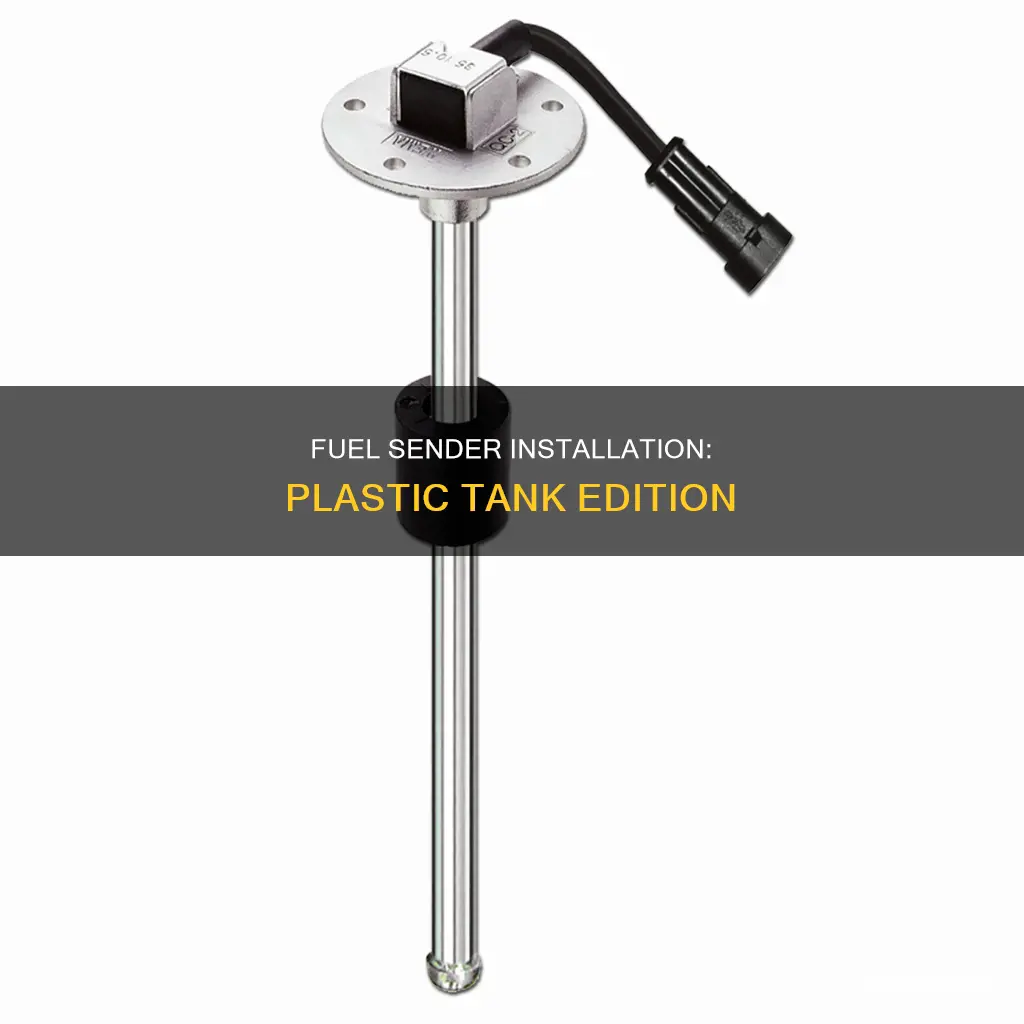

Fuel senders are devices that measure the level of fuel in a boat's tank and send this information to the fuel gauge on the dashboard, enabling boaters to monitor fuel levels accurately. They are essential for optimal fuel management and to prevent running out of fuel in the middle of a voyage. Fuel senders work by creating resistance to measure fuel levels accurately. There is an arm connected to a float, which is connected to a moveable contact on a resistor. As the arm moves, the value of the resistor changes, resulting in a change in the amount of current in the circuit. While fuel senders are commonly used, some boat owners have opted for fuel flow meters, which are placed in line with the fuel line and networked into a graph, providing real-time data on fuel usage.
| Characteristics | Values |
|---|---|
| Purpose of a fuel sender | To measure the level of fuel in a boat's tank and send this information to the fuel gauge on the dashboard |
| When to replace a fuel sender | Inaccurate fuel readings, a non-functional fuel gauge, or fluctuating fuel levels that don't match the actual amount in the tank |
| Fuel sender installation | Some have successfully installed an electric sender unit into a plastic tank, but others have found it dangerous. It is recommended to use a below-deck tank with a fuel sender fitting installed above the deck |
| Fuel sender installation considerations | Tank depth, electrical connections, and calibration |
| Fuel sender functionality | Fuel senders have an arm connected to a float that moves a resistor, changing the resistance and current in the circuit. The circuit starts at the fuel gauge and a wire goes to the sender |
| Alternative to fuel sender | Fuel flow meter, which is placed in line with the fuel line and networked into a graph |
Explore related products
What You'll Learn
Electric sender unit installation
Installing an electric sender unit into a plastic boat fuel tank is possible, but it can be dangerous. The fuel sender flange has a rubber gasket under it, and there are a number of machine screws (not sheet metal screws) that thread into hex nuts embedded in below-deck tanks. Since these cannot be installed on a portable tank, the only way to secure the sender is with sheet metal screws, which may not create a tight enough seal.
If you still want to go ahead with the installation, you can follow these steps:
Firstly, ensure that there is enough clearance around the tank for proper movement or flexing without damaging the fuel sender. This is a key consideration when installing a fuel sender unit.
Next, verify the integrity of the electrical connections. As float senders work by creating resistance to measure fuel levels accurately, this step is crucial.
Then, calibrate the sensor according to the tank's specific volume and shape. Proper calibration is essential to guarantee precise readings and optimal performance.
Finally, you can secure the sender unit with sheet metal screws. However, as mentioned earlier, this may not create a tight enough seal, so proceed with caution.
It is recommended to opt for an under-deck tank unit with jack nuts or thin nuts installed using normal hand tools, as this is a safer alternative.
Safe Disposal of Gasoline Fuel Tanks: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel sensor installation
Fuel senders are devices that measure the level of fuel in a boat's tank and send this information to the fuel gauge on the dashboard. They are important for accurate fuel monitoring and management.
Before installing a fuel sensor, it is important to consider a few key factors:
- Tank depth: Ensure there is enough clearance around the tank for proper movement without damaging the fuel sender.
- Electrical connections: Verify the integrity of electrical connections, as float senders work by creating resistance to measure fuel levels accurately.
- Calibration: Proper calibration is essential for optimal performance. The sensor should be calibrated according to the tank's specific volume and shape to ensure precise readings.
When installing a fuel sender, it is crucial to follow the correct procedure. Here is a step-by-step guide on how to install a fuel sender in a plastic boat fuel tank:
- Choose the appropriate fuel sender for your boat: Fuel senders come in different types and sizes, so it is important to select one that is compatible with your boat's tank configuration.
- Prepare the fuel tank: Before installing the fuel sender, make sure the tank is clean and free of any debris. It is also important to ensure that the tank is properly grounded, especially if it is a metal fuel tank.
- Install the fuel sender: Follow the manufacturer's instructions for installing the fuel sender in the fuel tank. This may involve securing the sender with screws or nuts. For example, you can use jack nuts or thin nuts, which can be installed using normal hand tools. Ensure that the fuel sender is securely attached to the tank and that all connections are tight.
- Connect the wiring: The fuel sender will have wires that need to be connected properly. Typically, there is a black wire that connects to a lug on the tank and a green or yellow wire that is the sender wire. These wires should be connected to the fuel gauge, completing the circuit for a proper gauge reading. Ensure that the sender and gauge are matched and working properly.
- Test the fuel sender: Once the installation is complete, test the fuel sender to ensure it is functioning correctly. Check the fuel gauge to see if it accurately reflects the fuel level in the tank.
It is important to note that fuel senders can be dangerous, and it is recommended to seek expert guidance when navigating the complexities of marine fuel systems. Additionally, some people opt to use a fuel flow meter instead of a fuel sender, as it can provide more accurate fuel usage data.
Draining Fuel Tanks: A Step-by-Step Guide for Crestliner Owners
You may want to see also
Explore related products
Fuel sender calibration
Fuel senders are important pieces of equipment that allow you to monitor the fuel level in your tank and help you know when to refuel. When it comes to fuel sender calibration, there are several factors and considerations to keep in mind to ensure accurate readings.
Firstly, it is crucial to determine the shape and volume of your tank. Calibrating the fuel sender to the specific tank you have ensures accuracy in the readings. Tanks come in various shapes, including rectangular, square, or circular, or irregular shapes. The calibration process should account for the tank's geometry, as the level of fuel may not always be directly proportional to the volume remaining, especially in tanks with irregular shapes.
Secondly, consider the location of your fuel tank and the type of mounting required. The fuel sender can be mounted on the top or side of the tank, depending on the available space. If your tank is located below the deck, you may need to use jack nuts or thin nuts to secure the sender, as mentioned in one source.
Additionally, understanding the signal output is essential. The fuel sender in your tank should correspond with the gauge on your dashboard. Confirm whether the signal is analog or digital and determine the required resistive ohms range or signal type (voltage, milliamp, J1939, NMEA 2000, etc.). This information will help you decide if a standard or calibrated unit is needed for your tank.
Moreover, consider any unique features or requirements of your application. For instance, in a high-vibration or harsh environment, you may need to incorporate stabilizing elements such as a casing or spring. Some senders offer advanced features like triggering an alarm when the fuel level is low or having pick-up and return lines.
Finally, the calibration process itself can vary depending on the specific fuel sender and your tank setup. One user shared their experience calibrating their fuel sender by filling the tank to overflow and then recalibrating the sender to "full." They then calibrated the sender at different positions (full, 3/4, 1/2, etc.) as the tank level decreased. Another user described measuring resistance with a multimeter while moving the float to different positions and then relating each resistance reading to a specific fuel volume.
It is important to consult manufacturer guidelines, user manuals, or expert advice when calibrating your fuel sender to ensure accuracy and safety.
Repairing Fuel Tank Pressure Sensors: A Step-by-Step Guide
You may want to see also
Explore related products
Fuel sender wiring
Fuel sender units are used in boats to determine the amount of fuel in the tank. The fuel sender unit has a variable resistor that, when connected to the battery, will read the fuel level. The resistance to ground varies depending on the amount of fuel in the tank. When the tank is low, there is high resistance to ground, and the needle reads low. When the tank is full, there is low resistance to ground, and the needle reads high.
There are different types of fuel sender units, and they need to be compatible with the gauge. For instance, if you have a Moeller gauge, you will need a Moeller sender. The depth of your fuel tank will also determine the type of sender unit you need.
When wiring a fuel sender unit, there are typically three terminals on the back of the gauge. These are labelled B, +, or I for power. The key switch sends 12V to the terminal for power for the gauge. G is for ground, and this ties into any good ground. The last wire goes on the S terminal, which is for the sender. The sending unit or the tank it connects to must ground back to the battery for the sender to work.
It is important to note that the fuel sender flange has a rubber gasket under it. There are a number of machine screws (not sheet metal screws) that thread into hex nuts embedded in below-deck tanks. These are not possible to install on a portable tank. Therefore, the only way to secure the sender is with sheet metal screws, but they may not create a tight enough seal.
Some fuel tanks have three wires, while others have two. The two wires are likely to be a ground for sender signal and a ground for sender electrolysis equalization. The third wire, if present, may be for grounding the tank to prevent static electric sparks.
It is important to regularly rinse the fuel tanks and check for leaks, as fuel sender units can be prone to malfunction if not properly maintained.
Fabricating Fuel Tanks: A Comprehensive Guide
You may want to see also
Explore related products
Fuel sender safety
Accuracy of Fuel Readings: Inaccurate fuel readings can lead to potential hazards. It is important to ensure that your fuel sender is providing precise information to the fuel gauge on your dashboard. Inaccurate readings may be due to a faulty fuel sender, a non-functional fuel gauge, or fluctuating fuel levels that do not match the actual amount in your tank. Regularly calibrating and testing your fuel sender can help ensure accuracy.
Fuel Sender Installation: Proper installation of the fuel sender is critical for safety. If you are inexperienced with boat repair, it is advisable to seek professional assistance from a marine repair facility or boat dealership service department. They can guide you in selecting the appropriate fuel sender for your boat's fuel system and ensure a smooth and reliable installation process.
Maintenance and Troubleshooting: Familiarise yourself with the basic troubleshooting techniques for your fuel sender. This includes understanding the different types of connections (two or three-wire connections) and knowing how to test the sender wire with an ohmmeter or multimeter. Regular maintenance can help identify issues early on and prevent unexpected failures.
Fuel Tank Considerations: When installing a fuel sender, ensure there is sufficient clearance around the tank to allow for proper movement or flexing without damaging the fuel sender. Verify the integrity of electrical connections, especially if you have float senders, as they rely on creating resistance to measure fuel levels accurately.
Backup Systems: Consider investing in a fuel sender with a backup system or a fail-safe design. For example, some mechanical senders have a visual gauge or a conversion capsule that allows you to read the fuel level even if the electric gauge fails. This redundancy can provide peace of mind and ensure you have access to fuel level information at all times.
By following these guidelines and staying vigilant about fuel sender safety, you can help ensure a safer and more enjoyable boating experience.
Draining the Bandit Fuel Tank: A Step-by-Step Guide
You may want to see also
Frequently asked questions
A fuel sending unit is a device that measures the level of fuel in a boat's tank and sends this information to the fuel gauge on the dashboard.
Inaccurate fuel readings, a non-functional fuel gauge, or fluctuating fuel levels that don't match the actual amount in your tank are all signs that your fuel sending unit needs to be replaced.
Yes, it is possible to install a fuel sending unit yourself, especially if you have some mechanical experience. However, navigating marine fuel systems can be tricky, and expert guidance is available to help select the right unit for your boat.
Tank depth, electrical connections, and calibration are important factors to consider. Ensure there is enough clearance around the tank, verify the integrity of electrical connections, and calibrate the sensor according to the tank's specific volume and shape.
Yes, some boaters use a fuel flow meter instead of a fuel sending unit. It is placed in line with the fuel line and networked into your graph, providing accurate data on fuel usage rate. However, fuel flow meters can be expensive.
