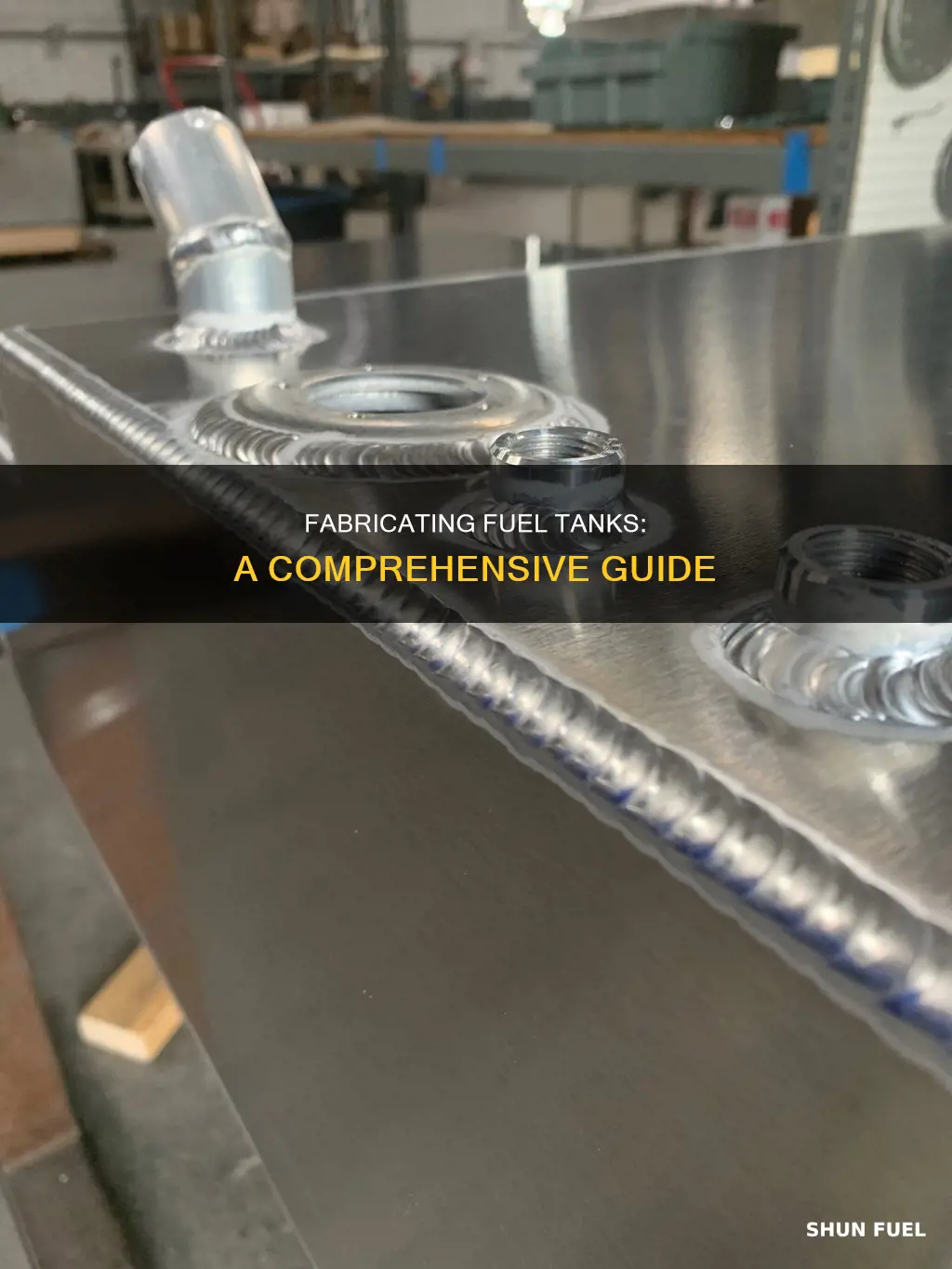

Building a custom fuel tank can be a challenging but rewarding endeavour. While it is easier to purchase a pre-made tank, there are instances where a custom solution is required, such as for vintage car projects. The process involves taking precise measurements, selecting suitable materials, and carefully fabricating and welding the tank to ensure it is safe and functional. Aluminium is a popular choice due to its lightweight and corrosion-resistant properties, but welding it can be difficult. Safety is a key concern, especially when dealing with flammable substances, and pressure testing is crucial to ensure there are no leaks.
Explore related products
What You'll Learn
- Choose the right material for your fuel tank, like aluminium or steel
- Design the tank with the right shape and bends to reduce welding
- Ensure the tank is the right size for your vehicle and has room for fuel lines, sensors, etc
- Fabricate and fit baffles, end caps, and other components before welding
- Test for leaks and pressure to ensure the tank is safe and functional
Choose the right material for your fuel tank, like aluminium or steel
Choosing the right material for your fuel tank is a crucial step in the fabrication process. Aluminium and steel are two popular options, each with its own advantages and considerations. Here are some factors to consider when deciding between these two materials:
Durability and Corrosion Resistance:
Aluminium alloys are known for their excellent self-passivating properties. This means that when exposed to air, aluminium forms a protective oxide film that gets thicker over time, enhancing its corrosion resistance. In contrast, stainless steel can be vulnerable to corrosion due to improper welding techniques or the absence of post-weld heat treatment. However, stainless steel, such as grades 304 and 316, is more resistant to the effects of salt and can withstand corrosion for more than 20 years.
Weight and Fuel Efficiency:
Aluminium is a lightweight material, making it a favourable choice for fuel tanks. Reducing the weight of the tank can lead to better fuel efficiency, especially over long distances. Steel tanks tend to be heavier, which may impact fuel consumption.
Fabrication and Welding:
Aluminium has a higher rate of expansion and thermal conductivity compared to steel, making it more susceptible to distortion and warpage during welding. Aluminium welding requires skill and experience, as it has a lower melting point that can be suddenly reached, leading to puddling and collapse if not carefully managed. Stainless steel, on the other hand, may be more prone to cracking, especially in high-vibration environments, but it is generally easier to weld.
Cost:
Aluminium tends to have higher material costs than steel. However, steel may incur additional finishing costs for treating and sealing, which can balance out the total expense. When considering cost, it's essential to factor in the long-term benefits and potential fuel savings associated with each material.
Environmental Factors:
The environment in which the fuel tank will be used should be considered. Aluminium, when in contact with steel, can experience cathodic corrosion, especially in high-salt environments. Isolation pads made of materials like Buna-n or silicone can be used to separate aluminium from steel components, but this adds to the cost and design complexity. Stainless steel is more resistant to salt and takes a long time to show signs of corrosion, making it a suitable choice for certain environments.
In summary, both aluminium and steel have their advantages and considerations when fabricating a fuel tank. Aluminium is lightweight and corrosion-resistant but may be more challenging to weld and has higher material costs. Steel, specifically stainless steel, is generally easier to weld and is more resistant to salt, but it may be more prone to cracking and has higher finishing costs. Ultimately, the decision between aluminium and steel depends on specific requirements, environmental factors, and cost considerations.
Draining Mule Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Design the tank with the right shape and bends to reduce welding
Designing a fuel tank with the right shape and bends will help reduce welding and improve the safety of the fabrication process. The type of fuel and quality will determine the lifespan of a fuel tank, and the right choice of material is critical. Aluminum is a popular choice for fuel tanks due to its lightweight and corrosion-resistant properties. It is about 33% lighter than steel of equal strength, making it a superior choice for fuel tank construction. However, aluminum is notoriously difficult to weld, and many fabricators opt for other materials or welding techniques.
To reduce welding, one should consider the shape and bends of the fuel tank. A design with simpler geometries and fewer bends will require less welding. This can be achieved by using a computer-aided design (CAD) software to model the tank and optimize its shape. Additionally, creating a prototype out of cardboard, as suggested by a fuel tank builder, can help refine the design before cutting and welding metal. This step ensures that the final product fits the intended space and can save time and effort in the welding process.
For the welding process itself, one should consider the type of welding and the material used. MIG welding is commonly used for steel tanks as it is suited to seam runs without applying excessive heat, reducing the risk of warping. TIG welding is often used for aluminum tanks, but it requires a high level of skill. Automated orbital welding is another option that can reduce labor, improve quality, and minimize material waste. This process is especially advantageous for long-seam, high-volume welds commonly found in fuel tank construction.
To further reduce welding, one can opt for a modular design. This involves fabricating smaller, standardized sections of the fuel tank that can be easily assembled. This approach not only reduces the amount of welding required but also simplifies the fabrication process, making it more accessible to novice builders. It is important to note that fuel tank fabrication, especially with certain materials, requires a high level of skill and safety precautions to avoid disasters.
In conclusion, reducing welding during fuel tank fabrication can be achieved through thoughtful design, prototyping, and the selection of appropriate welding techniques. By considering the shape, bends, and materials used, one can minimize the amount of welding required, improve safety, and streamline the fabrication process. It is essential to prioritize safety and follow relevant standards, such as those set by the American Petroleum Institute (API) and the National Association of Corrosion Engineers (NACE), to ensure a successful and secure fuel tank construction project.
Draining the Ram 3500 Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Ensure the tank is the right size for your vehicle and has room for fuel lines, sensors, etc
When fabricating a fuel tank, it is crucial to ensure that it is the appropriate size for your vehicle and allows sufficient space for fuel lines, sensors, and other essential components. Here are some detailed instructions to achieve this:
Firstly, understand the average fuel tank size and capacity for your specific vehicle. The fuel tank size can vary depending on the type and model of your car. For instance, sedans typically have a fuel tank capacity ranging from 12 to 16 gallons, while larger vehicles like trucks and SUVs usually have larger fuel tanks to accommodate their higher fuel consumption.
Next, consider the available space in your vehicle for the fuel tank. This includes taking into account the area where the tank will be mounted, ensuring it does not occupy too much cargo space. Measure the designated space accurately, considering the height, width, and length available for the fuel tank.
Now, design your fuel tank on paper, incorporating the measurements from the previous step. At this stage, it is essential to consider the placement of fuel lines, sensors, and other necessary components. Mark out the approximate locations of these elements on your design, ensuring they will have sufficient space and will not interfere with each other.
Once you have your design, create a prototype using cardboard. Cardboard is an excellent material for prototyping as it is easy to work with and can be taped together to form your fuel tank shape. Be sure to represent the actual pieces you will cut out of the sheet metal in your cardboard prototype. Test-fit the cardboard model into your vehicle to ensure it fits correctly and allows space for the necessary components.
After confirming the cardboard prototype fits, you can proceed with fabricating your fuel tank using the chosen material, such as aluminum or steel. Ensure the final tank is securely mounted in your vehicle, following the organization's rules for fuel tank mounting if the vehicle is used in sanctioned events.
By following these steps, you can ensure that your fabricated fuel tank is the right size for your vehicle and has adequate space for fuel lines, sensors, and other essential components.
Draining a 2001 Chevrolet Metro Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Fabricate and fit baffles, end caps, and other components before welding
When fabricating a fuel tank, it is important to fabricate and fit the baffles, end caps, and other components before welding. This process requires careful measurement and planning to ensure a tight fit and secure welds.
Firstly, the baffles, which are essential for controlling the flow of fuel and preventing sloshing, need to be fabricated and fitted. This involves making holes in the baffles using tools such as Mittler Bros. Punch and Flare dies in an H-frame press, as well as forming flanges on the edges using a sheet metal brake. Beads can also be rolled onto the sides of the baffles to reinforce the tank and reduce the chance of distortion during welding.
Next, the end caps need to be prepared. The end caps are cut to size, and their edges are curled to ensure a precise fit. It is crucial that the end caps fit snugly before welding, as this will result in a stronger weld. The end caps are then carefully tack-welded into place, creating a secure seal.
Additionally, other components such as fuel pick-ups, vents, fuel fillers, mounting straps, fuel level sensors, and fuel lines should be considered. These components need to be properly positioned and fitted before welding to ensure the fuel tank functions correctly.
It is worth noting that fabricating a fuel tank can be a challenging task, especially when working with materials like aluminum, which is lightweight and resistant to corrosion but difficult to weld. If you are unsure about your welding abilities, it may be advisable to consult a professional welder or seek assistance from experienced craftsmen.
Fuel Tank Leak Diagnosis: Quick and Easy DIY Guide
You may want to see also
Explore related products
Test for leaks and pressure to ensure the tank is safe and functional
Testing for leaks and pressure is an essential step in ensuring the safety and functionality of your fabricated fuel tank. Here are some detailed instructions to guide you through the process:
Firstly, it is important to seal off all openings in the fuel tank to prevent air escape. This can be done using hose pinch pliers to close off hoses, and an inflatable pipe plug can be used to block off pipes. Ensure that all openings, including the vent and fill hose, are securely closed.
Next, you will need to introduce compressed air into the tank. It is recommended to use a pressure testing tool and attach a hose clamp to the hose barb. You can then start pumping air into the tank. It is important to ensure that the pressure does not exceed 5 psi, especially for older tanks, to avoid any potential hazards.
To detect leaks, you can use a simple solution of soap and water. Apply this solution to the welds, fittings, and the fuel sender. If there are any leaks, air bubbles will form in the soapy water. This method is effective in identifying even small pinholes that may cause leaks. You can also use a pressure gauge to monitor the pressure level over time. If the pressure drops significantly, it indicates a leak or pressure issue.
Additionally, some advanced methods for leak detection include using tracer gases such as helium or hydrogen, which can identify holes much smaller than what can be detected with soapy water or pressure decay.
By conducting these tests, you can ensure that your fabricated fuel tank is safe and functional. It is important to regularly perform pressure testing, especially for older vehicles or those with high mileage, to maintain the integrity of the fuel system and avoid potential issues such as increased fuel consumption and engine performance problems.
Remember to always prioritise safety and, if in doubt, consult a qualified mechanic or a specialist testing service to perform the pressure and leak tests for your fuel tank.
Draining the Fuel Tank of a 996 Carrera: Step-by-Step Guide
You may want to see also
Frequently asked questions
Aluminum is a popular choice due to its lightweight and corrosion-resistant properties. However, aluminum is challenging to weld. Steel is another option, but it requires treatment to prevent corrosion. Poly tanks are the safest option, but they take up more space.
First, take measurements of the space where the fuel tank will be placed, ensuring that you account for fuel pickups, vents, fuel filler, and other components. Then, create a blueprint with the height, width, and length of the tank, as well as the location of the filler neck, vent, and other features. You can use cardboard to make a mockup of the tank and test its fit. Once you have the design, cut and bend the metal to form the tank, ensuring tight seams for welding. Weld the tank together, pressure test it for leaks, and install it securely, following any relevant rules and regulations.
Ensure that the edges of the tank line up perfectly before welding. Use tack welds and a hammer and dolly to perfect the alignment, then weld the seams. Fabricate and fit the baffles before installing the end caps. Use a beading machine to curl the edges of the tank and end caps, and tack-weld the end caps into place.
The fuel pump is typically located at the bottom of the tank, with angled blocks guiding the fuel towards it. Include a gas relief valve connected to open air to avoid negative pressure buildup, which can prevent the engine from accessing all the fuel. A liquid meter can also be added to monitor the fuel level.
