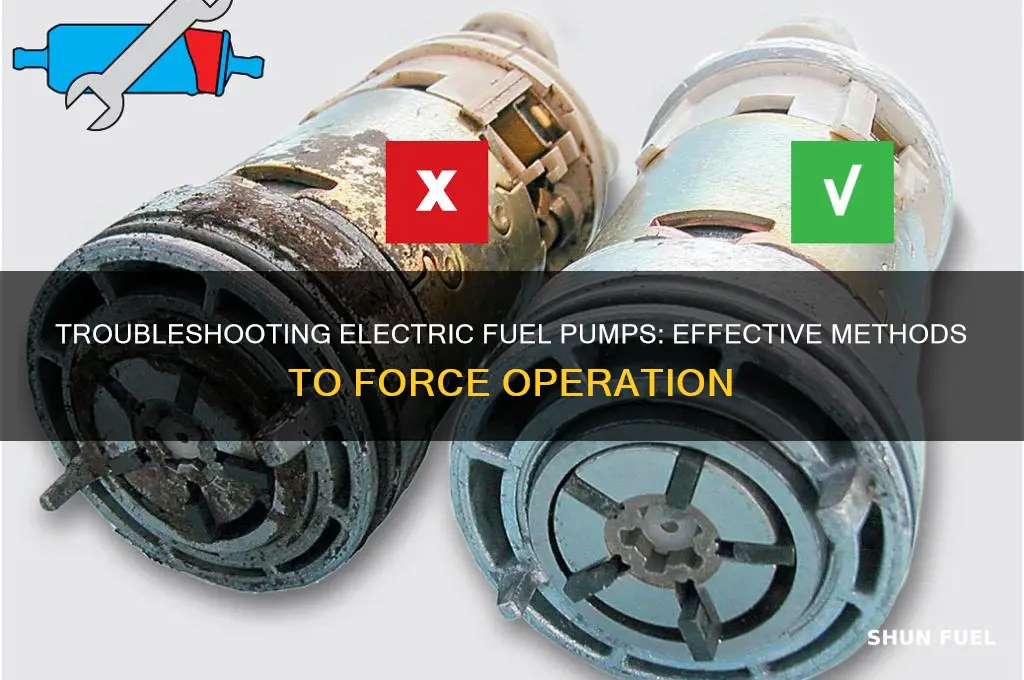

Forcing an electric fuel pump to work can be a critical task in troubleshooting a vehicle’s fuel system, especially when diagnosing issues like a no-start condition or poor engine performance. This process typically involves bypassing the pump’s relay or fuse, applying direct power to the pump, or using a test light or multimeter to verify voltage and ground connections. However, it’s essential to approach this method with caution, as improper handling can lead to electrical damage, fuel system issues, or safety hazards. Always ensure the ignition is off, the fuel lines are depressurized, and the battery is disconnected before attempting any repairs. Consulting a professional or referring to the vehicle’s manual is highly recommended to avoid complications.
| Characteristics | Values |
|---|---|
| Power Supply Check | Ensure the pump is receiving 12V power. Use a multimeter to test the voltage at the pump. |
| Ground Connection | Verify the pump has a solid ground connection. Clean corrosion from terminals if necessary. |
| Relay Testing | Test the fuel pump relay for proper operation. Swap with a known good relay if faulty. |
| Fuse Inspection | Check the fuel pump fuse for continuity. Replace if blown. |
| Manual Activation | Directly apply 12V power to the pump terminals to bypass the relay and test functionality. |
| Fuel Pressure Regulator | Ensure the regulator is not restricting fuel flow, causing the pump to work harder. |
| Fuel Filter Clogging | Replace a clogged fuel filter to reduce strain on the pump. |
| Pump Resistance | Measure pump resistance (typically 1-4 ohms). Replace if out of spec. |
| In-Tank Access | Access the pump by removing the fuel tank or using an access panel for inspection/testing. |
| Safety Precautions | Work in a well-ventilated area, disconnect the battery, and avoid sparks near fuel vapors. |
| Diagnostic Tools | Use a fuel pressure gauge and multimeter for accurate diagnosis. |
| Pump Replacement | If all else fails, replace the electric fuel pump with a compatible unit. |
Explore related products
What You'll Learn
- Check Power Supply: Ensure the pump is receiving adequate voltage and ground connection
- Inspect Fuel Pump Relay: Test and replace the relay if faulty or damaged
- Verify Fuel Pump Fuse: Check for blown fuses and replace with correct amperage
- Test Pump Directly: Bypass wiring to confirm if the pump functions independently
- Clean Fuel Filter: Remove clogs in the filter to allow proper fuel flow
Check Power Supply: Ensure the pump is receiving adequate voltage and ground connection
A faulty power supply is a common culprit behind an electric fuel pump's failure to operate. Before assuming the pump itself is defective, it's crucial to verify that it's receiving the necessary electrical input. This involves checking both the voltage supply and the integrity of the ground connection.
Voltage drop tests are a reliable method to assess the electrical circuit's health. Using a digital multimeter, measure the voltage at the pump's connector while the ignition is on. Compare this reading to the battery voltage. A significant discrepancy indicates a voltage drop, suggesting a problem with the wiring or connections. For instance, a reading of 10.5 volts at the pump with a 12-volt battery signifies a substantial drop, potentially hindering the pump's performance.
The ground connection is equally vital. A weak or corroded ground can restrict the flow of current, leading to insufficient power reaching the pump. Inspect the ground wire for signs of damage, corrosion, or loose connections. Ensure the grounding point is clean and secure. A simple yet effective test involves bypassing the existing ground connection and temporarily grounding the pump directly to the battery negative terminal. If the pump operates correctly with this temporary ground, the original grounding point or wiring is likely the issue.
Practical Tip: When checking voltage, ensure the multimeter is set to the correct DC voltage range (typically 20V DC). Also, always disconnect the battery before working on any electrical components to prevent short circuits.
While checking the power supply might seem straightforward, it's a critical step in diagnosing fuel pump issues. By systematically verifying voltage and ground integrity, you can pinpoint the root cause of the problem, potentially saving time and money by avoiding unnecessary pump replacements. Remember, a thorough electrical inspection is key to ensuring your fuel pump receives the power it needs to function optimally.
Wiring Your Fuel Pump Directly to the Battery: A Step-by-Step Guide
You may want to see also
Explore related products
Inspect Fuel Pump Relay: Test and replace the relay if faulty or damaged
A faulty fuel pump relay can mimic symptoms of a failing fuel pump, leading to unnecessary replacements. Before condemning the pump, inspect the relay—a small but critical component in the fuel delivery system. Relays act as switches, activating the fuel pump when the ignition is turned on. Over time, they can fail due to corrosion, overheating, or mechanical wear, interrupting power flow to the pump. Testing and replacing a damaged relay is a cost-effective troubleshooting step that can save time and money.
To inspect the fuel pump relay, start by locating it in the fuse box, often under the hood or near the driver’s side dashboard. Consult your vehicle’s manual for the exact location. Once identified, remove the relay by pulling it straight out of its socket. Visually inspect it for signs of damage, such as burnt pins, melted plastic, or corrosion. If the relay appears intact, swap it with a similar relay in the fuse box (e.g., the horn relay) to test functionality. If the fuel pump activates after the swap, the original relay is likely faulty and needs replacement.
Testing the relay with a multimeter provides a more definitive diagnosis. Set the multimeter to the ohms setting and measure continuity across the relay’s control circuit pins (typically pins 85 and 86). A reading of 50 to 120 ohms indicates a functioning relay. Next, apply 12 volts to the control circuit and check for continuity between the power pins (typically pins 30 and 87). If there’s no continuity, the relay is defective. Always ensure the ignition is off during testing to avoid electrical hazards.
Replacing a faulty relay is straightforward. Purchase a new relay that matches the specifications of the original (check the part number or consult a parts store). Insert the new relay into the socket, ensuring it clicks securely into place. After replacement, turn the ignition to the "on" position and listen for the fuel pump’s priming hum, which should last 2–3 seconds. If the pump operates, the issue is resolved. If not, further diagnosis of the fuel pump or wiring is necessary.
In summary, inspecting the fuel pump relay is a critical step in forcing an electric fuel pump to work. By testing for continuity, swapping relays, and replacing faulty components, you can isolate the issue without unnecessary repairs. This methodical approach ensures you address the root cause, restoring fuel delivery efficiently and affordably. Always prioritize safety and accuracy during testing to avoid misdiagnosis or electrical damage.
Kohler K361 Fuel Pump Requirement: Essential or Optional?
You may want to see also
Explore related products
Verify Fuel Pump Fuse: Check for blown fuses and replace with correct amperage
A blown fuse is often the culprit when an electric fuel pump fails to operate. Before attempting complex diagnostics or replacements, start by verifying the fuel pump fuse. This simple step can save time and money, ensuring the issue isn’t as minor as a fuse rated for 15 amps that’s been replaced with one of 20 amps, causing it to blow prematurely. Always consult your vehicle’s manual for the correct amperage, as using the wrong fuse can lead to electrical damage or fire hazards.
To inspect the fuse, locate the fuse box, typically found under the dashboard or in the engine compartment. Identify the fuel pump fuse using the diagram on the fuse box cover or in the manual. Remove the fuse with a fuse puller or needle-nose pliers, and examine it for signs of damage, such as a broken filament or charring. A blown fuse is usually obvious, but subtle cracks or discoloration can also indicate failure. If in doubt, test the fuse with a multimeter; a reading of zero indicates an open circuit and a blown fuse.
Replacing a blown fuse is straightforward but requires precision. Ensure the ignition is off to prevent electrical shorts. Insert a new fuse of the correct amperage—never exceed the recommended rating. For example, if the manual specifies a 10-amp fuse, using a 15-amp fuse can overload the circuit. After replacement, test the fuel pump by turning the key to the "on" position (not starting the engine) and listening for the pump’s hum, which should last 2–3 seconds as it primes the system.
While replacing a fuse is a quick fix, recurring blown fuses signal a deeper issue. Common causes include a faulty fuel pump drawing excessive current, a short circuit in the wiring, or a malfunctioning relay. If the fuse blows again, avoid repeatedly replacing it, as this can mask a serious problem. Instead, inspect the wiring harness for damage, test the pump’s resistance with a multimeter, or consult a professional to diagnose the root cause.
In summary, verifying and replacing the fuel pump fuse is a critical first step in troubleshooting a non-functioning electric fuel pump. It’s a simple, cost-effective measure that can resolve the issue or point to more complex problems. Always use the correct amperage, test the system after replacement, and address recurring failures promptly to ensure vehicle safety and reliability.
How Gas Station Fuel Pumps Work: A Comprehensive Guide
You may want to see also
Explore related products
Test Pump Directly: Bypass wiring to confirm if the pump functions independently
Electric fuel pumps are critical for delivering fuel from the tank to the engine, but diagnosing a faulty pump can be tricky. One definitive way to isolate the issue is by testing the pump directly, bypassing the vehicle’s wiring harness. This method eliminates variables like relay malfunctions, wiring faults, or ECU issues, allowing you to confirm whether the pump itself is operational. By connecting the pump directly to a power source, you can observe its performance independently, ensuring the problem isn’t external to the pump.
To perform this test, start by disconnecting the pump from the vehicle’s wiring harness. Locate the pump’s power and ground wires, typically found at the pump’s connector. Use a fused 12-volt power source, such as a portable battery pack or jumper cables connected to a car battery, to supply power directly to the pump. Connect the positive terminal of the power source to the pump’s power wire and the negative terminal to the ground wire. Ensure the connections are secure and insulated to prevent short circuits. Once connected, activate the power source and listen for the pump’s characteristic humming sound, which indicates it’s running.
While this test is straightforward, caution is essential. Always work in a well-ventilated area to avoid fuel vapors, and never smoke or use open flames nearby. Use a low-amp fuse (e.g., 10–15 amps) in the power line to protect against overcurrent. If the pump fails to operate, verify the power source is functioning correctly by testing it with a voltmeter. Additionally, inspect the pump’s wiring for damage or corrosion, as these issues can mimic a faulty pump. If the pump runs smoothly, the issue likely lies elsewhere in the fuel system, such as a clogged filter or faulty relay.
This method is particularly useful for older vehicles or those with complex wiring systems where diagnosing electrical issues can be time-consuming. By bypassing the vehicle’s circuitry, you gain clarity on the pump’s condition, saving time and potentially avoiding unnecessary part replacements. However, if the pump fails this test, it’s a strong indicator that the pump itself needs replacement. Always cross-reference your findings with other diagnostic steps to ensure accuracy before proceeding with repairs.
Testing Your Fuel Pump Without a Pressure Gauge: Simple DIY Methods
You may want to see also
Explore related products
Clean Fuel Filter: Remove clogs in the filter to allow proper fuel flow
A clogged fuel filter is a common culprit behind electric fuel pump issues, often leading to reduced performance or complete failure. The filter’s primary role is to trap contaminants, but over time, debris accumulation restricts fuel flow, forcing the pump to work harder or stall. This not only strains the pump but also compromises engine efficiency. Addressing this issue promptly can prevent costly repairs and restore optimal fuel delivery.
To clean a fuel filter, start by locating it—typically along the fuel line between the tank and engine. Consult your vehicle’s manual for exact placement. Once identified, disconnect the filter by loosening the clamps or unscrewing the housing, ensuring the fuel system is depressurized to avoid spills or accidents. Carefully remove the filter and inspect it for visible clogs, such as dirt, rust, or varnish buildup. If the filter is reusable, submerge it in a solvent like carburetor cleaner for 15–20 minutes to dissolve contaminants, then rinse thoroughly with clean fuel or solvent. For disposable filters, replacement is the safest option, as cleaning may not fully restore efficiency.
While cleaning the filter, take the opportunity to inspect the fuel lines for cracks, leaks, or blockages. Even a minor obstruction can disrupt flow, mimicking symptoms of a failing pump. Reinstall the cleaned or new filter, ensuring all connections are secure and free of leaks. After reassembly, turn the ignition to the "on" position (without starting the engine) to pressurize the system and check for leaks. If no issues are detected, start the engine and monitor for smooth operation, indicating restored fuel flow.
Neglecting a clogged fuel filter not only jeopardizes the pump but also risks engine damage due to inadequate fuel supply. Regular maintenance, such as replacing the filter every 30,000–50,000 miles (depending on vehicle and fuel quality), can prevent this issue. For older vehicles or those using low-quality fuel, more frequent checks are advisable. By prioritizing filter cleanliness, you ensure the fuel pump operates efficiently, prolonging its lifespan and maintaining vehicle reliability.
