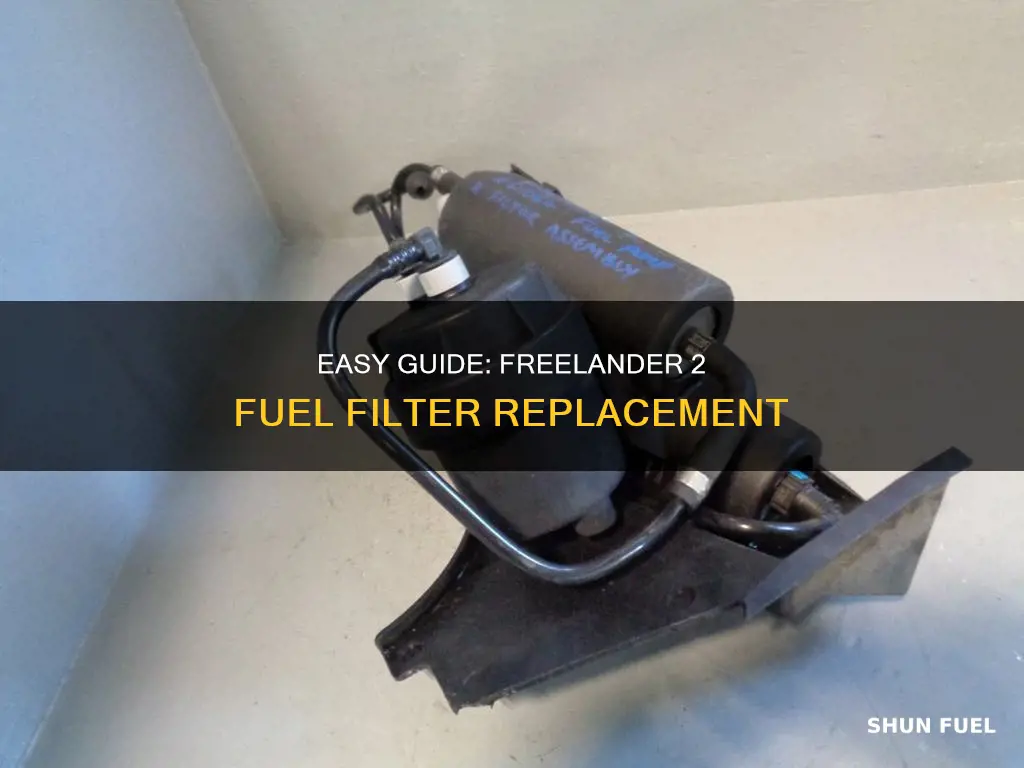

If you're looking to replace the fuel filter on your Land Rover Freelander 2, you've come to the right place. This is a task that can be completed at home, but it's important to be methodical and ensure you have the right tools for the job. The fuel filter on the TD4 engine is hidden underneath the upper engine cover, near the front of the engine bay. To access it, you'll need to remove the engine cover by undoing a few bolts and a nut. Once you've done that, you'll need to move a metal cover to create more space to access the fuel filter. After replacing the filter, you'll need to prime the fuel system. This can be done by connecting a fuel pipe to the output line of the fuel filter and cycling the ignition until fuel comes out. Alternatively, you can fill the fuel filter with clean diesel using a syringe before fitting the pipes.
Explore related products
What You'll Learn
Fuel filter location
The fuel filter on a Land Rover Freelander 2 TD4 engine is located underneath the upper engine cover, near the front of the engine bay.
To access the fuel filter, you need to first remove the engine cover. Undo a couple of 8mm bolts and one 10mm nut that secures the induction pipe, then pry the engine cover off its locating lugs to remove it.
The fuel filter will now be visible, but a metal cover will be in the way. Remove this cover by undoing four 10mm nuts and moving it aside to create more space to access the fuel filter.
It is recommended to take a photograph at this stage to help with reassembly. With the fuel filter now accessible, you can proceed to replace or service it as required.
Changing Your Mercruiser Fuel Filter: Step-by-Step Guide
You may want to see also
Explore related products
Removing the engine cover
To remove the engine cover of a Land Rover Freelander 2.2 TD4 Diesel, follow these steps:
First, undo a couple of 8mm bolts and one 10mm nut that secure the induction pipe. Then, prise the engine cover off its locating lugs to remove it. Be careful not to scratch or damage the engine cover or the surrounding components during this process. Place the cover aside in a safe place to avoid misplacing it or causing any accidental damage while working on the vehicle.
Once the engine cover is removed, you will notice a metal cover blocking access to the fuel filter. This metal cover needs to be moved aside to create more space to work on the fuel filter. Undo four 10mm nuts securing this metal cover and carefully set it aside, ensuring you don't drop or misplace any of the nuts. It is a good idea to take photographs at this stage to aid in the reassembly process later.
With the metal cover removed, you should now have clear access to the fuel filter. Before proceeding with any repairs or replacements, ensure you have the necessary tools and parts ready. Check your owner's manual or consult a Land Rover specialist for specific instructions and safety precautions related to working on the fuel system.
Remember to work in a well-ventilated area and wear appropriate protective gear, including gloves and eye protection, when handling automotive repairs and fuel system components.
Nissan Rogue Fuel Filter: Step-by-Step Replacement Guide
You may want to see also
Explore related products
Accessing the fuel filter
To access the fuel filter of a Land Rover Freelander 2.2 TD4 Diesel, follow these steps:
First, locate the fuel filter. It is hidden underneath the upper engine cover, near the front of the engine bay. To access it, you need to remove the engine cover. Undo a couple of 8mm bolts and one 10mm nut that secures the induction pipe, then gently prise the engine cover off its locating lugs to remove it.
The fuel filter will now be visible, but a metal cover will still be in the way. Undo four 10mm nuts to remove this cover and move it aside to create more space to access the fuel filter. You may want to take a photograph at this stage to help with reassembly.
Now, you can access the fuel filter. Before removing it, ensure you have a plan for how you will deal with the fuel in the system. One method is to use a syringe to fill the new fuel filter with clean diesel before you fit the pipes. Alternatively, you can take the output line off the top of the fuel filter and connect a fuel pipe into a tub. When you cycle the ignition, you will see the fuel come out into the tub, and you will know that the fuel filter is full.
Once you have accessed and dealt with the fuel in the system, you can remove and replace the fuel filter.
Cleaning Your XRP Fuel Filter: A Step-by-Step Guide
You may want to see also
Explore related products
Priming the fuel filter
To prime the fuel filter of a Freelander 2, you will need a manual bulb pump. It is recommended to have the vehicle level or slightly front downhill to minimise fuel returning to the tank.
First, attach the pump to the outlet and its fuel pipe. Ensure all other fuel pipes are connected to the fuel filter. Pump the bulb until it becomes hard, indicating that fuel has been drawn through.
Next, refit the fuel pipe, mounting bolts, and cover. Then, start the engine and crank it over until it fires. You may need to crank it longer than you would expect due to the high-pressure side of the engine.
To confirm that fuel is entering the filter, you can take the output line off the top of the fuel filter and connect a fuel pipe into a tub. When you cycle the ignition, you will see the fuel flow into the tub, confirming that the fuel filter is full.
Alternatively, you can fill the fuel filter with clean diesel using a syringe before fitting the pipes. After this, switch on the ignition twice more to pressurise the rest of the fuel system up to the high-pressure pump.
Draining Water from Your Holden Colorado Fuel Filter
You may want to see also
Explore related products
Refitting the fuel pipe
To refit the fuel pipe, you must first ensure that the fuel filter is full. To do this, take the output line off the top of the fuel filter and connect a fuel pipe into a tub. Then, when you cycle the ignition, you will see fuel come out into the tub, indicating that the fuel filter is full. Alternatively, you can fill the fuel filter with clean diesel using a syringe before fitting the pipes.
Next, switch the ignition on two more times to pressurize the rest of the fuel up to the high-pressure pump. After this, pump the bulb until it becomes hard, indicating that fuel has been drawn through. Now, you can refit the fuel pipe, mounting bolts, and cover.
Finally, start the engine and crank it over until it fires. This is the basic process for refitting the fuel pipe and priming the fuel system after changing the fuel filter on a Freelander 2. It is important to note that this procedure may vary slightly depending on the specific model and year of your Freelander 2, so it is always a good idea to refer to your owner's manual or consult a Land Rover specialist for more detailed advice.
Cleaning Your VW Diesel Fuel Filter: Step-by-Step Guide
You may want to see also
Frequently asked questions
It is recommended to change the fuel filter every 2 years or 30,000 miles.
First, remove the engine cover by unscrewing a couple of 8mm bolts and one 10mm nut. Then, prise the engine cover off its locating lugs. Next, remove the metal cover in front of the fuel filter by unscrewing four 10mm nuts. Now, you should be able to access the fuel filter.
There are a few methods to prime the fuel system. One way is to take the output line off the top of the fuel filter and connect a fuel pipe into a tub. Then, cycle the ignition and observe when the fuel comes out into the tub. Alternatively, fill the fuel filter with clean diesel using a syringe before attaching the pipes. Finally, switch the ignition on two more times to pressurize the rest of the fuel system.
