Fuel injectors are a crucial component of any vehicle's fuel system, and understanding their polarity is essential for optimal performance. While injector wires typically come in bundles of red and yellow wires, it is unclear whether reversing the polarity will impact the vehicle's performance. This question is especially relevant for those with Chevy and GMC Duramax diesel engines, as well as for those with Lexus and Nissan cars. In this discussion, we will delve into the intricacies of fuel injector polarity and explore whether it is a cause for concern when wires are swapped or left unmarked during maintenance or repairs.

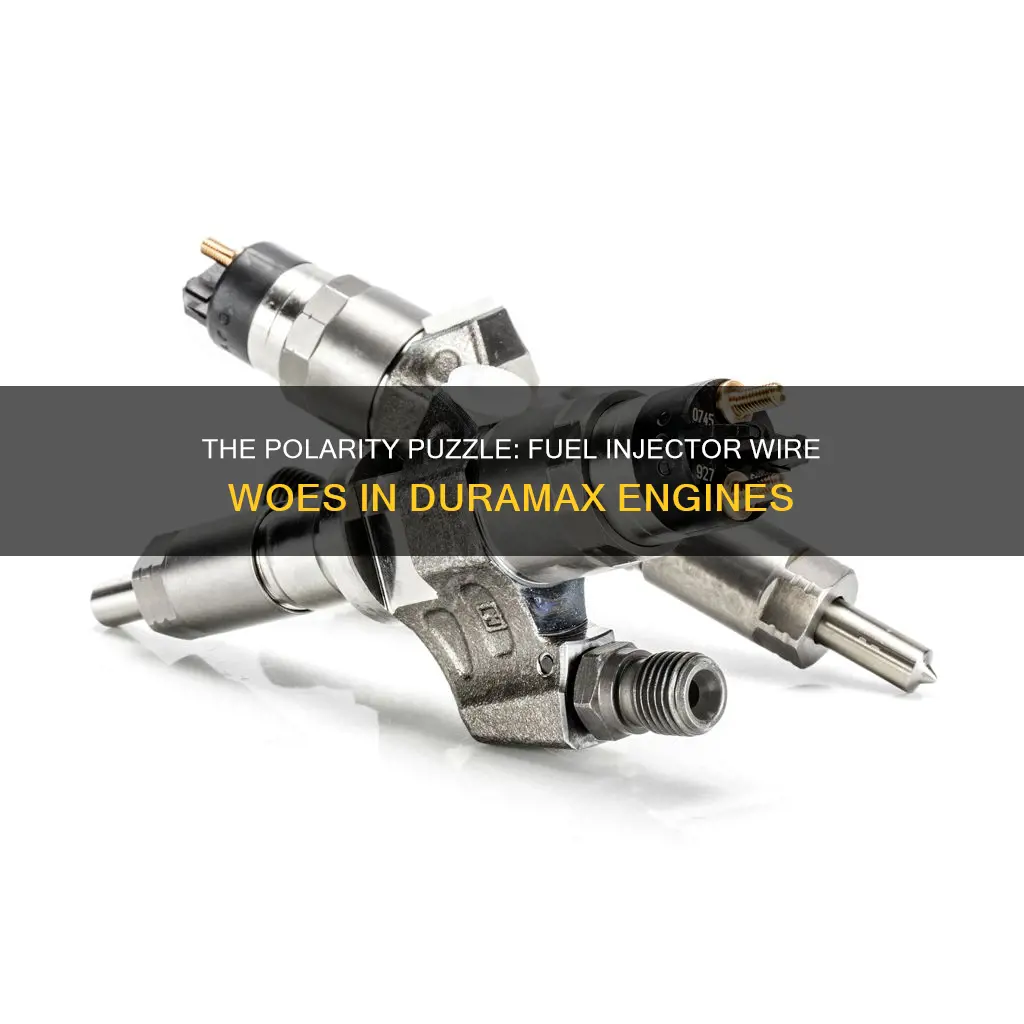

Does Polarity Matter on LLY Duramax Fuel Injector Wire?
| Characteristics | Values |
|---|---|
| Polarity Sensitivity | Fuel injectors are not sensitive to polarity. |
| Fuel Injector Function | Fuel injectors are solenoid valves, which are polarity-insensitive. |
| Fuel Injector Wiring | The vehicle's ECU (primary computer) sends an electric current through the wiring in the fuel injector harness. |
| Fuel Injector Plug | Each fuel injector has an electrical plug that connects to a socket in the wiring harness. |
| Magnetic Field | The electric current creates a magnetic field inside the fuel injector, causing the injector's valve to open and allow fuel to spray into the cylinder's combustion chamber. |
| Fuel Injector Valve | When the ECU stops the electric current, the magnetic field collapses, and the fuel injector's valve closes. |
| Wiring Harness Polarity | The wiring harness may be marked with "+" and "-" to indicate positive and negative polarity, but the fuel injectors themselves are not subject to this polarity. |
| Fuel Injector Faults | Reversing the polarity of a fuel injector may not affect its function, as the metallic plunger or needle will still be attracted to the magnetic field. |
| Connector Plugs | Some engine manufacturers use injectors without connector plugs or with unmarked terminals, which can make it unclear how to connect the cables on the injector. |
| ECU and Injector Polarity | The ECU controls the voltage and current flow to the fuel injector, but it is unclear if reversing polarity will cause the ECU to show injector faults. |
Explore related products
What You'll Learn
Fuel injector wires and their corresponding terminals
Fuel injector wires are typically colour-coded, with each colour indicating a specific function or connection. For example, in some systems, yellow wires may be associated with one injector, while red wires are connected to another injector. It is important to identify the correct wiring configuration during installation or maintenance to avoid any issues.
The terminals, on the other hand, are the points of connection between the fuel injector wires and the injectors themselves. These terminals ensure a secure and proper connection, allowing the injectors to receive the necessary electrical signals for precise fuel delivery. Terminals can come in different types, such as male or female connectors, and they play a crucial role in maintaining system integrity.
When working with fuel injector wires and terminals, it is essential to ensure that the connections are secure and free from damage or corrosion. A broken connector can lead to moisture ingress, causing corrosion on the metal terminals and potentially affecting the performance and reliability of the fuel injection system. Therefore, regular inspection and maintenance of these components are highly recommended.
In terms of polarity, it is generally agreed upon that it does not matter in the context of fuel injector wires and terminals. The driving mechanism of an injector is based on a solenoid, which operates by driving current through a winding to move a plunger toward a magnetic field. Since the plunger is typically just a piece of metal and not a magnet, reversing the polarity of the applied voltage does not affect its direction of movement. However, it is always recommended to follow manufacturer guidelines and industry best practices when working with any automotive systems.
Fuel Injector Maintenance: Tightening Inlet Screw Precision
You may want to see also
Explore related products
Reversing the polarity of the applied voltage
In the context of fuel injectors, reversing the polarity of the applied voltage does not impact the direction of movement of the plunger in the solenoid. This is because the plunger is simply a piece of metal, not a magnet, and will always be attracted to the magnetic field.
Now, let's delve into the broader concept of reversing the polarity of the applied voltage and its implications:
Reversing Polarity of the Applied Voltage
The polarity of a voltage source refers to the direction of electric current flow relative to the electrodes involved. When we reverse the polarity, we essentially swap the connections of the positive and negative terminals, changing the direction of current flow. This concept is crucial in various electrical and electronic systems, and understanding it is essential for ensuring the proper functioning and protection of circuits.
Impact on Circuitry
Protection Against Reverse Polarity
It is important to safeguard circuits from potential damage caused by reverse polarity. Voltage applied in reverse polarity can push semiconductors into reverse bias, damaging inputs on an integrated circuit. In extreme cases, high overvoltage under reverse polarity can destroy an integrated circuit beyond repair. To address this, reverse polarity protection components and circuits are employed to drop excess voltage, ensuring that it does not reach and harm the protected load when the polarity of the applied voltage is reversed.
Practical Implementation
The simplest method for adding DC reverse polarity protection to a circuit is to incorporate a series diode before the protected load or circuit. When reverse polarity occurs, the diode is driven into reverse bias, limiting the reverse polarity voltage to a very low value, thus safeguarding the circuit. More complex circuits can also be designed for specific cases, such as battery charging and higher voltage/current allowances.
Repairing Fuel Injectors in a Honda Civic: Cost and Maintenance
You may want to see also
Explore related products
The fundamental operating principle of a solenoid
The coil of a solenoid is typically made of many turns of tightly wound copper wire. When an electric current flows through this wire, it generates a strong magnetic field or flux. The housing, usually made of iron or steel, surrounds the coil and concentrates the magnetic field. This concentration of the magnetic field creates a consistent directional pull on the plunger, which is made of ferrous metal or magnetic material. As a result, the plunger is drawn into the coil, producing a linear displacement.
The solenoid's ability to convert electrical energy into mechanical motion makes it a valuable component in various applications. It can be used as a valve to control the flow of liquids or gases, as well as to actuate a push or pull force on a magnetic component in a device. Solenoids are also commonly used in switches and electromechanical devices, such as doorbells and car ignition systems.
Additionally, the direction of motion in a solenoid can be reversed by changing the direction of the current flow. This reversibility makes solenoids versatile and suitable for a wide range of applications. Solenoids can be categorized into valve solenoids and electric solenoids, with valve solenoids maintaining a constant electric current to control the flow of material.
In summary, the fundamental operating principle of a solenoid is its ability to transform electrical energy into mechanical motion through the interaction of electric currents, magnetic fields, and movable components. This principle enables solenoids to have a wide range of applications and makes them essential elements in modern fluid control systems.
Checking Fuel Injectors in a 2007 Nissan Altima
You may want to see also
Explore related products
Testing fuel injectors for clogging, faulty wiring, or harness terminal issues
Fuel injectors are a particular type of solenoid that are made to actuate their pistons very quickly. This allows the injector to deliver precise amounts of fuel into the cylinder, even while the engine is spinning at higher RPMs. Reversing the polarity of the applied voltage does not reverse the direction of movement, because a typical plunger is just a piece of metal (not a magnet), and thus it is always attracted to the magnetic field.
Over the life of the car, the injectors fire millions of times and eventually can wear out or clog up, preventing the engine from operating correctly. A faulty injector can cause one of your cylinders to not ignite fully, which will throw the balance of the engine off at all speeds. This ruins fuel economy since all of the fuel may not be combusting, and you have to press harder on the gas pedal to get the car to move.
To test for a faulty injector plug, you can pick up a set of noid lights from an auto store. These plug into the injector harness and will flash if there is a pulse or power. You can also switch injector pins at the ECU and switch the injector connectors accordingly, thus ruling out wiring or connectors as the issue.
To test for clogging, you can start the engine when cold and let it run at idle for 5-10 seconds. If possible, touch each of the exhaust manifolds with your bare hands and find the one that is not warm. Remove the connector from the injector on the cylinder that is not warm. With an ohm meter, check that there is power to the injector connector or use a Noid light. Confirm with an ohm meter that the injector has the proper resistance. You can also test your fuel injectors by turning on your engine, placing the end of a long screwdriver or metal rod against an injector, and then putting your ear to the far end. If you hear clicking traveling up through the rod, then the injector is working.
To ensure fuel injectors are receiving the correct voltage, follow these steps:
- Make sure the key is off. You don’t need power for this test.
- Remove the injector wiring harness.
- Set DVOM to measure ohms. Set the multimeter to measure ohms and to the lowest range if the meter doesn’t autorange.
- Test resistance with DVOM. Place the meter leads on the prongs inside the connector, making sure that they are not touching each other. High impedance injectors are the most common and will range from 12 to 17 ohms. Low impedance injectors are found on high-performance and larger injectors and have much lower resistance, typically around 2-5 ohms.
- Repeat with all injectors. They should all have a resistance within half of an ohm from each other. Any major difference and that injector should be inspected to make sure that it is firing correctly.
- Repeat with all injector wiring harnesses. Leave the ground lead in position and test all of your injector wiring harnesses. They should all be around 12 volts. A lower reading means there is excess resistance in the wire somewhere.
Direct Injection Engines: Fuel Injectors and Their Role
You may want to see also
Explore related products
The ECU and its role in the fuel injector system
The ECU, or Electronic Control Unit, is a device that controls various subsystems of an internal combustion engine. The ECU plays a crucial role in the fuel injector system, ensuring that the correct amount of fuel is injected into the engine at the right time. This process is known as fuel injection, and it is one of the most important functions of the ECU.
The ECU collects data from various sensors and modules within the vehicle, such as temperature and pressure sensors, on/off signals, and even data from the anti-lock brake system (ABS). This information is used by the ECU to make real-time decisions and adjustments to the fuel injection system. For example, the ECU uses temperature data to calculate the amount of fuel needed, as more fuel is required when the engine is cold to maintain the correct mixture ratio for combustion.
After collecting the necessary data, the ECU's processor determines the output specifications, such as the fuel injector pulse width. This information is then used to control actuators and make precise adjustments to the engine's power, ensuring that the correct amount of fuel is injected. The ECU also regulates the voltage supplied to the fuel injector circuits, which can be over 200 Volts.
In addition to its role in the fuel injector system, the ECU also controls the ignition system in petrol engines. It determines the timing of the spark to ignite the injected fuel, using input from a Crankshaft Position Sensor to ensure that the injectors and ignition system are activated at the correct time. This coordination between the fuel injection and ignition systems is essential for the proper functioning of the engine.
Overall, the ECU plays a critical role in the fuel injector system, using data from various sensors and modules to make real-time adjustments and ensure the precise delivery of fuel to the engine. By controlling both the fuel injection and ignition systems, the ECU helps to optimise engine performance, efficiency, and reliability.
Fuel Injectors: Do They Wear Out Over Time?
You may want to see also
Frequently asked questions
No, it does not matter. Fuel injectors are solenoid valves, which are polarity-insensitive.
Fuel injectors are wired to allow gas or diesel to travel from the gas tank, through the fuel filter, and into the fuel injectors.
Lower gas mileage, rough idling, and stumbling on acceleration are some signs of a bad fuel injector.
There are three diagnostic tests you can run: The Click Test, The Impedance Test, and The Voltage Test.
It is advised not to mix up the wires on the injectors. One side of the injector sees the ECU, and the other side sees the dropping resistor.
