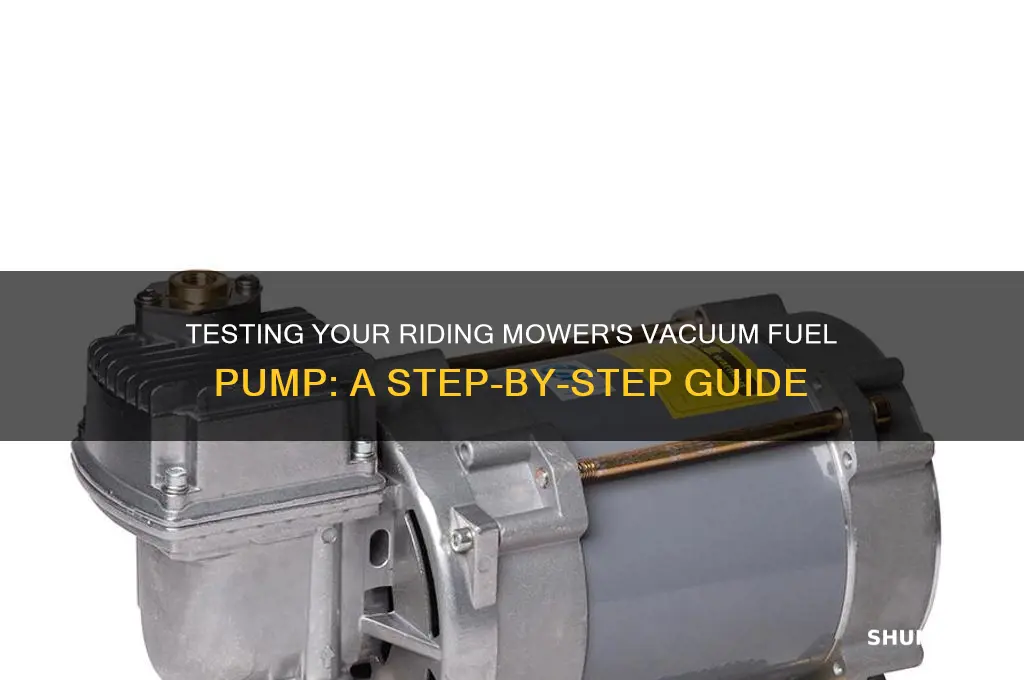

Testing a vacuum fuel pump on a riding mower is essential to ensure proper fuel delivery and engine performance. Begin by locating the fuel pump, typically near the fuel tank or carburetor, and inspect it for visible damage or leaks. Disconnect the fuel lines and use a hand-operated vacuum pump to apply pressure, checking for consistent fuel flow and any signs of blockage. Alternatively, start the mower and listen for the pump’s humming sound, which indicates it’s functioning. If the engine struggles to start or runs poorly, the pump may be faulty. Always work in a well-ventilated area, disconnect the spark plug for safety, and consult the mower’s manual for specific instructions.
| Characteristics | Values |
|---|---|
| Symptoms of a Failing Fuel Pump | Engine sputtering, loss of power, hard starting, stalling, backfiring, fuel leaks |
| Tools Needed | Multimeter, fuel pressure gauge, hand vacuum pump, screwdriver, wrenches, safety goggles, gloves |
| Safety Precautions | Work in a well-ventilated area, disconnect spark plug wire, relieve fuel system pressure, avoid open flames or sparks |
| Testing Method 1: Visual Inspection | Check for cracks, leaks, or damage to the pump body, hoses, and connections |
| Testing Method 2: Vacuum Test | Disconnect fuel line, attach hand vacuum pump, apply vacuum, observe fuel flow and pump diaphragm movement |
| Testing Method 3: Electrical Test | Check voltage at pump connector (typically 12V), test pump motor resistance (specifications vary by model) |
| Testing Method 4: Fuel Pressure Test | Connect fuel pressure gauge, crank engine, compare reading to manufacturer's specifications (typically 3-5 PSI) |
| Replacement Considerations | If pump fails tests, replace with OEM or compatible part, ensure proper installation and fuel line connections |
| Maintenance Tips | Regularly inspect fuel lines and filter, use clean fuel, store mower with stabilized fuel during off-seasons |
| Common Riding Mower Fuel Pump Types | Mechanical (diaphragm), electric (in-tank or external), turbine |
| Troubleshooting Tip | If pump tests good but issues persist, check fuel filter, carburetor, or ignition system |
Explore related products
What You'll Learn
- Pre-test Preparation: Gather tools, ensure safety, and locate the mower's fuel pump for testing
- Visual Inspection: Check for leaks, cracks, or damage on the fuel pump and lines
- Pressure Testing: Use a gauge to measure fuel pressure output for proper functionality
- Electrical Testing: Verify power supply and connections to the fuel pump’s electrical system
- Performance Check: Start the mower and observe fuel delivery and engine response during operation
Pre-test Preparation: Gather tools, ensure safety, and locate the mower's fuel pump for testing
Before testing a vacuum fuel pump on a riding mower, proper preparation is crucial to ensure accuracy, safety, and efficiency. Start by gathering the necessary tools: a vacuum gauge, wrench set, screwdriver, safety gloves, safety goggles, and a clean cloth. These tools will enable you to safely access and test the fuel pump without causing damage or injury. A vacuum gauge is particularly essential, as it measures the pump’s ability to create suction, a key indicator of its functionality. Without these tools, you risk incomplete diagnostics or accidental harm, making this step non-negotiable.
Safety must be prioritized throughout the process. Fuel systems are inherently dangerous due to flammable materials and pressurized components. Always work in a well-ventilated area, away from open flames or sparks. Wear safety goggles to protect your eyes from fuel splashes and gloves to prevent skin contact with chemicals. Before starting, ensure the mower’s engine is cool and the ignition is turned off to eliminate the risk of accidental starts. These precautions are not optional—they are critical to preventing accidents that could result in injury or property damage.
Locating the fuel pump is the next critical step, as its position varies by mower model. Consult the mower’s manual for specific guidance, but generally, the pump is found along the fuel line between the tank and carburetor. On some models, it may be mounted directly on the engine or hidden beneath a protective cover. Use a flashlight to inspect hard-to-see areas, and gently remove any obstructions like plastic shields or wiring harnesses. Misidentifying the pump or forcing access can damage components, so proceed with care and patience.
Once the pump is located, inspect its condition before testing. Look for signs of wear, such as cracks, leaks, or corrosion, which could indicate a need for replacement rather than testing. Ensure all fuel lines are securely connected and free from debris. This visual inspection provides valuable context for interpreting test results later. For example, a pump with visible damage may show poor performance during testing, but the root cause is already evident, saving time and effort.
In summary, pre-test preparation is a structured process that combines tool readiness, safety measures, and precise location of the fuel pump. Each step is interdependent, ensuring you’re equipped to perform the test accurately while minimizing risks. Skipping any part of this preparation can lead to unreliable results or hazardous situations. By following these guidelines, you set the stage for a successful diagnosis of your riding mower’s vacuum fuel pump.
Attaching a Flange to a 1996 F150 Fuel Pump: Step-by-Step Guide
You may want to see also
Explore related products
Visual Inspection: Check for leaks, cracks, or damage on the fuel pump and lines
A thorough visual inspection is the first line of defense in diagnosing fuel pump issues on a riding mower. Begin by locating the fuel pump, typically situated along the fuel line between the tank and carburetor. With the mower turned off and cooled, carefully trace the fuel lines from the tank to the pump and onward to the carburetor, examining each component for signs of wear or damage. Look for fuel stains, wet spots, or pooling around the pump and lines, which indicate leaks. Even small cracks or brittle areas on the pump body or lines can lead to significant problems, as fuel pumps rely on airtight seals to generate vacuum pressure.
Next, inspect the fuel lines for kinks, abrasions, or swelling, which can restrict fuel flow or cause leaks. Rubber lines, in particular, degrade over time due to exposure to heat, fuel, and UV rays, so check for hardening or cracking that compromises their integrity. Pay close attention to connection points, such as clamps and fittings, ensuring they are tight and secure. Loose connections often result in air leaks, reducing pump efficiency and causing engine performance issues like hard starting or stalling.
For a more detailed inspection, use a bright light and magnifying glass to examine the pump’s diaphragm and valves, if accessible. A damaged diaphragm or worn valve will fail to maintain vacuum, leading to fuel delivery problems. If the pump has a sight glass, check for debris or contamination in the fuel, which can clog lines or damage internal components. Cleaning or replacing filters and lines may resolve minor issues, but persistent damage often requires pump replacement.
Finally, consider the age and usage of the mower when evaluating findings. Fuel pumps on older mowers or those used in dusty, dirty environments are more prone to wear. Regular inspections, especially at the start of mowing season, can prevent unexpected failures. If leaks, cracks, or damage are detected, address them promptly to avoid further complications, such as fuel contamination or engine damage. A proactive approach ensures the fuel system operates reliably, keeping your mower running smoothly.
Choosing the Right LPH Fuel Pump for 600 FWHP Builds
You may want to see also
Explore related products
Pressure Testing: Use a gauge to measure fuel pressure output for proper functionality
Fuel pressure is a critical indicator of a vacuum fuel pump's health on a riding mower. Insufficient pressure can lead to poor engine performance, stalling, or even failure to start. A pressure gauge is your diagnostic ally in this scenario, providing concrete data to assess the pump's functionality.
To conduct a pressure test, first locate the fuel pump's outlet line, typically connected to the carburetor or fuel injection system. Disconnect the line and attach a fuel pressure gauge designed for small engines, ensuring compatibility with the mower's fuel system. Start the engine and allow it to reach operating temperature. Observe the gauge reading, comparing it to the manufacturer's specifications for your specific mower model. Most riding mowers require a fuel pressure range between 2.5 and 4 psi (pounds per square inch).
Deviations from the specified range signal potential issues. Low pressure may indicate a clogged fuel filter, weak pump diaphragm, or leaking fuel lines. Conversely, excessively high pressure could point to a faulty pressure regulator or a restricted return line. Addressing these issues promptly prevents further damage and ensures optimal engine performance.
For accurate results, perform the test with a full fuel tank and a clean fuel filter. Fluctuating readings during testing may suggest air leaks in the fuel lines or a failing check valve within the pump. If unsure about interpreting the results, consult a qualified technician for further diagnosis and repair. Regular pressure testing, especially before the mowing season, can preemptively identify problems and extend the life of your riding mower's fuel system.
Understanding Inline DC Fuel Pump Amp Draw: A Comprehensive Guide
You may want to see also
Explore related products
Electrical Testing: Verify power supply and connections to the fuel pump’s electrical system
A faulty electrical connection can cripple your riding mower's fuel pump, leaving you stranded mid-mow. Before assuming the pump itself is defective, a systematic electrical diagnosis is crucial. This process involves verifying the power supply reaching the pump and ensuring the integrity of the wiring harness and connectors.
Think of it as checking the fuse before replacing the entire appliance.
Diagnosing the Power Supply:
Begin by locating the fuel pump's wiring harness. Consult your mower's manual for its exact location, often near the fuel tank or carburetor. Use a multimeter set to DC voltage to test the power supply at the pump's connector. With the key in the "on" position, you should see battery voltage (typically 12 volts) present at the connector. If no voltage is detected, trace the wiring back towards the battery, checking for loose connections, frayed wires, or blown fuses along the way.
A common culprit is a corroded fuse holder or a loose connection at the relay that controls power to the pump.
Inspecting Connections and Grounds: Even with power reaching the pump, poor connections can hinder its operation. Inspect the wiring harness for signs of damage, such as cracked insulation, exposed wires, or corrosion at the terminals. Gently wiggle the connectors to check for looseness. A secure connection should feel snug and require some effort to disconnect. Pay particular attention to ground connections, often a single wire leading to the mower's frame. A poor ground can cause voltage drop, leading to insufficient power for the pump. Clean any corrosion from the ground terminal and ensure a tight connection.
Consider using dielectric grease on connectors to prevent future corrosion, especially in humid environments.
Beyond the Basics: If power and connections seem intact, delve deeper. Check the pump's internal wiring for continuity using your multimeter. A broken wire within the pump itself would necessitate replacement. Additionally, some pumps have built-in pressure regulators or filters that can clog, mimicking electrical issues. Consult your pump's manual for specific troubleshooting steps. Remember, safety is paramount. Always disconnect the battery before working on electrical components, and avoid testing live circuits whenever possible.
2004 Mercedes E320 Fuel Pump Setup: Are There Two Pumps?
You may want to see also
Explore related products
Performance Check: Start the mower and observe fuel delivery and engine response during operation
Starting the mower is the critical first step in assessing the vacuum fuel pump's performance. As the engine roars to life, your attention should immediately shift to the fuel delivery system. Observe the fuel lines for any signs of leakage or blockage. A healthy fuel pump will ensure a steady, uninterrupted flow, which is vital for optimal engine performance. This initial inspection can reveal much about the pump's condition and its ability to maintain consistent fuel pressure.
During operation, the engine's response provides valuable insights. Listen for any unusual noises, such as sputtering or backfiring, which could indicate fuel delivery issues. A well-functioning vacuum fuel pump should allow the engine to accelerate smoothly and maintain a steady RPM. If the mower struggles to reach full power or exhibits erratic behavior, it may suggest a pump malfunction or clogging. For instance, a common issue is the pump's inability to maintain pressure at higher engine speeds, leading to a loss of power.
Analyzing Engine Behavior:
The engine's performance under load is a key indicator. Engage the mower's blades and observe how the engine responds. Does it maintain its RPM without hesitation? A healthy fuel pump will ensure the engine doesn't stumble or lose power when the blades are engaged. If the engine struggles, it might be due to insufficient fuel delivery, often caused by a worn-out or failing vacuum pump diaphragm. This test is particularly useful for identifying pump issues that only become apparent under stress.
Practical Tips for Observation:
- Look for fuel pulsation in the lines, which should be consistent and rhythmic.
- Check for any fuel vapor locks, especially in older mowers, as this can cause intermittent engine issues.
- Note the engine's response when changing speeds or direction; any hesitation could be a red flag.
- For a comprehensive test, run the mower for an extended period, simulating a typical mowing session, and monitor performance over time.
In summary, this performance check is a dynamic assessment, requiring you to observe and interpret the mower's behavior. By combining visual inspections with engine response analysis, you can pinpoint fuel pump issues that might otherwise go unnoticed. This method is particularly effective for diagnosing problems that occur during operation, ensuring your riding mower's fuel system is in top condition.
Napa Fuel Pumps Review: Performance, Reliability, and Value Analysis
You may want to see also
Frequently asked questions
Look for symptoms like hard starting, stalling, or a loss of power, especially after the mower has been running for a while. You can also listen for unusual noises coming from the fuel pump area.
You'll need a fuel pressure gauge, a vacuum gauge, a multimeter, and possibly a wrench or socket set to access the fuel pump and its connections.
Yes, you can perform preliminary tests without removing the pump. Check for proper vacuum operation by disconnecting the fuel line and using a vacuum gauge to measure the pump's ability to create a vacuum. Also, inspect the fuel filter and lines for clogs or leaks.
First, disconnect the battery to ensure safety. Then, use a multimeter to check the continuity of the pump's wiring harness and the resistance of the pump motor. Compare your readings to the manufacturer's specifications to determine if the pump is functioning correctly.
