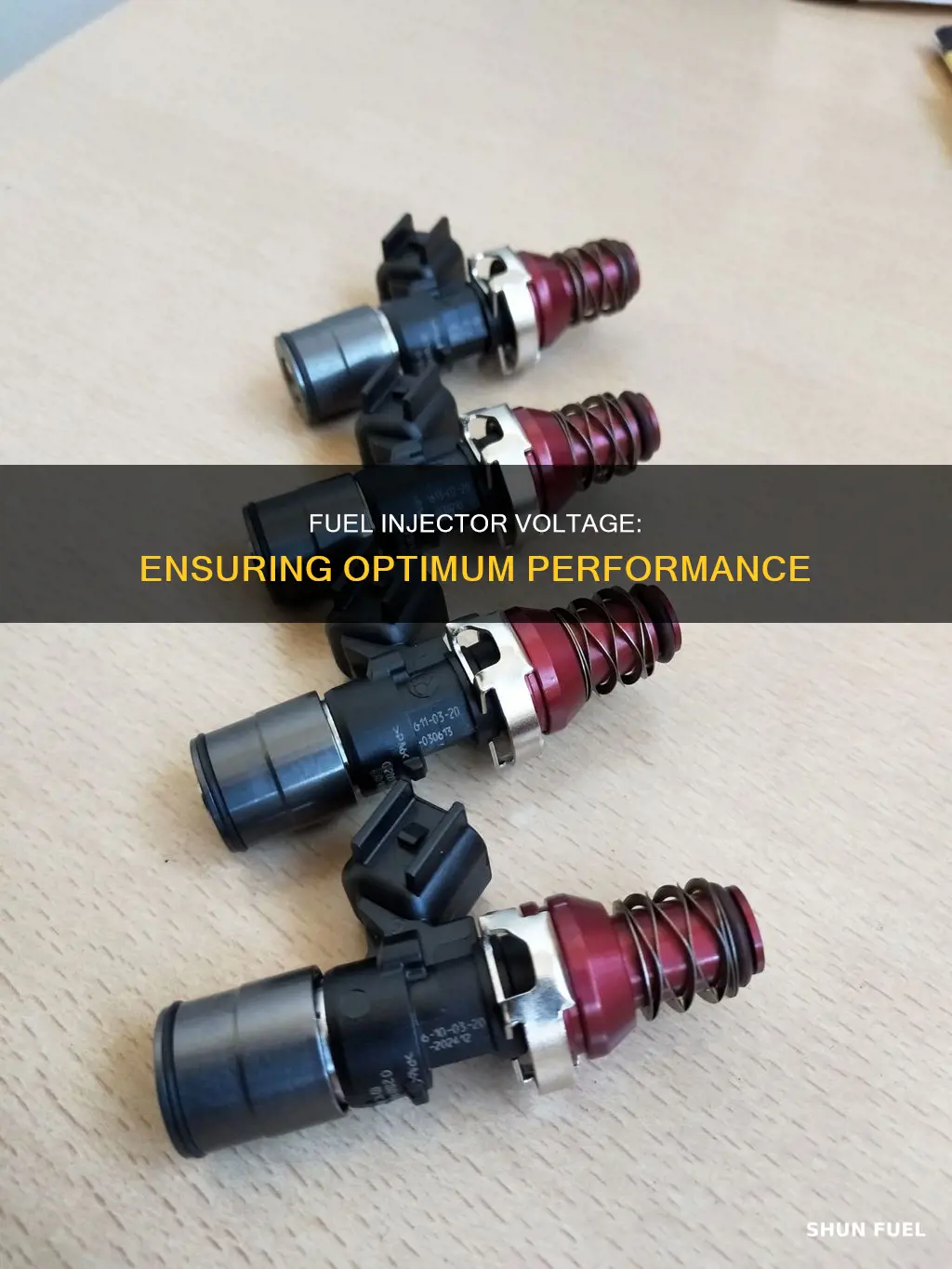

Fuel injectors are a type of solenoid that delivers precise fuel amounts to the cylinder, even at high RPMs. Over time, injectors can wear out or clog up, causing engine problems. While there are multiple reasons for injector malfunction, ensuring they receive the correct voltage is critical. This involves testing injector resistance and wiring, using a Digital Volt-Ohmmeter (DVOM) or multimeter, and checking for correct voltage readings and connections. The process requires specific steps, such as turning the car on without starting the engine, setting up the DVOM, and testing wiring harnesses. It's important to consult a professional if you encounter any issues or difficulties during the testing process.
Explore related products
What You'll Learn
Testing injector resistance
Testing the resistance of your fuel injectors can give you an idea of how dirty they are. It can also indicate whether the injector is faulty and needs to be replaced.
To test the resistance of your fuel injectors, start by turning on your car to the second (ON) position. You want battery power flowing, but don't want the engine running. Set up a Digital Volt-Ohmmeter (DVOM) or multimeter to measure DC voltage or ohms. If your meter doesn't auto-range, set it to the lowest range possible.
Next, touch the negative lead of the DVOM to a ground source. The car's frame is usually connected to the ground, so look for an unpainted piece of the frame under the hood. Some DVOMs have alligator clips, which can be helpful. Now, place the positive lead on the wiring harness terminal. The wiring harness will have two terminals that the prongs on the injector insert into. One will be connected to the ground and will read 0 volts, while the other should read around 12 volts.
With the ground lead in position, test all of your injector wiring harnesses. They should all read around 12 volts. A lower reading indicates excess resistance in the wire.
If your injectors have high impedance, which is common in modern cars, the range will be from 12 to 17 ohms. Most fuel injectors should read between 10 and 18 ohms, but you can also check your vehicle's service manual or search online to find the correct resistance value for your specific injectors. All readings should be within the range specified by the manufacturer and consistent across all injectors.
If any resistance readings are off, the faulty injector may need to be repaired or replaced. Additionally, if there is a significant variation between injectors, it could indicate a problem. For example, if one injector measures 8 ohms while the others measure 12 ohms, the injector with the lower reading likely has shorted turns and needs to be replaced.
It is important to note that resistance measurements can only detect gross failures of the coil in the injector. A more conclusive test is to measure the inductance and coil "Q" with an impedance bridge, which can detect issues with the AC impedance of coils and capacitors.
Cleaning Cummins Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Checking wiring connections
To check the wiring connections of your fuel injectors, you will need a digital volt-ohmmeter (DVOM) or a multimeter with an ohms setting. You will also need to know the correct resistance for your injectors, which you can find by searching online or in your vehicle's repair guide.
First, turn the car on by turning the key to the second (ON) position. You want the battery power flowing but do not want the engine running. Set up the DVOM to measure DC voltage. Use the lowest range possible if the meter does not auto-range.
Next, touch the negative lead of the DVOM to a ground source. The car's frame is connected to the ground, so look for an unpainted piece of the frame under the hood. Some DVOMs have alligator clips, which free up your hands to focus on getting the positive lead in the correct spot.
Now, place the positive lead on the wiring harness terminal. The wiring harness will have two terminals that the prongs on the injector insert into. One will be connected to the ground and will read 0 volts, while the other will read 12 volts or around 12.
Finally, leave the ground lead in position and test all of your injector wiring harnesses. They should all be around 12 volts. A lower reading means there is excess resistance in the wire somewhere.
Warranty Coverage for Fuel Injectors: What You Need to Know
You may want to see also
Explore related products
Using a DVOM to measure DC voltage
To ensure fuel injectors are receiving the correct voltage, you need to test the injector resistance and then check the wiring. This requires a Digital Volt-Ohmmeter (DVOM) or multimeter with an ohms setting.
Step 1: Turn the car on
Turn the key to the second ("ON") position. You want battery power flowing, but don't want the engine running.
Step 2: Set up the DVOM to measure DC voltage
Use the lowest range possible if the meter doesn't auto-range.
Step 3: Connect the negative lead of the DVOM to a ground source
The car's frame is connected to the ground, so look for an unpainted piece of the frame under the hood. Some DVOMs have alligator clips, which free up your hands.
Step 4: Connect the positive lead to the wiring harness terminal
The wiring harness will have two terminals that the prongs on the injector insert into. One will be connected to the ground and will read 0 volts, while the other should read around 12 volts.
Step 5: Test all injector wiring harnesses
Leave the ground lead in position and test all your injector wiring harnesses. They should all be around 12 volts. A lower reading means there is excess resistance in the wire somewhere.
It is important to note that a digital multimeter (DMM) is a versatile tool that simplifies DC voltage measurements, providing precise readings with minimal effort. Understanding the correct procedures, such as selecting the appropriate settings and connecting the test probes properly, is essential for accurate and reliable measurements.
BWD Fuel Injectors: Are They Worth the Hype?
You may want to see also
Explore related products
Testing the spray pattern
Firstly, it is important to note that there are various types of spray patterns, and the specific pattern depends on the design of the injector. Older injector designs from the 1970s to 1980s featured a tapered pintle with a mushroom-shaped tip, resulting in a diverging spray pattern. More recent designs may have multiple holes to help atomize the fuel, creating a "V"-shaped spray pattern. Understanding the expected spray pattern for your specific injector type is essential for accurate testing.
To begin the test, attach pressurised air to the injector inlet, along with a 12-volt power and ground source to energize the injector. Compressed air should be released from the outlet valve, and you should observe traces of fuel remaining in the injector. Take the necessary fire precautions during this step. The spray pattern should be robust and clear. If the pattern appears muted or distorted, the injector may be clogged or faulty and should be replaced or cleaned.
Another method to test the spray pattern is to use a remote starter switch or a similar tool. With the ignition switch in the "run" position, power up the D jet controller. Observe the spray pattern by briefly cranking the engine and using a catch jar to collect the spray. Ensure that the main and cold start injectors are removed from their holders to prevent the engine from starting unintentionally. This method allows you to inspect the spray pattern and volume, ensuring that it is consistent and uniform.
Additionally, you can test the spray pattern by listening to the injector. Use a mechanic's stethoscope, a thin hose, or a long screwdriver to listen for a clicking sound as the valve inside the injector opens and closes. This method helps you determine if the injector is functioning properly without the need for visual inspection.
It is worth noting that dirty or clogged injectors are a common cause of distorted spray patterns. Therefore, regular cleaning and maintenance of fuel injectors are essential to ensure optimal performance and spray pattern accuracy.
Cleaning Fuel Injector Screens: A Step-by-Step Guide
You may want to see also
Explore related products
Consulting a professional
If you are experiencing any issues with your fuel injectors, it is recommended that you consult a professional mechanic for assistance. Fuel injectors are a critical component of your vehicle's engine, and improper repairs can lead to costly damage. A qualified mechanic will have the necessary tools, knowledge, and experience to diagnose and resolve any issues with your fuel injectors effectively.
When consulting a professional, it is essential to provide them with as much information as possible about the issue you are facing. Describe any symptoms you have noticed, such as decreased engine performance, unusual noises, or fuel consumption issues. It is also helpful to inform them of any recent repairs or modifications made to your vehicle, as these may be relevant to the diagnosis.
During the consultation, the mechanic will likely perform a thorough inspection of your vehicle's fuel system, including the fuel injectors, wiring, and related components. They may use specialized tools, such as a Digital Volt-Ohmmeter (DVOM) or a multimeter, to test the voltage, resistance, and connectivity of the fuel injectors. By conducting these tests, the mechanic can identify any issues, such as clogged injectors, faulty wiring, or incorrect voltage, and recommend appropriate repairs or replacements.
It is important to choose a reputable and experienced mechanic who has worked with fuel injectors before. You can ask for recommendations from friends or family, or read online reviews to find a trusted professional in your area. A good mechanic will be able to explain the issue clearly, provide an accurate quote for the repairs, and address any concerns or questions you may have.
By consulting a professional, you can ensure that your vehicle receives the care it needs to operate safely and efficiently. While it may seem convenient to attempt repairs yourself, the expertise of a qualified mechanic can help prevent further complications and save you time and money.
Testing Fuel Injector Deadtimes: A Step-by-Step Guide
You may want to see also
Frequently asked questions
You can use a Digital Volt-Ohmmeter (DVOM) or multimeter with ohms setting to test the injector resistance and wiring. First, turn the car on without turning on the engine. Then, set up the DVOM to measure DC voltage and touch the negative lead of the DVOM to a ground source. Next, place the positive lead on the wiring harness terminal. The wiring harness will have two terminals, with one connected to the ground and reading 0 volts, and the other reading 12 volts or around 12.
If your fuel injectors are not receiving the correct voltage, there may be excess resistance in the wire. You can test this by repeating the above process with all injector wiring harnesses. If the issue persists, you may need to remove the injector and test the spray pattern it produces on an injector tester. If you are experiencing any difficulty, it is recommended to consult a professional mechanic.
Over time, fuel injectors can wear out or clog up, causing issues with the engine. One sign that your fuel injectors may be clogged is if you notice a decrease in the spray inside the cylinder, leading to incomplete fuel burning and misfires. You can also check for issues by comparing durations between sequentially fired injectors when the engine has achieved full operating temperature. Any sloping of the trace may indicate insufficient switching speed.
The typical voltage range for fuel injectors depends on the type of injector. For high impedance injectors, which are common in modern cars, the range is typically from 12 to 17 ohms.
