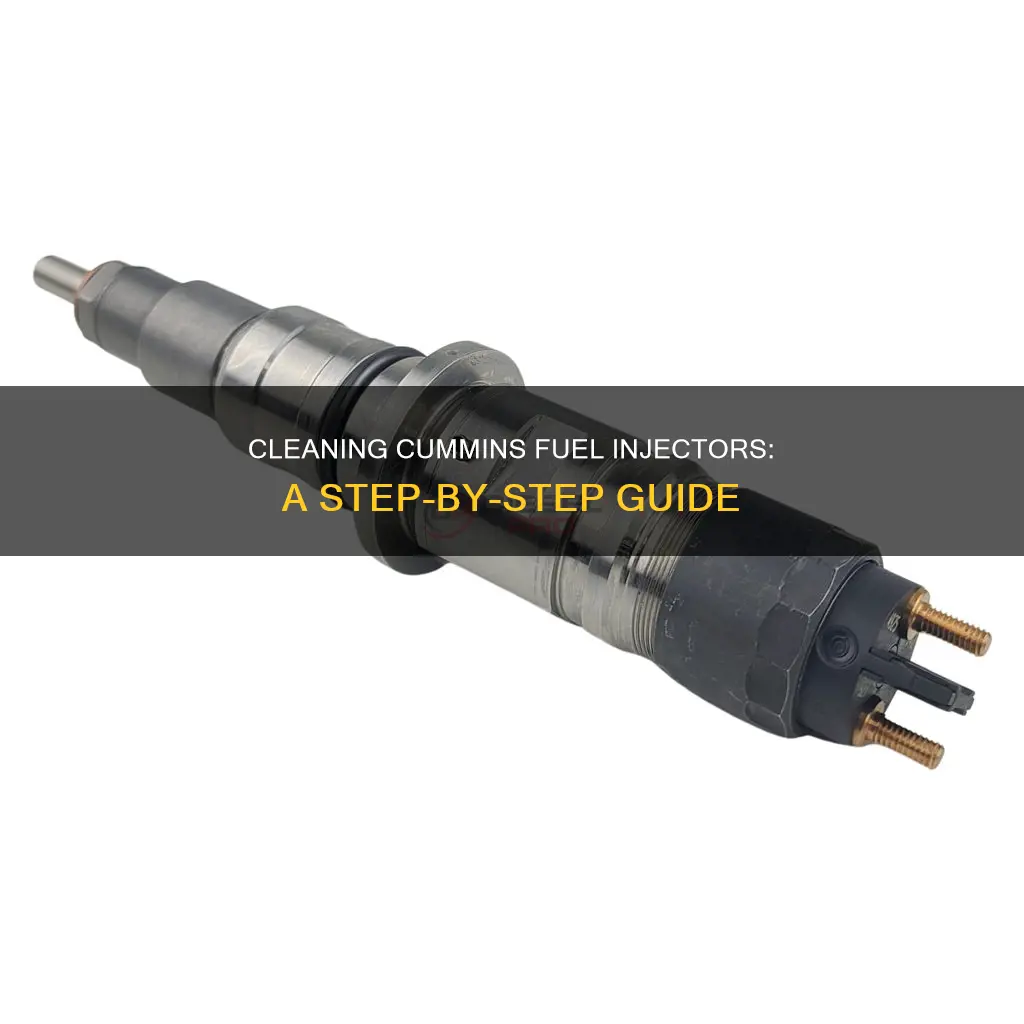

Keeping your Cummins fuel injectors clean is an important part of engine maintenance. Poor fuel quality, overuse, and corrosion can lead to injector failure, so it's important to know how to clean them properly. While there are many products available for cleaning injectors, such as Sea Foam Motor Treatment, it's also important to know how to disassemble and clean them manually. This process involves removing the injector, disassembling it, cleaning all parts thoroughly, and then reassembling and reinstalling the injector.
Explore related products
What You'll Learn
Use a soft brush and injector cleaner to remove deposits
To clean Cummins fuel injectors, it is recommended to use a soft brush and an injector cleaner to remove deposits. This process can help keep the injectors in good condition and improve the overall performance of your vehicle.
Firstly, it is important to gather the necessary tools and materials. You will need a soft brush, such as a soft toothbrush, and an injector cleaner solution. Popular injector cleaner options include PowerService, Lucas, Sea Foam Motor Treatment, and Cummins' own injector cleaner. It is also important to ensure you are working in a well-ventilated area, as recommended by some mechanics.
Before beginning the cleaning process, it is crucial to disconnect the fuel supply line and remove the injectors from your vehicle, following the manufacturer's instructions or seeking professional advice if needed. Clamp the injector in a vice, taking care not to clamp onto the injector return outlet port. Use a torque wrench with a 15mm deep socket to loosen the nozzle clamping nut until it is hand-tight.
Once the injector is securely clamped and the clamping nut is loosened, you can begin the cleaning process. Remove the nozzle from the injector, as this will make it easier to access the deposits. Dip the soft brush into the injector cleaner solution and lightly brush away any visible deposits on the end of the injector and around the nozzle area. Take your time with this step, as it may take a while to thoroughly clean all the deposits.
After cleaning, you can reassemble the injector, ensuring that all components are correctly oriented. It is important to note that you should only work on one injector at a time to prevent mixing parts. Additionally, be sure to follow any specific instructions provided by the manufacturer of your injector cleaner solution.
Fuel Injector Replacement: Step-by-Step Guide for DIY Mechanics
You may want to see also
Explore related products
Test the injectors after changing pop pressure
To test the injectors after changing pop pressure, you will need to perform a pop test. This will allow you to check the pop-off pressure, which is the injector's opening pressure. This test can be performed with a simple hand pump, mechanical gauge, and a nozzle holder.
- Ensure you have the right test equipment: You will need a mechanical injector tester that includes a hand pump, a mechanical gauge, and a nozzle holder. These testers are designed to measure pop-off pressure and analyze injector performance.
- Prepare the injector: Before performing the test, make sure the injector is clean and free of any debris or residue. Refer to the injector cleaning procedure for detailed instructions on how to properly clean the injector.
- Set up the tester: Connect the injector to the tester according to the manufacturer's instructions. Ensure that all connections are secure and tight to prevent any leaks during testing.
- Perform the pop test: Operate the hand pump to build up pressure in the tester. The mechanical gauge will display the pressure in bar or psi. Continue to increase the pressure until the injector pops open. This pressure value at which the injector opens is the pop-off pressure.
- Record and analyze the results: Note the pop-off pressure reading on the gauge. Compare this value to the specified pop-off pressure for your specific injector and engine application. For example, the Bosch VE distributor-style pump used in some Dodge trucks has a factory-set pop-off pressure of 245 bar (3,553 psi), while later models with the Bosch P7100 inline pump have a pop-off pressure of 260 bar (3,770 psi).
- Evaluate injector performance: A significantly lower pop-off pressure than specified can indicate injector wear or degradation. This can lead to decreased efficiency, reduced performance, and increased smoke emissions. If the pop-off pressure is within the acceptable range, also observe the nozzle spray pattern and listen for any unusual chatter or noise, as these can also indicate injector issues.
- Repeat for all injectors: It is important to test each injector individually to ensure consistent performance across all cylinders.
By following these steps and regularly testing the injectors after changing the pop pressure, you can ensure optimal engine performance, fuel efficiency, and emissions compliance. It is recommended to have certified diesel fuel shops perform these tests and services if you do not have access to the required equipment or expertise.
Applying Red Line Fuel Injector Cleaner: Step-by-Step Guide
You may want to see also
Explore related products
Use a fuel injector remover to avoid damage
To clean Cummins fuel injectors, it is important to use a fuel injector remover to avoid damage. This tool is designed to safely and efficiently remove the injectors from the engine, without causing any harm to the surrounding components.
There are a variety of fuel injector removers available, and the right one for the job will depend on the specific engine and injector setup. Some common options include:
- Fuel tube remover: This tool is designed to easily remove the fuel injectors by attaching to the metal top of the injector and popping them out.
- Torque wrench: A torque wrench can be used to loosen and remove the injectors, and is a good option for those with mechanical experience.
- Rolling pry bar: A pry bar can be used to carefully pry the injectors out, but it may require some force and patience.
- Specialised injector removal tool: There are dedicated injector removal tools available, which can make the job easier and help avoid damage.
When using any of these tools, it is important to follow the correct procedure to avoid damage. This includes:
- Laying out all the parts in a logical order to ensure they can be easily reassembled.
- Keeping the lines and rails connected, if possible, to avoid confusion during reassembly.
- Working on one injector at a time to prevent mixing parts.
- Using a clamp or vice to securely hold the injector during removal.
- Loosening the nozzle clamping nut with a wrench before finishing removal by hand.
Adjusting Fuel Injectors: Running Richer, the How-to Guide
You may want to see also
Explore related products
Cleanliness is important, so clean injectors before disassembly
Cleanliness is very important when it comes to fuel injectors. Any dirt or debris that gets inside the injector can cause wear on the tight tolerance parts. Therefore, it is highly recommended to clean the injectors thoroughly before disassembly.
To clean your Cummins fuel injectors, start by clamping the injector in a vice, preferably a smooth jaw vice. Be sure not to clamp onto the injector return outlet port. Use a 15mm wrench to loosen the nozzle clamping nut until it is hand-tight. Remove the injector from the vice and put it close to your workbench before finishing the removal of the nozzle retaining nut.
Once the injector is out, carefully remove the needle from the nozzle. If necessary, use some pliers to carefully pull the needle out, making sure not to scratch the nozzle mating surface. If the needle is still difficult to remove, you may need to reassemble the injector and use an injector pop tester to loosen the needle. Then, once again, disassemble the injector and continue cleaning.
Use a brake cleaner, carb cleaner, or compressed air to clean out the nozzle, blowing into the needle hole and the feed passage. You can also use a soft brush, like a soft toothbrush, with some injector cleaner to lightly brush out any deposits on the end of the injector. If you want to remove the nozzle to clean it separately, you can do so by unscrewing it from the injector body.
It is important to only work on one injector at a time to prevent mixing parts between them. Additionally, be sure to perform your cleaning in a well-ventilated area, as some of the chemicals involved can be dangerous if inhaled.
Troubleshooting Fuel Injectors in a 2003 Ford F150
You may want to see also
Explore related products
Use Sea Foam Motor Treatment to clean the fuel injectors
Sea Foam Motor Treatment is a safe and effective way to clean Cummins fuel injectors. It is made with 100% safe petroleum cleaning and lubricating ingredients and can be used in all types of gasoline or diesel fuels and fuel blends. It is also safe to be used in the crankcase oil.
To clean your fuel injectors with Sea Foam Motor Treatment, start by getting the engine to operating temperature and then shut it off. Remove the fuel filter and replace it if needed. Empty all diesel fuel from the filter or filter housing and fill the filter or housing with straight Sea Foam. Reinstall the filter, ensuring there is no air in the filter. Start the engine and let it run for about two minutes, then shut off the engine and let it sit for about five minutes. This step is called a "HOT SOAK", allowing the Sea Foam to soak into the carbon. After the "hot soak" period, restart the engine and drive aggressively for about 5 miles.
You can also use Sea Foam Motor Treatment in conjunction with the S.U.R.&R. FIC203 Injection Cleaner Kit. The FIC203 kit will supply pure Sea Foam to the OEM fuel canister, and the engine will idle unloaded on pure Sea Foam Motor Treatment. The air-pressurized fuel canister can be adjusted to deliver Sea Foam at the same pressure as an OEM "lift" pump or fuel tank electric pump module.
For maximum cleaning power, add a full 16 oz can of Sea Foam to a low tank (2-3 gallons) and drive until almost empty before refueling. Sea Foam can also be added to the fuel tank at every fill-up to maintain clean engine performance. Regular use helps to prevent hard starts, rough idling, and engine hesitations.
Replacing Fuel Injectors in Your Dodge Ram: Step-by-Step Guide
You may want to see also
Frequently asked questions
Cummins makes its own injector cleaner, but some other products you can use include Sea Foam Motor Treatment, Lucas injector cleaner and lube, and B99 or B100 commercial-grade biodiesel.
First, ensure you are working in a well-ventilated area. Clean the injectors thoroughly before disassembly. Use a torque wrench with a 15mm deep socket, a vice, lubrication oil, a pen magnet for shim removal, a small pick, adjustment shims, and a caliper. Clamp the injector in the vice, then use the torque wrench to loosen the nozzle clamping nut. Next, remove the injector from the vice and finish removing the nozzle retaining nut. Disassemble the injector and clean all parts thoroughly. Use brake cleaner, carb cleaner, and compressed air to clean the nozzle, blowing into the needle hole and feed passage.
It is recommended to use the SUR&R FIC203 Fuel Injection Cleaning Kit once a year.
Early symptoms of injector failure include rough starting, cold idling, or surging from poor sealing and fuel pooling. There may also be a lack of power or more black smoke than normal.
