If you're experiencing issues with your Mercury 25 HP outboard motor, it may be time to disassemble the fuel injector for cleaning or repair. Fuel injectors are crucial for engine performance, but they can become clogged with stale fuel or varnish over time, leading to rough idling and surging during acceleration. While there are home-cleaning methods, sending the injectors to a professional for servicing is recommended to ensure they're properly cleaned, calibrated, and repaired. This guide will outline the steps to safely disassemble your Mercury 25 HP outboard motor's fuel injector and address any issues.

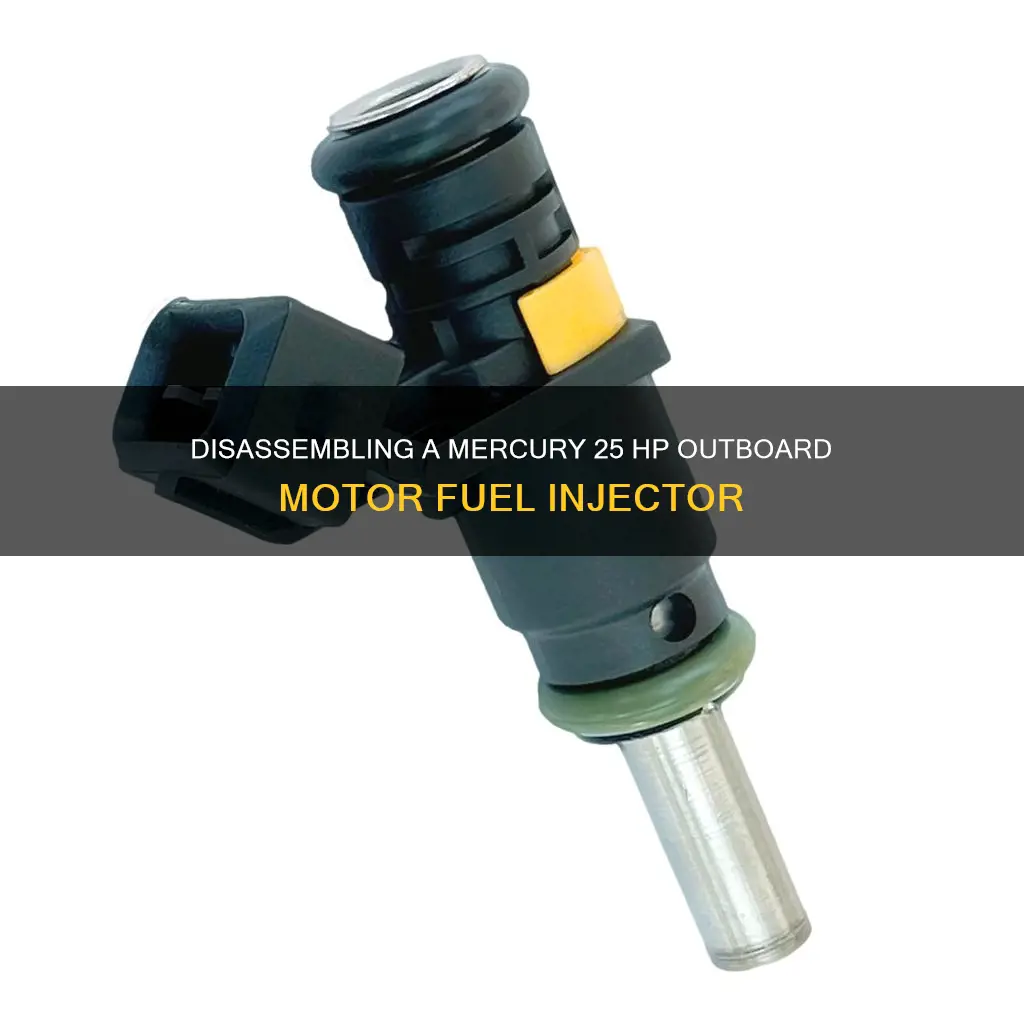

How to Disassemble a Mercury 25 HP Outboard Motor Fuel Injector
| Characteristics | Values |
|---|---|
| Tools required | Ratcheting wrench, flat head |
| Fuel injector cleaning products | Sea Foam Marine PRO, BrucatoFIS Inc.’s products |
| Fuel injector removal steps | 1. Remove fuel injector cap retainer clips and screws. 2. Unplug the harness from the injector by pushing in on the harness connector clip. 3. Pry the injector cap from the injector. 4. Pull out the injector from the manifold. |
| Fuel injector torque | 31 in-lbs |
| Fuel injector maintenance | Recommended every 300 engine runtime hours or every three to four years |
Explore related products
$17.19
What You'll Learn
Removing the fuel injector cap retainer clips and screws
To remove the fuel injector cap retainer clips and screws, you will need to follow a few simple steps. Firstly, push in on the harness connector clip at the injector and unplug the harness from the injector. You can do this by gently prying the connector clip with a small flat-head screwdriver or similar tool.
Once the harness is unplugged, you can focus on the retainer clips and screws. Using the appropriate screwdriver, carefully loosen and remove any screws that are holding the retainer clips in place. Make sure to keep the screws in a safe place so they don't get lost. With the screws removed, you can now remove the retainer clips. Gently pry or lift the clips away from the fuel injector cap. You may need a small amount of force to do this, but be careful not to damage the clips or the surrounding components.
If the retainer clips are difficult to remove, you can try using a small, flat-head screwdriver to gently pry them up from the cap. Be cautious not to scratch or damage the fuel injector or any nearby parts. Once the retainer clips are removed, you can now access the fuel injector cap. Gently lift or pull the cap away from the injector, being careful not to drop or damage it.
Now that the retainer clips and screws have been successfully removed, you can proceed with the next steps of disassembling the fuel injector or performing any necessary maintenance or repairs. Remember to keep all the parts organised and safe, and always refer to a professional mechanic or repair manual if you are unsure about any steps.
Cleaning Fuel Injectors on a 1992 Chevy Truck: Step-by-Step Guide
You may want to see also
Explore related products
Disconnecting the harness from the injector
Begin by locating the harness connector clip at the injector. This clip securely joins the harness and the injector together. Using your thumb or a small flat-head screwdriver, carefully push in on the connector clip. This action will unlock the clip, allowing you to safely disconnect the two components without causing any damage. It is important to apply gentle and controlled force during this step to avoid any accidental breakage.
Once the connector clip is unlocked, you can proceed to unplug the harness from the injector. Firmly grip the harness and gently wiggle it back and forth, if necessary, to carefully detach it from the injector. Ensure that you are only applying force in the direction of the plug to prevent any potential damage to the surrounding components. At this point, the harness should be successfully disconnected from the injector, and you will be able to see the injector cap.
The next step is to remove the injector cap. Using an appropriate tool, carefully pry the injector cap from the injector. This step may require some careful leverage, but it is important to avoid using excessive force to prevent any damage to the injector cap or the injector itself. Once the injector cap is removed, you will have access to the injector and can proceed with the removal process.
After successfully disconnecting the harness and removing the injector cap, you can now safely pull out the injector from the manifold. This step will completely separate the injector from the engine, allowing you to proceed with your maintenance, cleaning, or replacement tasks. Remember to handle the injector with care, as these components can be delicate and susceptible to damage if dropped or mishandled.
Fuel Injectors in Nissan Titan SE 4x4: 2005 Model Insights
You may want to see also
Explore related products
Pulling out the injector from the manifold
To pull out the injector from the manifold, you will first need to remove the fuel injector cap retainer clips and screws. Push in on the harness connector clip at the injector and unplug the harness from the injector. You can then pry the injector cap from the injector. Be sure to lubricate the O-ring of the injector before reinstalling it with a small amount of two-stroke oil. The fuel injector screw should be torqued at 31 in-lbs.
It is important to note that fuel injectors can be difficult to access and that without the proper tools, you may not be able to get them back to specification. The best way to keep fuel injectors clean is to do so while they are still on the engine. Use a stabilizer every time, and double or triple the dosage before any storage of longer than a month.
If your engine won't start with one turn of the key, idles rough, and surges on its way to full throttle, your engine's fuel injectors may be dirty or clogged. In this case, you can either jury-rig a simple home-cleaning method or remove the dirty injectors and send them to a professional for cleaning.
If you choose to clean the injectors yourself, be sure to avoid using any power tools as gasoline is present. You can add a full can of Marine Pro to a low tank of fuel (around 1/4 tank) and then operate the engine for at least 20 minutes before adding more fuel.
Ford Mustang V6: Fuel Injectors in 2002 Models?
You may want to see also
Explore related products
Cleaning the injectors
Before starting, it is important to note that fuel injectors can be difficult to access and may require specialised tools for removal and calibration. If you are not confident in your mechanical skills, it is recommended to seek professional help from a certified shop or your boatyard service manager/technician.
Now, to clean the injectors, begin by removing them from the engine. This process can be involved, especially for outboard motors, as injectors are often embedded deep within the intake manifold. Once removed, there are two main methods for cleaning:
The first method is a simple home-cleaning process. Connect the fuel input end of the injector to a hose that is submerged in a carburetor cleaner or a similar solution (even Simple Green works). Ensure the solution container is raised above the injector to allow for gravity feed. Then, connect the positive and negative terminals of the injector to a 12-volt battery. When connected, the injector will "fire," spraying the cleaning solution. Pulsing the voltage by alternately connecting and disconnecting the positive jumper will clear the injectors within a few minutes.
The second method is to send the injectors to a professional service for cleaning. This option is recommended if you want to ensure a thorough cleaning and proper calibration. Professional fuel injector services have the necessary equipment and expertise to effectively clean, calibrate, and repair injectors.
Additionally, here are some tips for maintaining clean injectors and preventing future issues:
- Use fuel additives like Sta-Bil, StarTron, or Gas-Shok Plus to prevent condensation buildup and rust.
- Avoid ethanol blends as they can cause fuel-system degradation and injector problems.
- Service fuel system hoses, filters, O-rings, and fuel pumps regularly to prevent corrosion and disintegration, which can emit debris that ends up in the injectors.
- Double or triple the dosage of fuel additives before any storage longer than a month to protect against fuel-injector issues.
- Use a stabilizer every time to keep fuel injectors clean while they are still on the engine.
Cleaning Sea-Doo Fuel Injectors: A Step-by-Step Guide
You may want to see also
Explore related products
Reinstalling the injectors
To reinstall the injectors, you will need to first ensure that the engine is turned off and that you are working in a well-ventilated area. It is also recommended to wear safety gear, such as gloves and eye protection.
Start by lubricating the O-ring of the injector with a small amount of two-stroke oil. Then, insert the injector back into the manifold, ensuring it is properly seated. Next, plug the harness back into the injector by lining up the harness connector clip and applying gentle pressure until it clicks into place. Secure the injector with the fuel injector cap and retainer clips, and tighten the screws.
The fuel injector screw should be torqued to 31 inch-pounds. It is important not to overtighten the screw, as this can damage the injector and the engine. Once the injector is secure, you can replace any other components that were removed during the disassembly process.
Finally, before starting the engine, it is recommended to check for any fuel leaks and ensure that all connections are secure. This will help prevent any potential issues and ensure the safe operation of the outboard motor.
Fuel Injector: Necessary Upgrade or Unneeded Expense?
You may want to see also
Frequently asked questions
To disassemble a Mercury outboard motor fuel injector, first remove the fuel injector cap retainer clips and screws. Then, push in the harness connector clip and unplug the harness from the injector. After that, pry the injector cap off and pull out the injector from the manifold.
It is important to note that you should not use any power tools during this process as there is gas present.
For most cases, a ratcheting wrench and a flat head will be sufficient for disassembling a Mercury 25 HP outboard motor fuel injector.
It is recommended to service your fuel injectors every 300 engine runtime hours or every three to four years.
You can clean your fuel injectors by using a fuel additive or sending them to a professional service. One recommended product is Sea Foam Marine PRO, which can be added to a low tank of fuel and then running the engine for at least 20 minutes.
Some signs that your fuel injectors might need cleaning include difficulty starting the engine, rough idling, and surging on the way to full throttle.
