In-tank fuel pumps are designed to operate while submerged in gasoline for lubrication and cooling. Replacing a fuel pump can be expensive, and the process varies depending on the type of car. However, there are some basic steps that can be followed. First, ensure that you are working in a well-ventilated area, wearing safety gear such as glasses and gloves, and have a fire extinguisher nearby. Next, disconnect the negative battery cable and relieve the fuel system pressure. If your tank has a lot of fuel, drain it into an approved container. Then, remove the clamps from the fill lines and carefully lift the pump assembly out of the tank. If you are replacing the entire fuel pump module, gently lift the pump and pry the pump base to pull it away from the sending unit. Finally, install the new pump, reconnect the wire connectors and fuel lines, and partially fill the tank to test for leaks.

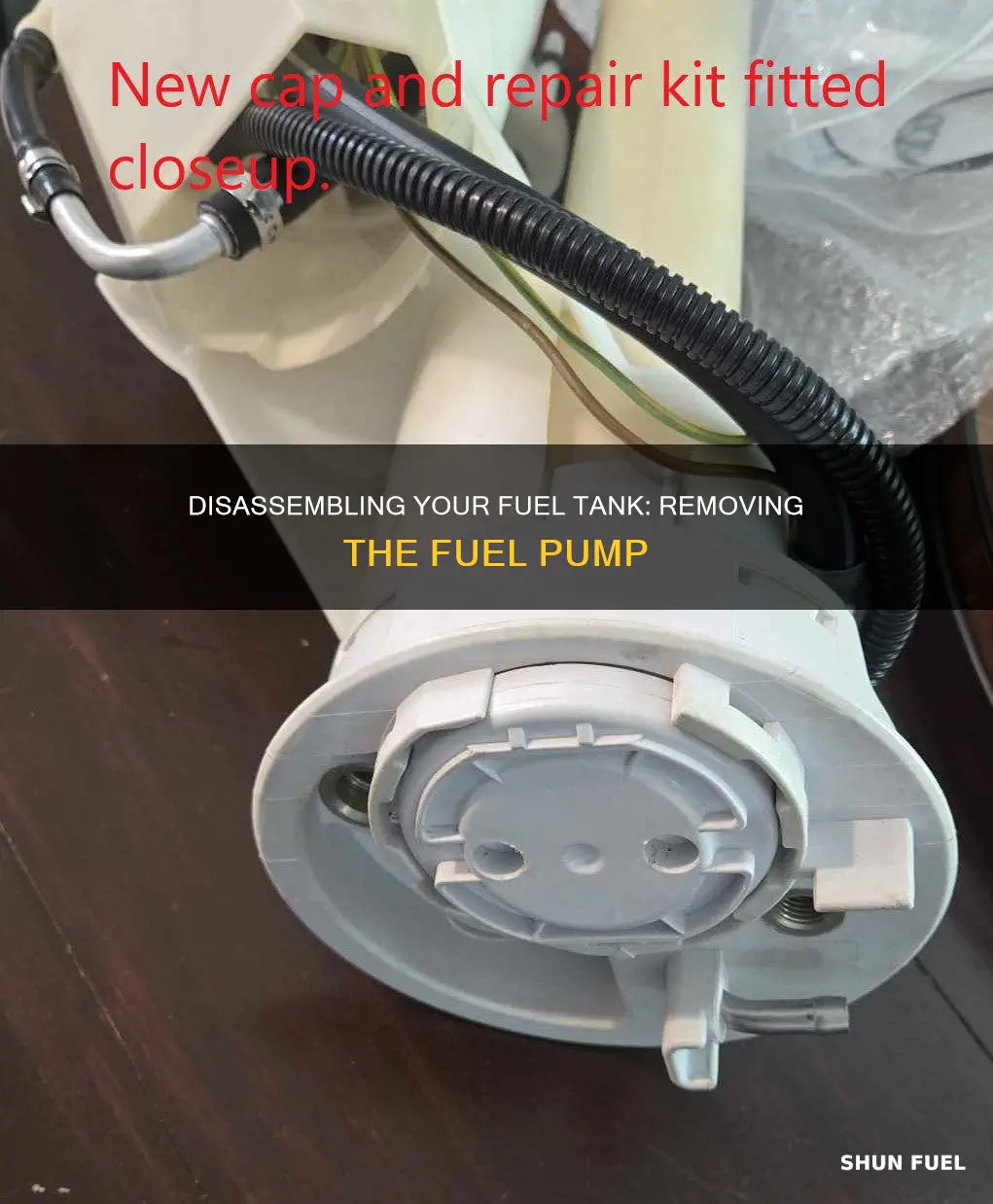

How to Disassemble and In-Tank Fuel Pump
| Characteristics | Values |
|---|---|
| Safety Precautions | Wear safety glasses and gloves. Work in a well-ventilated area away from open flames or sparks. Keep a fire extinguisher nearby. |
| Vehicle Preparation | Lift the vehicle and remove the tank. Disconnect the negative battery cable. Drain the fuel tank. Remove the clamps from the fill lines. |
| Fuel Pump Access | Remove the seat cushion and service window covering. For vehicles without an access panel, more time and effort are required to reach the tank. |
| Disassembly | Use tools such as a screwdriver, socket wrench, and pliers to disassemble the pump assembly. Pry and twist the pump to free it from the housing. |
| Replacement | Install a new pump and filter. Transfer any necessary parts from the old unit. Reassemble and reconnect the fuel lines and wire connectors. |
| Testing | Partially fill the tank and run the vehicle to inspect for leaks. |
Explore related products
What You'll Learn
Disconnect the negative battery cable and relieve fuel pressure
Disconnecting the negative battery cable and relieving fuel pressure are crucial steps when disassembling an in-tank fuel pump. Here is a detailed guide on how to perform these steps safely and effectively:
Disconnecting the Negative Battery Cable:
- Before beginning any work, ensure your vehicle is parked in a well-ventilated area, away from open flames, sparks, or potential ignition sources.
- Put on safety glasses and gloves for protection.
- Locate the negative battery cable. It is usually black and connected to the negative terminal of the battery, which is often marked with a "-" sign.
- Using the appropriate tools, carefully loosen and disconnect the negative battery cable from the battery terminal.
- Set the disconnected cable aside, ensuring it does not touch any metal parts of the vehicle to prevent accidental electrical shorts.
Relieving Fuel System Pressure:
- The fuel injection system is under pressure, so it is crucial to release this pressure slowly to prevent spills and potential hazards.
- Have a suitable container and absorbent rags ready to catch any spilled fuel.
- Place the container under the fuel line and slowly loosen the union bolt to relieve the pressure.
- Be extremely cautious and follow safety precautions, such as having a Class B-C (dry powder) fire extinguisher within arm's reach.
- Observe "no smoking/no open flame" precautions during this process.
- Once the pressure is relieved, wipe up any spilled fuel immediately.
These steps are essential for ensuring safety and preventing potential hazards when working on your fuel pump. Always refer to vehicle-specific repair manuals and follow manufacturer guidelines for more detailed instructions pertaining to your specific vehicle.
Diagnosing Faulty Fuel Tank Pressure Sensors: A Step-by-Step Guide
You may want to see also
Explore related products
Remove the tank
Removing the tank to access the fuel pump is a more time-consuming process than accessing the pump through an access panel. First, you will need to lift the vehicle to access the tank. If there is fuel in the tank, it is important to drain it into an approved container like a gas can or caddy. You should also siphon the fuel using a siphon kit to ensure your safety and the safety of your vehicle.
Next, remove the clamps from the fill lines and then remove the fill lines as you prepare to drop the gas tank. Support the tank as you remove the straps and carefully lower it. Keep in mind that you will need to reverse this procedure when reinstalling the tank.
Once the tank is lowered, you can remove the pump assembly and replace it with a new one. Some fuel pumps require parts to be transferred from the old unit, so be sure to check this before disposing of the old pump.
After replacing the pump, carefully lift the tank back into position and reconnect the wire connectors and fuel lines. Partially fill the tank and run the vehicle to inspect for any leaks. Don't forget to replace the fuel filter as well so that your new pump will run smoothly.
Deep Siphoning Fuel Tanks: A Comprehensive Guide
You may want to see also
Explore related products
Take out the pump assembly
Taking out the pump assembly is a challenging task that requires careful preparation and execution. Here is a step-by-step guide to help you through the process:
Firstly, ensure you are working in a well-ventilated area, preferably outdoors, to minimise the risk of inhaling toxic fumes and to prevent the ignition of highly flammable fuel vapours. Wear the necessary safety gear, including safety glasses, gloves, and appropriate clothing to shield yourself from fuel spills and splashes. It is also crucial to have a fire extinguisher nearby as a safety precaution.
Before starting, relieve the fuel system pressure. You can do this by running the engine and pulling the fuel pump relay, causing the engine to stall. Alternatively, with the engine off, press the Schrader valve on the pressure line momentarily to release the fuel spray. If your vehicle has a full gas tank, consider draining or siphoning the fuel to reduce the risk of spills and make the tank lighter and easier to handle. Remember to store the drained fuel in an approved container.
Now, locate the fuel tank and determine if it can be accessed without removing the tank. Some vehicles have an access panel or port under the rear seat or in the trunk area, making the process much easier. If your vehicle does not have such access, you will need to remove the fuel tank. To do this, safely raise and support the rear of the vehicle using a jack and jack stands.
Once you have access to the fuel pump, the next step is to remove the pump assembly. Disconnect the hoses and clamps connected to the pump, and carefully lift the assembly out of the tank. You may need to roll and twist the assembly to manoeuvre it through the opening. Be prepared for fuel spills during this step, and have rags or towels ready to absorb any spilled fuel.
After removing the pump assembly, it is important to clean the area around the fuel pump to prevent dirt and debris from falling into the tank. Pay special attention to the top of the tank and the inside of the tank neck, using a towel or rag soaked in a suitable cleaner. Additionally, if your old pump has plastic tabs, be mindful that they can make it challenging to pull the pump out through the opening. You may need to lift the pump at a slight angle and slowly straighten it to successfully remove it.
Degreasing Diesel Fuel Tanks: Coating Prep Techniques
You may want to see also
Explore related products
$9.99 $11.99
Disassemble the pump assembly
Before you begin disassembling the pump assembly, it is important to take safety precautions. Wear safety glasses and gloves, work in a well-ventilated area, and have cleanup materials ready in case of spills. Additionally, relieve fuel pressure before opening fuel systems to avoid the risk of fire and injury. Now, to disassemble the pump assembly:
Firstly, ensure that the pump assembly is out of the car. If not, you will need to lift the vehicle and remove the tank. If there is gas in the tank, drain it into an approved container. Then, remove the clamps and fill lines, and lower the gas tank. The next step is to remove the pump assembly, which may be held in place by a pipe or fuel filter. Once the pump assembly is out, you can focus on disassembling it.
Use a small pick or small screwdriver to pop off the bottom plastic cover of the pump. The pump is sealed to the housing by a large O-ring, so you will need to twist back and forth while prying downward to free it. On the top of the pump housing, you will see tabs around the upper lip where the cap of the housing clicks over the lower part. You can wedge a screwdriver into this area to help with disassembly. Remember that the top and bottom caps of the housing press everything together, so you may need to apply slow and firm pressure to avoid cracking the brittle housing.
Finally, if you are replacing the pump, be aware that some fuel pumps require parts to be transferred from the old unit. Additionally, do not bench-test a new fuel pump as it may cause damage. In-tank fuel pumps are designed to operate submerged in gasoline for lubrication and cooling.
Fuel Tank Size for 2004 Dakota SLT 4x4: How to Determine?
You may want to see also
Explore related products
Reassemble the pump assembly with a new pump and filter
Reassembling the pump assembly with a new pump and filter is a complex task that varies depending on the vehicle. However, here is a general step-by-step guide on how to do it:
Firstly, ensure you have a new fuel pump and filter, as well as any other components specific to your vehicle. It is important to note that modern, return-less fuel systems have the filter integrated into the assembly, so it may come with the new pump. Nevertheless, it is recommended to replace the fuel filter when replacing the fuel pump, especially on older vehicles, to prevent debris from contaminating the new unit.
Once you have the necessary parts, follow these steps:
- Get the new pump installed and the pump retaining ring back in place.
- Raise the tank close to the vehicle.
- Reconnect the wire connectors and fuel lines.
- Reconnect the straps and fill lines with the tank properly positioned.
- Partially fill the tank.
- Run the vehicle and inspect for any leaks.
It is important to be careful and follow safety precautions when reassembling the pump assembly. Work in a well-ventilated area away from any open flames or sparks, and have a fire extinguisher ready. Additionally, ensure the amount of fuel in the tank is reduced to minimise the risk of spillage or other messiness.
Creating an Extended Fuel Tank for Your Honda 2000
You may want to see also
Frequently asked questions
Before starting, make sure you are wearing safety glasses and gloves and working in a well-ventilated area. The first step is to disconnect the negative battery cable. Next, relieve the fuel system pressure and drain the fuel tank. Remove the clamps from the fill lines and then remove the fill lines. Carefully lift the pump assembly out of the tank.
Reassembly is the reverse of the disassembly process. First, get the pump installed and the pump retaining ring back in place. Raise the tank close to the vehicle so you can reconnect the wire connectors and fuel lines. Reattach the fill lines and fill the tank with fuel. Run the vehicle and inspect for any leaks. Don't forget to replace the fuel filter as well.
First, make sure your vehicle doesn’t have an access panel that will allow you to access the pump without removing the tank. If not, you will need to lift the vehicle, so you can remove the tank. If there’s gas in the tank, you’ll have to drain it into an approved container first. Remove the pump assembly so you can replace it with a new part.
Always relieve fuel pressure before opening fuel systems as releasing fuel under pressure can cause fires and injuries. Work in a well-ventilated area away from any open flames or anything that could cause a spark, such as pilot lights and incandescent light bulbs. Keep a fire extinguisher nearby.
