Ameer Randolph
The 4BT engine is widely known for its reliability and is used in industrial and jeep swap applications. However, issues with the fuel pump and injectors can occur. To diagnose a bad fuel pump, it is important to check for leaks and clogs in the fuel system, including the fuel tank, fuel lines, lift pump, and fuel filter. If the engine is not starting, it is recommended to check all fuel line fittings and clamps, as well as the fuel shut-off solenoid valve. To test the fuel pump, one can disconnect a fuel line and measure the fuel delivery rate or observe the sound of the pump when the ignition is engaged. For injector problems, white smoke, rough engine start, and stalling may be indicators of leaking injectors, which can be confirmed by checking for wet injector lines and fuel flow to the injectors.
| Characteristics | Values |
|---|---|
| Engine won't start | Check for leaks in the fuel line fittings and clamps; over-tightening the fuel filter cartridge can cause air leaks |
| Air cannot be bled from the system | Check for leaks before the lift pump; replace the flexible line with a temporary install of clear vinyl tubing to the lift pump inlet to check for bubbles |
| Bubbles in the clear line | Indicates air leaks between the tank and the lift pump |
| No fuel to injectors | Indicates a bad fuel shutoff solenoid valve at the back top of the pump |
| White smoke | Indicates a leaking injector, burning oil, or burning coolant |
| Intercooler and adjacent pipes issues | During installation, the intercooler and pipes can be crushed or pinned against the frame causing damage |
| Engine stalling | Clean the fuel tank and the lift pump; check for cracked fuel lines |
| Wet injectors | Indicates a problem with the fuel pump |
| No fuel to the injectors | Check the fuel cap for rust and the tank for debris; ensure clear fuel at the inlet to the injection pump and the overflow valve |
| Tar-like residue in the inlet body of the lift pump | Clean the debris screen in the housing |
| No fuel flow from the lift pump | Check the wires running to the fuel shutoff solenoid |
| No leaks from the tank, fuel line, lift pump, or fuel filter | Check for air in the overflow banjo nut and pump the plunger |
| No fuel flow from the fuel pump | Check the fuel cap for rust and the tank for debris; check for air leaks |
Explore related products
What You'll Learn
Check for leaks and air in the fuel system
To check for leaks and air in the fuel system of a Cummins 4BT engine, you can perform the following steps:
Firstly, check all your fuel line fittings and clamps. Over-tightening the fuel filter cartridge can cause air leaks, so be mindful of that. Remove your flexible line and replace it with a temporary clear vinyl tube to the lift pump inlet. If this clear line shows bubbles before the lift pump, then air leaks are between the tank and the lift pump.
Next, check the fuel filter housing inlet and outlet. The inlet is on the right, and the outlet is on the left. The outlet line being above the inlet line helps air bubbles rise to the outlet bleed. The bleed point for air elimination is from the tank, through the lift pump, through the filter, and filter housing.
Then, check the injectors for leaks. If the engine still won't start or air can't be bled from the system, you may have a bad fuel shut-off solenoid valve. Try jumpering from the battery 12VDC for testing purposes.
Additionally, you can check for external leaks by priming the fuel system with a hand primer until 10 PSI is indicated on the gauge. If the pressure drops rapidly, remove the fuel outlet line from the filter and cap it.
Finally, some general tips to prevent and troubleshoot fuel leaks include regularly cleaning the fuel tank, ensuring proper installation of hoses and fittings, and replacing any cracked or damaged fuel lines.
Fuel Injector Size: Can Bigger Be Better?
You may want to see also
Explore related products
Inspect fuel lines, filter and lift pump
When inspecting the fuel lines, filter and lift pump of a 4BT engine, there are several key areas to focus on. Firstly, check for any leaks or cracks in the fuel lines and lift pump. Leaks can cause fuel to flow back into the intake feed, leading to engine issues. If there are any signs of damage or degradation, replace the affected components. Additionally, ensure that all fittings and clamps are secure and tight to prevent air leaks. Over-tightening the fuel filter cartridge can also cause air leaks, so be cautious when adjusting these components.
The lift pump is a critical component in the fuel system, as it is responsible for maintaining pressure in the lines. If there are issues with the lift pump, it can affect the performance and operation of the engine. Check the lift pump for any signs of wear or damage, and ensure that it is functioning correctly. If there are any concerns, it may be necessary to replace the lift pump.
The fuel filter also plays a crucial role in the fuel system. It is recommended to have a water separator between the tank and the lift pump, followed by the fuel filter, and then a second water separator on the engine block. This helps to ensure that any water or contaminants in the fuel are removed before reaching the engine. Inspect the fuel filter for any signs of clogging or damage, and replace it if necessary.
When inspecting the fuel lines, it is important to use fuel injection-rated hose, as it is designed to withstand modern fuel additives. The recommended size for the fuel lines is 3/8", as it provides sufficient fuel flow for the 4BT engine. However, some users have opted for larger sizes, such as 1/2" or 5/8", to potentially reduce pressure and heat. Ensure that the fuel lines are free of any kinks or bends that may restrict fuel flow.
Finally, pay attention to any unusual behaviour or symptoms that may indicate issues with the fuel system. For example, if the engine starts up and runs fine initially but then starves for fuel, it could be due to a plugged fuel cap or tank breather. Regularly inspect and maintain the fuel system to ensure optimal performance and longevity of the 4BT engine.
Cleaning Fuel Injectors: The Comprehensive Guide to Clean Fuel Injectors
You may want to see also
Explore related products

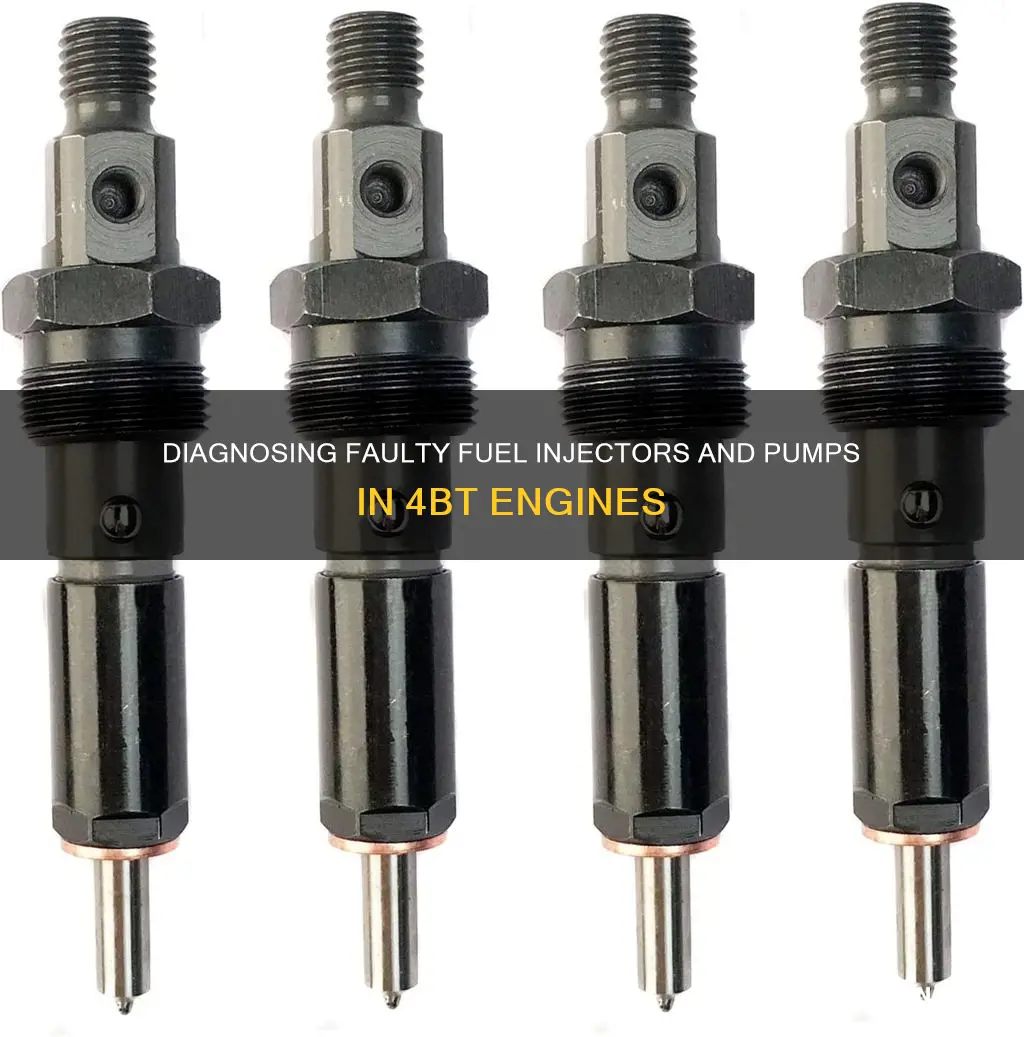

Identify injector problems
The injectors for the 4BT and 6BT are usually reliable and don't have the issues of the common rail injectors of the newer style electronic engines. However, injector problems can still occur.
One common symptom of injector issues is white smoke, which could mean an injector is leaking. If you are seeing white smoke, it could also mean that oil or coolant is burning. If you suspect an injector is leaking, you should check for leaks in the fuel line fittings and clamps. Over-tightening the fuel filter cartridge can cause air leaks, so be mindful of that.
Another way to identify injector problems is by listening to the sound of the engine cranking and how the engine is responding. If the engine is stuttering or stalling, it could be a sign of injector issues. If the engine requires priming to start, this could also indicate a problem with the injectors.
In some cases, injector issues can be caused by debris or sludge in the fuel tank or lines. If you suspect this might be the issue, you should clean the fuel tank and lines and ensure that there is clear fuel at the inlet to the injection pump and the overflow valve.
If you suspect that your injectors are not receiving enough fuel, you should check the fuel pressure. You can use a flow meter to measure fuel delivery or disconnect a fuel line and observe how much fuel it delivers. A good pump should deliver a quart of fuel in 30 seconds.
If you are still unable to identify the issue, it is recommended to seek the help of a professional mechanic or a community forum dedicated to 4BT engines, as they can provide more specific advice and troubleshooting steps.
Fuel Injectors in 05 Grand Am: How Many?
You may want to see also
Explore related products
Recognise symptoms of a faulty fuel pump
The fuel pump is a crucial component of your vehicle's fuel system, responsible for sucking up fuel, pressurising it, and delivering it through fuel lines to the injectors. While fuel pump issues are not common, they can occur in older vehicles or those with high mileage. Here are some telltale signs that your fuel pump may be failing:
- Difficult or failed engine starts: If your engine struggles to start or fails to start altogether, it could be due to an issue with the fuel pump not providing adequate fuel to the injectors.
- Engine stalls: If your engine stalls intermittently or consistently, it may indicate that the fuel pump is not delivering a consistent supply of fuel, causing the engine to shut off.
- Reduced engine performance: A faulty fuel pump may cause a decrease in engine performance, such as low power, hesitation, or lack of acceleration.
- Noisy fuel pump: A failing fuel pump may produce unusual noises, such as whining, buzzing, or humming sounds. Pay attention to any new or unusual sounds when the ignition is engaged as it may indicate a problem with the fuel pump.
- Fuel leaks: Inspect your vehicle for any signs of fuel leaks, as this could be an indication of a faulty fuel pump. Leaks can occur at the pump itself or at any point along the fuel lines.
- Fuel pressure test: If you suspect a problem with the fuel pump, you can perform a fuel pressure test. Disconnect one of the rubber fuel supply lines and attach a flow meter to measure the fuel pressure. A properly functioning fuel pump should deliver a quart of fuel in 30 seconds.
It is important to note that fuel pump issues can be complex, and other factors, such as fuel filters, fuel lines, or injectors, may also contribute to these symptoms. Therefore, it is always recommended to consult a qualified mechanic for a thorough diagnosis and repair.
The Cost of Diesel Fuel Injectors: How Much?
You may want to see also
Explore related products
Test fuel pressure and delivery
Testing fuel pressure and delivery is an important step in diagnosing issues with your 4BT engine. Here are some detailed steps and considerations to help you through the process:
First, it's important to understand the components involved in the fuel system. The fuel pump plays a critical role in transporting fuel, sucking it up, pressurizing it, and sending it through fuel lines to the fuel injectors. The fuel filter also plays a key role in ensuring clean fuel delivery.
If you're experiencing issues with fuel delivery, start by checking for any leaks in the fuel lines, fuel pump, or fuel filter. Leaks can cause fuel to flow back into the intake feed, affecting engine performance. Inspect the fuel lines for any signs of cracking or damage, as this can disrupt fuel pressure and delivery.
To test fuel pressure and delivery, you can use a flow meter to measure the fuel output. Disconnect one of the rubber fuel supply lines and attach a flow meter to measure the fuel flow rate. A good pump should typically deliver a quart of fuel in 30 seconds. You can also disconnect a fuel line and observe how much fuel it delivers, but this method may not provide as accurate a measurement.
Additionally, pay attention to any unusual sounds coming from the fuel pump when the ignition is engaged. A healthy fuel pump will typically make a noticeable sound when it's running, and any deviations from this sound may indicate a problem.
If you suspect that the fuel injectors may be the issue, check for wet injector lines, as this could indicate a leak. Purging the injectors by opening the injector feed at the top of the engine and turning it over with a starter can help identify any issues.
Keep in mind that fuel pump issues can often be misdiagnosed, so a comprehensive assessment of the entire fuel system is important. The 4BT engine is known for its reliability, but proper maintenance and troubleshooting are crucial to ensure optimal performance.
Testing Fuel Injector Flow: A Step-by-Step Guide
You may want to see also
Frequently asked questions
If the engine is not starting, check all your fuel line fittings and clamps. Over-tightening the fuel filter cartridge can cause air leaks. If there is fuel to the injector pump but not the injectors, this indicates a bad fuel shutoff solenoid valve at the back of the pump.
When the key enters the ignition position, the fuel pump primes the fuel system by sending pressurised fuel to the injectors. If this is not happening, jump a relay to activate the pump. Disconnect one of the rubber fuel supply lines and observe if pressurised fuel is coming out. If it is, then the problem is not with the pump.
If the fuel pump is not functioning with the ignition on or while the engine is cranking, the problem may be the pump.
If you are seeing white smoke, it likely means an injector is leaking, or oil or coolant is burning.
Some common issues with the 4BT engine include drivetrain stress due to improper installation, cracked cylinder heads, oil cooler issues, and intercooler problems during installation.
