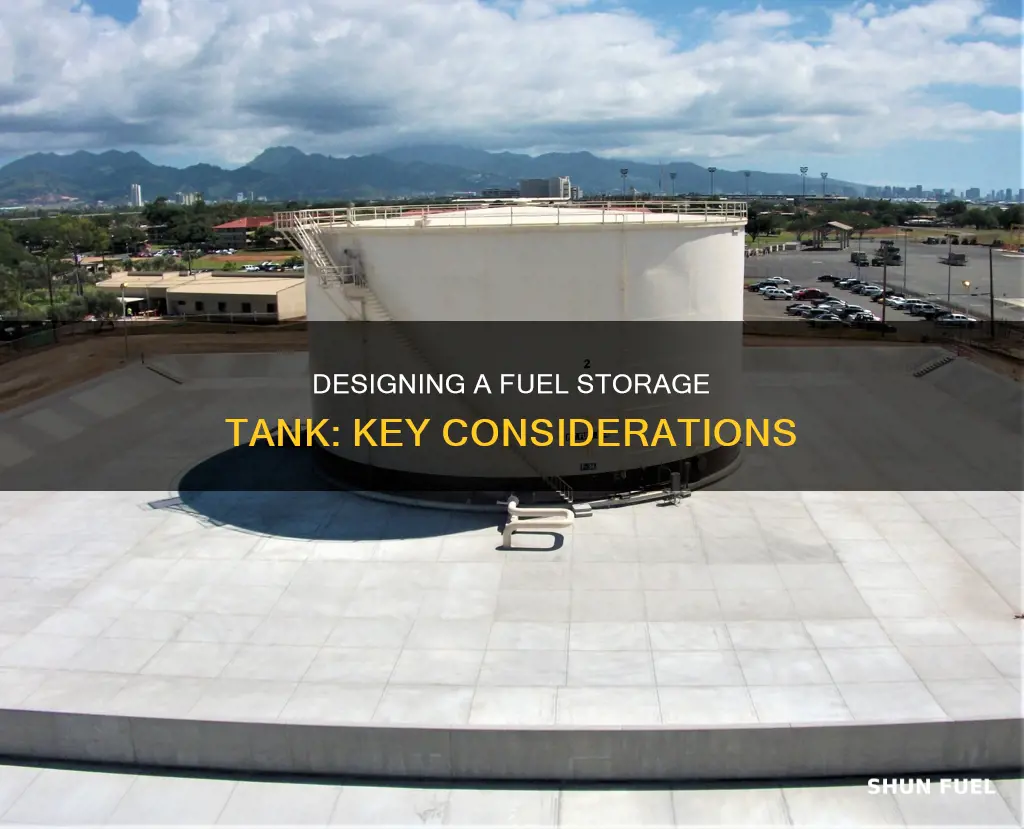

Designing a fuel storage tank is a complex and highly regulated process that requires careful planning, expertise, and adherence to industry standards. Fuel storage tanks are containers that hold liquids, compressed gases, or mediums used for the short- or long-term storage of heat or cold. These tanks can be designed for various applications, from flexible diesel fuel storage to large-scale bulk fuel installation systems. When designing a fuel storage tank, several key factors must be considered, including size, shape, capacity, corrosion resistance, and regulatory compliance. The choice of materials is critical to ensuring the safety and longevity of the tank, with options ranging from mild steel to stainless steel and aluminium.
| Characteristics | Values |
|---|---|
| Purpose | To store liquids, compressed gases, or mediums for short- or long-term storage of heat or cold |
| Materials | Steel, fibreglass, aluminium, concrete, textiles |
| Design Considerations | Size, shape, capacity, corrosion resistance, seismic design, accessibility for maintenance, secondary containment, serviceability, budget, regulations |
| Construction | Fully welded, riveted, bolted |
| Safety | Ensure reliability and long-lasting performance of the fuel, prevent exposure to microbes or contaminants, follow safety protocols, prevent leaks and spills |
| Maintenance | Easy access for testing, inspections, and repairs |
| Common Types | Fixed-roof tank, LNG storage tank, Flexitank, bulk fuel installation system |
Explore related products
What You'll Learn
Choosing the right materials
When designing a fuel storage tank, choosing the right materials is critical to ensuring safety, functionality, and longevity. Here are some key considerations for selecting the appropriate materials:
Regulatory Compliance and Safety:
Regulatory agencies such as the Environmental Protection Agency (EPA) and the American Petroleum Institute (API) have stringent standards and regulations for tank design and construction. It is essential to choose materials that comply with industry standards to minimize environmental risks and ensure the safety of the fuel storage tank.
Corrosion Resistance:
Fossil fuels are inherently corrosive, so selecting materials with excellent corrosion resistance is vital. Stainless steel, for instance, is highly resistant to corrosion and is easier to weld compared to other materials. On the other hand, mild steel, while commonly used, requires careful coating on both the inner and outer surfaces to prevent corrosion, which can be challenging to apply and maintain over time.
Puncture and Wear Resistance:
The material chosen should be robust and durable, capable of withstanding wear, punctures, and tears. For instance, Erez's coated textiles for fuel storage tanks are designed to be highly resistant to punctures, chemicals, and abrasion, ensuring the safe containment of liquids.
Flexibility and Strength:
The material should also offer a balance between strength and flexibility. For instance, in flexible fuel storage applications, technical textiles are selected to provide the required strength and flexibility while resisting punctures and corrosion.
Environmental Considerations:
When selecting materials, it is essential to consider the environmental impact of the fuel storage tank. Using materials with excellent corrosion resistance and implementing proper containment measures can help prevent fuel leaks and spills, reducing the environmental impact and minimizing the risk of contamination.
Size and Capacity:
The chosen material should align with the size and capacity requirements of the fuel storage tank. Bulk fuel installation systems, for example, often utilize materials like steel or fibreglass, with tank sizes ranging from tens of thousands to millions of litres, depending on the business's fuel storage needs and available space.
In summary, choosing the right materials for a fuel storage tank involves a careful balance between safety, functionality, and regulatory compliance. By selecting materials that meet industry standards, offer corrosion and puncture resistance, and provide the necessary strength and flexibility, you can ensure the safe and efficient storage of fuels.
Cutting Open an Old Fuel Tank: The Safe Way
You may want to see also
Explore related products
Safety and regulatory compliance
Regulatory Requirements
The regulatory requirements for fuel storage tanks typically regard design, installation, maintenance, and spill prevention. Above-ground storage tanks (ASTs) are subject to strict regulations to reduce or eliminate personnel injury or environmental contamination due to explosions or spills. These regulations apply regardless of the tank's contents, encompassing everything from petrochemicals to hazardous waste. ASTs for petrochemical products are primarily regulated under the aboveground storage tank regulations set forth in 40 CFR 112.
Testing and Inspection
Regular testing and inspection of fuel storage tanks are crucial for safety and regulatory compliance. The Environmental Protection Agency (EPA) requires that above-ground tanks be tested regularly for structural integrity, combining visual inspections with scientific methods such as radiographic, ultrasonic, or hydrostatic testing. The frequency and type of testing depend on the container's size and design. Container supports, foundations, and exteriors should also be inspected regularly for signs of deterioration, discharges, or oil accumulation.
Location and Containment
The location of fuel storage tanks is essential for safety. Tanks should be placed in well-ventilated areas, with consideration for ignition sources to prevent the accumulation of gas vapors. Outdoor tanks should be Underwriters Listed (UL) to mark their purpose. Each tank should have a designated containment area that is at least 125% the size of the tank itself to prevent spills from reaching the environment in the event of tank failure. Double-walled tanks provide maximum safety in this regard.
Signage and Labelling
Proper signage and labelling are required by law for fuel storage tanks. Large National Fire Protection Association (NFPA) diamond placards must be posted to inform fire department personnel about the flammable materials involved. Additionally, a sign saying, "FLAMMABLE – KEEP FIRE AND FLAME AWAY" must be posted, along with visible "No Smoking" signs. For portable fuel tanks, specific signage indicating the contents, such as "Diesel Fuel" or "Kerosene," is also necessary.
Handling and Maintenance
Safe handling and maintenance procedures are vital for regulatory compliance. Only approved containers and portable fuel tanks designed for the specific type of fuel in use should be utilized. Regular cleaning of fuel storage tanks and associated equipment is essential to prevent contamination. Methods such as fuel rotation, using fuel management software, and following maintenance schedules help ensure the availability of fresh fuel and efficient fuel handling.
Removing Ford F250's Twin Fuel Tank: Step-by-Step Guide
You may want to see also
Explore related products
Design and construction
Designing and constructing a fuel storage tank requires careful planning and attention to detail. There are several key factors to consider, including the tank's size, shape, and capacity, as well as the materials used and the construction method.
Firstly, determine the tank's size, shape, and capacity based on factors such as the required storage volume, available space, fuel turnover, and expansion plans. Consider the specific fuel storage requirements of the business and any regulatory or logistical constraints. For example, most storage tanks are designed to meet the American Petroleum Institute's API-650 specification. Additionally, think about the accessibility for maintenance and the need for features like fuel pick-ups, vents, fuel fillers, mounting straps, fuel level sensors, and fuel lines.
The choice of material is critical and should be resistant to corrosion and wear. Common materials include steel, fibreglass, and aluminium. Steel tanks, for instance, often have coatings to prevent corrosion, but these coatings may deteriorate over time. Stainless steel is highly resistant to corrosion and relatively easy to weld. Aluminium is also highly resistant to corrosion due to its oxidation layer, and it is much lighter than steel, but it is challenging to weld. Consider the pros and cons of each material and select the one that best suits your specific requirements.
The construction method will depend on the chosen material. For metal tanks, welding is typically used. Ensure that all components are clamped down before cutting and welding. Consider building a prototype or a cardboard model before constructing the actual tank to ensure a proper fit and identify any potential issues.
It is important to adhere to regulatory requirements and industry standards to ensure safety and compliance. Regulatory agencies such as the Environmental Protection Agency (EPA) and the American Petroleum Institute (API) set standards for tank design, construction, and maintenance. Compliance with regulations such as Spill Prevention, Control, and Countermeasure (SPCC) plans is crucial to minimise the risk of spills and environmental contamination.
Deep Siphoning Fuel Tanks: A Comprehensive Guide
You may want to see also
Explore related products
Maintenance and serviceability
To ensure optimal maintenance, it is important to select the right materials for your storage solution. For example, the technical textiles used for flexible tanks must deliver strength and flexibility while being resistant to wear, punctures, and corrosion agents in fossil fuels. Compliance with industry standards and a history of performance in the field are also crucial factors when selecting materials.
Regular inspections and checks are critical to keeping fuel tanks in good repair and operating efficiently. Inspections can help identify issues early on, such as corrosion, leaks, fluctuating pressure levels, contamination, and inefficient temperature control. Spring and summer are ideal for conducting important checks and tests, while regular inspections during autumn and winter can help prevent damage caused by extreme weather.
Maintenance procedures may include cleaning, which is vital for ensuring desirable fuel performance, minimizing safety hazards, and extending the lifespan of the fuel storage unit. Cleaning involves draining the tank, removing sludge buildup, scrubbing with industrial cleaners, and thoroughly rinsing and drying the tank. Other maintenance tasks include liner installation, firewall repair, decommissioning, repairs to the tank body and components, and addressing internal and external piping issues.
It is also important to consider the accessibility of the fuel tank for servicing. Aboveground tanks, for instance, may require ladders, lifts, and fall protection equipment for servicing, and it is recommended to have at least two technicians for safety. On the other hand, underground tanks are generally easier to access for routine services but may be more costly to repair if excavation is needed.
Cutting Fuel Tank Straps: The Safe and Easy Way
You may want to see also
Explore related products
Size, shape, and capacity
When designing a fuel storage tank, it is essential to carefully measure the space where the tank will be placed. This includes considering the space needed for fuel pick-ups, vents, fuel fillers, mounting straps, fuel level sensors, and fuel lines. The size of the tank should also take into account the business's fuel consumption patterns and projected growth. For example, bulk fuel installation systems can store tens of thousands to millions of litres of fuel. Additionally, regulatory requirements, such as those set by the Environmental Protection Agency (EPA) and the American Petroleum Institute (API), may dictate the size and capacity of the tank to ensure safety and compliance.
The shape of a fuel storage tank can vary, with cylindrical steel shells being a common choice for fixed-roof tanks. LNG storage tanks, on the other hand, typically have double containers, with the inner container holding the LNG and the outer container providing insulation. The shape of the tank should also consider site constraints and accessibility for maintenance. For example, aboveground tanks (ASTs) can be large, often 8 to 10 feet in diameter, and may require ladders, lifts, and fall protection equipment for servicing. Underground tanks (USTs), while easier to access for routine service, may be more costly to repair if components need to be excavated.
It is important to note that the size, shape, and capacity of a fuel storage tank are interdependent. For instance, the number of tanks in a bulk fuel installation system will impact the overall system capacity. Therefore, careful consideration of all factors and thorough planning are necessary to ensure the optimal design of a fuel storage tank.
Connecting Diesel Fuel Tanks: The Comprehensive Guide
You may want to see also
Frequently asked questions
Key design considerations include the size, shape, and capacity of the tank, which are determined by factors such as storage volume requirements, site constraints, and environmental considerations. Other factors to consider are corrosion resistance, seismic design, and accessibility for maintenance. It is also important to select the right materials for the tank, ensuring that they are extremely resistant to wear, punctures, and corrosion agents in fossil fuels.
Regulatory agencies such as the Environmental Protection Agency (EPA) and the American Petroleum Institute (API) set standards for tank design, construction, and maintenance. Compliance with regulations such as Spill Prevention, Control, and Countermeasure (SPCC) plans is essential to minimize the risk of spills and environmental contamination.
Above-ground tanks (ASTs) are typically larger and require special equipment such as ladders and lifts for servicing. Underground tanks (USTs) are easier to access for routine service but can be more costly to repair if components need to be excavated. USTs also require additional containment sumps, which can collect surface water runoff.
