Mercedes Mullins
Cutting a fuel tank is a risky endeavour, with many people having injured themselves or burned down their garages in the process. Before cutting, it is important to ensure the tank is empty and cleaned thoroughly, as petrol can soak into the metal. Common methods for cleaning include pressure washing with hot water and soap, and steaming. Purging the tank with an inert gas, such as CO2 or nitrogen, is also recommended to prevent combustion. Some people fill the tank with water before cutting to prevent sparks, although this is not always feasible with large tanks. When cutting, power shears, angle grinders, and nibblers can be used, although angle grinders and nibblers may create sparks.

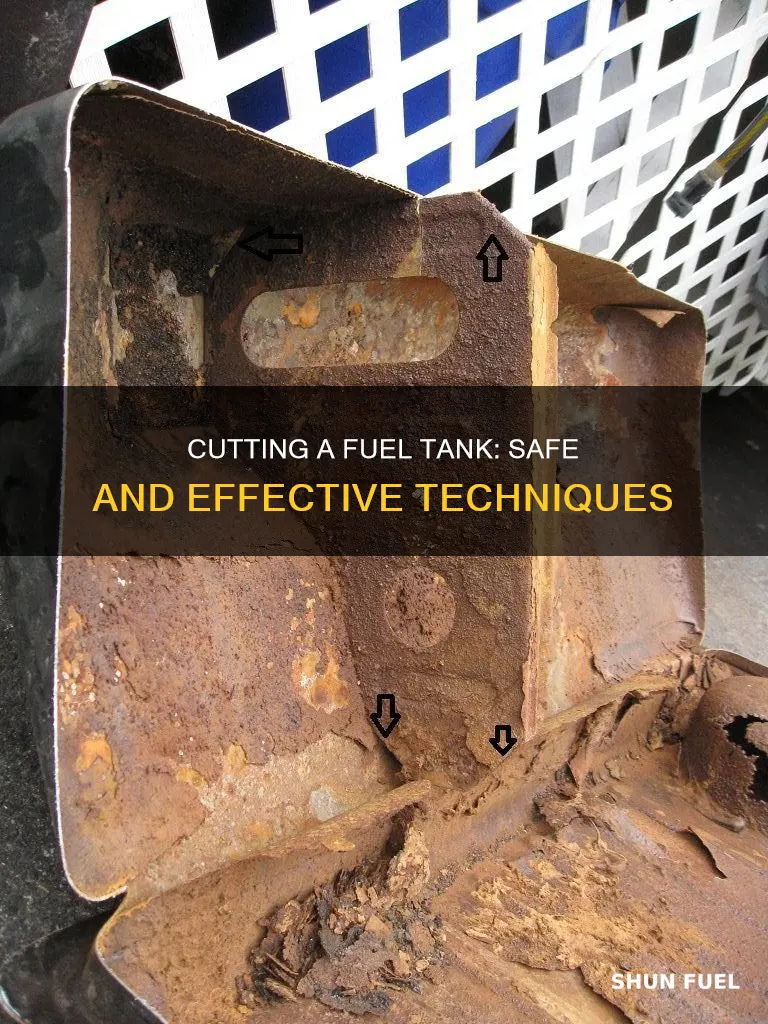

How to cut a fuel tank
| Characteristics | Values |
|---|---|
| Safety | Wear safety goggles |
| Tools | Angle grinder, power shears, hacksaw, nibbler, snips, air-powered tools, tube cutter |
| Preparation | Empty the tank, soak with sand, wash with soap and water, fill with water, ensure work is done below the waterline, fill with inert gas such as CO2 or nitrogen |
| Precautions | Avoid sparks, Avoid flammable gases, avoid working with combustible substances |
| Alternatives | Petrol tank sealer kit, petrol caps, hose clamps |
Explore related products
What You'll Learn
Cutting a fuel tank with an angle grinder
Step 1: Empty and Clean the Tank
Start by emptying the fuel tank completely and removing as much residual fuel as possible. This can be done by rinsing the tank with water, soap and water, or even unleaded petrol. Some people suggest using a power washer for this step. It is crucial to do this outside or in a well-ventilated area to avoid inhaling fumes.
Step 2: Remove Vapours
Even after emptying and cleaning, the tank may still contain flammable vapours. To eliminate these, you can fill the tank with water up to the cut line, ensuring that your initial cuts are made underwater. Another method is to fill the tank with carbon monoxide by running a hose from a car exhaust into the tank while the engine is running. A third option is to purge the tank with inert gas, such as CO2 or exhaust gas from your car, to remove oxygen and prevent ignition.
Step 3: Prepare for Cutting
Before cutting, ensure you have the appropriate safety gear, including eye protection, heavy gloves, and a fire extinguisher. Keep the area well-ventilated to minimise the risk of igniting vapours. If possible, work outdoors or in a spacious area.
Step 4: Start Cutting
When using the angle grinder, work slowly and carefully. Take short, controlled cuts to keep the workpiece temperature down and allow sparks and metal debris to cool before proceeding. If you are cutting a large tank, you may need to drill holes close together to create a slot for the grinder blade. Work at the slowest speed possible to maintain control and make your cuts along a straight line.
Step 5: Post-Cutting
After cutting, allow the tank to air out and then rinse it again with water or soap and water to remove any remaining debris or residue. Inspect your work and ensure there are no sharp edges or hazardous spots that could cause injury.
Remember, cutting a fuel tank with an angle grinder can be dangerous, and it is essential to take the necessary precautions to ensure your safety. Always be mindful of sparks and flammable vapours, and do not hesitate to seek assistance from someone with experience in metalworking or welding if you are unsure about any steps.
Creating an Extended Fuel Tank for Your Honda 2000
You may want to see also
Explore related products
Purging a fuel tank with an inert gas
Preparation:
Before purging, ensure the fuel tank is thoroughly cleaned and dried. This can be achieved by pressure washing the tank with hot water and soap or steam cleaning it to remove any residual fuel, contaminants, or vapors. Allow the tank to dry completely before proceeding. Additionally, ensure proper ventilation in the work area and wear appropriate safety gear, including goggles, gloves, and a respirator.
Purging Process:
The purging process involves filling the fuel tank with an inert gas to displace and reduce the oxygen content to a level that cannot support combustion. Common inert gases used for this purpose include carbon dioxide (CO2), nitrogen, and argon. Here are two commonly used methods for purging a fuel tank:
Displacement Purging:
In this method, the inert gas is slowly introduced into the tank through one port, displacing the air and forcing it out through another port. This technique assumes minimal mixing between the inert gas and the displaced air, making it suitable for tall and narrow vessels. The minimum amount of inert gas required is equal to the volume of the tank, but it is recommended to add a safety factor of 20%. Ensure that the concentration of oxygen in the vapor space of the tank never exceeds 8% to prevent combustion.
Vacuum-Assisted Purging:
This method utilizes a vacuum source to first evacuate the fuel tank and then breaks the vacuum by introducing the inert gas. This technique is effective for equipment with complex geometries, such as deadlegs and pockets. The equipment used must be designed to withstand the vacuum pressure.
Additional Considerations:
- Always work with a partner or assistant who can monitor the area and call for help in case of an emergency.
- Before beginning any cutting or welding operations, ensure that the inert gas has settled at the bottom of the tank, as gases are lighter than air and tend to rise.
- Continuously monitor the oxygen levels within the tank using an oxygen meter or appropriate sensors to ensure the environment remains safe.
- If possible, work outdoors or in a well-ventilated area to minimize the risk of gas buildup.
- After purging, consider performing a final check for residual fuel or vapors by using a match or a similar small ignition source.
Creating Plastic Fuel Tanks: A Step-by-Step Guide
You may want to see also
Explore related products
Cutting a fuel tank without emptying it
Cutting a fuel tank without first emptying it can be very dangerous, as even an "empty" cylinder may still contain some gas or fuel, which can cause an explosion.
If you are cutting a fuel line, you can cut the line and quickly lift it higher than the fuel tank, then pop the filler cap. Once you have 'drained' the fuel line, the fuel will no longer siphon or drain out of the tank. You can also pinch the line shut just above where you are working if any fuel persists to leak out. Make sure the area you are pinching shut is a rubber hose spot and not the plastic or metal.
If you are cutting a fuel tank, it is recommended to fill the tank with water first and ensure that your initial cuts are in the water-filled portion of the tank. Once you have made sufficient cuts, let the water drain out and make sure to let it air out before washing the tank. You can also use power shears, which cost around $200 and can be rented fairly readily.
If you are drilling a hole in a fuel tank, it is important to start by filling the empty space above the fuel with an inert gas such as argon or nitrogen to drive out the oxygen and reduce the chances of an explosion. You can also place large welders' magnets around the spot to be drilled to help catch the swarf and use a fresh holesaw at slow speeds to keep sparks to a minimum.
It is important to note that cutting a fuel tank without emptying it first is inherently risky, and it is always safer to drain the tank completely before cutting or drilling.
Connecting Kicker Motors: Tapping into Your Main Fuel Tank
You may want to see also
Explore related products
$11.99
Cleaning a fuel tank before cutting
Before cutting a fuel tank, it is important to clean it thoroughly to avoid any accidents. Here are some detailed steps to ensure the fuel tank is properly cleaned before cutting:
Firstly, ensure your work area is well-ventilated by opening doors and windows and setting up a fan if necessary. Have a fire extinguisher nearby and ensure there are no sources of flame or spark in the area. Wear protective gear, including a face mask and eye protection, to safeguard against fuel fumes and any debris during the cleaning process.
Next, carefully remove the fuel tank, leaving all valves and caps in position to simplify reinstallation later. Inspect the tank for any sediment, rust, or holes. Patch any holes before proceeding. Use a suitable parts cleaner, such as a fuel system cleaner, to disperse the product throughout the tank's interior. Pay particular attention to the bottom of the tank, as that is where most of the buildup will be, and it may require multiple soaking sessions to get it entirely clean.
After cleaning, run a detergent-based fuel additive through your fuel system to ensure the tank and lines are thoroughly cleaned. Replace the fuel filter, as an old filter can restrict flow and cause the fuel pump to wear out faster. When reinstalling the tank, ensure all valves, caps, and hoses are securely fitted.
If you are dealing with a particularly dirty tank, you may need to employ more intensive cleaning methods. Some suggestions include using white vinegar, boiling the tank, or power washing it. For extremely dirty tanks, you can try a method that involves pouring in a gallon of muriatic acid, adding a small chain, and running the tractor in low gear and reverse for 15-20 minutes. However, this method should be done outdoors due to the toxic fumes produced, and the acid should be properly diluted and handled with caution.
Remember, it is crucial to take the necessary safety precautions when working with fuel tanks to prevent accidents and fires.
Connecting Fuel Tanks in Kerbal Space Program: A Guide
You may want to see also
Explore related products
Safety precautions when cutting a fuel tank
Safety should be the top priority when cutting a fuel tank. The process can be extremely dangerous, and people have been injured or killed while attempting it. Therefore, it is important to take all necessary precautions to ensure your safety. Here are some detailed safety precautions to follow when cutting a fuel tank:
Do Not Cut If Inexperienced: Cutting a fuel tank requires knowledge and experience. If you are inexperienced, it is best to leave the task to a professional or seek extensive guidance and assistance. Do not attempt to cut a fuel tank alone without the necessary skills and equipment.
Thoroughly Clean the Tank: Before cutting, ensure that the tank is thoroughly cleaned and free of any residual fuel or fumes. This step is crucial as even microscopic amounts of fluid or fumes can cause an explosion. Consider using a pressure washer with hot water and soap to clean the tank's interior. Additionally, you can fill the tank with water and let it sit for a while to ensure that any remaining fuel or fumes are diluted.
Neutralize Fumes: If you are unsure whether the tank is completely free of fumes, neutralize them or refrain from proceeding with the cutting. You can use various methods, such as steaming, purging with inert gas (e.g., CO2, nitrogen, or argon), or using the exhaust from a vehicle to remove fumes. Always verify that the tank is safe before proceeding.
Use Appropriate Tools: Choose the right tools for the job. Some recommended tools include air-powered tools, abrasive cut-off wheels, die grinders, and plasma cutters. These tools can help minimize the distortion of the metal during cutting. Always wear the appropriate safety gear, such as protective clothing, eye protection, and respiratory protection, when operating power tools.
Work in a Safe Environment: Ensure that you have ample space to work and that the area is well-ventilated. Avoid working near flammable materials or sources of ignition. Always be mindful of your surroundings and have a fire extinguisher readily available in case of emergencies.
Remember, cutting a fuel tank is a hazardous operation that requires extreme caution. Do not rush the process and always prioritize your safety and well-being. If you are ever in doubt about your ability to perform the task safely, seek professional assistance or advice.
Connecting Fuel Tanks to Outboard Motors: A Step-by-Step Guide
You may want to see also
Frequently asked questions
Cutting a fuel tank is a dangerous task that should be approached with extreme caution. It is recommended that you fill the tank with water and cut below the waterline to prevent any flammable gases from igniting.
You can use a variety of tools to cut a fuel tank, including a angle grinder, power shears, a hacksaw, or a tube cutter.
It is crucial to ensure that the fuel tank is properly cleaned and purged before cutting. You can pressure wash the tank with hot water and soap, and then fill it with an inert gas such as carbon dioxide (CO2) or nitrogen to displace any flammable gases.
Working with fuel tanks can be hazardous, so it is important to take the necessary safety precautions. Wear safety goggles and ensure the area is well-ventilated. Avoid creating sparks, and be prepared for any potential leaks or spills.
Yes, instead of cutting the fuel tank, you can consider using a petrol tank sealer kit or sandblasting through an existing hole to avoid the risks associated with cutting.
