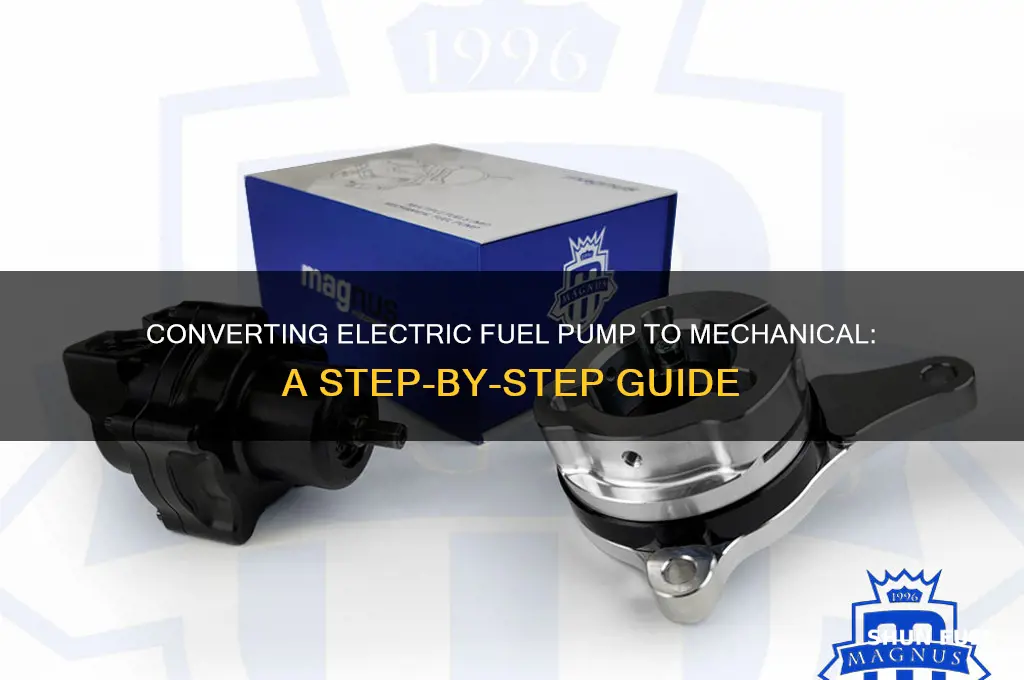

Converting an electric fuel pump to a mechanical one is a popular modification among automotive enthusiasts, particularly those working on classic or high-performance vehicles. This process involves replacing the electrically driven fuel pump with a mechanical unit, typically driven by the engine's camshaft or distributor. The primary motivation for such a conversion often includes achieving greater reliability, eliminating the risk of electrical failures, and ensuring consistent fuel delivery under high-demand conditions. While the conversion requires careful planning, specific tools, and a good understanding of the vehicle's fuel system, it can result in a more robust and traditional setup that aligns with the needs of older engines or racing applications.
| Characteristics | Values |
|---|---|
| Conversion Complexity | Moderate to High (requires mechanical skills and understanding of fuel systems) |
| Required Tools | Wrenches, sockets, screwdrivers, fuel line disconnect tools, hose clamps, and possibly a drill/tap set |
| Parts Needed | Mechanical fuel pump (compatible with engine), fuel pump pushrod, mounting bracket, fuel lines, fittings, gaskets, and potentially a new fuel regulator |
| Cost | $100 - $300 (depending on parts and labor) |
| Time Required | 4-8 hours (varies based on experience and vehicle) |
| Benefits | Increased reliability in carbureted engines, eliminates electrical issues, suitable for off-road or racing applications |
| Drawbacks | May reduce fuel efficiency, requires engine-specific compatibility, not ideal for fuel-injected systems |
| Compatibility | Primarily for carbureted engines (e.g., classic cars, older vehicles, or engines without EFI) |
| Safety Precautions | Work in a well-ventilated area, disconnect battery, relieve fuel system pressure, and use proper safety gear |
| Common Challenges | Finding the correct pump and bracket, ensuring proper pushrod length, and aligning the pump with the camshaft |
| Maintenance | Regular inspection of fuel lines, fittings, and pump operation; replace worn components as needed |
| Legal Considerations | Check local emissions and vehicle modification laws before conversion |
| Alternative Options | Upgrading to a high-performance electric pump or using a hybrid system (electric + mechanical backup) |
Explore related products
What You'll Learn
- Identify compatible mechanical pump models for your engine’s fuel requirements and mounting setup
- Modify fuel lines to fit the new mechanical pump’s inlet/outlet connections
- Install a drive mechanism (e.g., camshaft-driven) for the mechanical pump’s operation
- Remove electric pump wiring and relay to eliminate electrical dependencies
- Test fuel pressure and flow to ensure proper mechanical pump functionality post-conversion
Identify compatible mechanical pump models for your engine’s fuel requirements and mounting setup
Selecting a mechanical fuel pump that aligns with your engine’s demands begins with understanding its fuel requirements. Calculate the engine’s flow rate, typically measured in gallons per hour (GPH), by factoring in its displacement, RPM range, and fuel consumption rate. For instance, a small-block V8 running at 6,000 RPM may require a pump delivering 120–150 GPH, while a four-cylinder engine might need only 40–60 GPH. Cross-reference these figures with the pump’s flow curve, ensuring it meets or exceeds the engine’s needs across its operating range. Mismatching this specification can lead to fuel starvation or inefficient delivery, compromising performance.
Mounting compatibility is equally critical, as mechanical pumps must integrate seamlessly with your engine’s block or accessory setup. Start by identifying the pump’s mounting style—common options include inline, block-mounted, or remote configurations. Block-mounted pumps, for example, require a matching port on the engine, often found on classic carburetored setups. Inline pumps offer flexibility but demand careful consideration of hose routing and pressure drop. Measure the available space, accounting for clearance around moving parts and heat sources, and verify the pump’s inlet/outlet orientation aligns with your fuel lines. Misalignment can introduce air pockets or restrict flow, negating the pump’s efficiency.
Material and pressure ratings are often overlooked but essential factors in pump selection. Engines with high-performance camshafts or boosted applications may generate significant fuel pressure fluctuations, necessitating a pump rated for higher pressures (e.g., 8–10 PSI for EFI systems). Aluminum pumps are lightweight but prone to corrosion in ethanol-blended fuels, whereas cast iron or billet steel options offer durability at the cost of added weight. For ethanol or methanol fuels, ensure the pump’s internal components (diaphragms, seals) are compatible to prevent degradation. Ignoring these details can lead to premature failure or unsafe operation.
Finally, consider the pump’s drive mechanism and its compatibility with your engine’s rotation and accessory drive. Mechanical pumps are typically driven by a camshaft eccentric or accessory belt, requiring precise alignment with the engine’s timing. Verify the pump’s rotation direction matches your engine’s setup—clockwise or counterclockwise—to avoid reversed flow or mechanical stress. If using a belt-driven setup, ensure the pulley ratio maintains the pump’s optimal speed range, usually 1:1 or 2:1. A mismatched drive system can result in inadequate fuel delivery or excessive wear, undermining the conversion’s reliability.
