Installing a fuel pressure gauge is a straightforward process, but it's important to take safety precautions when working with fuel lines. The type of gauge you are installing will determine where it should be mounted. Electrical fuel pressure gauges are connected to a sender plumbed into the fuel system, which converts fuel pressure into an electrical signal received by the gauge. These can be mounted anywhere convenient. Mechanical fuel pressure gauges, on the other hand, measure the actual pressure of the fluid and are connected to the fuel system by a hose. For safety reasons, mechanical gauges must be mounted outside the driver's compartment to prevent fuel from entering and creating a fire hazard. Most people mount these just in front of the windshield. If you wish to mount a mechanical gauge inside the driver's compartment, you must use a fuel pressure isolator to keep fuel outside while transferring pressure to the gauge.
Explore related products
What You'll Learn
The importance of releasing fuel pressure before cutting the fuel line
It is important to release fuel pressure before cutting the fuel line to ensure safety and prevent accidents. Here are some reasons why releasing fuel pressure is crucial:
Safety: Releasing fuel pressure is a safety precaution that helps reduce the risk of fuel leakage or spraying when cutting the fuel line. By relieving the pressure, you minimize the chance of fuel spraying out, reducing the risk of fire or explosion.
Preventing Mess and Waste: Even after releasing the pressure, there may still be some fuel left in the line and the filter. By releasing the pressure, you can prevent the fuel from spraying out with force, reducing the mess and waste of fuel.
Ease of Maintenance: Releasing fuel pressure makes it easier to work on the fuel system. It allows you to cut the fuel line and remove the filter without the challenge of dealing with pressurized fuel. This makes the maintenance or repair process more manageable and helps you work more efficiently.
Protecting Engine Components: Cutting the fuel line without releasing pressure can lead to fuel spraying onto sensitive engine components. This can cause damage to electrical parts, rubber hoses, and other engine components. By releasing the pressure, you reduce the risk of fuel contamination and potential engine damage.
Accurate Gauge Readings: Releasing fuel pressure and ensuring there is no pooled fuel before starting the engine is essential for accurate fuel pressure gauge readings. It allows you to prime the fuel system and ensure that the gauge readings are not affected by residual fuel pressure or leaks.
In summary, releasing fuel pressure before cutting the fuel line is a crucial step for safety, maintenance efficiency, and protecting engine components. It helps prevent accidents, makes maintenance tasks easier, and ensures accurate fuel pressure gauge readings.
Setting Fuel Pressure: Oil Furnace Guide
You may want to see also
Explore related products
The correct fuel line to tap into
If you are installing an electrical fuel pressure gauge, the sender (which converts fuel pressure into an electrical signal) can be plumbed into the fuel system anywhere you find most convenient.
If you are installing a mechanical fuel pressure gauge, the source for the readings can be tapped at any point along either fuel rail. As long as the source for your readings is at the same pressure as your fuel injectors are getting, then it will be accurate. So, pretty much anywhere along the feed side, and not the return line.
For safety, you must mount the gauge outside the driver's compartment. Bringing fuel into the driver's compartment is a major fire hazard and safety risk. Most people mount the gauge just in front of the windshield, where the driver can still see it.
If you want to mount a mechanical fuel pressure gauge inside the driver's compartment, you need to use a fuel pressure isolator. An isolator keeps fuel outside while allowing the pressure to be transferred inside to the gauge.
Understanding Fuel Pressure Regulators: Return Flow Basics
You may want to see also
Explore related products

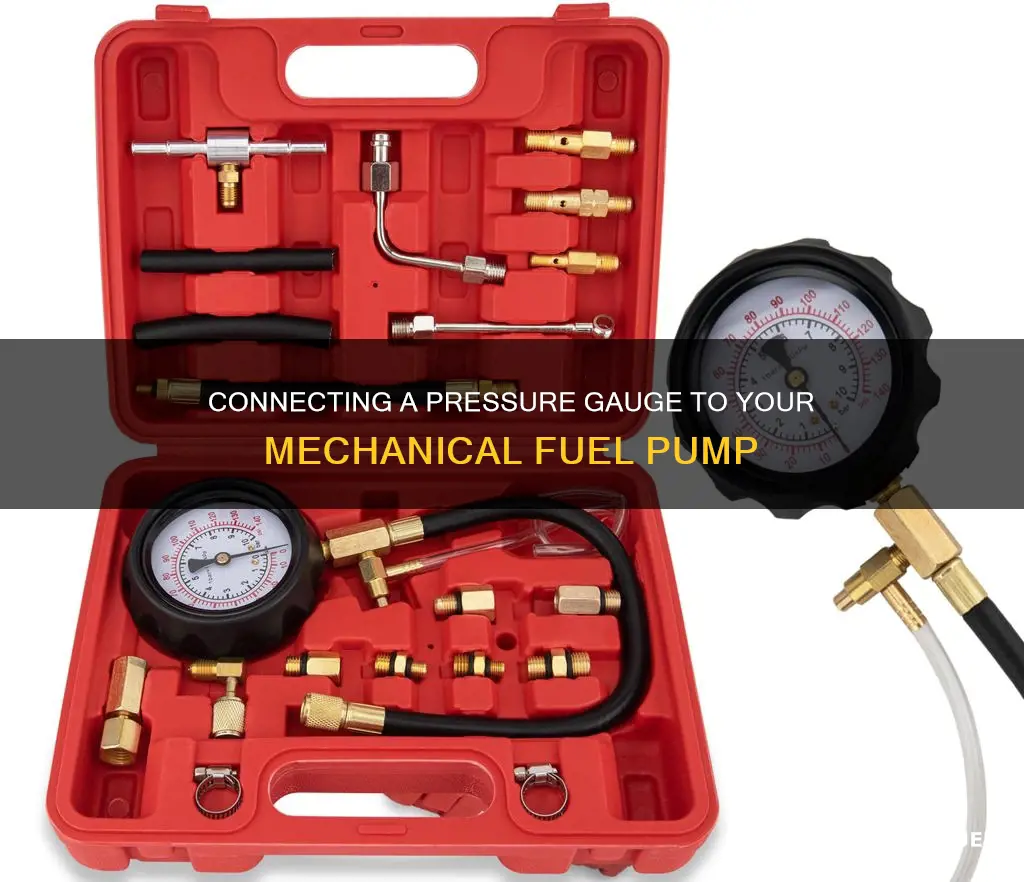

The correct fuel pressure gauge and fitting
Type of Gauge:
- Mechanical Gauge: This type of gauge is plumbed into the fuel line, often directly before the carburetor. It uses a valve to detect fuel pressure. There are two types of mechanical gauges: wet and dry. A wet gauge uses a clear oil, such as glycerin, to fill the dial, which dampens the needle's movement and protects the delicate parts. A dry gauge may be more accurate but is subject to wear from engine vibrations.
- Electronic Gauge: This type of gauge uses a sensor in the fuel line to provide a precise digital or needle reading. It has fewer moving parts, making it more durable.
Vehicle Fuel System:
The fuel pressure your vehicle's system operates at is an important consideration when choosing a gauge. Carbureted engines typically operate at lower pressures (0-15 psi) while fuel-injected engines require higher pressures (0-100 psi). Ensure the gauge you select can measure the pressure range of your vehicle's fuel system.
Gauge Fitting:
The fitting you choose will depend on the size and type of your fuel line. Most fuel lines are 5/16 inch inside diameter hoses, but some vehicles may have larger lines. You will need a fitting that securely attaches to your fuel line without restricting fuel flow. Common fittings include:
- Barb Fittings: These fittings have a barbed end that inserts into the fuel line and are secured with a hose clamp.
- Push-Lock Fittings: These fittings have a barbed end that inserts into the fuel line and lock in place without the need for a hose clamp.
- Flare Fittings: These fittings have a conical-shaped end that mates with a flared end on the fuel line, creating a leak-resistant connection.
- Adapter Fittings: If your fuel line does not have a flared end, you may need an adapter fitting that allows you to connect a flare fitting.
Installation Process:
When installing a fuel pressure gauge, it is important to follow the correct procedure to ensure safety and accuracy:
- Release the fuel pressure and minimize the amount of fuel in the tank before beginning work.
- Cut the fuel line and have suitable plugs or caps ready to stop fuel flow.
- Wrap the gauge threads with Teflon tape to ensure a tight seal and prevent fuel leaks.
- Use a wrench to tighten the gauge into the fitting securely.
- Prime the fuel system and check for any fuel leaks before starting the engine.
By considering these factors and following the installation process, you can ensure that you have the correct fuel pressure gauge and fitting for your vehicle, allowing you to accurately monitor your fuel pressure and maintain the performance of your engine.
Fuel Injectors: Low-Pressure Pumps for High Performance
You may want to see also
Explore related products
The correct way to screw the gauge into the fitting
To screw the gauge into the fitting correctly, you will need a 60 or 100 psi gauge, a gauge fitting for a 3/8 inch fuel hose, and two 3/8 inch hose clamps. The fuel lines are actually 5/16 inch inside diameter hoses, but the 3/8 inch gauge fitting will fit. Wrap the gauge's threads with about two layers of Teflon tape. Make sure the tape doesn't extend below the threads, as you don't want any of it to get into the fuel lines. Hand-tightening will not be enough, so use a large wrench or vise to hold the fitting and a small wrench to screw in the gauge.
The fuel line you want to tap into is the one closest to the oil dipstick. It is a rubber hose that connects to a metal pipe near the engine. Before you start cutting the hose, you must release the fuel pressure. Then, cut the fuel line, using a rag to prevent fuel from spraying, and have two 5/16 inch plugs ready to stop the fuel flow. Two Bic pen-type caps will suffice. The fuel will continue to dribble out unless you plug the hoses. The fuel lines have an insulation tube wrapped around them, which makes them appear larger than 5/16 inch. To attach the clamps to the hose, you will need to remove the insulating tube from the fuel line. After installing the gauge and tightening the clamps, prime the fuel system.
Replacing Fuel Tank Pressure Sensor in 2000 Chevy Blazer
You may want to see also
Explore related products
The correct way to prime the fuel system
To prime the fuel system correctly, you must first disconnect the battery. Start by switching off the positive terminal, then the negative. Loosen the bolt and move the battery away from the vehicle.
Next, locate the primer. This could be near the fuel filter, on the fuel injector pump, along the fuel lines, or on the fuel filter cap. It may have words or symbols that indicate its function.
Now, ensure there is enough fuel in the tank. The system will draw fuel, and if there is not enough, it may draw air again.
Then, locate the bleed screw. This is usually found near the fuel filter, close to the injector pump, or at the high points of the fuel lines. It is a small valve with a hexagonal head and a small hole that allows for the insertion of a tool to open and close it. Have a container and a rag ready, as pressure from air pockets may release fuel. Open the bleed screw and, once the flow is steady and without bubbles, close it again.
Reconnect the battery, starting with the negative terminal, then the positive. Turn on the ignition and wait for the fuel to pressurise. The engine may not start right away, as it may take a few seconds for the fuel to fill the system.
Listen to the engine and be alert for any unusual sounds, performance issues, or exhaust smells.
Finding the Fuel Pressure Regulator in Volvo C70s
You may want to see also
Frequently asked questions
A fuel pressure gauge allows you to monitor the fuel pressure while the engine is under load. The mounting location depends on the type of gauge. An electrical fuel pressure gauge can be mounted anywhere convenient, whereas a mechanical fuel pressure gauge must be mounted outside the driver's compartment, usually just in front of the windshield, as bringing fuel into the driver's compartment is a major fire hazard and safety risk.
You will need a 60 or 100 psi gauge, a gauge fitting for a 3/8 inch fuel hose, and two 3/8 inch hose clamps. Put two wraps of Teflon tape on the gauge's threads and screw it into the gauge fitting, ensuring the tape doesn't extend below the threads. Then, use a wrench to tighten the fitting.
The fuel pressure gauge can be tapped into the fuel line at any point along either fuel rail, as long as the source for your readings is at the same pressure as your fuel injectors.
