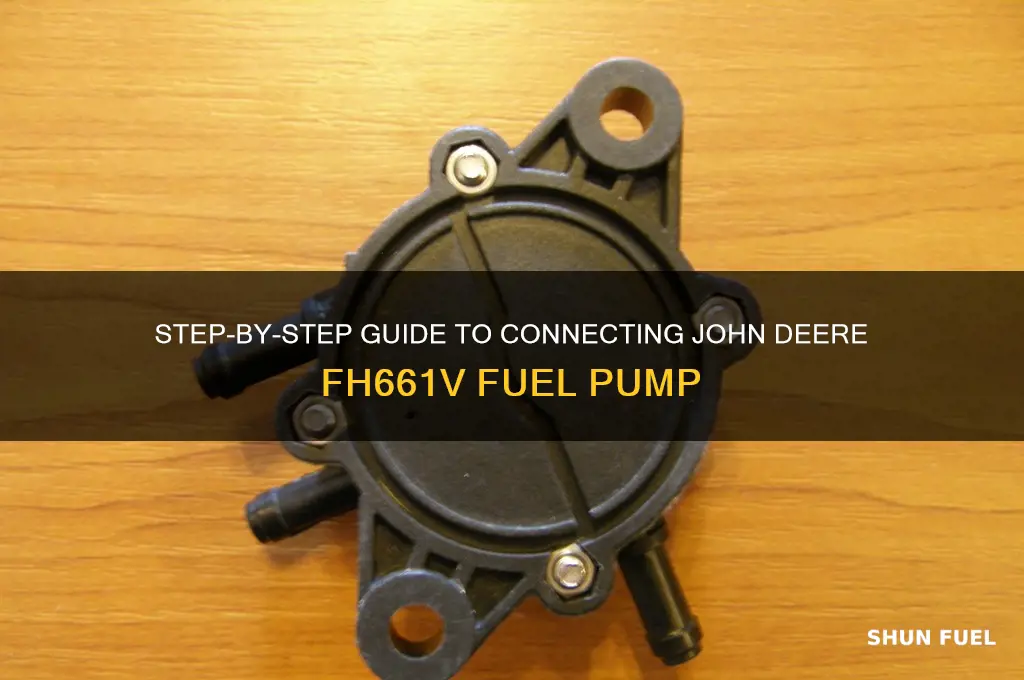

Connecting the John Deere FH661V fuel pump requires careful attention to detail to ensure proper installation and reliable performance. Begin by locating the fuel pump assembly, typically found near the fuel tank or carburetor. Before starting, ensure the engine is off and the fuel system is depressurized to avoid any accidents. Disconnect the fuel lines and electrical connections from the old pump, taking note of their positions for reassembly. Install the new FH661V fuel pump by aligning it with the mounting holes and securing it with the appropriate bolts. Reattach the fuel lines, ensuring they are tightly connected to prevent leaks, and reconnect the electrical harness. Once installed, prime the fuel system by turning the ignition key to the on position without starting the engine, allowing the pump to build pressure. Finally, start the engine to verify the pump is functioning correctly, checking for any leaks or unusual noises. Following these steps will ensure a successful connection and optimal operation of the John Deere FH661V fuel pump.
| Characteristics | Values |
|---|---|
| Fuel Pump Type | John Deere FH661V |
| Connection Type | Typically connects to the fuel tank via a hose and fittings |
| Hose Size | Usually 3/8" or 5/16" diameter (check specific model) |
| Fittings | Barbed or threaded fittings, often requiring clamps |
| Electrical Connection | 12V DC, usually connected via a wiring harness or direct battery connection |
| Mounting | Often mounted inside the fuel tank or externally with a bracket |
| Priming | May require manual priming before initial use |
| Compatibility | Designed for John Deere lawn tractors and similar equipment |
| Replacement | Ensure replacement pump matches OEM specifications |
| Tools Required | Basic hand tools (wrenches, screwdrivers, hose clamps) |
| Safety Precautions | Disconnect battery, relieve fuel pressure, work in well-ventilated area |
| Troubleshooting | Check for leaks, ensure proper electrical connection, verify fuel flow |
| Manual Reference | Refer to John Deere service manual for detailed instructions |
Explore related products
What You'll Learn
- Locate Fuel Pump: Identify the fuel pump's position on the John Deere FH661V engine
- Disconnect Fuel Lines: Safely detach fuel lines from the pump using appropriate tools
- Remove Mounting Bolts: Unfasten the bolts securing the fuel pump to the engine
- Install New Pump: Align and secure the replacement pump with bolts and reconnect fuel lines
- Test for Leaks: Check connections for leaks and ensure proper fuel flow after installation
Locate Fuel Pump: Identify the fuel pump's position on the John Deere FH661V engine
The John Deere FH661V engine’s fuel pump is a critical component, but its location isn’t immediately obvious to all users. Positioned on the engine’s carburetor, it sits directly beneath the air filter housing, integrated into the fuel bowl assembly. This placement ensures efficient fuel delivery while minimizing exposure to external elements. To locate it, start by removing the air filter cover and housing, revealing the carburetor. The fuel pump is a cylindrical component with a lever arm connected to the engine’s camshaft, typically on the left side when facing the engine. Understanding this layout is essential before attempting any connection or maintenance tasks.
Analyzing the fuel pump’s position reveals its design intent. By mounting it directly on the carburetor, John Deere engineers optimized fuel flow and reduced the risk of leaks in the fuel line. This integration also simplifies troubleshooting, as issues like airlocks or pump failure can be diagnosed by inspecting the carburetor area. However, this location means the pump is exposed to heat and vibration, so regular inspection for cracks or wear is crucial. Knowing this, users can better appreciate the importance of gentle handling during connection or replacement processes.
Connecting the fuel pump requires precise steps, beginning with its location. Once identified, disconnect the fuel line from the pump’s inlet and outlet ports, typically secured with clamps or fittings. Ensure the engine is cool and the fuel system depressurized to avoid spills or accidents. When installing a new pump, align the lever arm with the camshaft’s eccentric lobe, ensuring proper engagement for mechanical operation. Secure all connections tightly but avoid over-tightening, as this can damage the pump’s housing. A practical tip: use a fuel line quick-disconnect tool to ease removal and reattachment without damaging the lines.
Comparing the FH661V’s fuel pump location to other engines highlights its unique design. Unlike external electric pumps found in modern vehicles, this mechanical pump’s carburetor-mounted position is a throwback to simpler, more robust systems. This design reduces reliance on electrical components, making it ideal for lawn tractors and small engines. However, it also means the pump is more susceptible to fuel contamination or debris, emphasizing the need for clean fuel and regular filter changes. Understanding this trade-off helps users maintain the pump effectively and prolong its lifespan.
In conclusion, locating the fuel pump on the John Deere FH661V engine is straightforward once you know where to look. Its carburetor-mounted position is both a design strength and a maintenance consideration. By familiarizing yourself with this layout, you can confidently proceed with connection, troubleshooting, or replacement tasks. Remember to handle components with care, ensure a clean fuel supply, and inspect the pump regularly for signs of wear. This knowledge not only simplifies the task at hand but also contributes to the engine’s overall reliability and performance.
Do Fuel Pumps Boost Horsepower? Unlocking Engine Performance Potential
You may want to see also
Explore related products
Disconnect Fuel Lines: Safely detach fuel lines from the pump using appropriate tools
Before attempting to disconnect the fuel lines from your John Deere FH661V fuel pump, ensure you have the right tools for the job. A fuel line disconnect tool, specifically designed for the size and type of your fuel lines, is essential. These tools typically feature a forked end that fits securely around the fuel line, allowing you to depress the retaining clip and safely detach the line without damaging the components. Using pliers or other makeshift tools can lead to cracked lines, broken clips, or fuel spills, so investing in the proper tool is a small price to pay for precision and safety.
The process begins with locating the fuel lines connected to the pump. On the FH661V, these lines are typically secured with spring clips or quick-disconnect fittings. Position the disconnect tool firmly around the fuel line, ensuring it engages the retaining clip. Apply steady, even pressure to depress the clip while gently pulling the line away from the pump. Avoid jerking or twisting motions, as these can damage the line or fitting. If the line feels stuck, double-check that the clip is fully depressed before applying additional force. Remember, fuel lines are under pressure, so work deliberately to minimize the risk of spills or injury.
Safety is paramount when working with fuel systems. Always wear nitrile gloves to protect your skin from fuel exposure, and have a catch pan or rag ready to contain any spills. Work in a well-ventilated area, away from open flames or sparks, and ensure the engine is cool and turned off. If you’re unsure about the fuel system’s pressure, relieve it by running the engine until it stalls before beginning the disconnection process. These precautions not only protect you but also prevent fuel contamination and system damage.
Once both fuel lines are safely detached, inspect them for signs of wear, cracking, or degradation. Fuel lines age over time, and replacing them during pump maintenance can prevent future leaks or failures. If the lines appear in good condition, clean the fittings with a lint-free cloth to remove debris or old fuel residue. Proper disconnection and inspection ensure a smooth reconnection process and contribute to the longevity of your fuel system. By approaching this step methodically and with the right tools, you’ll set the stage for a successful fuel pump replacement or repair.
Testing Brute Force Fuel Pumps: A Comprehensive Step-by-Step Guide
You may want to see also
Explore related products
Remove Mounting Bolts: Unfasten the bolts securing the fuel pump to the engine
The first step in connecting or replacing a John Deere FH661V fuel pump is often the most overlooked yet critical: removing the mounting bolts that secure the pump to the engine. These bolts are typically tightened to a torque specification of 15 to 20 foot-pounds, ensuring a secure fit without overstressing the components. Before you begin, gather a socket set with the appropriate size (commonly 10mm or 12mm) and a torque wrench for reassembly. Position yourself comfortably, as accessing these bolts may require maneuvering around the engine’s tight spaces.
Analyzing the process reveals a common pitfall: rust or corrosion on the bolts, especially in older engines. If the bolts are stubborn, apply a penetrating oil like WD-40 or PB Blaster and let it sit for 10 to 15 minutes. Avoid forcing the bolts, as stripping them can complicate the repair. For added precision, use a ratchet with a long handle to increase leverage, and consider labeling the bolts’ positions if the pump has multiple mounting points to ensure correct reassembly.
From a practical standpoint, removing the mounting bolts is a straightforward task, but it demands attention to detail. Start by loosening the bolts in a diagonal pattern, similar to changing a tire, to prevent uneven stress on the pump. Keep track of the washers or spacers beneath the bolts, as these are often specific to the FH661V model and ensure proper alignment. If the bolts are seized, heat application with a propane torch (briefly, to avoid damaging nearby components) can help break the bond.
Comparatively, this step is simpler than diagnosing fuel pump issues or aligning the new pump, but it sets the foundation for a successful repair. Skipping proper bolt removal can lead to misalignment, leaks, or even damage to the pump’s mounting flange. For those new to engine repairs, practice on a less critical bolt first to get a feel for the torque and resistance. Remember, the goal is not just to remove the bolts but to do so in a way that preserves the integrity of the engine and pump.
In conclusion, removing the mounting bolts of a John Deere FH661V fuel pump is a task that blends precision with practicality. By understanding the torque specifications, preparing for potential challenges like rust, and using the right tools, you can ensure a smooth and efficient process. This step, though seemingly minor, is a cornerstone of the repair, paving the way for a reliable reconnection of the fuel pump.
DIY Fuel Pump Flow Bench: Step-by-Step Build Guide
You may want to see also
Explore related products
Install New Pump: Align and secure the replacement pump with bolts and reconnect fuel lines
Installing a new fuel pump on your John Deere FH661V engine requires precision and attention to detail. Begin by aligning the replacement pump with the mounting holes on the engine block. Ensure the pump’s orientation matches the original unit, as misalignment can lead to leaks or improper function. Use a torque wrench to secure the bolts, tightening them to the manufacturer’s specified torque value, typically 15 to 20 foot-pounds. Over-tightening can damage the pump housing, while under-tightening risks loosening over time.
Once the pump is securely fastened, reconnect the fuel lines, starting with the inlet and outlet ports. Verify the lines are free of debris and properly seated to prevent air leaks, which can disrupt fuel flow. Use new seals or gaskets if the old ones show signs of wear. Clamp the lines firmly but avoid over-tightening, as this can crush the fittings. A practical tip: apply a small amount of clean engine oil to the seals to ensure a snug fit and ease installation.
Next, inspect the electrical connections to the pump. Ensure the wiring harness is securely attached and free of corrosion. If the pump includes a ground wire, confirm it’s tightly connected to a clean metal surface on the engine block. Faulty electrical connections can cause the pump to malfunction or fail prematurely. Test the connections with a multimeter if you’re unsure of their integrity.
Finally, prime the fuel system to eliminate air pockets, which can starve the engine of fuel. Turn the ignition key to the "on" position without starting the engine, and listen for the pump to cycle. If the engine doesn’t start immediately, crank it for short intervals until it catches. This step ensures the new pump operates smoothly and efficiently. By following these steps, you’ll restore proper fuel delivery and maintain the performance of your John Deere FH661V engine.
Do Motorcycles Have Fuel Pumps? Uncovering the Truth About Bike Fuel Systems
You may want to see also
Explore related products
Test for Leaks: Check connections for leaks and ensure proper fuel flow after installation
After installing the John Deere FH661V fuel pump, the integrity of connections becomes paramount. Even a minor leak can compromise performance, safety, and efficiency. Begin by inspecting all fittings, hoses, and clamps for signs of fuel seepage. Use a clean rag to wipe down the area, making it easier to spot fresh leaks. Pay close attention to areas where components meet, as these are common trouble spots. If the pump has been idle, pressure changes during operation can expose weaknesses that weren’t initially visible.
To test for leaks effectively, pressurize the fuel system. Start the engine and let it idle for a few minutes, allowing the pump to build pressure. While the engine runs, carefully inspect all connections again. Look for wet spots, drips, or the smell of fuel, which can indicate a leak. A small mirror can help you examine hard-to-reach areas. If a leak is detected, shut off the engine immediately and address the issue before proceeding. Operating with a leak risks fire hazards and fuel starvation, which can damage the engine.
Ensuring proper fuel flow is equally critical. A leak can disrupt the system’s pressure, leading to inconsistent fuel delivery. After confirming no leaks, check the fuel flow by observing the engine’s performance. Listen for unusual noises, such as sputtering or hesitation, which may indicate restricted flow. Use a fuel pressure gauge to verify the pump is delivering the correct PSI as specified in the John Deere manual (typically around 3–5 PSI for this model). If pressure is low, inspect the fuel filter and lines for clogs or kinks.
For added safety, consider applying a fuel-resistant sealant to threaded connections, but only if recommended by the manufacturer. Silicone-based sealants can prevent minor seepage without compromising the system. Always tighten fittings to the specified torque values to avoid over-tightening, which can warp components. Finally, run the engine under load for 10–15 minutes and recheck for leaks. This simulates real-world conditions and ensures the system holds up under stress. Proper leak testing and flow verification not only safeguard the engine but also extend the life of the fuel pump.
Chevrolet Silverado 2500HD Fuel Pump Removal Guide: Step-by-Step Process
You may want to see also
Frequently asked questions
You will need a wrench or socket set, pliers, a screwdriver, and possibly a fuel line disconnect tool to safely connect the fuel pump.
Align the fuel pump with the mounting holes and ensure the fuel lines are correctly positioned before securing it with bolts or clamps.
It is recommended to inspect the old fuel lines for cracks or damage. If they are in good condition, they can be reused; otherwise, replace them with new ones.
Check for air leaks in the fuel lines, ensure the pump is receiving power, and verify that the fuel filter is clean and properly installed. If issues persist, consult the manual or a technician.
